Android Question Add own view in [B4X] [XUI] AS Settings

[wimpie3]

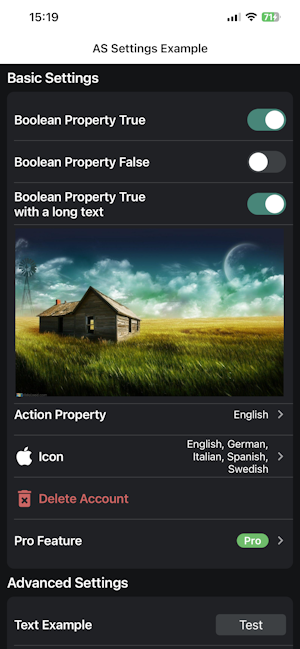

Can something like this be done in AS Settings (I'm talking about the image)? Do I need to use AS_Settings1_CustomDrawProperty? I can't seem to find an example on how to do this. Nothing should happen when you click the image, it's just there for decorative reasons.



[Alexander Stolte]

Use the AddProperty_Custom property togehter with the CustomDrawCustomProperty event

Example:

AS_Settings1.MainPage.AddProperty_Custom("","PremiumButton",90dip)

Private Sub AS_Settings1_CustomDrawCustomProperty(CustomProperty As AS_Settings_CustomDrawCustomProperty)
    Select CustomProperty.Property.PropertyName
        Case "PremiumButton"
                CustomProperty.BackgroundPanel.LoadLayout("frm_SettingsProperty_PremiumButton")
    End Select
End Sub



[wimpie3]

Thanks once again!



[Alexander Stolte]

[B4X] AS Settings - Custom Property

https://www.b4x.com/android/forum/threads/b4x-xui-as-settings.147435/ With this property you can add your own view or layout In the following example, I add a B4XImageView to a group and the B4XBreadCrumb comes outside the group Example AS_Settings1.MainPage.AddGroup("Group1","Group")...

www.b4x.com
