iOS Question Adding B4XViews by code

[mcorbeel]

I usesd this topic for adding controls by code:

[B4X] I need 100 <custom view here>s. How to add programmatically?

Custom views are designed to be added with the designer. It is however very simple to create a layout file with the custom view and load it multiple times. Tip: remove the call to AutoScaleAll from the designer script. Complete example: Sub Globals Private B4XSwitch1 As B4XSwitch End...

www.b4x.com

Though this works fine in B4A it does not in B4i. The controls are added to the panel but they keep their position as set in the designer. Setting TOP and LEFT has no effect. Is this solvable?



[Alexander Stolte]

Is this solvable?

Yes, with an example project, what shows the behaivior.



[mcorbeel]

Yes, with an example project, what shows the behaivior.

Thanks. I created as sample project and in that project it does work. In my existing project with shared code with B4A and B4i it works in B4A but not in B4i. I cannot share my existing project, so do you have any ideas of how I can troubleshoot this?



[mcorbeel]

I made a small progress. Adding the control to the root panel is okay, both B4A and B4i. But I always use a scrollview and there positioning in B4i does not work. I created a small sample project but I cannot upload it and get message that it is too large. So I just add my code here.

Sub Class_Globals
    Private RootPanel As B4XView
    Private ScrollViewPanel As B4XView
    Private xui As XUI
    Private B4XComboBox1 As B4XComboBox
    Private Scrollview As ScrollView
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    RootPanel = Root1
End Sub


Private Sub B4XPage_Appear()
    RootPanel.RemoveAllViews

    #if b4a
    Scrollview.Initialize(100%x)
    #End If

    #if b4i
    Scrollview.Initialize("", 100%x, 100%y)
    #End If

    RootPanel.AddView(Scrollview, 0, 0, 100%x, 100%y)
    ScrollViewPanel = Scrollview.Panel


    'adding the layout to the scrollview panel (is what I need)
    'positioning works in B4a, NOT in B4i
    ScrollViewPanel.LoadLayout("MainPage")


    'adding the layout to the main panel (test only, because I do need the scrollview)
    'positioning works in B4A and B4i
    'RootPanel.LoadLayout("MainPage")


    B4XComboBox1.mBase.Left = 50dip
    B4XComboBox1.mBase.Top = 100dip

    Dim oList As List
    oList.Initialize
    oList.Add("aaa")
    oList.Add("bbb")
    oList.Add("ccc")
    B4XComboBox1.SetItems(oList)
End Sub



[Alexander Stolte]

100%x, 100%y

Never use %x or %y outside the Resize event.



[mcorbeel]

Never use %x or %y outside the Resize event.

Right, I knew, but it was only in the sample app. In my live app I do not do this...



[Alexander Stolte]

That would be at least one source of error.



[Alexander Stolte]

it and get message that it is too large.

Delete the AutoBackup and Object folder, then it's not too large anymore.



[mcorbeel]

Delete the AutoBackup and Object folder, then it's not too large anymore.

Cool, thanks. .. Here is the sample code (still with the 100%x, sorry)...



[Alexander Stolte]

Just place a Sleep(50) after the LoadLayout, it needs a little time to initialize before you can change the position.



[mcorbeel]

Just place a Sleep(50) after the LoadLayout, it needs a little time to initialize before you can change the position.

When I put the Sleep(50) after the LoadLayout in the sample app then indeed the issue is solved. When I do this in my live app it is NOT fixed. But in the live app there is a lot more happening, like a few http calls before the LoadLayout ...



[mcorbeel]

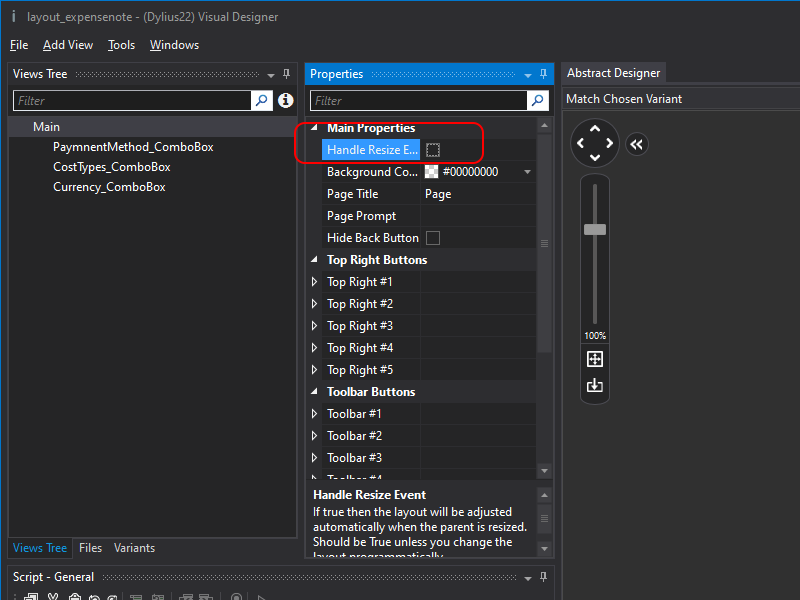

I have solved the issue by unchecking the checkbox "Handle Resize Event" in the properties of the form in the designer. Me happy!
