B4A Library addoMedia3 - AndroidX Media3 Exoplayer Wrapper

This library is wrapper for the new AndroidX Media3 Library which is based on Exoplayer You can still use my previous wrapper.
Since from now on the new updates and releases will be Published to AndroidX Media3 Library. so i migrate the whole wrapper to the new codebase.

Version 1.3.1 required aar.
Additional AAR 1.3.1

Functionality :

• CreateUriSource
• CreateSmoothStreamingSource
• CreateHLSSource
• CreateDashSource
• CreateFileSource
• CreateRtspStreamingSource
• CreateRtmpStreamingSource
• CreateUdpStreamingSource
• clearMediaItems
• CreateListSource
• setReapeatMode
• getIsPlaying
• Prepare
• Play
• Pause
• Release
• getPosition
• setPosition
• getDuration
• getVolume
• setVolume
• getCurrentMediaItemIndex
• GetvideoFormatwidth
• GetvideoFormatHeight
• GetAudioTracksLanguages
• GetVideoTrackSubtitles
• preferedAudioLanguage
• preferedtextLanguage
• EnableSubtitles
• PlaybackSpeed

DesignerProperties

• Media3PlayerView
• ResizeMode [FIT|FIXED_HEIGHT|FIXED_WIDTH]
• UseController default is true
• ShowBuffering [NEVER|PLAYING|ALWAYS] default is NEVER
• ControllerTimeout default is 5000

Events :

• Player_Ready
• Player_Error
• Player_Complete
• Player_MetaData(metadataFields As Map)
• IDLE
• Buffering

Library and Example attached. Don't forget to download the required media3 aars, have a good day.

Updated to version 1.3

Added

• TrackMetadata
• PlaybackSpeed

Sub Player_Ready
    addoPlayer.TrackMetadata
    Log("Ready")
End Sub

'example of calling th event

Sub Player_MetaData(metadataFields As Map)
    Log(metadataFields)
    Label1.Text = ""
    If metadataFields.ContainsKey("Title") Then
        Label1.Text = metadataFields.Get("Title")
    End If
    ' Handle the metadata fields here
    If metadataFields.ContainsKey("ArtworkData") Then
        Dim artworkData() As Byte = metadataFields.Get("ArtworkData")
        ' Create an InputStream from the byte array
        Dim inp As InputStream
        inp.InitializeFromBytesArray(artworkData, 0, artworkData.Length)
        ' Create a Bitmap from the InputStream
        Dim bitmap As Bitmap
        bitmap.Initialize2(inp)
        ImageView1.Bitmap = bitmap
        ImageView1.Visible = True
    End If
End Sub

Updated Media3 to the latest 1.3.1

Updated to version 1.4

• Fixes an incompatibility between ExoPlayer and Firebase. Make sure to update the additional libs package.

updated to version 1.6

• Updated the dependencies to be compatible with b4a 13+
• removed PlayList replaced with CreateListSource

updated to version 1.7

• Added a new view addoMedia3TexureView based on TextureView.
• Added GetVideoTextLanguages2
• Added GetAudioTracksLanguages2
• Added SetTextLanguage2
• SetAudioLanguage2
• Added Event_GetVideoTextLanguages2(Subtitles As Map)
• Added Event_Getaudiolanguages2(audiotracks As Map)

As mentioned in this thread there was issue on setting and retrieving the correct supported languages for audio and subtitles use GetVideoTextLanguages2 and GetAudioTracksLanguages2 to retrieve the correct language information.

The TextureView is a new view added to gives the ability to rotate the player as mentioned here. the down side of using textureview that the subtitle in videos will not be visible.

updated to version 1.8

in this update addoMedia3 and addoMedia3TexureView has a new method and event.

• Added a new method takeScreenshot.
• Added a new event OnScreenShot(screensrc() As Byte)

updated to version 1.9

• Removed the internal dependencies so you can add them selectively as #AdditionalJar in b4a IDE

#Region Additional libs

#AdditionalJar: addoexo/media3-common-1.3.1.aar
#AdditionalJar: addoexo/media3-container-1.3.1.aar
#AdditionalJar: addoexo/media3-database-1.3.1.aar
#AdditionalJar: addoexo/media3-datasource-1.3.1.aar
#AdditionalJar: addoexo/media3-datasource-rtmp-1.3.1.aar
#AdditionalJar: addoexo/media3-decoder-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-dash-1.3.1.aar
#AdditionalJar: addoexo/media3-cast-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-hls-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-rtsp-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-smoothstreaming-1.3.1.aar
#AdditionalJar: addoexo/media3-extractor-1.3.1.aar
#AdditionalJar: addoexo/media3-ui-1.3.1.aar
#AdditionalJar: addoexo/rtmp-client-3.2.0.aar
#AdditionalJar: addoexo/guava-31.1-android-without-listenable.jar
#AdditionalJar: androidx.recyclerview:recyclerview
#AdditionalJar: androidx.customview:customview-poolingcontainer
#AdditionalJar: androidx.media:media
#AdditionalJar: com.google.guava:listenablefuture

#End Region

Example Updated to describe the usage of both views.

Important Note Additional aar files must be place in a folder with name addoexo.


I may add more features to this library..



[byz]

hi， thanks your great work。could you add a function to play by index for CreateListSource？
and another question:when play by CreateListSource the complete event are one or list？



[Addo]

Version 1.3

• Updated Media3 to latest version 1.2.0
• Removed CreateListSource Method since ConcatenatingMediaSource is deprecated in version 1.2.0.
• Added a new method PlayList to adapt the new mechanism to play a list of mediasources in the new version.
• Added a new method clearMediaItems.

Example Updated as well.
its required to redownload the AAR files from the link in the first post.



[nedium]

hi @Addo , thanks your great work



[rdkartono]

hi @Addo, great library . easy to use.
Is it possible if you can add designer property, so we can choose app:surface_type to surface_view / texture_view / others, such as stated in documentation ? (https://developer.android.com/reference/androidx/media3/ui/PlayerView )



[Addo]

Updated Media3 to the latest 1.3.1

Updated to version 1.4

• Fixes an incompatibility between ExoPlayer and Firebase. Make sure to update the additional libs package.

Important Note Additional aar files must be place in a folder with name addoexo.



[nedium]

hi @Addo , thanks your great work

I wanted to know if it could be verified

-GetAudioTracksLanguages
-GetVideoTrackSubtitles

since in some playbacks it does not detect some tracks and in vlc it does sample them and they work.

thank you



[Scantech]

Thanks for the library. It has more features than the other media3 library. Any chance supporting This



[Addo]

updated to version 1.7

• Added a new view addoMedia3TexureView based on TextureView.
• Added GetVideoTextLanguages2
• Added GetAudioTracksLanguages2
• Added SetTextLanguage2
• SetAudioLanguage2
• Added Event_GetVideoTextLanguages2(Subtitles As Map)
• Added Event_Getaudiolanguages2(audiotracks As Map)

As mentioned in this thread there was issue on setting and retrieving the correct supported languages for audio and subtitles use GetVideoTextLanguages2 and GetAudioTracksLanguages2 to retrieve the correct language information.

The TextureView is a new view added to gives the ability to rotate the player as mentioned here. the down side of using textureview that the subtitle in videos will not be visible.

Example Updated to describe the usage of both views.



[byz]

How to achieve efficient timing screenshots please. The time interval is in milliseconds, because the image needs to be processed and sent to the server.
This is useful for applications where real-time video monitoring is required.



[Almora]

hello can we get a screenshot? Is there such a feature?



[Addo]

updated to version 1.8

in this update addoMedia3 and addoMedia3TexureView has a new method and event.

• Added a new method takeScreenshot.
• Added a new event OnScreenShot(screensrc() As Byte)

Example updated as well.



[nedium]

Hello @Addo , the 2 new ways to obtain the audio and subtitles

Added Event_GetVideoTextLanguages2(Subtitles As Map)
Added Event_Getaudiolanguages2(audiotracks As Map)

they work well.

But could it be added or I don't know if there is an option that if I select a subtitle and I no longer want to use it, how could I remove or disable it?

thanks for your work



[Addo]

updated to version 1.9

• Removed the internal dependencies so you can add them selectively as #AdditionalJar in b4a IDE to avoid conflicts with other libraries.

also this gives possibility to upgrade the media3 AAR to the newest version as long as the codebase has the same functionality without deprecation.

#Region Additional libs

#AdditionalJar: addoexo/media3-common-1.3.1.aar
#AdditionalJar: addoexo/media3-container-1.3.1.aar
#AdditionalJar: addoexo/media3-database-1.3.1.aar
#AdditionalJar: addoexo/media3-datasource-1.3.1.aar
#AdditionalJar: addoexo/media3-datasource-rtmp-1.3.1.aar
#AdditionalJar: addoexo/media3-decoder-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-dash-1.3.1.aar
#AdditionalJar: addoexo/media3-cast-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-hls-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-rtsp-1.3.1.aar
#AdditionalJar: addoexo/media3-exoplayer-smoothstreaming-1.3.1.aar
#AdditionalJar: addoexo/media3-extractor-1.3.1.aar
#AdditionalJar: addoexo/media3-ui-1.3.1.aar
#AdditionalJar: addoexo/rtmp-client-3.2.0.aar
#AdditionalJar: addoexo/guava-31.1-android-without-listenable.jar
#AdditionalJar: androidx.recyclerview:recyclerview
#AdditionalJar: androidx.customview:customview-poolingcontainer
#AdditionalJar: androidx.media:media
#AdditionalJar: com.google.guava:listenablefuture

#End Region



[nedium]

thanks for your work @Addo



[Almora]

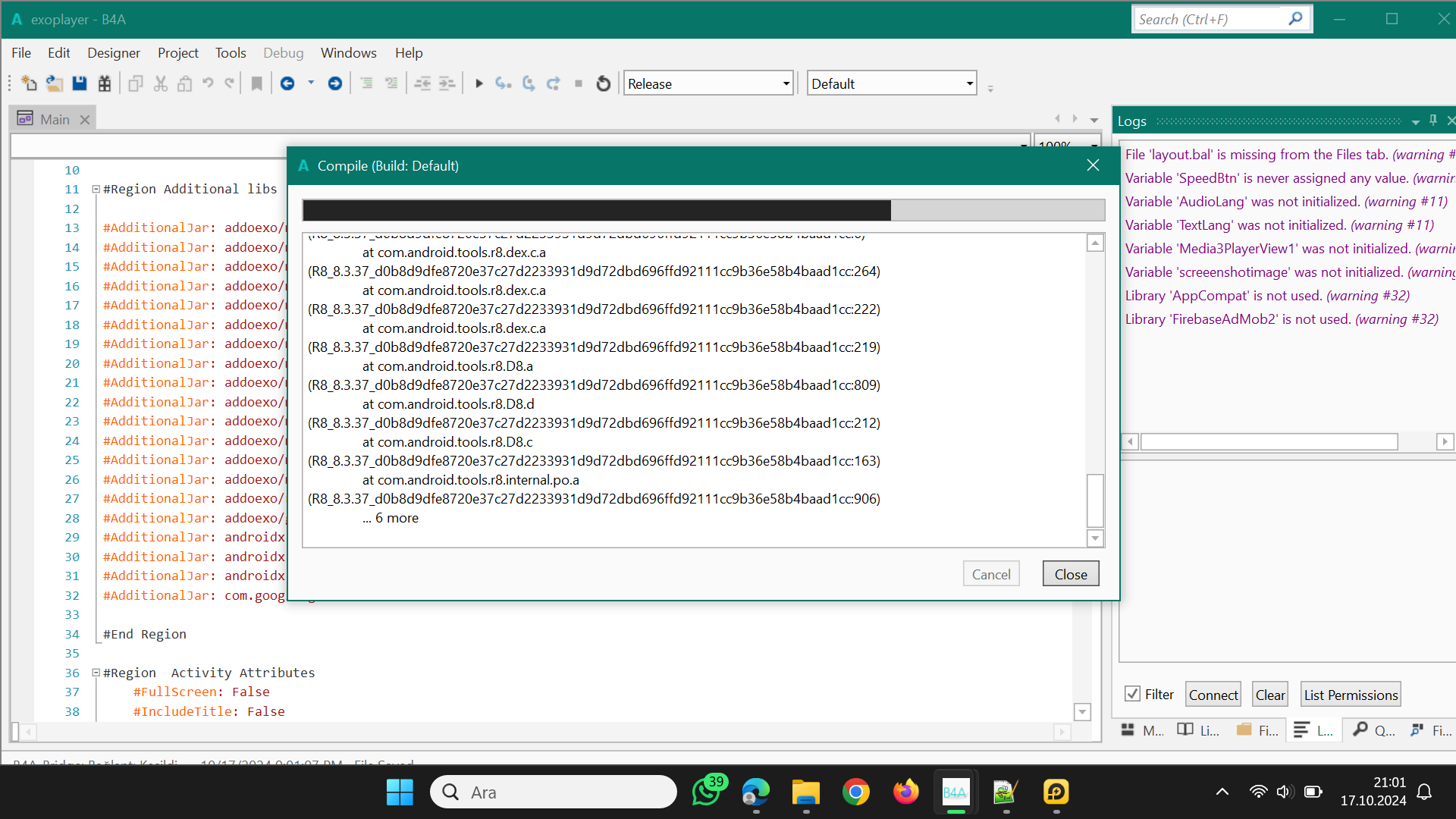

Hello. I tried the example on the first page. The problem still persists. When FireBaseAdmob2 is added, it gives an error.



[Addo]

First of all you need to show your project or minimal example because i can't see the project source from this image. Better upload minimal example so i can reproduce the issue you face and see how you setup the project.



[Almora]

#AdditionalJar: addoexo/guava-31.1-android-without-listenable.jar

if I remove this it compiles.



[Addo]

if I remove this it compiles.

And thats the reason behind i did this update to be able to avoid duplicate dependencies. If Firebase using this dependence which indeed does so no need to include it as a part of the additional jars since its been included already in another library, maybe in future b4a updates this can be avoided.
