B4J Code Snippet b4jVectEdit: CAD-interface development

Hi, All

It's my idea to create the interface of CAD software template version that can

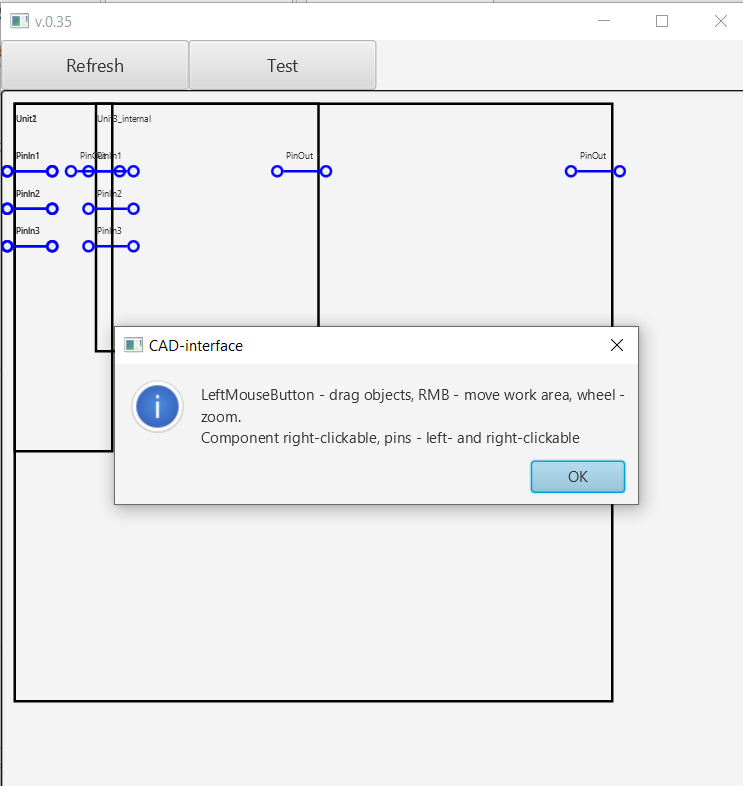

• create the vector objects
• drag objects over the work area
• move the area
• click the objects, pins

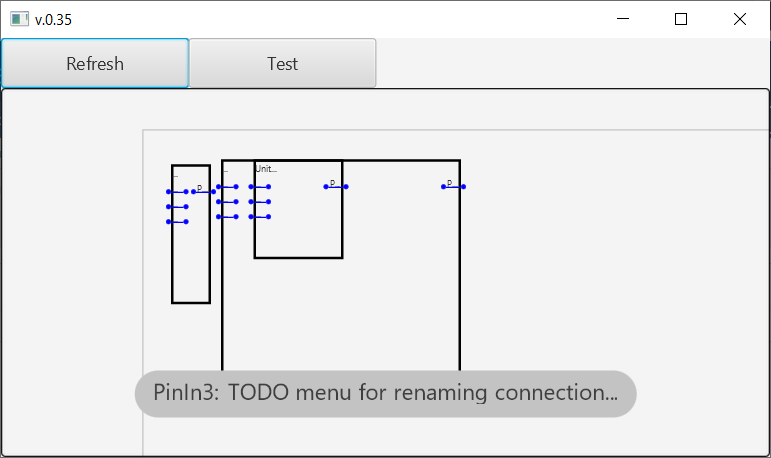

• zooming the objects by the mouse wheel: by re-calculation of each object

It's just my first try to create the vector object editor, and i decided to stop development cross-platformerly (also for B4A)

Spoiler: Related topics

CAD-interface: 2D-scroll + zoom

Hi, All The more i try to make the crossplatform code for CAD-interfaced vector object editor - the more i think it's impossible cross-platformely. Who used any CAD-software where 1) there is the working sheet where placed the objects, draggable objects + 2D scrollable area - it's like...

www.b4x.com

ScrollViewInnerPanel: cross-platform editor container - how ?

Hi, All If to create an editor of big area (like CAD-software), bigger than the app form\activity - it needs some 2D-scrolling container. But the editor should allow objects moving inside the container that is scrollable itself. 1) How to use cross-platform B4XView as 2D ScrollView with...

www.b4x.com

Cross-platform grid code: B4A is not equal B4J

HI, All The project is attached: the same code for B4J and B4A. At start the objects are OK at 0.0 coords. Under Windows B4J compilation works ideally (object moving along the grid), but under Android - objects are not fit a bit, if to move both objects and try to fit the circles. Why ?

www.b4x.com

How? Correct crossplatform mouse object moving (dragging) by _Touch event

HI, All Please, help to understand how to just make correct dragging the B4XView-object manually by a mouse. The project is attached. It will be shared to any forummates when ready - it's the template of the vector objects editor. How to make smooth dragging along the cursor ? And without...

www.b4x.com

Cross-platform drag by RIGHT (second) mouse button

Hi, All If to inherit the post https://www.b4x.com/android/forum/threads/how-correct-crossplatform-mouse-object-moving-dragging-by-_touch-event.160800/#content, next questions: If on PC we can: select objects by LMB (left mouse button) or drag objects by LMB move whole objects area by RMB...

www.b4x.com

How correctly to destroy a class instance ?

HI, All If a B4X class contains other B4X classes and the instances are created runtime - if they are views, usually they need to be: created: init\create\show each instance of sub-classes shown in an interface (and resized) updated in an interface (and resized) maybe moved by user and...

www.b4x.com

XUI_Touch event: how to consume it after processing ?

Hi, All Is it possible to consume this event cross-platformly after processing ? When processing is finished - it needs to prevent passing it to the container(-s).

www.b4x.com

I hope, someone can help me to go on, any update of this code is welcome to this topic.



[peacemaker]

But strange that if to use "test.bjl" (in the project Files folder) instead of creating the objects - the loaded layout is not zoomed.



[kimstudio]

It works. What is the test button for?
This kind of interface is a little bit like my modular system with drag and connection although the vector part is quite different.



[peacemaker]

modular system

Wow ! It's strange that i could not find your post before



[LGS]

Hello everyone.

Based on the following thread
https://www.b4x.com/android/forum/t...g-dragging-by-_touch-event.160800/post-986978

I have modified some lines of code for my need:

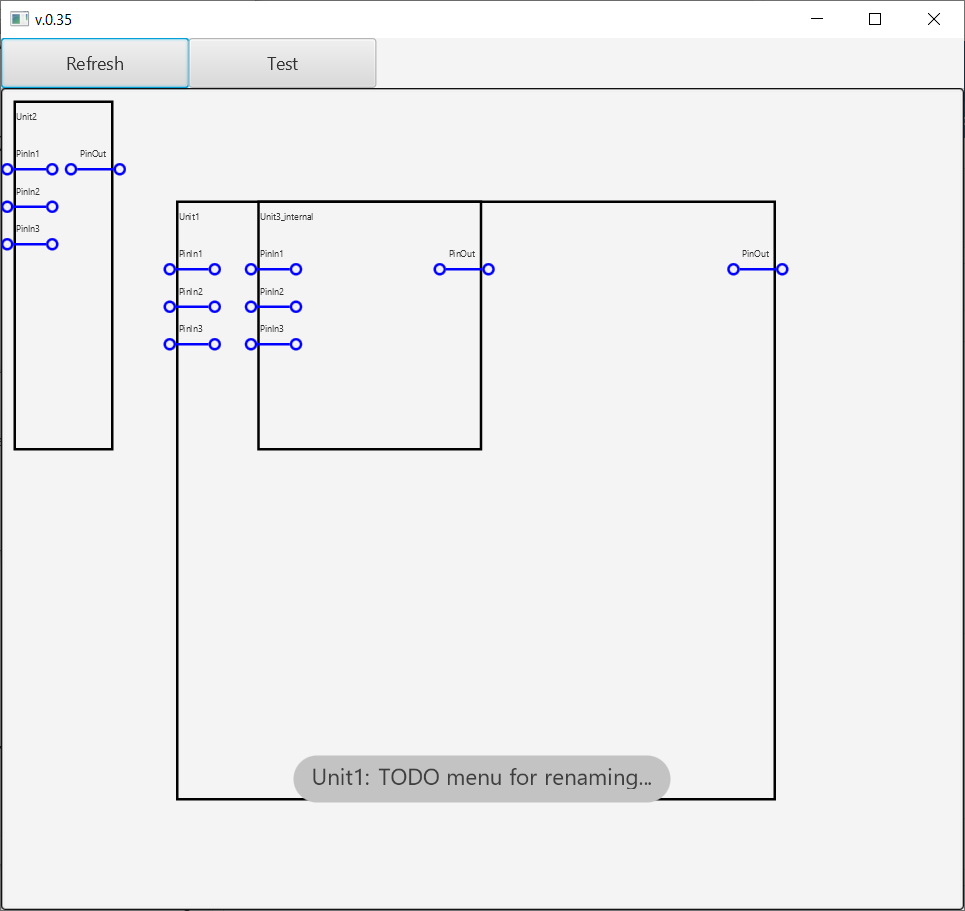

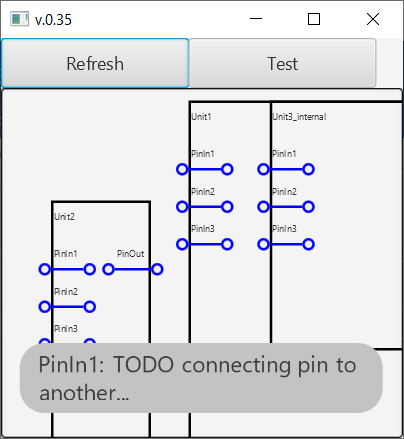

• All objects(b4xVectEdit_component) are created by code (Not by designer) on a panel created in the designer
• The size of the panel and the b4xVectEdit_component can be modified
• MouseClicked(SecondaryButtonPressed) changes the width to the height and vice versa (90° rotation effect)


I have only tested in B4J (For now)
All improvements are welcome

Thanks to peacemaker for the support
