B4J Question [B4X] Prevent pane overlapping in layout

[Alexander Stolte]

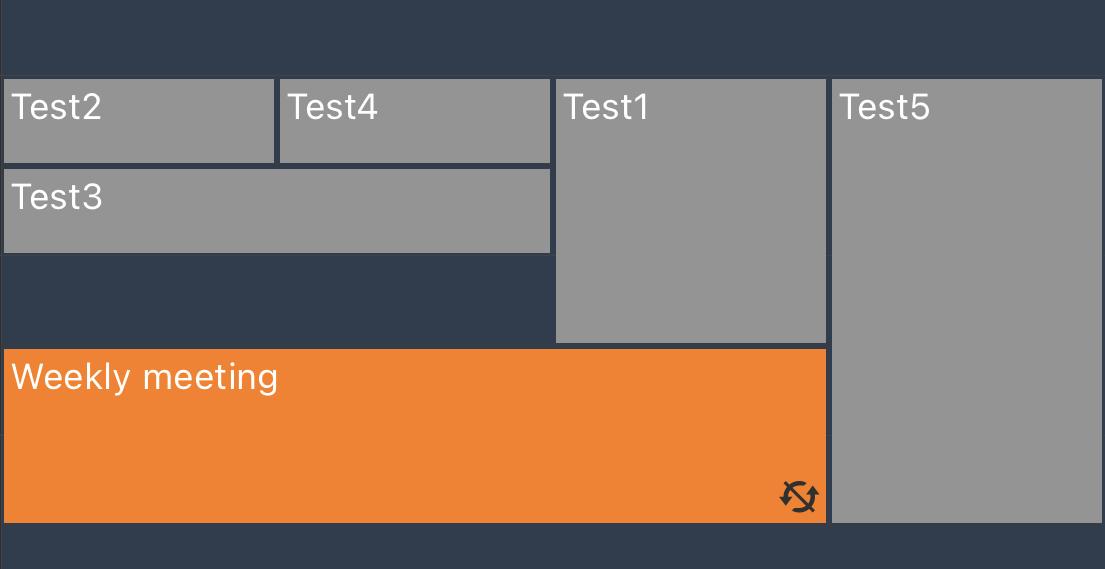

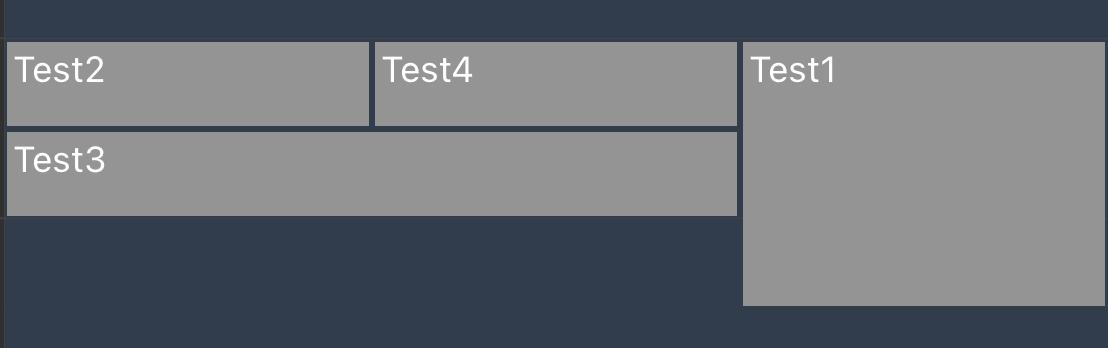

The goal is the following:

The top position and the height of the panel must be kept, only the width and left position should be adjusted.
I rebuilt the laoyut from the 1st image, I can't get it to write a function that determines the best width and adjusts the panels to the left position.



[LucaMs]

The goal is the following:
View attachment 132393View attachment 132394
The top position and the height of the panel must be kept, only the width and left position should be adjusted.
I rebuilt the laoyut from the 1st image, I can't get it to write a function that determines the best width and adjusts the panels to the left position.

If you attach a project where the layout is totally different, how should we help you?



[Alexander Stolte]

If you attach a project where the layout is totally different, how should we help you?

Where is the layout different from the photo?????

In the example project is a layout with:
1 Big Pane like Test1
2 panes like Test2 and Test4
under the 2 panes are one pane as Test3

Only all panes in my example have all the same length, because this is my starting position. From there the panels must be adjusted in width and from the left value, so that it looks like in the 1st picture.



[Alexander Stolte]

It would also be enough for me if someone can give some food for thought on how they would do it based on the 2 pictures. I've run out of ideas, I've tried a lot of things that didn't work....



[PaulMeuris]

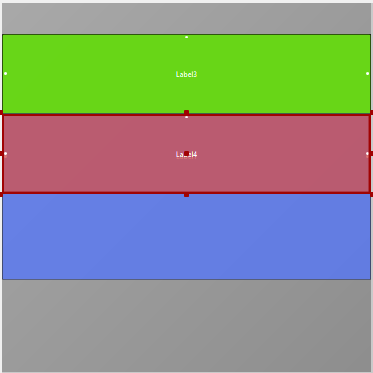

From this situation:

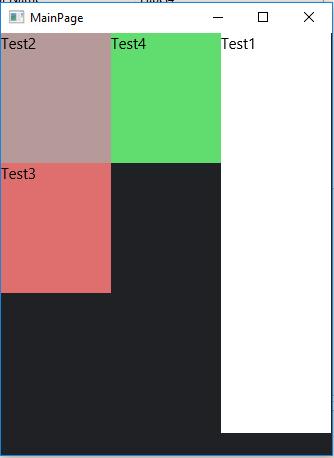

Go to this situation:

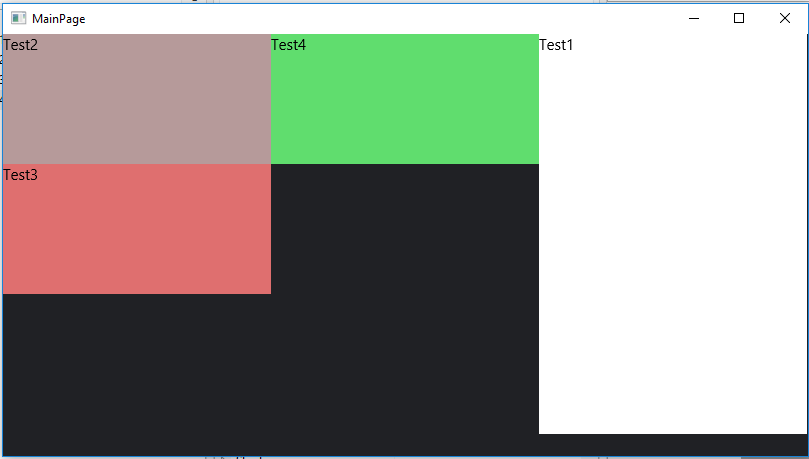

Or a wider window:

Here is some code to accomplish this:

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private devwidth As Int
    Private devheight As Int
End Sub
Public Sub Initialize
    B4XPages.GetManager.LogEvents = True
End Sub
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("frm_main")
End Sub
Private Sub B4XPage_Appear
    set_layout
End Sub
Private Sub B4XPage_Resize (Width As Int, Height As Int)
    set_layout
End Sub
Private Sub set_layout
    devwidth = B4XPages.GetNativeParent(B4XPages.MainPage).RootPane.Width
    devheight = B4XPages.GetNativeParent(B4XPages.MainPage).RootPane.Height
    Dim lpos1 As Int = 0
    Dim lpos2 As Int = devwidth / 3
    Dim lpos3 As Int = lpos2 * 2
    Dim labelwidth As Int = devwidth / 3
    For i = 0 To Root.NumberOfViews -1
        Dim xpnl As B4XView = Root.GetView(i)
        Select i
            Case 0
                xpnl.Width = labelwidth
                xpnl.SetLayoutAnimated(0,lpos3,0,xpnl.Width,xpnl.Height)
            Case 1
                xpnl.Width = labelwidth
                xpnl.SetLayoutAnimated(0,lpos1,0,xpnl.Width,xpnl.Height)
            Case 2
                xpnl.Width = labelwidth * 2
                xpnl.SetLayoutAnimated(0,lpos1,xpnl.height,xpnl.Width,xpnl.Height)
            Case 3
                xpnl.Width = labelwidth
                xpnl.SetLayoutAnimated(0,lpos2,0,xpnl.Width,xpnl.Height)
        End Select
    Next
End Sub

Does this give you some idea?
This layout only adjusts when you resize the window from left to right or from right to left.
Happy coding!
Paul

EDIT: the pane width now takes the correct value.



[LucaMs]

Where is the layout different from the photo?????

In the example project is a layout with:

Download the project (your project)



[PaulMeuris]

Download the project (your project)

Luca,
Did you see message # 5 or @Erel is there some delay on the forum that doesn't display my messages?



[stevel05]

Have a look at the new designer scripts extensions . The SpreadControlsHorizontally method goes some way towards what you want. Create your own class, copy the code from the DDD class (there are a lot of method dependencies in the class). Create a new method based on the SpreadControlsHorizontally method. That should give you a start.



[stevel05]

Just re-read your post. You don't say if you want to automate it, or just get a script that works, This is the latter.



[Alexander Stolte]

I will explain it better later, I am not at home right now.
I need this for my scheduler, for the dayviev. My current algorithm does not cover all appointment scenarios.There I check if there are overlaps. This works well, but in the scenarios like in picture 1 and picture 2 it does not find all overlaps.



[LucaMs]

Luca,
Did you see message # 5 or @Erel is there some delay on the forum that doesn't display my messages?

I have seen it but I have not read it well, because if I have not misunderstood @Alexander Stolte has not published the layout he would like to obtain with the exception of the panel to be positioned well. I saw that you wrote some code to get it, starting from the published one, which contains only 4 Labels positioned very differently.



[Alexander Stolte]

You don't say if you want to automate it, or just get a script that works, This is the latter.

It is to be automated. Otherwise I wouldn't have so many problems with it.



[Alexander Stolte]

I am currently writing an example project, with which my 2 already existing functions can work and thus my problem can be better represented.



[Alexander Stolte]

I have created a new thread, with a more detailed example project and 2 functions that almost give the desired result.

Prevent panel overlapping in a scheduler with events

I need a dynamic solution to adjust panels in width and left so that they are displayed without colliding. In my example i have 4 Appointements, 3 Appointments start at the same time but end at different times. The 4th appointment "Test3" starts after the 2 other appointments, but still collides...
