B4A Library [B4X] [XUI] AS BottomWheelDateTimePicker based on AS_WheelDateTimePicker

This view makes it easy to quickly provide a good looking date and time picker, based on the AS_WheelDateTimePicker, built into a ready to use bottom menu.

You need:

• AS_DraggableBottomCard V1.14+
• AS_WheelPicker V3.24+
• AS_WheelDateTimePicker V1.17+

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee.

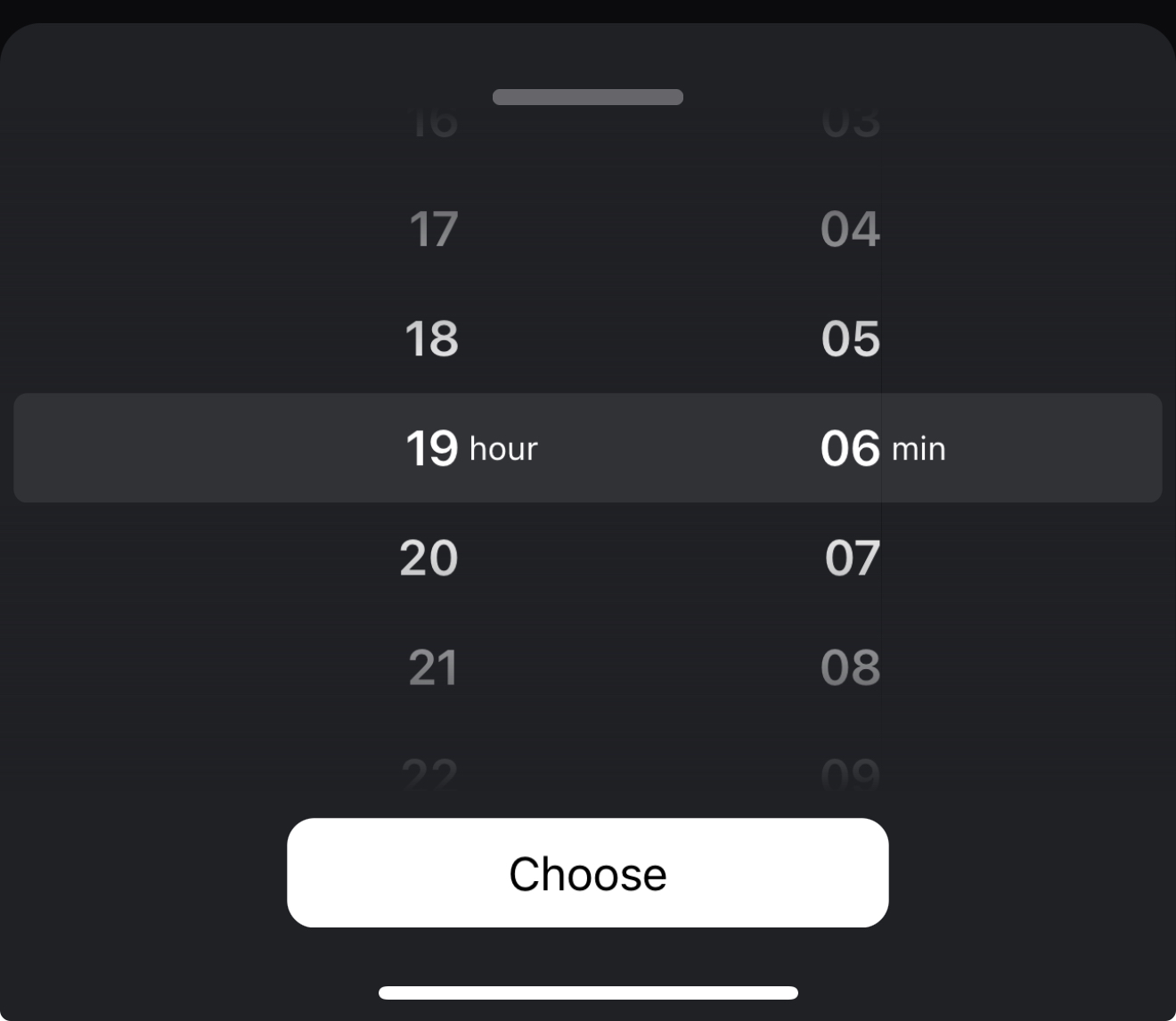

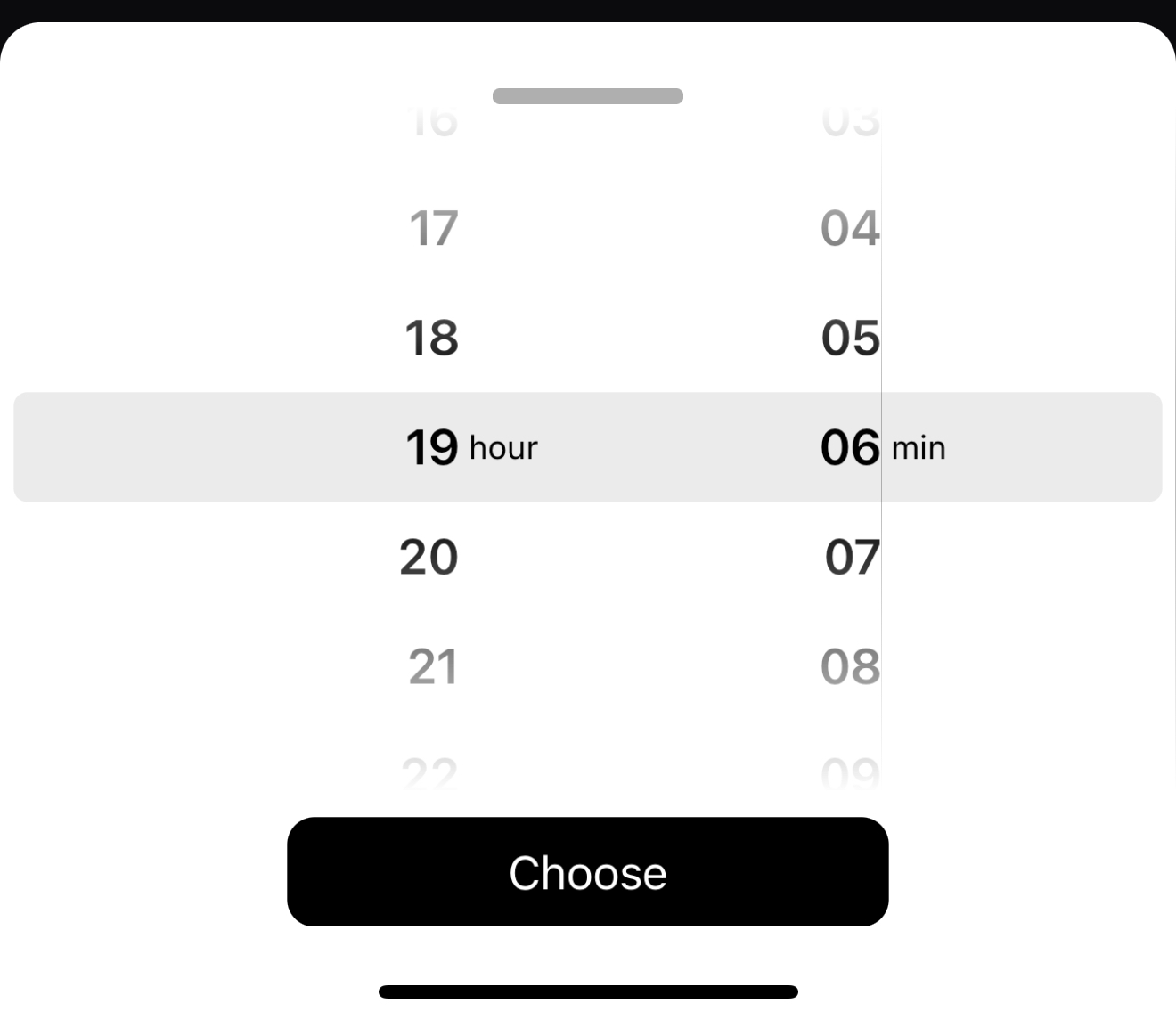

TimePicker Example

Private Sub OpenSheetTimePicker(DarkMode As Boolean)
    BottomWheelDateTimePicker.Initialize(Me,"BottomWheelDateTimePicker",Root)

    BottomWheelDateTimePicker.Theme = IIf(DarkMode,BottomWheelDateTimePicker.Theme_Dark,BottomWheelDateTimePicker.Theme_Light)
    BottomWheelDateTimePicker.ActionButtonVisible = True

    BottomWheelDateTimePicker.PickerType = BottomWheelDateTimePicker.PickerType_TimePicker
    BottomWheelDateTimePicker.TimePicker_TimeUnit = True 'Show TimePicker_HourShortText and TimePicker_MinuteShortText
    BottomWheelDateTimePicker.TimePicker_ShowAMPM = False
'    BottomWheelDateTimePicker.TimePicker_TimeDivider = True
'    BottomWheelDateTimePicker.TimePicker_ShowDate = True
'    BottomWheelDateTimePicker.TimePicker_HourShortText = "hour"
'    BottomWheelDateTimePicker.TimePicker_MinuteShortText = "min"
'    BottomWheelDateTimePicker.Hour = 13 'Only Works in Release mode
'    BottomWheelDateTimePicker.Minute = 46 'Only Works in Release mode
    BottomWheelDateTimePicker.ShowPicker

    BottomWheelDateTimePicker.ActionButton.Text = "Choose"

    Wait For BottomWheelDateTimePicker_ActionButtonClicked

    #If Debug
    Log($"Hour: ${BottomWheelDateTimePicker.Hour} Minute: ${BottomWheelDateTimePicker.Minute}"$)
    #Else
    xui.MsgboxAsync($"Hour: ${BottomWheelDateTimePicker.Hour} Minute: ${BottomWheelDateTimePicker.Minute}"$,"TimePicker")
    #End If

    BottomWheelDateTimePicker.HidePicker

End Sub

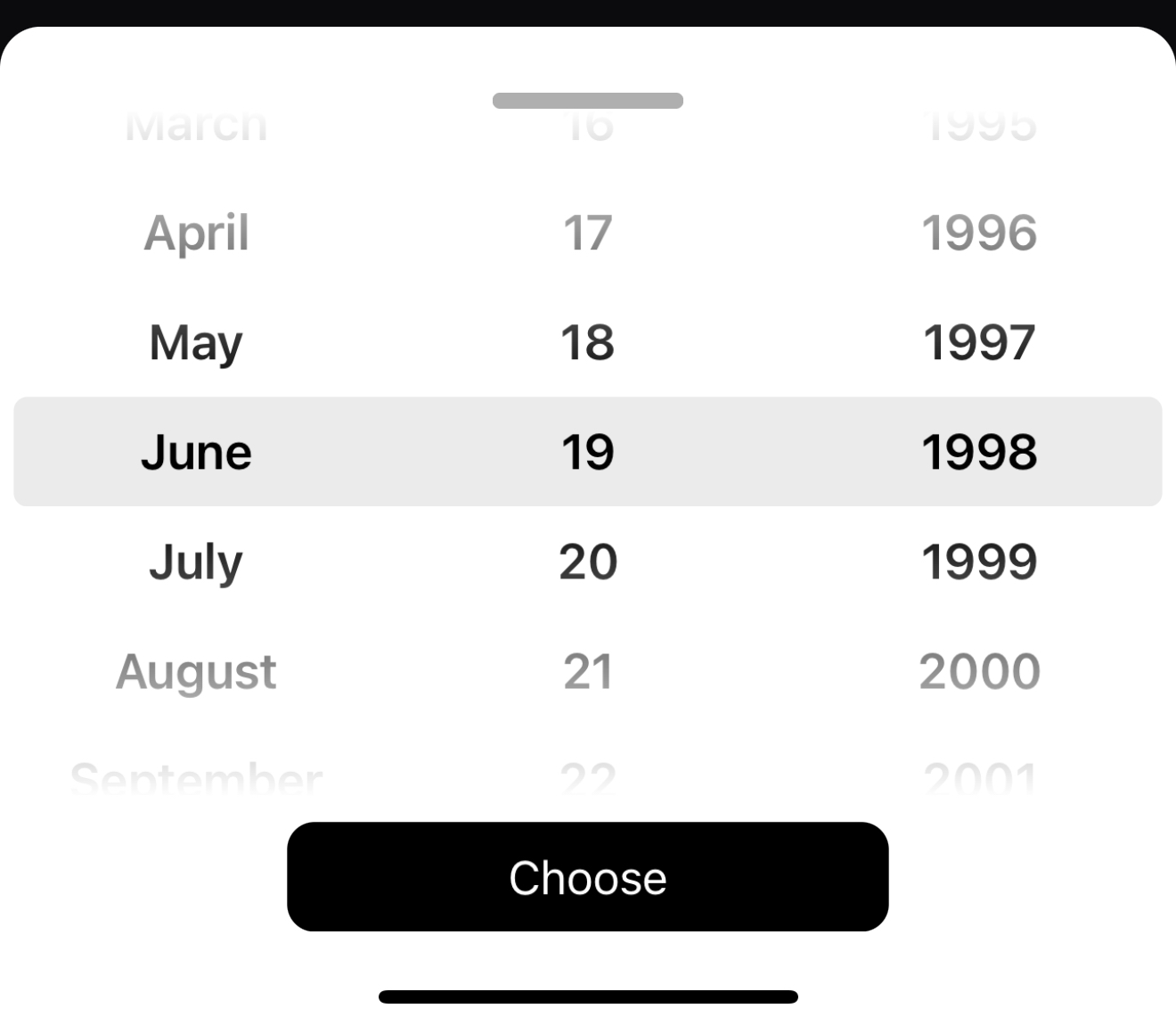

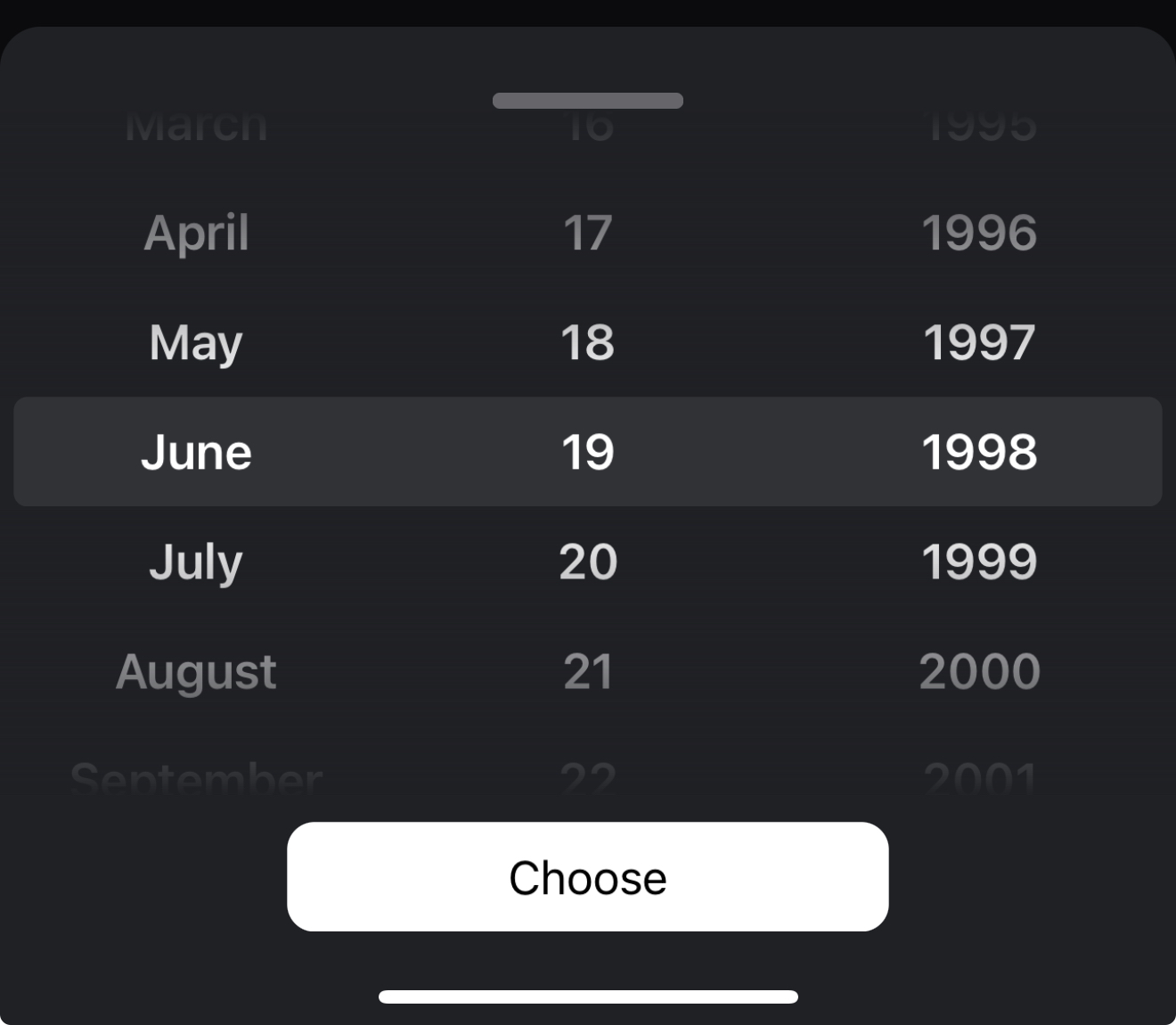

DatePicker Example

Private Sub OpenSheetDatePicker(DarkMode As Boolean)
    BottomWheelDateTimePicker.Initialize(Me,"BottomWheelDateTimePicker",Root)

    BottomWheelDateTimePicker.Theme = IIf(DarkMode,BottomWheelDateTimePicker.Theme_Dark,BottomWheelDateTimePicker.Theme_Light)
    BottomWheelDateTimePicker.ActionButtonVisible = True

    BottomWheelDateTimePicker.PickerType = BottomWheelDateTimePicker.PickerType_DatePicker
'    BottomWheelDateTimePicker.DatePicker_MaxDate = DateTime.Now
'    BottomWheelDateTimePicker.Date = DateUtils.SetDate(2025,1,4)
    BottomWheelDateTimePicker.ShowPicker

    BottomWheelDateTimePicker.ActionButton.Text = "Choose"

    Wait For BottomWheelDateTimePicker_ActionButtonClicked

    #If Debug
    Log(DateUtils.TicksToString(BottomWheelDateTimePicker.Date))
    #Else
    xui.MsgboxAsync(DateUtils.TicksToString(BottomWheelDateTimePicker.Date),"DatePicker")
    #End If

    BottomWheelDateTimePicker.HidePicker
End Sub

AS_BottomWheelDateTimePicker
Author: Alexander Stolte
Version: 1.00

Spoiler: Properties, Functions, Events, etc.

• AS_BottomWheelDateTimePicker
  • Events:
    • ActionButtonClicked
    • Close
  • Fields:
    • Tag As Object
  • Functions:
    • HidePicker
    • Initialize (Callback As Object, EventName As String, Parent As B4XView)
      Initializes the object. You can add parameters to this method if needed.
    • ShowPicker
  • Properties:
    • ActionButton As B4XView [read only]
    • ActionButtonVisible As Boolean
    • Color As Int
    • Date As Long
      Set it after you set the PickerType
    • DatePicker_MaxDate As Long
    • DatePicker_MinDate As Long
    • DragIndicatorColor As Int
    • Hour As Int
    • Minute As Int
    • PickerType As String
    • PickerType_DatePicker As String [read only]
    • PickerType_TimePicker As String [read only]
    • SheetWidth As Float
      Set the value to greater than 0 to set a custom width
      Set the value to 0 to use the full screen width
      Default: 0
    • TextColor As Int [write only]
    • Theme As AS_BottomWheelDateTimePicker_Theme [write only]
    • Theme_Dark As AS_BottomWheelDateTimePicker_Theme [read only]
    • Theme_Light As AS_BottomWheelDateTimePicker_Theme [read only]
    • ThemeChangeTransition_Fade As String [read only]
    • ThemeChangeTransition_None As String [read only]
    • TimePicker_HourShortText As String
    • TimePicker_MinuteShortText As String
    • TimePicker_MinuteSteps As Int
    • TimePicker_ShowAMPM As Boolean
      Show the AM and PM column
    • TimePicker_ShowDate As Boolean
      Show the date column in the TimePicker
    • TimePicker_TimeDivider As Boolean
      The separator between hour and minute is usually a colon ( : )
    • TimePicker_TimeUnit As Boolean
      Display time unit (12hour 05 min) can be changed with the HourShort and MinuteShort property
    • WheelDateTimePicker As AS_WheelDateTimePicker [read only]

Changelog

• 1.00
  • Release

Github: github.com/StolteX/AS_BottomWheelDateTimePicker
Have Fun



[sdleidel]

I have test it... Nice !

With the timepicker, mintime and maxtime would be really usable...
