B4A Library [B4X] [XUI] AS Clock - Analog Clock or Digital

JohnC said:

I wonder if this can be used with watches running Google Wear.

Click to expand...

Alexander Stolte said:

Thanks to @wonder for his nice "Analog Clock with Sound", this safes me a lot of time.

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal.

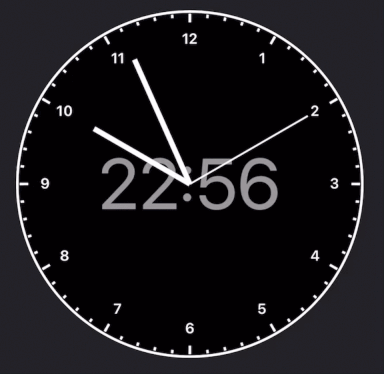

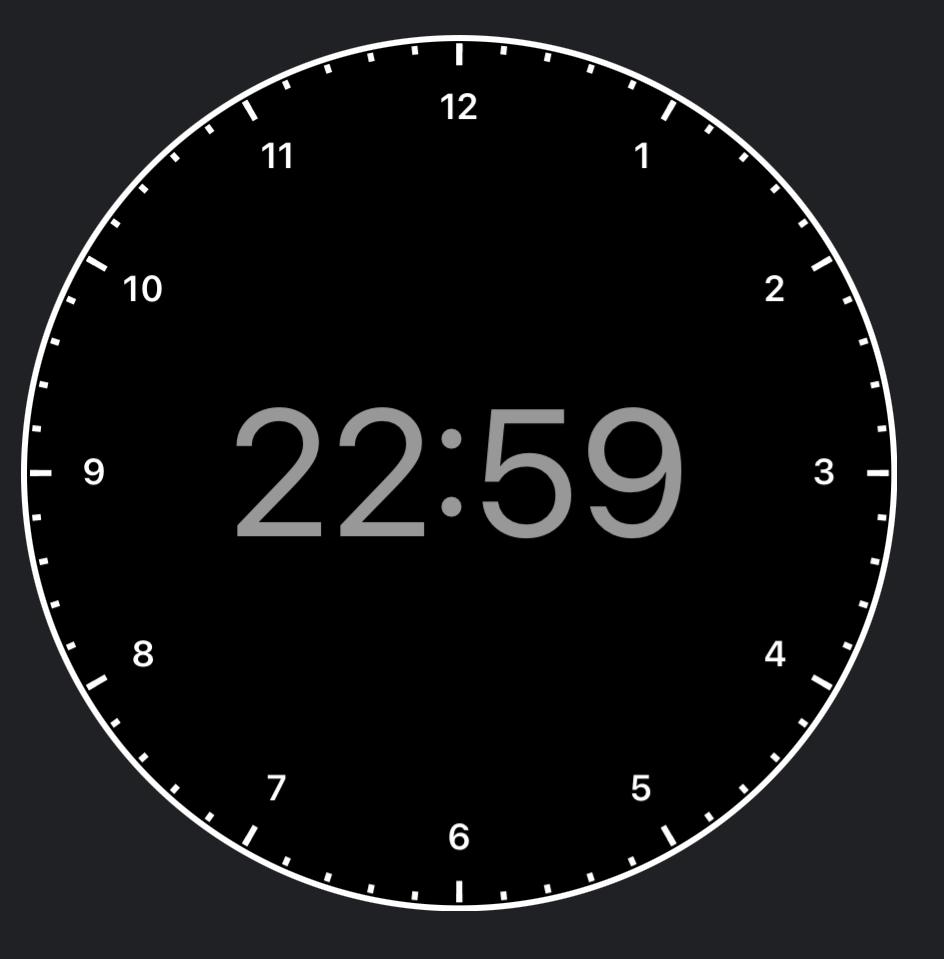

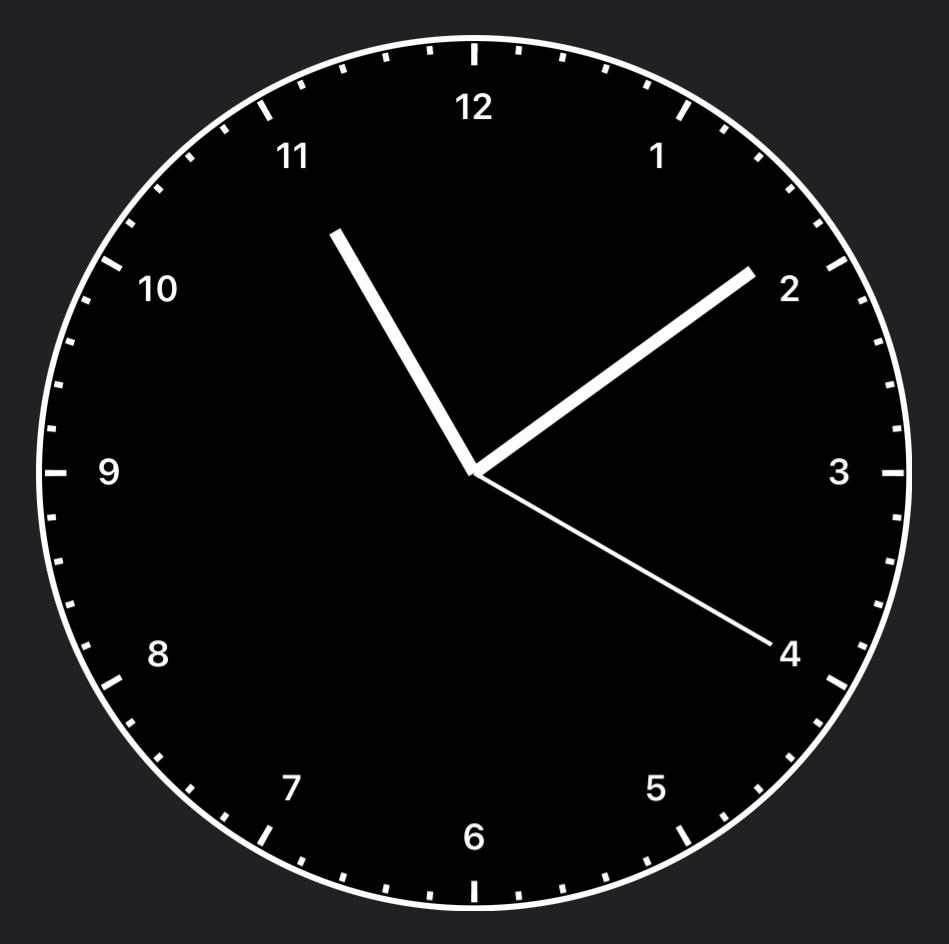

View attachment 124098View attachment 124099View attachment 124100View attachment 124101View attachment 124102

[B4X] AS RangeSlider + AS Clock = Sleep Schedule Picker

This is a short Example of what is possible with this 2 views. I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee. :)...

www.b4x.com

ASClock
Author: Alexander Stolte
Version: 1.00

• ASClock
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • Class_Globals As String
    • CreateASClock_MiddleTextProperties (TextColor As Int, xFont As B4XFont) As ASClock_MiddleTextProperties
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
      Base type must be Object
    • Draw As String
    • getCornerColor As Int
    • getCornerWidth As Float
    • getInnerColor As Int
    • getMiddleText As String
    • getMiddleTextProperties As ASClock_MiddleTextProperties
    • getShowDialText As Boolean
    • getShowHourMark As Boolean
    • getShowMinutesMark As Boolean
    • Initialize (Callback As Object, EventName As String) As String
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • setCornerColor (Color As Int) As String
    • setCornerWidth (CornerWidth As Float) As String
    • setInnerColor (Color As Int) As String
    • setMiddleText (Text As String) As String
    • setShowDialText (Show As Boolean) As String
    • setShowHourMark (Show As Boolean) As String
    • setShowMinutesMark (Show As Boolean) As String
    • SetTime (Hour As Int, Mins As Int, Secs As Int) As String
  • Properties:
    • CornerColor As Int
    • CornerWidth As Float
    • InnerColor As Int
    • MiddleText As String
    • MiddleTextProperties As ASClock_MiddleTextProperties [read only]
    • ShowDialText As Boolean
    • ShowHourMark As Boolean
    • ShowMinutesMark As Boolean
• ASClock_MiddleTextProperties
  • Fields:
    • IsInitialized As Boolean
      Tests whether the object has been initialized.
    • TextColor As Int
    • xFont As B4XFont
  • Functions:
    • Initialize
      Initializes the fields to their default value.

Changelog

• 1.00
  • Release

Have Fun

Click to expand...

• 1.01
  • Add get and set ScaleColor
  • Add get and set SweepHands

rgarnett1955 said:

I like your clock.

Click to expand...

rgarnett1955 said:

I added a couple of features:

Click to expand...

Lello1964 said:

In Italy time is based 24h, can you add 24h time dispaly to clock ?, fro 00 to 24 h

Click to expand...

Alexander Stolte said:

In Germany too. Try it, you will see its 24h, you need to over scroll to reach the 12-23:59

Click to expand...

Lello1964 said:

I'ts better show time from 00:00 to 24:00

Click to expand...

• 1.02
  • Add Designer Property ClockMode - 12 and 24
    • Default: 12
    • If 24 then the clock displays 1-24
    • If 12 then the clock displays 1-12

Theera said:

How to adjust size of middleText? if I need smaller ,or bigger.

Click to expand...

    ASClock1.MiddleTextProperties.xFont = xui.CreateDefaultFont(60)
    ASClock1.Draw

dank said:

I have a question about the analog hour hand. I would like it to move like it does on my watch. For example, at 2:30, the hour hand should be half way between 2 and 3. Is it possible with this library? Thanks.

Click to expand...

• 1.03
  • Add SleepDuration to ClockMode
