Android Question [B4X] [XUI] B4XDialog - Custom dialogs with ANIMATION to show?

[Alberto Iglesias]

Is possible to make animations on B4XDialog ? like appears from the bottom to top?

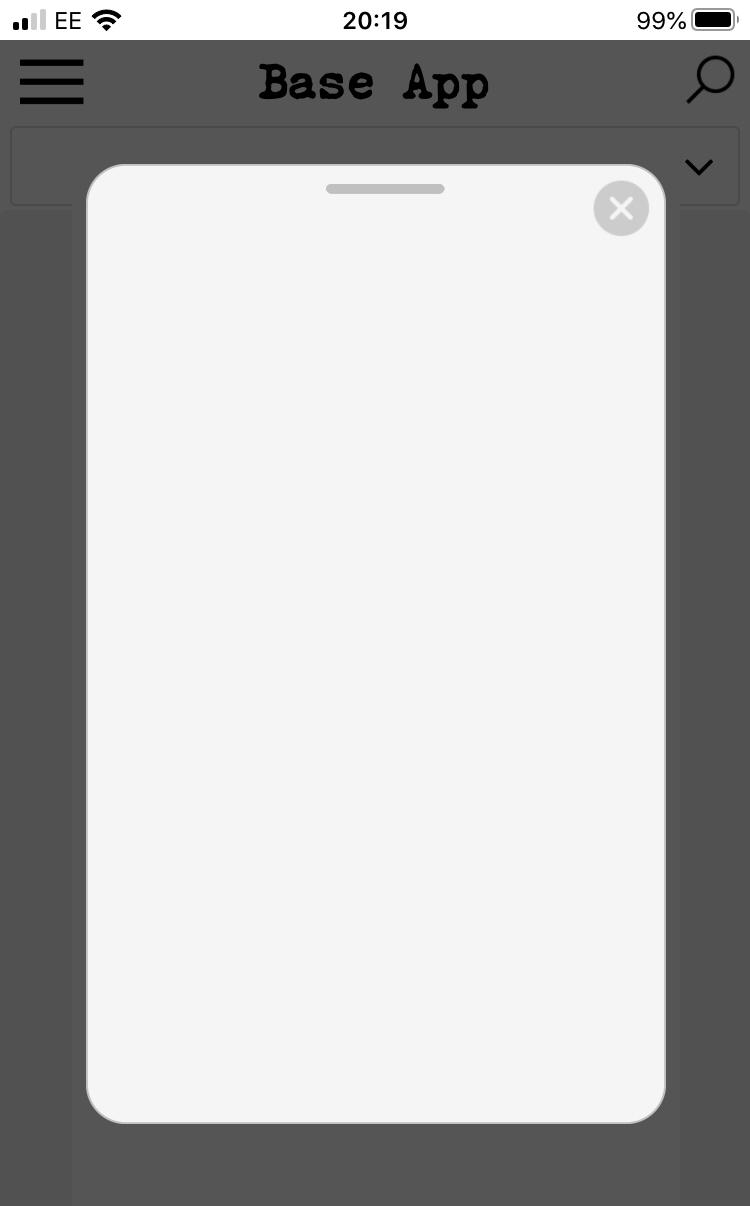

Imagine you have this layout inside a B4XDialog:

the idea is make this round panel coming from the bottom to this position

Dim p As B4XView = xui.CreatePanel("")
p.SetLayoutAnimated(0, 0, 0, 300dip, 500dip)
p.LoadLayout("layPopLogin")

Dim pDialogBox As B4XDialog
pDialogBox.Initialize(pBase)
pDialogBox.BorderColor = Colors.Transparent

Dim rs As ResumableSub = pDialogBox.ShowCustom(p,"","","")



[Erel]

[B4X] B4XDialog - show with animation

Slides the dialog from one of the sides. Sub AnimateDialog (dlg As B4XDialog, FromEdge As String) Dim base As B4XView = dlg.Base Dim top As Int = base.Top Dim left As Int = base.Left Select FromEdge.ToLowerCase Case "bottom" base.Top = base.Parent.Height...

www.b4x.com



[Alberto Iglesias]

[B4X] B4XDialog - show with animation

Slides the dialog from one of the sides. Sub AnimateDialog (dlg As B4XDialog, FromEdge As String) Dim base As B4XView = dlg.Base Dim top As Int = base.Top Dim left As Int = base.Left Select FromEdge.ToLowerCase Case "bottom" base.Top = base.Parent.Height...

www.b4x.com

Beautiful! works like a charm!
