B4A Library [B4X] [XUI] HexMenu

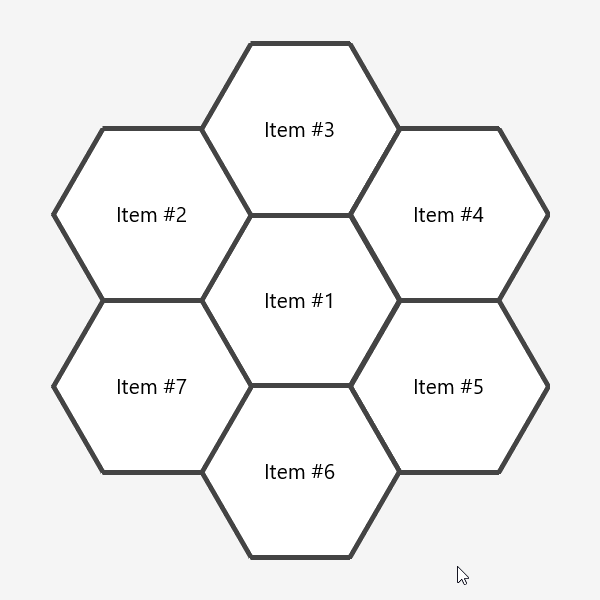

Cross platform hexagons menu implemented as a custom view:

Can show up to 7 items.

B4A project is attached. Class is supported by B4J and B4i as well. Depends on XUI and BitmapCreator libraries.

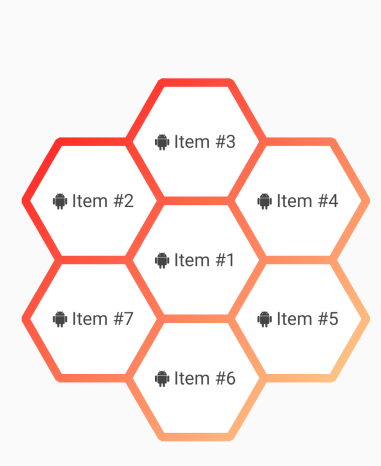

Example with gradient stroke:

Version with gradient stroke: https://www.b4x.com/android/forum/threads/b4x-xui-hexmenu.112410/#post-700941



[Erel]

Can I put image for hexmenu like background not for items , how?

Probably yes. Post a mock-up screenshot of the menu you want to build.



[Peter Simpson]

I've just had a quick search for icons to place directly into this menu, @Erel this has some great potential. I have some more iOS learning to complete but it does look like menu will definitely be making its way into a project near me sooner rather than later

Sub Globals
    Private XUI As XUI
    Private HexMMain As HexMenu
    Private GD As GradientDrawable
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("Menu")
    Activity.Title = "HEX Menu"

    Dim TopColor As Long = 0xFFFF7DE1 '0xFF1798A2
    Dim BottomColor As Long = 0xFFFFED8C '0xFFECF0BC
    GD.Initialize("TOP_BOTTOM", Array As Int(TopColor, BottomColor))
    Activity.Background = GD

    For Each lbl As B4XView In HexMMain.labels
        lbl.Font = XUI.CreateFontAwesome(16)
    Next

    Dim Imaages() As Object = Array As Object(Chr(0xF15C), Chr(0xF0F6), Chr(0xF0C0), Chr(0xF07A), Chr(0xF15A), Chr(0xF0D6), Chr(0xF080))
    Dim Options() As String = Array As String("Invoice", "Quote", "Contacts", "Stock", "Sales", "Payments", "Charts")

    For i = 0 To 6
        HexMMain.Items.Add($"${Imaages(i)}${CRLF}${Options(i)}"$)
    Next
    HexMMain.Update
End Sub

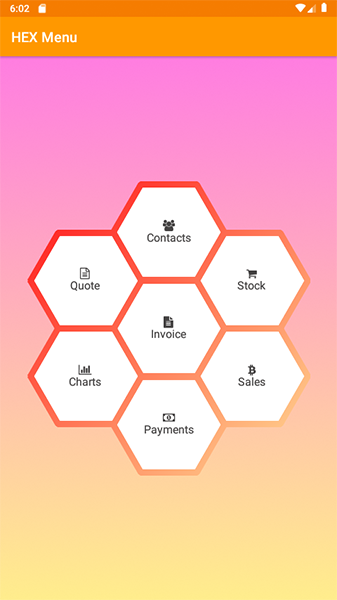

Android = Fonts too small, but you get the gist

iPhone - No icons, but it's still looking good

Thank you...



[LucaMs]

Can I put image for hexmenu like background not for items , how?

Maybe he just wants to set an image as background of the full menu (?)



[RUNO]

Maybe he just wants to set an image as background of the full menu (?)

Yes , I want items without fill .



[LucaMs]

Yes , I want items without fill .

I had understood a different thing, how to set an image on the background of the entire menu (to do this you have to "work" on the basic panel).

You can make Items transparent by setting their color to Transparent

Set Fill Color to Transparent.



[LucaMs]

I had understood a different thing, how to set an image on the background of the entire menu (to do this you have to "work" on the basic panel).

You can make Items transparent by setting their color to Transparent

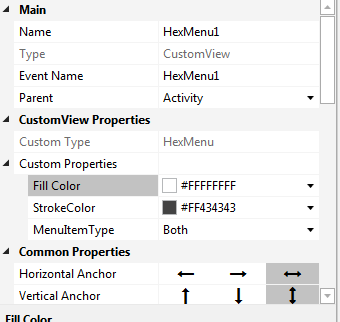

View attachment 90085

Set Fill Color to Transparent.

I added getBase property to the HexMenu (changed to version: 2.11, included in the project attached):



[Peter Simpson]

Yes , I want items without fill .

What, each separate menu item to have its own image???



[Yafuhenk]

Is it possible to have a long_click/double_click in this hexmenu? I had a look at the sub Pnl_touch but I could only find TOUCH_ACTION_DOWN, TOUCH_ACTION_UP and TOUCH_ACTION_MOVE.



[Peter Simpson]

Is it possible to have a long_click/double_click.

If you really need it for Android, it actually pretty simple to add long_click and double_click to the class. Just copy and paste the current click event code and change it as needed, you can do the same with double click and adjust to suit too...



[james_sgp]

Is it possible to use CSBuilder to get better icons/text? I tried but doesn`t seem to be doing anything....

    dim cs1 as csbuilder
    cs1.Initialize.Size(20).Typeface(Typeface.DEFAULT)
    cs1.Alignment("ALIGN_CENTER").color(Colors.RGB(62,62,62)).Typeface(Typeface.FONTAWESOME).Append(Chr(0xF1D8)).Append(CRLF)
    cs1.Alignment("ALIGN_CENTER").Size(20).color(Colors.RGB(107,142,35)).Append("VERIFY")
    cs1.popall

    adv_hex_menu.Items.AddAll(Array As String(cs1, "1","2","3","4","5","6"))



[Erel]

This should probably work:

adv_hex_menu.Items.AddAll(Array(cs1, "1","2","3","4","5","6"))



[james_sgp]

Tried it and I got no change in font size or color; as defined by the CSbuilder string...



[Erel]

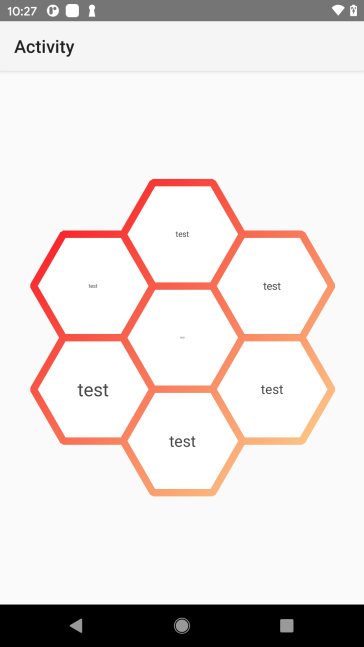

Just tried with:

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("1")
    For i = 1 To 10
        Dim cs As CSBuilder
        HexMenu1.Items.Add(cs.Initialize.Size(i * 3).Append("test").PopAll)
    Next
    HexMenu1.Update
End Sub

Sub HexMenu1_Click (Index As Int, Text As Object) 'change type to object
    Activity.Title = Text
End Sub



[james_sgp]

Erel,

Thanks, i`ll try building the CS within the menu and see command.

James



[james_sgp]

I tried Erel suggestion and it displays the menu as I want, but I`m getting an error (attached is a sample of the code that gives me this error)

hexmenu$ResumableSub_Pnl_Touchresume (java line: 445)
java.lang.Exception: Sub hexmenu1_click signature does not match expected signature.
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:215)
at anywheresoftware.b4a.keywords.Common.CallSub4(Common.java:1082)
at anywheresoftware.b4a.keywords.Common.CallSubNew3(Common.java:1045)
at b4a.example.hexmenu$ResumableSub_Pnl_Touch.resume(hexmenu.java:445)
at b4a.example.hexmenu._pnl_touch(hexmenu.java:288)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:213)
at anywheresoftware.b4a.BA$1.run(BA.java:352)
at android.os.Handler.handleCallback(Handler.java:873)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loop(Looper.java:214)
at android.app.ActivityThread.main(ActivityThread.java:7050)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:494)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:965)



[Erel]

Please read my answers carefully. Try the code. Everything that you need is already there.

For further discussion please start a new thread.
