B4J Question B4XTable FrozenColumns at right?

[aeric]

Is there a simple way to set the FrozenColumns at the right side of B4XTable instead of left?



[PaulMeuris]

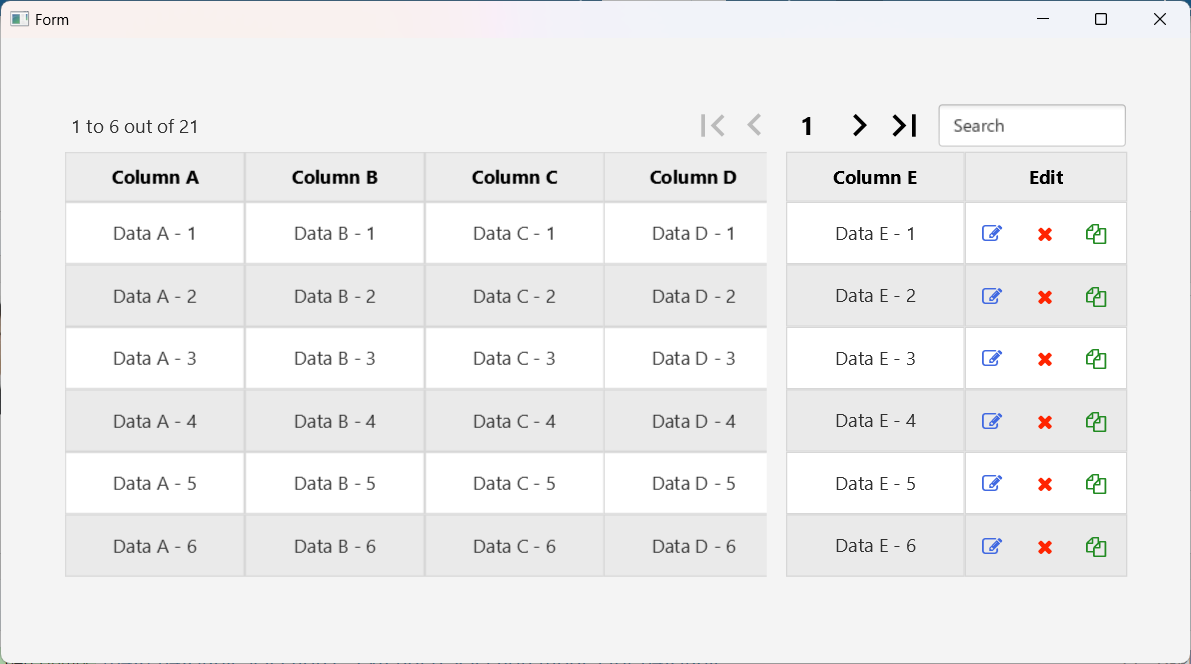

I added a column in the main module and adjusted the Main_Resize subroutine:

    Private MyColumn As B4XTableColumn

    B4XTable1.NumberOfFrozenColumns = 2
    MyColumn = B4XTable1.AddColumn("Mycol", B4XTable1.COLUMN_TYPE_VOID)
    MyColumn.Width = 130dip

    Public Sub Main_Resize
    ' reposition the Edit column
    B4XTable1.GetColumn("Edit").Panel.Left = B4XTable1.clvData.AsView.Left + B4XTable1.clvData.AsView.Width
    B4XTable1.GetColumn("Mycol").Panel.Left = B4XTable1.clvData.AsView.Left + B4XTable1.clvData.AsView.Width + B4XTable1.GetColumn("Edit").Panel.Width
    ' adjust width of the last column when resizing to the right
    ' -3 => column1 removed, edit column, index start at 0
    B4XTable1.clvData.ResizeItem(B4XTable1.Columns.Size-4, B4XTable1.GetColumn("Column A").Panel.Width)
    B4XTable1.clvData.ResizeItem(B4XTable1.Columns.Size-5, B4XTable1.GetColumn("Column A").Panel.Width)
End Sub

And of course if you add more than 1 extra column you will have to adjust the Main_Resize subroutine again.
I did not change the B4XTable class.
Does this suit your needs?
Happy coding!



[aeric]

Sorry to bother you so much, Paul.

As I made more tests, I found some minor bugs.

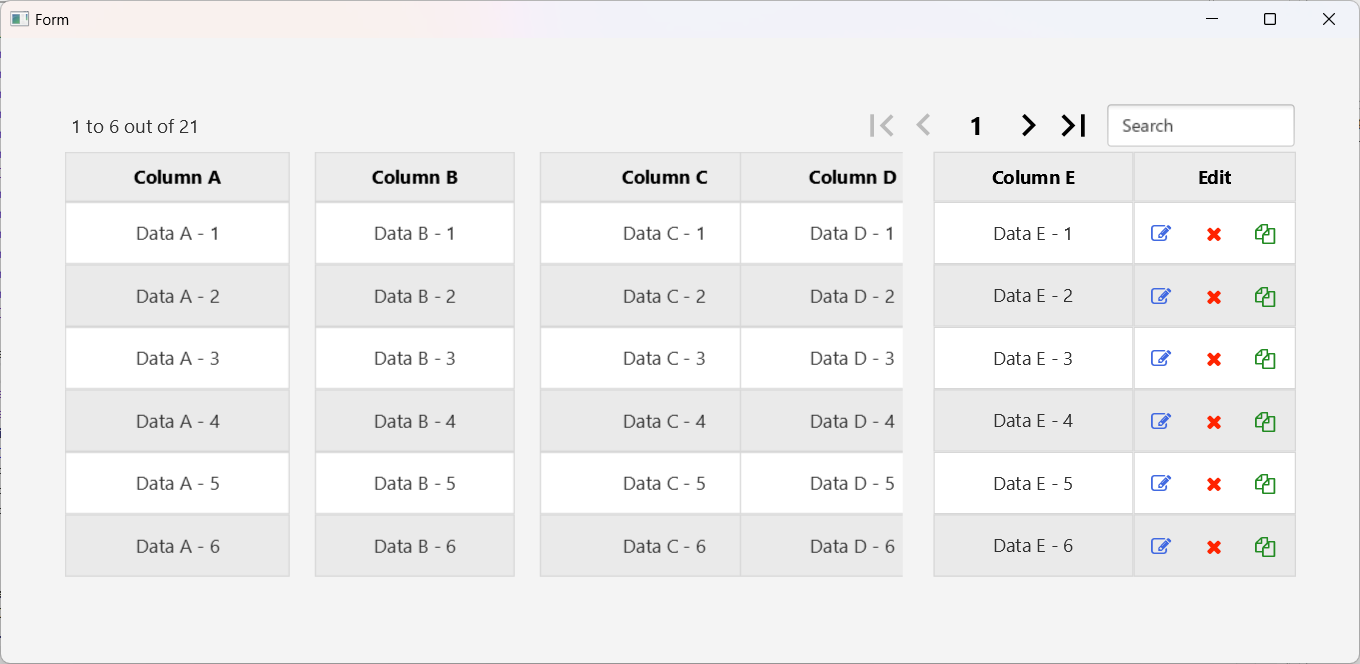

1. If I resize the form wider, there is a small gap before the frozen columns.

2. If I preset the column width, there are gaps between the unfreeze columns.

By the way, I probably would only use 1 frozen column on the right.
However, I hope this feature is working fine in the future for the sake of other members. I understand it would take a lot of time to fix the bugs.
So for the time being, I will use the workaround as posted above.
Thanks Paul and others.



[PaulMeuris]

The resize subroutine works because the B4XTable view is anchored in the layout.
And if you don't use fixed column widths then the B4XTable class takes care of the recalculating of the column widths.
So this code also works:

'    Column1.Width = 150dip
'    Column2.Width = 180dip
'    Column3.Width = 160dip
'    Column4.Width = 200dip
'    Column5.Width = 180dip
'    Column6.Width = 160dip

Public Sub Main_Resize
    B4XTable1.GetColumn("Column E").Panel.Left = B4XTable1.clvData.AsView.Left + B4XTable1.clvData.AsView.Width
    B4XTable1.GetColumn("Edit").Panel.Left = B4XTable1.clvData.AsView.Left + B4XTable1.clvData.AsView.Width + B4XTable1.GetColumn("Column E").Panel.Width
    '
    B4XTable1.clvData.ResizeItem(B4XTable1.Columns.Size-4, B4XTable1.GetColumn("Column A").Panel.Width)
    B4XTable1.clvData.ResizeItem(B4XTable1.Columns.Size-5, B4XTable1.GetColumn("Column A").Panel.Width)

'    B4XTable1.clvData.ResizeItem(0, B4XTable1.GetColumn("Column A").Panel.Width)
'    B4XTable1.clvData.ResizeItem(1, B4XTable1.GetColumn("Column B").Panel.Width)
'    B4XTable1.clvData.ResizeItem(2, B4XTable1.GetColumn("Column C").Panel.Width)
'    B4XTable1.clvData.ResizeItem(3, B4XTable1.GetColumn("Column D").Panel.Width)
End Sub

Notice that the Column E resizes together with the previous columns. The Edit column however has a fixed column width and that doesn't change.
I didn't get it to work with the fixed column widths.



[Mahares]

I probably would only use 1 frozen column on the right

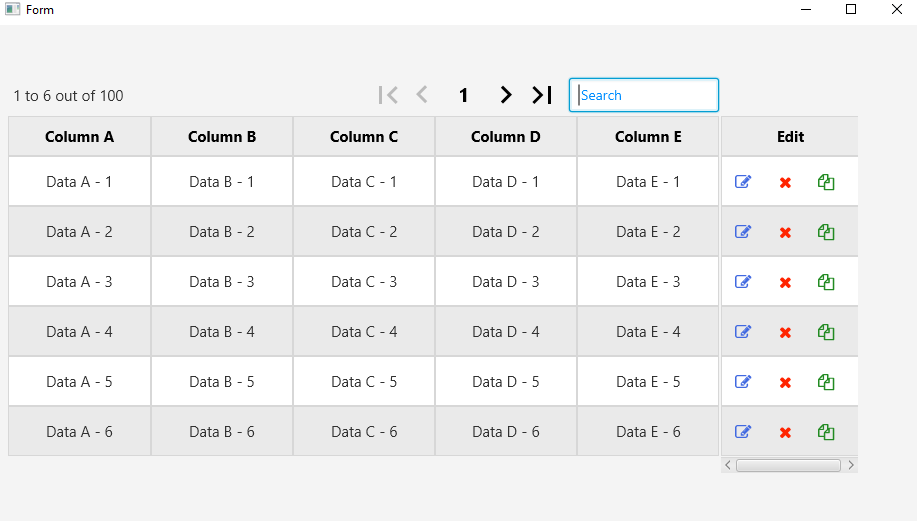

Attached is a fully revised version of your project in post #22 where the original internal B4XTable library was used rather than a modified class. No modifications to the library were made. The project uses 2 B4XTables side by side to synchronize the movement. The table on the right contains the Edit column views only which is always anchored to the right. No stray gaps between columns. I tested it extensively. It worked well for me. I hope it does for you when you test it.
