Android Question background Activity transparent

[powerino]

hello, I created 2 buttons with the designer and when I launch the application on the phone I see the breakthrough and above the buttons, but I would like to see only the buttons below the phone screen. What should I do? thank you



[DonManfred]

You need to much better describe the problem.
I for myself did not understand what you are asking.



[Peter Simpson]

@powerino are you asking how to get your buttons to appear at the bottom of your phone screen?



[powerino]

I would like to see only the buttons on the screen, and in background the icona



[Semen Matusovskiy]

If you need "background Activity transparent", add to manifest

SetActivityAttribute (main, android:theme, "@style/Theme_Main")
CreateResource (values, theme_main.xml,
<resources>
  <style name="Theme_Main" parent="android:Theme">
    <item name="android:windowIsTranslucent">true</item>
    <item name="android:windowBackground">@android:color/transparent</item>
    <item name="android:windowContentOverlay">@null</item>
    <item name="android:windowNoTitle">true</item>
    <item name="android:windowIsFloating">true</item>
    <item name="android:backgroundDimEnabled">false</item>
  </style>
</resources>
)

Guess, it's possible to reduce, I simply copied from one my app.



[powerino]

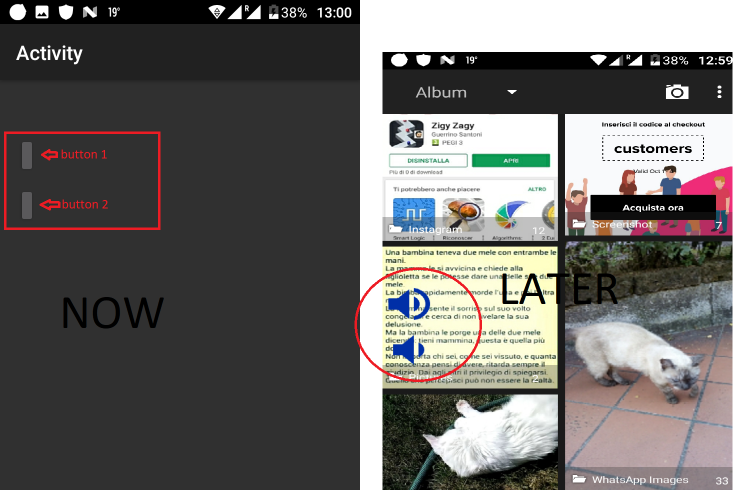

something like the attatchment



[DonManfred]

whats the app in the AFTER Picture? another activity from your app?



[powerino]

it is another app from another boy... i'll want to make something similar



[powerino]

this is ok, thanks!


SetActivityAttribute (main, android:theme, "@style/Theme_Main")
CreateResource (values, theme_main.xml,
<resources>
<style name="Theme_Main" parent="android:Theme">
<item name="android:windowIsTranslucent">true</item>
<item name="android:windowBackground">@android:color/transparent</item>
<item name="android:windowContentOverlay">@null</item>
<item name="android:windowNoTitle">true</item>
<item name="android:windowIsFloating">true</item>
<item name="android:backgroundDimEnabled">false</item>
</style>
</resources>
)
