B4J Question [BANano] [SOLVED] Table created purely with the abstract designer is not loaded?

[Mashiane]

Ola

I'm attempting to create a table via the abstract designer, for some reason I cant seem to make it work. Only the <table></table> element is loaded and not the header or the body.

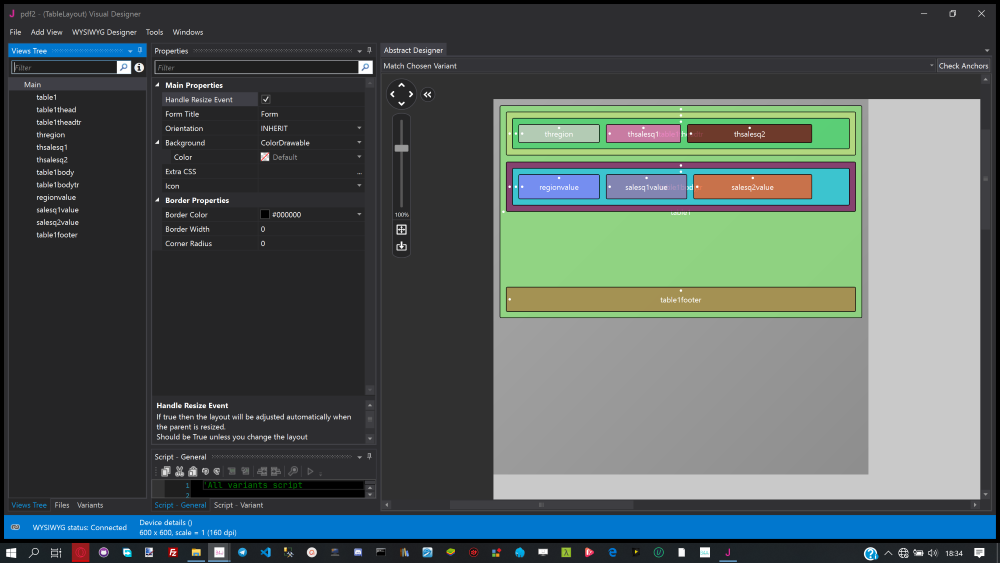

The header has columns added and the body also just a single row. Here is the design..

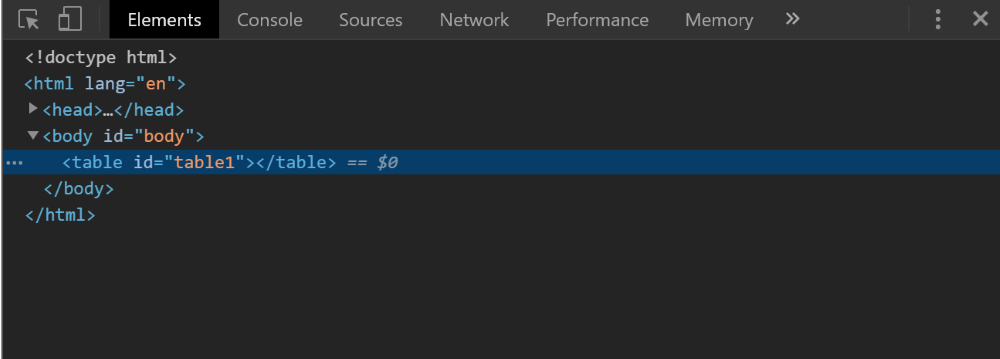

The browser does not show it and further looks only..

Source code of the project is attached.

Thanks



[alwaysbusy]

This is a nasty bug in the underlying Umbrella JS library where appending tags of the type thead, tbody and tfoot failed. Reason is the javascript createDocumentFragment() method does not support table tags and one has to write a workaround for it. So I did and this will work in the next version of BANano.

Alwaysbusy



[Mashiane]

Noted with thanks, yippie!!! then the PDF generation via the abstract designer will work smoothly as Im planning to finish the next iteration of BANanoPDFMake
