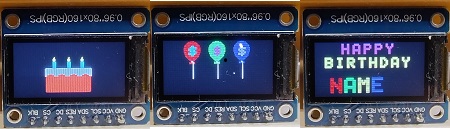

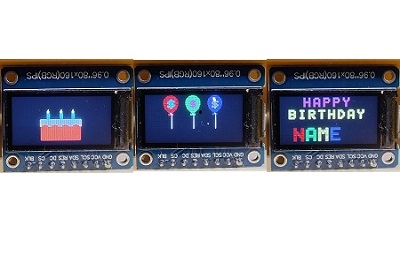

Birthday card that plays happy birthday tune and display greetings on a TFT display. The speaker is a piezo buzzer and the TFT is 0.96", 80x160 pixels, ST7735 driver, SPI interface.
The name of the card receiver has to be changed in the code, the color of each letter can be set, name can be up to 6 letters, the letter number is the order it is in the array 'font'.
The name of the card receiver has to be changed in the code, the color of each letter can be set, name can be up to 6 letters, the letter number is the order it is in the array 'font'.
B4X:

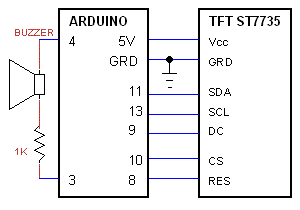

' TFT module with ST7735 driver
' 2 SCK 13
' 3 SDA 11
' 4 A0 Or DC 9
' 5 RESET 8
' 6 CS 10
' 7 GND GND
' 8 VCC 5 V
Sub Process_Globals
Public Serial1 As Serial
Private AStream As AsyncStreams
Public CS As Pin
Public DC As Pin
Public SDA As Pin
Public SCK As Pin
Public RST As Pin
Public out As Pin
Public out2 As Pin
Public yh=4, yc=yh+40 As Int
Public BLACK As UInt=0x00
Public BLUE As UInt=0x01F
Public RED As UInt=0xF800
Public GREEN As UInt=0x07E0
Public CYAN As UInt=0x07FF
Public MAGENTA As UInt=0xF81F
Public YELLOW As UInt=0xFFE0
Public WHITE As UInt=0xFFFF
Public PINK As UInt=0xFC58
Public ORANGE As UInt=0xFC00
Public BROWN As UInt=0x8208
Public bgr As UInt=0x00
Private yb=48 As Byte
Private yp=28 As Byte
Private yn=78 As Byte
Private ya=27 As Byte
Private spires, spidata As Byte
Private note() As Byte = Array As Byte(239,239,213,239,179,189,239,239,213,239,159,179,239,239,119,142,179,189,213,134,134,142,179,159,179)
Private dur() As Byte = Array As Byte(2,1,3,3,3,3,2,1,3,3,3,4,2,1,3,3,3,3,4,2,1,3,3,3,4)
Private pause() As Byte = Array As Byte(0,0,0,0,0,1,0,0,0,0,0,1,0,0,0,0,0,0,1,0,0,0,0,0,1)
Private n As Byte
End Sub
Private Sub AppStart
Serial1.Initialize(9600)
AStream.Initialize(Serial1.Stream,Null , Null) '"Astream_NewData"
CS.Initialize(10, CS.MODE_OUTPUT)
DC.Initialize(9, DC.MODE_OUTPUT)
SCK.Initialize(13, SCK.MODE_OUTPUT)
RST.Initialize(8, RST.MODE_OUTPUT)
SDA.Initialize(11, SDA.MODE_OUTPUT)
out.Initialize(4, out.MODE_OUTPUT)
out2.Initialize(3, out2.MODE_OUTPUT)
RunNative ("set_spi",Null)
TFTinit
display
End Sub
Sub display
Dim LP=1 As Byte
Do While LP=1
rectan(1,25,160,105,bgr)
happy
Pname
'play tune
For n=0 To 24
play(note(n),dur(n),pause(n))
Next
rectan(1,25,160,105,bgr)
baloon2(31,ya,RED)
draw(38,ya+7,27,CYAN,2)
baloon2(67,ya,GREEN)
draw(74,ya+7,27,MAGENTA,2)
baloon2(103,ya,BLUE)
draw(110,ya+7,27,WHITE,2)
Delay(3000)
rectan(1,25,160,105,bgr)
cake2(46,47)
'play tune
For n=0 To 24
play(note(n),dur(n),pause(n))
Next
Loop
End Sub
Sub play(freq As Byte, len As Byte, brk As Byte)
Dim j,d,f As UInt
f=freq*8
d=8000/freq*len
For j=0 To d
out.DigitalWrite(True)
out2.DigitalWrite(False)
DelayMicroseconds(f)
out.DigitalWrite(False)
out2.DigitalWrite(True)
DelayMicroseconds(f)
Next
Delay(100)
If brk=1 Then Delay(400)
End Sub
Sub baloon2(x As Byte, y As Byte, hue As UInt)
{
Dim i As Byte
rectan(x+9,y,x+14,y+1,hue)
For i=0 To 4
rectan(x+6-i,y+i+1,x+i+17,y+i+2,hue)
Next
rectan(x+1,y+6,x+22,y+9,hue)
rectan(x,y+9,x+23,y+15,hue)
rectan(x+1,y+15,x+22,y+18,hue)
rectan(x+2,y+18,x+21,y+21,hue)
For i=0 To 6
rectan(x+i+3,y+i+21,x+20-i,y+i+22,hue)
Next
rectan(x+8,y+30,x+15,y+32,hue)
rectan(x+13,y+30,x+13,y+54,WHITE)
rectan(x+11,y+29,x+12,y+30,WHITE)
End Sub
Sub Pname()
draw(4,yn,26,YELLOW,3)
draw(24,yn,13,RED,3)
draw(44,yn,0,GREEN,3)
draw(64,yn,12,YELLOW,3)
draw(84,yn,4,BLUE,3)
draw(104,yn,26,YELLOW,3)
End Sub
Sub happy()
draw(40,yp,7,MAGENTA,2)
draw(56,yp,0,MAGENTA,2)
draw(72,yp,15,MAGENTA,2)
draw(88,yp,15,MAGENTA,2)
draw(104,yp,24,MAGENTA,2)
draw(16,yb,1,YELLOW,2)
draw(32,yb,8,YELLOW,2)
draw(48,yb,17,YELLOW,2)
draw(64,yb,19,YELLOW,2)
draw(80,yb,7,YELLOW,2)
draw(96,yb,3,YELLOW,2)
draw(112,yb,0,YELLOW,2)
draw(128,yb,24,YELLOW,2)
End Sub
Sub cake2(x As Byte, y As Byte)
rectan(x+1,y+16,x+65,y+17,WHITE)
rectan(x,y+17,x+66,y+25,WHITE)
rectan(x+1,y+25,x+65,y+49,ORANGE)
rectan(x+2,y+49,x+64,y+50,ORANGE)
icing2(x,y+25)
icing2(x+16,y+25)
icing2(x+33,y+25)
icing2(x+50,y+25)
candle2(x+31,y)
candle2(x+10,y)
candle2(x+50,y)
End Sub
Sub icing2(x As Byte, y As Byte)
rectan(x,y,x+5,y,WHITE)
rectan(x+10,y,x+16,y,WHITE)
rectan(x,y+1,x+2,y+2,WHITE)
rectan(x+13,y+1,x+16,y+2,WHITE)
End Sub
Sub candle2(x As Byte, y As Byte)
rectan(x+1,y+7,x+5,y+15,CYAN)
rectan(x+2,y+1,x+3,y+6,YELLOW)
rectan(x+1,y+3,x+4,y+5,YELLOW)
'pixel(x+3,y,YELLOW)
rectan(x+3,y,x+3,y,YELLOW)
End Sub
'draw char
Sub draw(x As Byte, y As Byte, c As Byte, color As UInt, size As Byte)
Dim i, j, line As Byte
Private font() As Byte = Array As Byte( _
0x7E, 0x11, 0x11, 0x11, 0x7E, _' A
0x7F, 0x49, 0x49, 0x49, 0x36, _' B
0x3E, 0x41, 0x41, 0x41, 0x22, _' C
0x7F, 0x41, 0x41, 0x22, 0x1C, _' D
0x7F, 0x49, 0x49, 0x49, 0x41, _' E
0x7F, 0x09, 0x09, 0x01, 0x01, _' F
0x3E, 0x41, 0x41, 0x51, 0x32, _' G
0x7F, 0x08, 0x08, 0x08, 0x7F, _' H
0x00, 0x41, 0x7F, 0x41, 0x00, _' I
0x20, 0x40, 0x41, 0x3F, 0x01, _' J
0x7F, 0x08, 0x14, 0x22, 0x41, _' K
0x7F, 0x40, 0x40, 0x40, 0x40, _' L
0x7F, 0x02, 0x04, 0x02, 0x7F, _' M
0x7F, 0x04, 0x08, 0x10, 0x7F, _' N
0x3E, 0x41, 0x41, 0x41, 0x3E, _' O
0x7F, 0x09, 0x09, 0x09, 0x06, _' P
0x3E, 0x41, 0x51, 0x21, 0x5E, _' Q
0x7F, 0x09, 0x19, 0x29, 0x46, _' R
0x46, 0x49, 0x49, 0x49, 0x31, _' S
0x01, 0x01, 0x7F, 0x01, 0x01, _' T
0x3F, 0x40, 0x40, 0x40, 0x3F, _' U
0x1F, 0x20, 0x40, 0x20, 0x1F, _' V
0x7F, 0x20, 0x18, 0x20, 0x7F, _' W
0x63, 0x14, 0x08, 0x14, 0x63, _' X
0x03, 0x04, 0x78, 0x04, 0x03, _' Y
0x61, 0x51, 0x49, 0x45, 0x43, _' Z
0x00, 0x00, 0x00, 0x00, 0x00, _' (space)26
0x24, 0x2A, 0x7F, 0x2A, 0x12, _' $ 27
0x3E, 0x41, 0x41, 0x41, 0x3E, _ '0
0x00, 0x42, 0x7F, 0x40, 0x00, _ '1
0x72, 0x49, 0x49, 0x49, 0x46, _
0x21, 0x41, 0x49, 0x4D, 0x33, _
0x18, 0x14, 0x12, 0x7F, 0x10, _
0x27, 0x45, 0x45, 0x45, 0x39, _ '5
0x3C, 0x4A, 0x49, 0x49, 0x31, _
0x41, 0x21, 0x11, 0x09, 0x07, _
0x36, 0x49, 0x49, 0x49, 0x36, _
0x46, 0x49, 0x49, 0x29, 0x1E, _ '9
0x00, 0x00, 0x14, 0x00, 0x00) ':
For i=0 To 5
If i = 5 Then
line = 0
Else
line = font((c*5)+i)
End If
For j = 0 To 7
If Bit.And(line,0x1)=1 Then
rectan(x+(i*size), y+(j*size), x+(i*size)+size, y+(j*size)+size, color)
Else
rectan(x+(i*size), y+(j*size), x+(i*size)+size, y+(j*size)+size, bgr)
End If
line=Bit.ShiftRight(line,1)
Next
Next
End Sub
Sub spi(data As Byte) 'send byte over spi
spidata=data
RunNative ("spi",Null)
Return
End Sub
Sub command(cmd As Byte)
DC.DigitalWrite(False) 'command Mode
CS.DigitalWrite(False) 'Select the LCD (active low)
spi(cmd)'set up data on bus
CS.DigitalWrite(True) 'Deselect LCD (active low)
End Sub
Sub send_data(data As Byte)
DC.DigitalWrite(True) 'data mode
CS.DigitalWrite(False) 'Select the LCD (active low)
spi(data) 'set up data on bus
CS.DigitalWrite(True) 'Deselect LCD (active low)
End Sub
Sub TFTinit
Dim i As Byte
RST.DigitalWrite(True) 'hardware reset
Delay(200)
RST.DigitalWrite(False)
Delay(10)
RST.DigitalWrite(True)
Delay(10)
command(0x01) 'sw reset
Delay(200)
command(0x11) ' Sleep out
Delay(200)
command(0x3A) 'color mode
send_data(0x05) '16 bits
'send_data(0x06) '18 bits
command(0x36) 'Memory access ctrl (directions)
send_data(0xA8) '0x10=ver, 0B1100000=0x60=hor
'send_data(0x08) '0x48=left to right,BRG,horizontal 0x40=vertical,RGB
command(0x21) 'color inversion on
command(0x2D) 'color look up table
send_data(0)
For i = 1 To 31
send_data(i * 2)
Next
For i = 0 To 63
send_data(i)
Next
send_data(0)
For i = 1 To 31
send_data(i * 2)
Next
command(0x13) 'Normal display on
command(0x29) 'Main screen turn on
End Sub
Sub area(x0 As Byte, y0 As Byte, x1 As Byte, y1 As Byte)
command(0x2A) 'Column addr set
send_data(0x00)
send_data(x0) ' XSTART
send_data(0x00)
send_data(x1) ' XEND
command(0x2B) 'Row addr set
send_data(0x00)
send_data(y0) ' YSTART
send_data(0x00)
send_data(y1) ' YEND
command(0x2C) 'write To RAM
End Sub
Sub rectan(x0 As Byte, y0 As Byte, x1 As Byte, y1 As Byte, color As UInt)
Dim i As Int
area(x0,y0,x1,y1)
For i=(y1 - y0 + 1) * (x1 - x0 + 1) To 0 Step -1
DC.DigitalWrite(True) ' data mode
CS.DigitalWrite(False)
spi(color / 256)
spi(color Mod 256)
CS.DigitalWrite(True)
Next
End Sub
#if C
void spi(B4R::Object* o)
{
SPDR = b4r_main::_spidata; // Start transmission
while (!(SPSR & _BV(SPIF))); // Wait For transmission To complete
b4r_main::_spires = SPDR; // received byte
}
void set_spi(B4R::Object* o)
{
SPCR = 0B1011100; // Enable SPI, Master, mode3, set clock rate fck/4 = 4MHz
//SPSR = 1; //set clock rate fck/2=8MHz
}
#End if
