Android Question Bit operations to define Printer charactersize

[DonManfred]

Working with Bits is not my strong part. So i am asking for a bit of help here

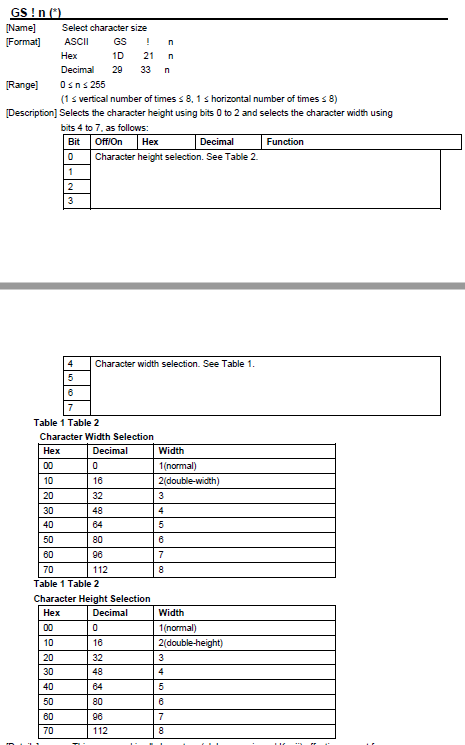

Given the Documentation of my Printer is like this:

I now need to define ONE Value with the Bits 0 to 3 used for the Characterwidth and the Bits 4 to 7 for the Heigth.

Can anyone give me some hints on how i would realize this?



[Erel]

Try this:

Dim Height As Int = 5 '0 - 7
Dim Width As Int = 2 '0 - 7
Array As Byte(0x1d, 0x21, Bit.Or(Height, Bit.ShiftLeft(Width, 4))



[DonManfred]

Try this

GREAT
It works like a charm



Thank you very much!
