Bug? Bitmap.Rotate()

[Mike1970]

Hi everyone, yesterday I published a post in the "iOS Question" topic, but it seems to be a bug, to me.
this is the post where a explained and discussed with other members:

Image.Rotate Strange behavior

Hi everyone. From today the instruction .Rotate for a bitmap is behaving in a strange way. I think the only thing changed is that I update to iOS 14.3. My tests The code Sub Cam_Complete(Success As Boolean, Image as Bitmap, VideoPath As String) If Success Then If...

www.b4x.com



[Erel]

Please summarize the bug report here and if possible upload a small example.



[Mike1970]

Please summarize the bug report here and if possible upload a small example.

From today the instruction .Rotate for a bitmap is behaving in a strange way.
I think the only thing changed is that I update to iOS 14.3.

My tests
The code

Sub Cam_Complete(Success As Boolean, Image as Bitmap, VideoPath As String)
    If Success Then
        If Image.IsInitialized Then
            btnDelete_Click 'delete previous chached images'

            imgCL.ContentMode = imgCL.MODE_FIT
            imgCL.Bitmap = Image

            Dim out as OutputStream = File.OpenOutput(path, fname, False)
            Image.Rotate(90).WriteToStream(out, 50, "JPEG")

            Dim p as Phone
            p.AddImageToAlbum(LoadBitmap(path, fname))

        End If
    End If
End Sub

This code ☝result is this image:
View attachment 104523

I changed the line 10 to:

Image.WriteToStream(out, 50, "JPEG")

then I recompiled the app, and take another shot.

and the result was this:
View attachment 104524
this is the right real-life aspect

I Attach a small video: https://mega.nz/file/HZ0CQLRS#YlBIQvItD4Aqjo54z4o70veIk14yD4KH990c3BXCVSk
and an example project



[Erel]

It is related to the original image actually being rotated.

You are rotating it so the image will appear correctly in the gallery, right?

You can see that it is rotated with:

Dim no As NativeObject = image
Log(no.GetField("imageOrientation").AsNumber)

Orientation values: https://developer.apple.com/documentation/uikit/uiimageorientation?language=objc (3 = right).
You can reset the orientation with:

im = image.Crop(0, 0, image.Width, image.Height)



[Mike1970]

You are rotating it so the image will appear correctly in the gallery, right?

that code like some month ago was working.

now, In this days where I noticed this behavior I never saw it correctly, in the gallery neither.
always stretched.

my goal:

my result:

(stretched)



[Erel]

Nothing has changed in Bitmap implementation. The change is probably in the way that the camera handles the orientation.

Have you tried the solution with crop instead of rotate. Seems to work fine here.



[Mike1970]

Nothing has changed in Bitmap implementation. The change is probably in the way that the camera handles the orientation.

Have you tried the solution with crop instead of rotate. Seems to work fine here.

You mean like so?

Sub Cam_Complete(Success As Boolean, Image as Bitmap, VideoPath As String)
    If Success Then
        If Image.IsInitialized Then
            btnDelete_Click 'delete previous chached images'

            imgCL.ContentMode = imgCL.MODE_FIT
            imgCL.Bitmap = Image

            Dim out as OutputStream = File.OpenOutput(path, fname, False)
            dim im as Bitmap = Image.Crop(0, 0, Image.Width, Image.Height)
            im.WriteToStream(out, 50, "JPEG")

            Dim p as Phone
            p.AddImageToAlbum(LoadBitmap(path, fname))

        End If
    End If
End Sub



[Erel]

Does it work?



[Mike1970]

Does it work?

I tried with this function, there is no difference between switch ON and switch OFF, the image is the same

Sub Cam_Complete (Success As Boolean, image As Bitmap, VideoPath As String)
    If Success Then
        If image.IsInitialized Then

            imageview.ContentMode = imageview.MODE_FIT

            Dim out As OutputStream = File.OpenOutput(File.DirLibrary & "/" & "TestBitmap", "bitmap.jpeg", False)
            If Switch1.Value Then
                Dim im As Bitmap
                'im = image.Rotate(90)
                im = image.Crop(0,0,image.Width, image.Height)
                imageview.Bitmap = im
                im.WriteToStream(out, 50, "JPEG")
            Else
                imageview.Bitmap = image
                image.WriteToStream(out, 50, "JPEG")
            End If
            out.Close

            Dim p As Phone
            p.AddImageToAlbum(LoadBitmap(File.DirLibrary & "/" & "TestBitmap", "bitmap.jpeg"))
        End If
    End If
End Sub

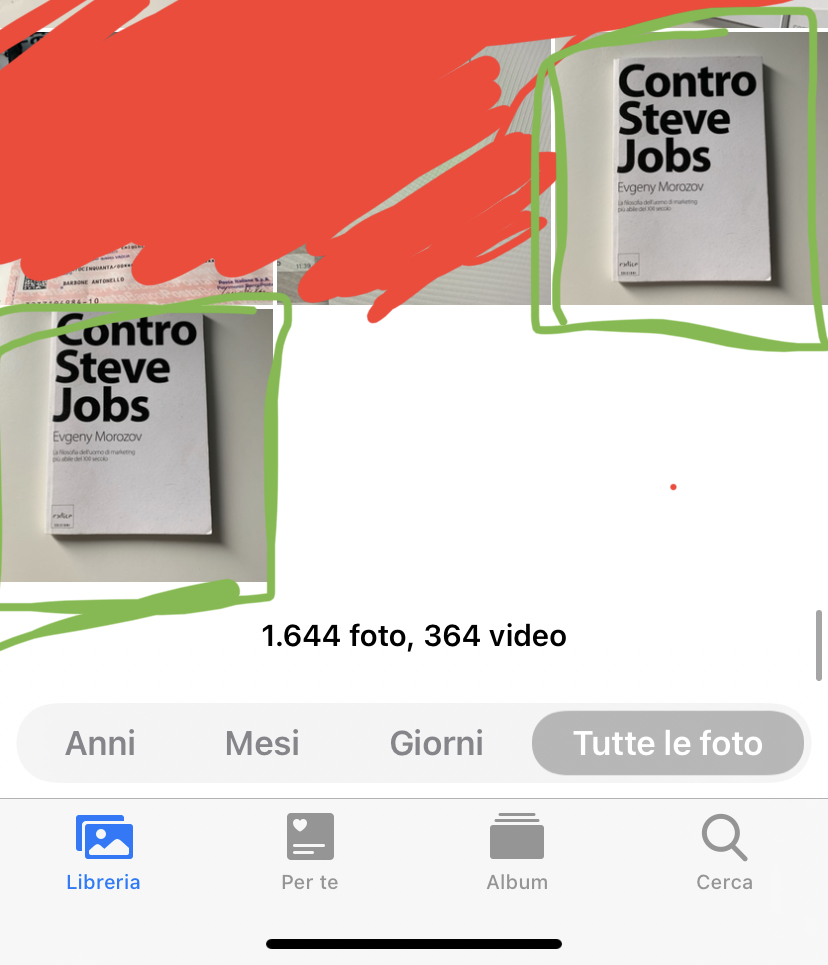

The first was with the swtich off, and the second was with the switch on. aspect ration correct on both, but the second should be cropped/rotated (at least different ?)

i tried to keep also .Rotate(90) in combo with .Crop(...) no change.
then i tried again with only .Rotate(90), and it squeeze like at the begging



[Erel]

The two images in this screenshot look fine. What is the problem?



[Mike1970]

The two images in this screenshot look fine. What is the problem?

The problem is that I wish the second (at the bottom left of the screen) to be rotated ? (and obviously with correct aspect ratio)

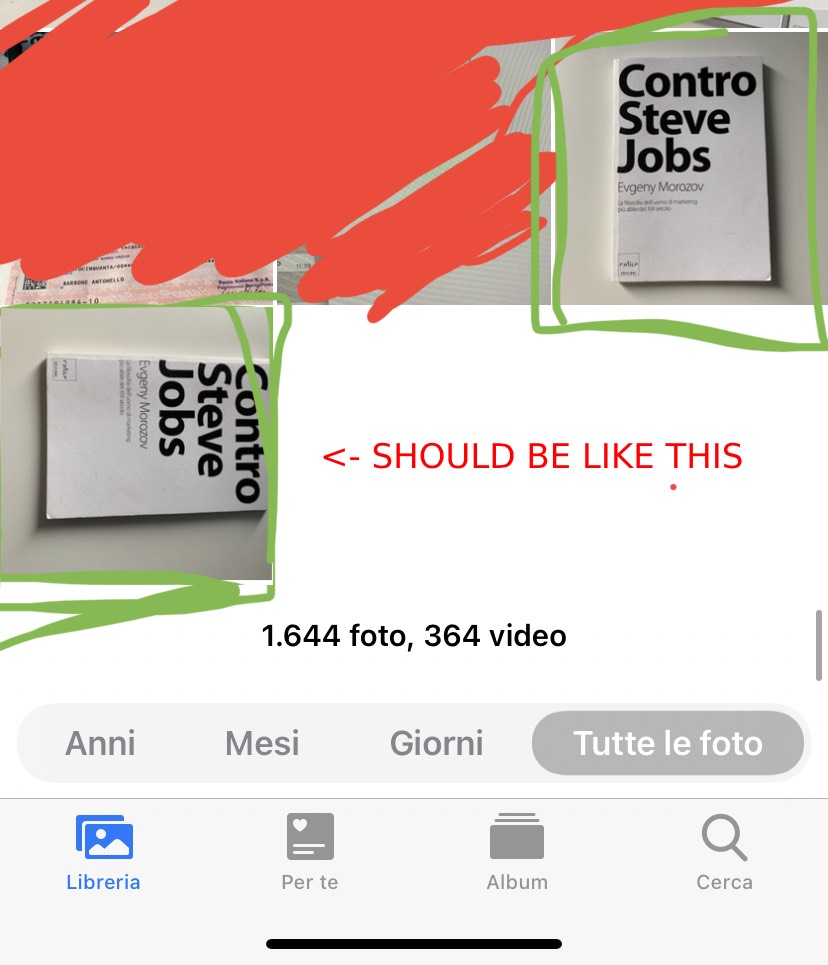

I photoshopped the image, to show what is my goal:



[Erel]

Have you tried to first crop it and then rotate?



[Mike1970]

Have you tried to first crop it and then rotate?

Sub Cam_Complete (Success As Boolean, image As Bitmap, VideoPath As String)
    If Success Then
        If image.IsInitialized Then

            imageview.ContentMode = imageview.MODE_FIT

            Dim out As OutputStream = File.OpenOutput(File.DirLibrary & "/" & "TestBitmap", "bitmap.jpeg", False)
            If Switch1.Value Then
                Dim im As Bitmap
                im = image.Crop(0,0,image.Width, image.Height)
                im = im.Rotate(90)
                imageview.Bitmap = im
                im.WriteToStream(out, 50, "JPEG")
            Else
                imageview.Bitmap = image
                image.WriteToStream(out, 50, "JPEG")
            End If
            out.Close

            Dim p As Phone
            p.AddImageToAlbum(LoadBitmap(File.DirLibrary & "/" & "TestBitmap", "bitmap.jpeg"))
        End If
    End If
End Sub

OK, like this I get the image rotate and with the correct aspect ratio!!
BUT, I did not understand why I've to use the ".Crop" function, before ".Rotate" to just rotate the image.
Is the ".Rotate" broken?



[Erel]

See my answer in post #4. The crop method resets the built-in orientation flag.



[Mike1970]

See my answer in post #4. The crop method resets the built-in orientation flag.

should not be incorporated in the Rotate method for convenience?



[Erel]

Yes.
