Android Question Bottom Drawer not working at B4Xpages

AndroidMadhu · Jan 18, 2021

Hello,
I am following the below example to integrate Bottom Drawer at B4Xpages.

https://www.b4x.com/android/forum/threads/bottom-popup-drawer.111706/#content
While integration I am facing the below error:

B4X:

Error occurred on line: 263 (B4XMainPage)
java.lang.RuntimeException: Object should first be initialized (B4XView).
at anywheresoftware.b4a.AbsObjectWrapper.getObject(AbsObjectWrapper.java:67)
at anywheresoftware.b4a.objects.B4XViewWrapper.asViewWrapper(B4XViewWrapper.java:88)
at anywheresoftware.b4a.objects.B4XViewWrapper.getHeight(B4XViewWrapper.java:144)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:348)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
at anywheresoftware.b4a.debug.Debug.delegate(Debug.java:262)
at b4a.example.b4xmainpage._showpanel(b4xmainpage.java:385)
at b4a.example.b4xmainpage$ResumableSub_B4XPage_Appear.resume(b4xmainpage.java:124)
at b4a.example.b4xmainpage._b4xpage_appear(b4xmainpage.java:74)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
at java.lang.reflect.Method.invoke(Native Method)
at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:144)
at anywheresoftware.b4a.BA$2.run(BA.java:387)
at android.os.Handler.handleCallback(Handler.java:873)

The below is the Code base :

B4X:

Sub CreatePanel
Root.LoadLayout("MainPage")
Overlay = xui.CreatePanel("overlay")

Overlay.Visible = False
Dim p As Panel = Overlay
p.Elevation = 5dip
Root.AddView(Overlay, 0, 0, 100%x, 100%y)
Overlay.LoadLayout("Overlay")
pnlBottom.LoadLayout("Layout1")
pnlBottom.SetColorAndBorder(xui.Color_Red, 0, 0, 15dip)
End Sub

Sub showPanel
Dim Duration As Int = 300
Overlay.SetVisibleAnimated(Duration, True)'OverlayVisible
Dim pnlBottomVisibleHeight As Int = pnlBottom.Height - 8dip 'hide bottom round corners
pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)

End Sub

Please advice

Thanks

Cableguy · Jan 18, 2021

I think the issue is your overlay panel is never initialized...
Where are you declaring overlay as panel?

Erel · Jan 18, 2021

1. Are you sure that you called CreatePanel before calling ShowPanel?
2. Are you sure that pnlBottom was added to "Overlay" layout?

AndroidMadhu · Jan 18, 2021

Erel said:
Are you sure that you called CreatePanel before calling ShowPanel?
Are you sure that pnlBottom was added to "Overlay" layout?

1. I think Yes. I have called CreatePanel before calling ShowPanel
2. I am not sure. I have replaced Root in place of Activity only. rest I am running the as is code.
I am running as is as per the below link....
https://www.b4x.com/android/forum/threads/bottom-popup-drawer.111706/#content

The code is running fine at B4A. But I am facing issue at B4XPages.

Thanks

TILogistic · Jan 18, 2021

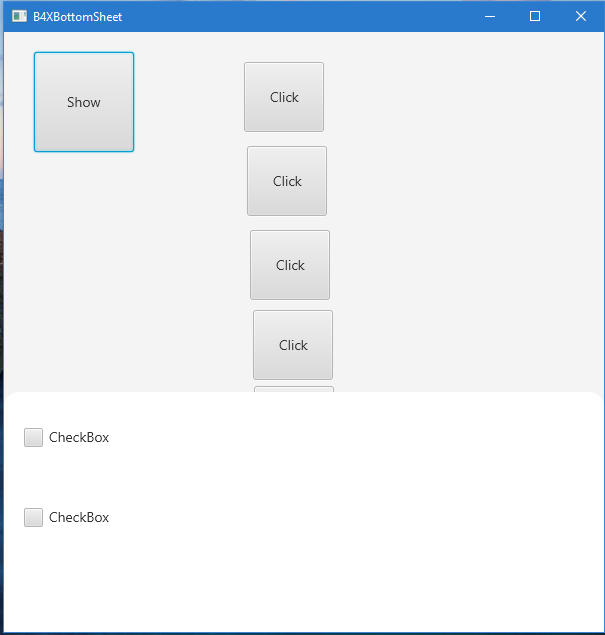

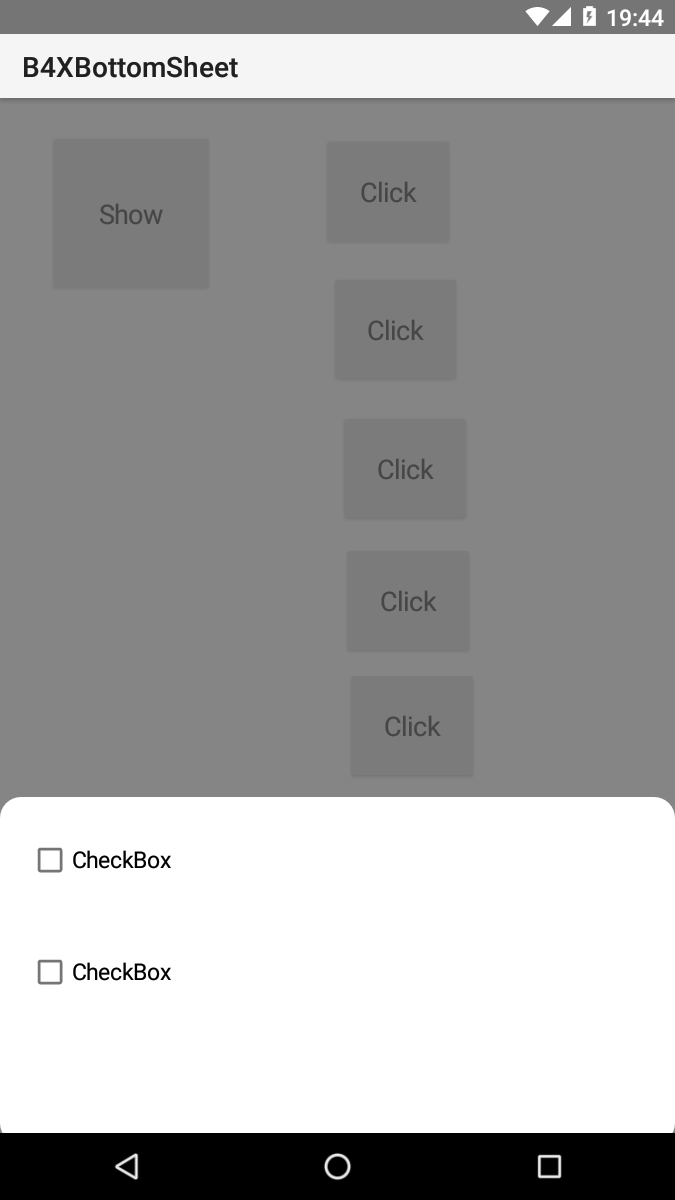

See demo B4XPage B4A or B4J:

Regards.

TILogistic · Jan 18, 2021

Some corrections:

Overlay background color

Root.AddView(Overlay, 0, 0, Root.Width, Root.Height)
Overlay.LoadLayout("Overlay")
Overlay.Color = 0x64808080

Capture layout resize event (width and height)

Private Sub B4XPage_Resize (Width As Int, Height As Int)
Overlay.Width = Width
Overlay.Height = Height
End Sub

AndroidMadhu · Jan 19, 2021

@oparra .... I have run your code. It is running fine.
But when I am including the same at my project it is giving error at below line :

B4X:

pnlBottom.LoadLayout("Drawer") ----> Getting error at this line

Below is the full code base :

B4X:

Sub CreatePanel

Root.LoadLayout("MainPage")
B4XPages.SetTitle(Me, "B4XBottomSheet")

Overlay = xui.CreatePanel("overlay")

#If B4A
Dim p As Panel = Overlay
p.Elevation = 5dip
#End If

Root.AddView(Overlay, 0, 0, Root.Width, Root.Height)
Overlay.LoadLayout("Overlay")

pnlBottom.LoadLayout("Drawer")
pnlBottom.SetColorAndBorder(xui.Color_White, 0, 0, 15dip)

Overlay.Visible = False
End Sub

Please advice

Thanks

TILogistic · Jan 19, 2021

AndroidMadhu said:
@oparra .... I have run your code. It is running fine.
But when I am including the same at my project it is giving error at below line :

B4X:

pnlBottom.LoadLayout("Drawer") ----> Getting error at this line

Below is the full code base :

B4X:

Sub CreatePanel Root.LoadLayout("MainPage") B4XPages.SetTitle(Me, "B4XBottomSheet") Overlay = xui.CreatePanel("overlay") #If B4A Dim p As Panel = Overlay p.Elevation = 5dip #End If Root.AddView(Overlay, 0, 0, Root.Width, Root.Height) Overlay.LoadLayout("Overlay") pnlBottom.LoadLayout("Drawer") pnlBottom.SetColorAndBorder(xui.Color_White, 0, 0, 15dip) Overlay.Visible = False End Sub

Please advice

Thanks

1,.- You must initialize the layouts in "B4XPage_Created".

B4X:

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    B4XPages.SetTitle(Me, "B4XBottomSheet")

    Overlay = xui.CreatePanel("overlay")

    #If B4A
    Dim p As Panel = Overlay
    p.Elevation = 5dip
    #End If

    Root.AddView(Overlay, 0, 0, Root.Width, Root.Height)
    Overlay.LoadLayout("Overlay")

    pnlBottom.LoadLayout("Drawer")
    pnlBottom.SetColorAndBorder(xui.Color_White, 0, 0, 15dip)

    Overlay.Visible = False

End Sub

2. Should be shown and hidden with "ToggleDrawerState"

B4X:

Sub ToggleDrawerState

    Dim Duration As Int = 300

    OverlayVisible = Not(OverlayVisible)
    Overlay.SetVisibleAnimated(Duration, OverlayVisible)

    Dim pnlBottomVisibleHeight As Int = pnlBottom.Height - 8dip 'hide bottom round corners

    If OverlayVisible Then
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
    Else
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
    End If

End Sub

TILogistic · Jan 19, 2021

Just call "CreatePanel" when Root and Layout initializes.

Root = Root1
Root.LoadLayout("MainPage")

See with CreatePanel:

B4X:

#Region Shared Files
'#CustomBuildAction: folders ready, %WINDIR%\System32\Robocopy.exe,"..\..\Shared Files" "..\Files"
'Ctrl + click to sync files: ide://run?file=%WINDIR%\System32\Robocopy.exe&args=..\..\Shared+Files&args=..\Files&FilesSync=True
#End Region

'Ctrl + click to export as zip: ide://run?File=%B4X%\Zipper.jar&Args=Project.zip

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private pnlBottom As B4XView
    Private Overlay As B4XView
    Private OverlayVisible As Boolean
End Sub

Public Sub Initialize

End Sub

'This event will be called once, before the page becomes visible.

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    B4XPages.SetTitle(Me, "B4XBottomSheet")

    CreatePanel

End Sub

Private Sub CreatePanel
    Overlay = xui.CreatePanel("overlay")

    #If B4A
    Dim p As Panel = Overlay
    p.Elevation = 5dip
    #End If

    Root.AddView(Overlay, 0, 0, Root.Width, Root.Height)
    Overlay.LoadLayout("Overlay")
    Overlay.Color = 0x7E808080

    pnlBottom.LoadLayout("Drawer")
    pnlBottom.SetColorAndBorder(xui.Color_White, 0, 0, 15dip)

    Overlay.Visible = False
End Sub

Sub ToggleDrawerState
    Dim Duration As Int = 300

    OverlayVisible = Not(OverlayVisible)
    Overlay.SetVisibleAnimated(Duration, OverlayVisible)

    Dim pnlBottomVisibleHeight As Int = pnlBottom.Height - 8dip 'hide bottom round corners

    If OverlayVisible Then
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
    Else
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
    End If

End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.

Private Sub btn_Click
    ToggleDrawerState
End Sub

Private Sub Overlay_Touch (Action As Int, X As Float, Y As Float)
    If Action = Overlay.TOUCH_ACTION_DOWN Then
        ToggleDrawerState
    End If
End Sub

Private Sub B4XPage_Resize (Width As Int, Height As Int)
    Overlay.Width = Width
    Overlay.Height = Height
End Sub

TILogistic · Jan 19, 2021

check if parent view is initialized.

B4X:

#Region Shared Files
'#CustomBuildAction: folders ready, %WINDIR%\System32\Robocopy.exe,"..\..\Shared Files" "..\Files"
'Ctrl + click to sync files: ide://run?file=%WINDIR%\System32\Robocopy.exe&args=..\..\Shared+Files&args=..\Files&FilesSync=True
#End Region

'Ctrl + click to export as zip: ide://run?File=%B4X%\Zipper.jar&Args=Project.zip

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private pnlBottom As B4XView
    Private Overlay As B4XView
    Private OverlayVisible As Boolean
End Sub

Public Sub Initialize

End Sub

'This event will be called once, before the page becomes visible.

Private Sub B4XPage_Created (Root1 As B4XView)

    Root = Root1
    Root.LoadLayout("MainPage")
    B4XPages.SetTitle(Me, "B4XBottomSheet")
    CreatePanel(Root)

End Sub

Private Sub CreatePanel( View As B4XView )

    If Not(View.IsInitialized) Then Return

    Overlay = xui.CreatePanel("overlay")

    #If B4A
    Dim p As Panel = Overlay
    p.Elevation = 5dip
    #End If

    View.AddView(Overlay, 0, 0, Root.Width, Root.Height)
    Overlay.LoadLayout("Overlay")
    Overlay.Color = 0x7E808080

    pnlBottom.LoadLayout("Drawer")
    pnlBottom.SetColorAndBorder(xui.Color_White, 0, 0, 15dip)

    Overlay.Visible = False
End Sub

Sub ToggleDrawerState
    If Not(Overlay.IsInitialized) Then Return
    Dim Duration As Int = 300

    OverlayVisible = Not(OverlayVisible)
    Overlay.SetVisibleAnimated(Duration, OverlayVisible)

    Dim pnlBottomVisibleHeight As Int = pnlBottom.Height - 8dip 'hide bottom round corners

    If OverlayVisible Then
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
    Else
        pnlBottom.SetLayoutAnimated(0, 0, pnlBottom.Parent.Height - pnlBottomVisibleHeight, pnlBottom.Width, pnlBottom.Height)
        pnlBottom.SetLayoutAnimated(Duration, 0, pnlBottom.Parent.Height, pnlBottom.Width, pnlBottom.Height)
    End If

End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.

Private Sub btn_Click
    ToggleDrawerState
End Sub

Private Sub Overlay_Touch (Action As Int, X As Float, Y As Float)
    If Action = Overlay.TOUCH_ACTION_DOWN Then
        ToggleDrawerState
    End If
End Sub

Private Sub B4XPage_Resize (Width As Int, Height As Int)
    If Overlay.IsInitialized Then
        Overlay.Width = Width
        Overlay.Height = Height
    End If
End Sub
