B4A Library [Class] AnotherDatePicker - A simple "web style" date picker

This is an old version. Latest version is included in XUI Views: https://www.b4x.com/android/forum/threads/100836/#content

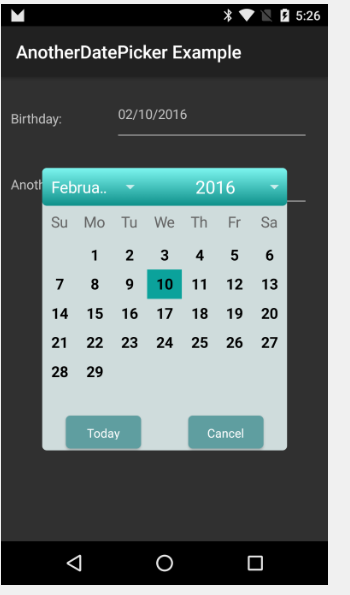

AnotherDatePicker is an inline date picker:

The advantage of this class over the built-in dialog (DateDialog from the Dialogs library) is that you can easily customize it as needed.

Most of the layout is created with the visual designer and designer script.

ADP.GetDate returns the selected date.

The months names and days names are based on the device locale.

In order to use this class in your code you should add AnotherDatePicker class, reference DateUtils library and add DatePicker layout file to the Files tab.

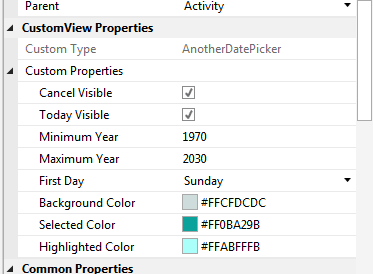

Starting from v2.0, ADP should be added as a custom view from the designer:

v2.0 - Better support for visual designer and more configurable options (including first day of week).
v1.11 - Fixes an issue with SetDate that is called before the view is ready.
v1.10 - Adds a Closed event. See the attached example.



[Erel]

The closed event will be raised. See the example.



[daveinhull]

Hi Erel,

Many thanks, but my mistake (late night syndrome), sorry how do I know when it gets focus. I have a simple form with an editbox and the anotherdatepicker on it. When I click the anotherdatepicker the date selector pops up, but the curse is left in the editbox and therefore I can't close the softkeyboard, or am I missing something?

Thanks in advance
Dave



[Erel]

Sounds like you are not adding it properly. Are you adding it as a custom view with the designer?



[daveinhull]

Hi Erel,

Yes

Any other ideas?

Thanks



[Erel]

Can you upload your project (File - export as zip)?



[daveinhull]

Hi Erel,

Yes although I've just got to catch a train, so will shortly.

Many thanks for your help.

Dave



[daveinhull]

Hi Erel,

I've uploaded the test file.

On my system the Edit Box (mainPlace) FocusChanged doesn't fire ......

Dave



[Erel]

Use the IME library to hide it. Add an ime object and hide it in AnotherDatePicker.Show:

ime.HideKeyboard



[daveinhull]

Hi Erel

That is what I was doing. The AnotherDateTime and the EditBox were on a panel. When I wanted them, I made the panel visible and did a AnotherDatePicker.Show so that it appeared first thing. So I select the date and it loads it into the field (fine) and then go to the EditBox and the soft keyboard pops up (fine). However, if I then click on the AnotherDatePicker the date selector pops up, but the cursor is left on the EditBox and the soft keyboard is still visible. I.e. I haven't used .Show again, just moved focus.

Thoughts?
Dave



[Erel]

That is what I was doing.

Are you calling ime.HideKeyboard?



[daveinhull]

Hi Erel,

I can't call ime.HideKeyboard because I don't receive an event saying that the EditBox has lost focus (because if you look) it doesn't actually loose focus when I select the AnotherDatePicker control.

Did you see the uploaded test file? In it the EditBox focus change event doesn't get fired.....

Dave



[Erel]

The focus event is not raised because the focus hasn't changed. It will only change if you add another EditText field.

Why can't you add ime.HideKeyboard to the AnotherDatePicker.Show sub?



[daveinhull]

Hi Erel,

Because I only use .Show once when the panel becomes visible. While the data entry panel is visible (i.e. collecting either the date-AnotherDatePicker or the place-EditBox) I want to be able to allow the user to click in the EditBox or the AnotherDatePicker to enter the data and then press return to go back to the main program.

While this is happening I don't use .Show for the ANotherDatePicker. If I select the EditBox the AnotherDatePicker window hides and if I click on the AnotherDatePicker date field, it comes back again, but the cursor doesn't leave the EditBox. Surely if I select the AnotherDatePicker (as a different control) then EditBox should lose focus? The ofcus is clearly not with the EditBox anymore if the user is selecting a date?

Thanks
Dave



[Erel]

Surely if I select the AnotherDatePicker (as a different control) then EditBox should lose focus?

No. This is not how Android works.

I'm afraid that I cannot further help you. I already wrote the correct solution 3 times. You should at least try it...



[daveinhull]

Hi Erel,

Anyway thanks for trying to help.

I really dont understand what you mean by "that is not how Android works". If I have two EditBoxes and I switch between then the focus changes and I get events.

Anyway I don't want to waste your time, but I'll have to do something else because your solution does not work in my use case. It's not semantically correct even if it is syntactically correct.

Thanks again for your patience.



[Erel]

If I have two EditBoxes and I switch between then the focus changes and I get events.

That's true. In this example there is only a single EditText field.



[daveinhull]

Hi Erel,

Yes, but isn't the AnotherDatePicker using edit fields at all? or do you only get a change of focus event with EditBoxes? This is where my misunderstanding must be.

Anyway, thanks again and I'll work another solution.

Dave



[daveinhull]

Hi Erel,

Ok, so I've sorted it. I've created a second EditText on the panel and hidden the AnotherDatePicker. Now I get focus change events and I can bring up the AnotherDatePicker using .show and hide the soft keyboard when I want.

Thanks
Dave



[Erel]

It was not needed. All you need to do is add ime.HideKeyboard in the Show method of AnotherDatePicker. If you go over the code you will see that this method is called when the label is clicked.



[IslamQabel]

How to get day of week from date dialog??
