B4A Library [Class] Flexible Table

harinder · Nov 21, 2017

Thank you Klaus..works perfectly..

Zeev Goldstein · Dec 14, 2017

hi,

i know it is an old thread but still i try...
i am using this great table view
i load it using CSV
all is PERFECT
one tiny issue - how do i force a column to be sorted as numneric ?
if have a column that represents numeric values but when sorting it using the column header click it sorts as string

and - how do i prevent sorting on a column or on all grid ?

any help ?
thanks

klaus · Dec 14, 2017

By default, the sorting is a string sorting.
You have the sortTableNum(col As Int, dir As Boolean) routine to sort a given column numerically.
You cannot prevent a given column from sorting.
To prevent all columns being sorted, add this line in your code Table1.SortColumn = False.
You can add a Table1_HeaderClick event routine in your code, there you can do whatever you want.

B4X:

Private Sub Table1_HeaderClick(col as Int)
    'your code
End Sub

Replace Table1 by the EventName you set when you initialized the Table.

Zeev Goldstein · Dec 14, 2017

THANK YOU !!

the sorting command is if i do it from the app, how do i let it sort on a column header click ?
i mean when the user clicks the header it should sort up / down but as numeric

thanks

Zeev Goldstein · Dec 14, 2017

oh, how silly i am...
it is so simple...
thanks for your answer that put me in the right spot

Widget · Feb 5, 2018

Klaus,
There looks like a minor syntax error in TableV2_22.zip for file Table.bas at line 850 where it says:

If HeaderWidths(col) > ColumnWidths(col) Then Or HeaderWidths(col) > ColumnWidths(col) Then

I tried to wrap my head around this statement and almost blew a neuron or two.

I'm not sure why this statement didn't throw a compile error.
It's not a biggee by any means. Program still works. Just thought you ought to know in case you want to clean it up before the next release.

TIA

klaus · Feb 5, 2018

This is of course non sense.
The strange thing is that it doesn't through an error.
It has been in the class since the bginning when the test was added!?
Will be fixed in the next update.

Angel Garcia · Feb 7, 2018

Hi Klaus,
As far as been reading on the posts, is still not possible to set a single color on different cells?
i have a grid of 20 rows and 8 columns, and what i want to accomplish is, when a user clicks on a cell to paint its background with the color set on "SelectedCellColor", it works fine with different rows, but when i click on different column of the same row it unpaints the previous one.
Is there a way to modify the class to accomplish this?
i've seen that the subroutine that does this is the "ShowRow".

Many thanks in advance!!
Angel

klaus · Feb 7, 2018

What exactly is the purpose of this selecting several columns in a same row.
Currently the multiselection function memorizes only selected rows.
Your request would need to rewrite the SelectRow and ShowRow routines.

Angel Garcia · Feb 7, 2018

klaus said:
What exactly is the purpose of this selecting several columns in a same row.
Currently the multiselection function memorizes only selected rows.
Your request would need to rewrite the SelectRow and ShowRow routines.

Hi!
in my case my grid is static, its 30 rows x 8 columns, i was trying paint cells with a single color when a user taps on it.
Finally i modified to make it work in my situation, ill post it here in case anyone is facing same situation.

1. First i used a Map variable to store the labels after loading the rows of the table:

B4X:

If MapLabs.IsInitialized=False Then
                MapLabs.Initialize
            End If

            Dim tuPan As Panel=EA6Table1.Panel
            For Each v As View In tuPan.GetAllViewsRecursive
                If v Is Label Then
                    Dim labX As Label=v

                    If labX.Tag Is RowCol Then
                        Dim renCola As RowCol=labX.Tag
                        Dim combi As String=renCola.Row & "-" & renCola.Col
                        MapLabs.Put(combi,labX)

                    End If

                End If
            Next

2. I commented the line of the "SelectRow" on the CellClick event on the table class, in order to deactivate the Re-painting.

3. On the CellClick event of the Activity:

B4X:

If col<>0 Then
        Dim tuKolor As ColorDrawable
        Dim combi As String= row & "-" & col
        Dim xLab As Label
        tuKolor.Initialize(EA6Table1.SelectedCellColor,0)
        xLab=MapLabs.get(combi)
        xLab.Background=tuKolor

    End If

I think is useful just for a little amount of rows and columns.
Please let me know if i missed something
Regards

EDIT:
I found out the "VisibleRows" Map Property, it makes the same thing, without using another Map variable

B4X:

Dim maPaX As Map
        maPaX.Initialize
        maPaX=EA6Table1.visibleRows

        Dim lbls() As Label
        lbls=maPaX.Get(row)

        Dim tuKolor As ColorDrawable
        tuKolor.Initialize(EA6Table1.SelectedCellColor,0)

        lbls(col).Background=tuKolor

klaus · Feb 7, 2018

If I understand well, you are modifying the lable background color in the Activity and not in the class.
In my opinion this should be done in the class code.
For a small table like yours, I would displayed it on my own with a much smaller code.
The Table class is a hudge code.
If you look at he SQLExamle in the User's Guide, there the table is displayed with a smaller code, of course with less functions.

Angel Garcia · Feb 7, 2018

klaus said:
I would displayed it on my own with a much smaller code.

I know but i'm terrible coding for different screen sizes

, and urs is great doing that.
Thanks for your support!

luciano deri · Mar 2, 2018

Hello. Is possibile view img on rows reading a blob colum of a table Sqlite?

klaus · Mar 2, 2018

No.
The cells in the table Labels.

luciano deri · Mar 2, 2018

I'm using 1.44 Class, have you got some hint to solve this problem? If img is ever first colum ...

klaus · Mar 2, 2018

This would need to modify the class code.
You would need to use an ImageView for the first column instead of a Label.

If you haven't too many rows you could do it on your own.
You may have a look at the SLQExample project which is shipped with the B4A User's Guide.
In this example a table is generated in the code, you could use this as a start an modify it to your needs.

ardillaprogramadora · Mar 14, 2018

Hello, im unable to make the table works. This is my code:

B4X:

Sub Globals
    Private Table1, Table2 As Table
End Sub

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("Main")
    Dim msg As String
    msg = "testing"

    Table2.Initialize(Me, "Table2")
    Table2.InitializeTable(2,Gravity.LEFT,False)
    Table2.AddToActivity(Activity, 10dip, 250dip, 300dip, 200dip)

    Table2.AddRowAutomaticWidth(Array As String(msg,"col2"))

Using: table version 2.22. b4a:v7.80. Reflection 2.40, ScrollView2D 1.30. SQL 1.50. StringUtils 1.12 Core 7.28
Any ideas???

im getting this error java.lang.RuntimeException: Object should first be initialized (ScrollView2D).

klaus · Mar 14, 2018

Do you have the ScrollView2D library and did you check it in the Libraries Manger Tab?

ardillaprogramadora · Mar 14, 2018

klaus said:
Do you have the ScrollView2D library and did you check it in the Libraries Manger Tab?

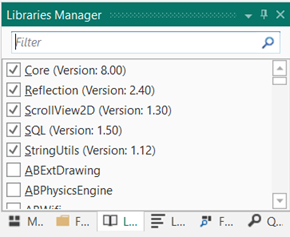

View attachment 65479

Yep Klaus:

klaus · Mar 14, 2018

You are missing SetHeader and you should invert AddToActivity and InitializeTable.
The code below works:

B4X:

Table2.Initialize(Me, "Table2")
Table2.AddToActivity(Activity, 10dip, 250dip, 300dip, 200dip)
Table2.InitializeTable(2, Gravity.LEFT, False)
Table2.SetHeader(Array As String("Column1", "Column2"))
Table2.AddRowAutomaticWidth(Array As String("msg", "col"))
