Android Question clvTree resizeTree?

[tsteward]

I have a need to manually change the height of the custom list view that contains the clvTree view but the tree view no longer fills the CLV.

How might I fix this?



[Erel]

I have a need to manually change the height of the custom list view that contains the clvTree view but the tree view no longer fills the CLV.

Not sure that I understand. Maybe you should put the clvTree inside a panel instead.



[tsteward]

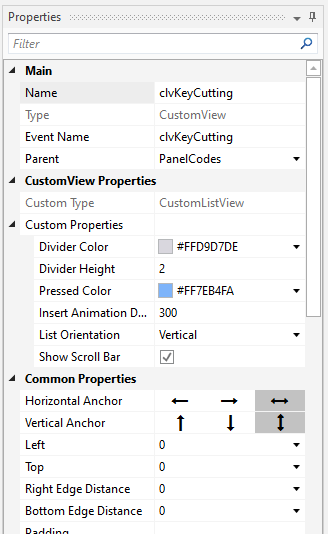

I have used some colour to see what's happening.
I no longer try resizing the CLV and it is on a panel.
When I resize the panel the CLV does not resize automatically with it for some reason.
I can manually set the height of the CLV to the panel height which works but the treeCLV then does not fill the CLV

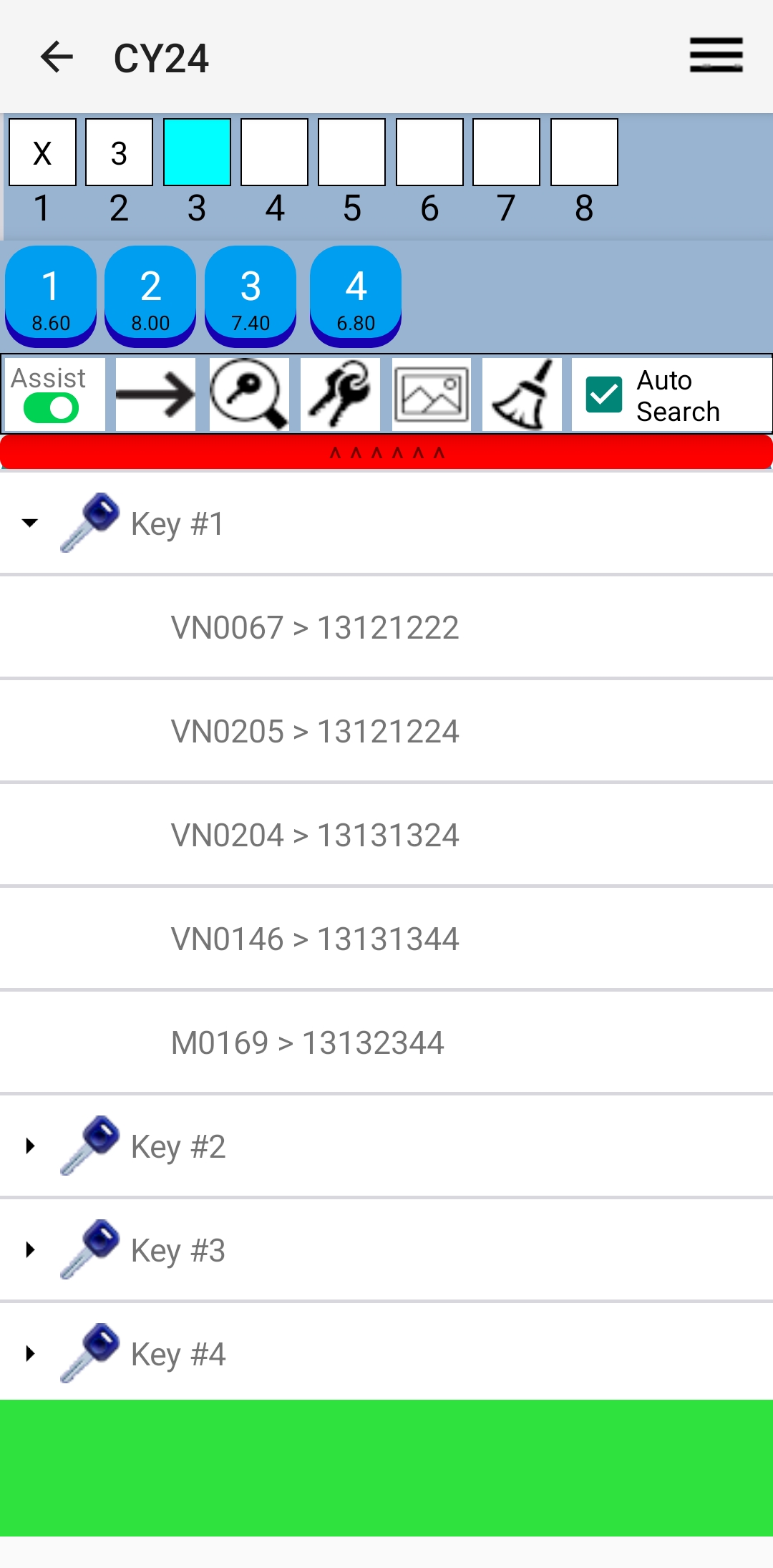

Panel background is red
CLV background is green



[TILogistic]

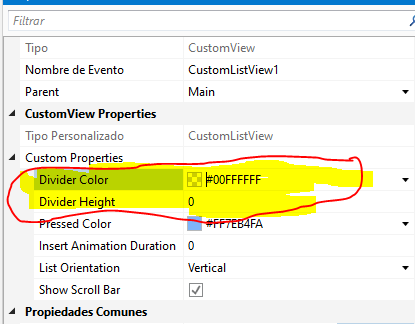

test;
code:

    CustomListView1.DefaultTextBackgroundColor = xui.Color_Transparent
    Tree.Initialize(CustomListView1)

Customlistview



[tsteward]

In my app I want to see the dividers.
You can see in my screenshot the tree does not fill the CLV as the green background of the CLV is visible at the bottom.



[Erel]

When I resize the panel the CLV does not resize automatically with it for some reason

This is the expected behavior.

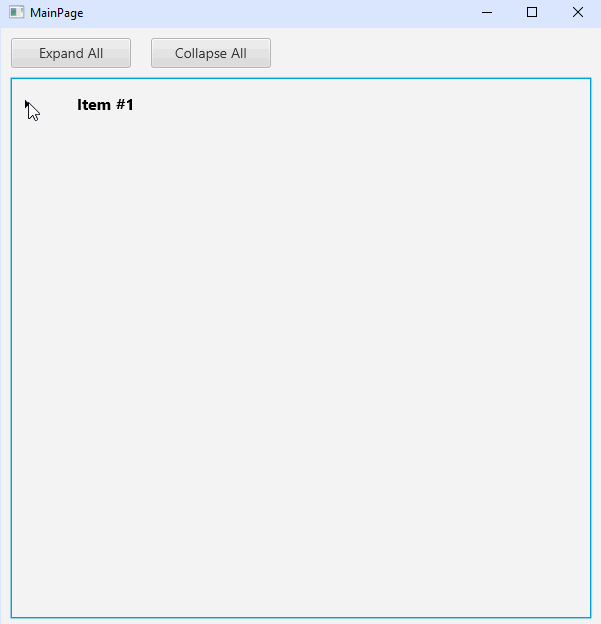

I think that it is best if you provide a small example based on this example: https://www.b4x.com/android/forum/threads/b4x-clvtree-tree-view.132472/#content



[tsteward]

When you click on Button1 it resizes the Customlistview
I have changed the colour of the background so you can see it.
Then when you click Button1 again it puts it back.
It appears the tree does not fill the CLV

Or I don't understand and could use some help please.



[Erel]

Add these two lines after the CLV size changes:

CustomListView1.Base_Resize(CustomListView1.AsView.Width, CustomListView1.AsView.Height)
CustomListView1.Refresh

Tip:

If small = False Then
        small = True
        CustomListView1.AsView.Top = (Button1.Top + Button1.Height)+20dip
        CustomListView1.AsView.Height = Root.Height - ((Button1.Top + Button1.Height)+20dip)
        Label1.Visible=False
    Else
        small = False
        CustomListView1.AsView.Top = (Label1.Top + Label1.Height)+20dip
        CustomListView1.AsView.Height = Root.Height - ((Label1.Top + Label1.Height)+20dip)
        Label1.Visible=True
    End If

You can write like this:

If small = False Then
        CustomListView1.AsView.Top = (Button1.Top + Button1.Height)+20dip
        CustomListView1.AsView.Height = Root.Height - ((Button1.Top + Button1.Height)+20dip)
    Else
        CustomListView1.AsView.Top = (Label1.Top + Label1.Height)+20dip
        CustomListView1.AsView.Height = Root.Height - ((Label1.Top + Label1.Height)+20dip)
    End If
Small = Not(Small)
Label1.Visible = Not(small)
