B4R Question Compiler abort due to a board problem?

[thali]

After installation of new board types (e.g. M5Stamp) on the Arduino IDE 1.8.15, B4R 3.9 stops with :
.......
DEBUG StatusLogger Shutdown hook enabled. Registering a new one.
DEBUG StatusLogger LoggerContext[name=1e6f5c3, org.apache.logging.log4j.core.LoggerContext@49a9c1] started OK.
Preparing boards...
Error: EraseFlash: Invalid option for board "m5stack-core-esp32"
DEBUG StatusLogger Stopping LoggerContext[name=1e6f5c3, org.apache.logging.log4j.core.LoggerContext@49a9c1]
DEBUG StatusLogger Stopping LoggerContext[name=1e6f5c3, org.apache.logging.log4j.core.LoggerContext@49a9c1]...
.......
The B4R project (with M5Stack-Core board) can be compiled on an other machine and the src.ino project, translated by B4R on this machine
can be compiled with the Arduino-IDE.
Third, a B4R project with an M5Stamp-C3-board is compiled well on this machine.

What's happend with the board management in B4R and how can I make it running again?



[Erel]

Tip: Getting rid of the excessive compiler logs

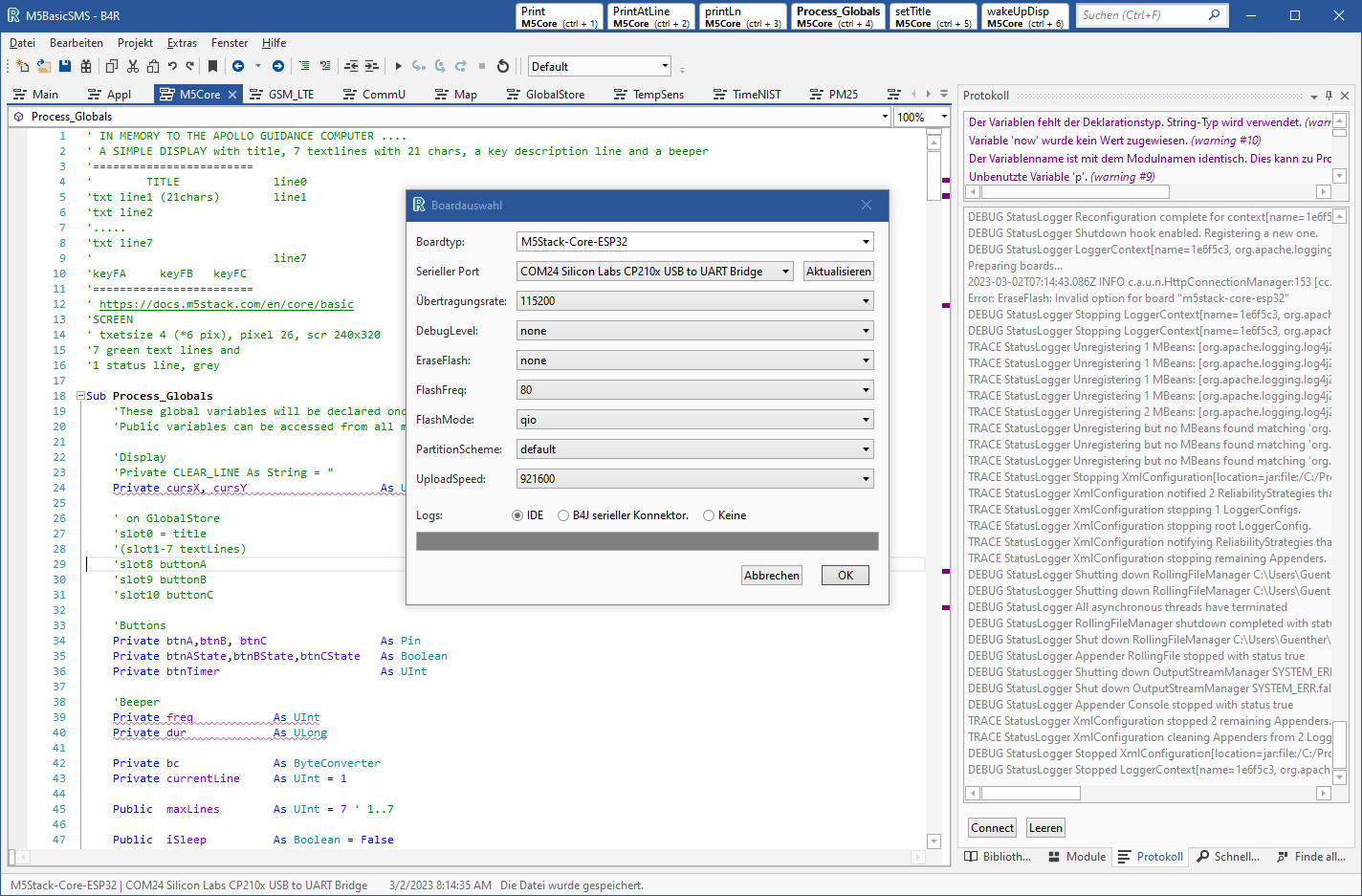

Are you sure that all the board settings in the board configuration dialog are identical?



[thali]

Your are right!
The board that fails has one more parameter: 'EraseFlash'. Why this?
I can set the this to 'none' or 'all' but compilation always fails...

At the Arduino-IDE the parameter ''Erase All Flash Before Sketch Upload" is disabled and compilation works!
Where is the dog?



[Erel]

Probably a different version of the installed board SDK. It comes from the Arduino IDE downloaded metadata.



[thali]

Solved! The board 'M5Stack-Core-ESP32' was defined twice in the packages:

https://dl.espressif.com/dl/package_esp32_index.json

https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/package_m5stack_index.json

So, I removed the upper line in the Arduino-IDE settings, restart IDE, and compilation works again in B4R. - Thanks: Great tool!
