CustomListView - A flexible list based on ScrollView

[Erel]

I think that would be a nice option because after a while I really don't know anymore which views I added in which sequence.

Which option?



[DonManfred]

but i get a compile error:

Error compiling program.
Error description: Current declaration does not match previous one.
Previous: {Type=Phone,Rank=0}
Current: {Type=Panel,Rank=0}

You have DIM an object p as panel. But you previously dim a p as phone



[GMan]

How can i get the content of the (GetView(0)) in the lower CLV3 ( i.e. the text "Item #9") ?



[Erel]

   Dim pnl As Panel = clv3.GetPanel(9)
   Dim lbl As Label = pnl.GetView(0)
   Log(lbl.Text)



[GMan]

Thx...you made my day



[GMan]

..and how works this with a "normal" ListView ?
There i want to get the second.label - Text

The getPanel is not allwoed with that :-(



[DonManfred]

..and how works this with a "normal" ListView ?
There i want to get the second.label - Text

The getPanel is not allwoed with that :-(

You can store any info you like in the listviews "Item Value"

See this example

Dim retmap As Map
retmap.Initialize
retmap.Put("tag","TagValue"&i)
retmap.Put("itemID","ItemID"&i)
retmap.Put("name","ItemName"&i)
retmap.Put("line1","This is line 1")
retmap.Put("line2","This is line 2")
lv.AddTwoLines2(retmap.Get("line1"), retmap.Get("line2"), retmap)

Sub lv_ItemClick (Position As Int, Value As Object)
    Dim retmap As Map
    retmap = Value
    Log("Item at Pos "&Position&" Clicked...")
    Log("ItemInfos:")
    Log("tag = "&retmap.Get("tag"))
    Log("itemID = "&retmap.Get("itemID"))
    Log("name = "&retmap.Get("name"))
    Log("line 1 = "&retmap.Get("line1"))
    Log("line 2 = "&retmap.Get("line2"))
End Sub



[GMan]

Thx for the Sample, Manfred - i'll try.
the project couldnt be opened, because i am still using iDE 2.71.
(seems that i have to save some money for an update)



[DonManfred]

the maincode you see in my post...



[GMan]

Jepp, made the bal-file new



[DAM]

Hello!
First of all, I'm sorry if I ask a question which was already answered, but I couldn't find.
I use Erel's example to make my own CustomListView with data from database. Everything is working fine but... the customlistview is not scrolling.

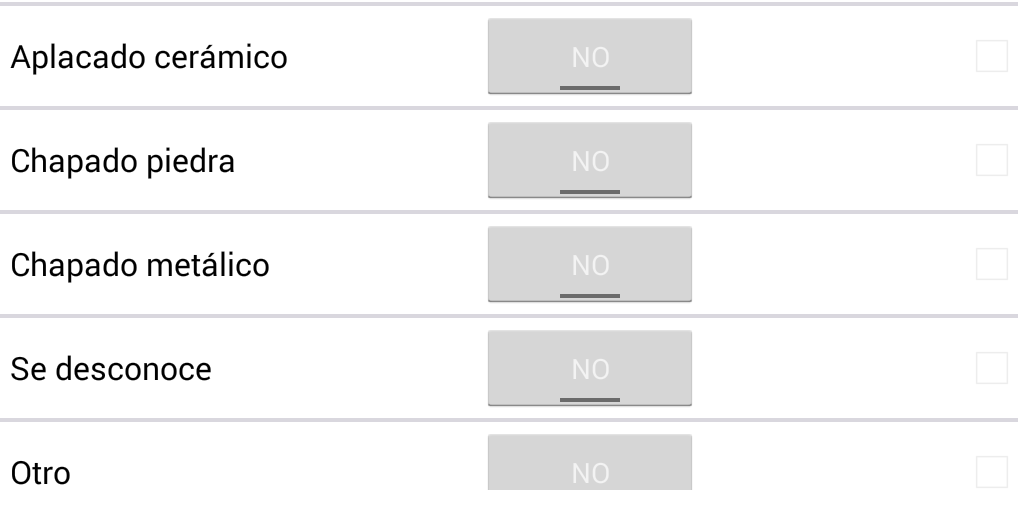

You can see in the picture that the last item is cut and it is not possible to scroll. What could be the problem??
Thanks a lot for your help!!

scrollCimentacion.Initialize(200dip)
scrollCimentacion.Color=Colors.white
pan.AddView(scrollCimentacion,0%x, 8%y, 100%x, 100%y)    scrollCimentacion.Panel.LoadLayout("cimentacion")
If File.ExternalWritable = False Then
    sql1.Initialize(File.DirInternal, "ite.s3db", False)
Else
    sql1.Initialize(File.DirRootExternal, "ite.s3db", False)
End If
cursor1=sql1.ExecQuery("select nombre from elemento where id_padre=95")
clvcontencion.Initialize(Me, "clv2")
            pnlContencion.AddView(clvcontencion.AsView, 0, 0, pnlContencion.Width, pnlContencion.Height)
For i = 0 To cursor1.RowCount -1
    cursor1.Position=i
clvcontencion.Add(CreateListItem(cursor1.GetString("nombre"), clvcontencion.AsView.Width, 50dip), 50dip, cursor1.GetString("nombre"))
Next
scrollCimentacion.Panel.Height= 150%y

On the Designer the panel (pnlContencion) in which I add my customlistview is 280 height.



[Erel]

What is the purpose of scrollCimentacion?



[DAM]

What is the purpose of scrollCimentacion?

Hello!
Sorry I didn't explain my self in a better way:
-I have a ViewPager and each page has a scrollview:

Dim pan As Panel
        Select i
            Case 0
                pan= CreatePanel(CIMENTACION, "Cimentación")
                container.AddPage(pan,"Cimentación")

....

Sub CreatePanel(PanelType As Int, Title As String) As Panel
    Dim pan As Panel
    Dim pi As PanelInfo

    pi.Initialize
    pi.LayoutLoaded = False
    pi.PanelType = PanelType

    pan.Initialize("")
    Select PanelType
        Case CIMENTACION
            scrollCimentacion.Initialize(400dip)
            scrollCimentacion.Color=Colors.white
            pan.AddView(scrollCimentacion,0%x, 8%y, 100%x, 100%y)
       scrollCimentacion.Panel.LoadLayout("cimentacion")

Etcetera (what I added yesterday)

I don't know why the customlistviews are not scrolling...



[Erel]

I don't completely understand your code. Make sure that there is no transparent view over the CustomListView. If you are unable to solve it then please upload your project.



[DAM]

I don't completely understand your code. Make sure that there is no transparent view over the CustomListView. If you are unable to solve it then please upload your project.

Thanks a lot, I wanted to upload my code but it is very large, so I paste here Dropbox link:
https://www.dropbox.com/s/sj4g9ykdj8tsspg/tecni_ite.zip

My apologies because it's not clean and it's not very good, still in progress.
The customlistviews are in "elementos" module.

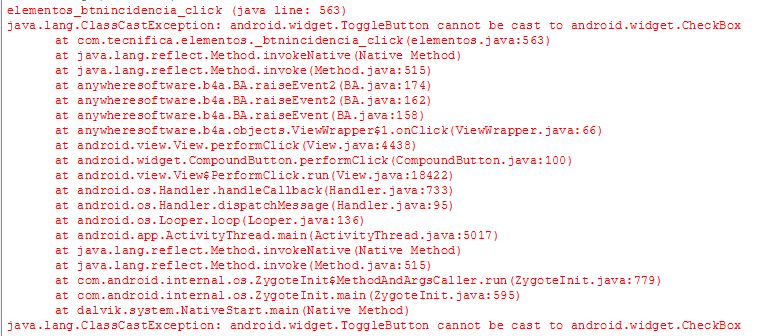

(By the way, as you will see, each panel of the customlistview has a label, togglebutton and checkbox. I want to change the order, making: label + checkbox + togglebutton. When I do this, it happens an error, I attached a picture).

Thank you so so much for your help!!
Greetings



[Erel]

There are several files missing (ic_technificaup is one of them).



[DAM]

Sorry, i think it should be ok now, sorry for the inconvenience:
https://www.dropbox.com/s/sj4g9ykdj8tsspg/tecni_ite.zip



[Erel]

Is this the unscrollable list?

You should not put a scrollable view inside another scrollable view.



[DAM]

Yes, it is.
I see the point... So the solution could be to have a panel instead of a scrollview in the page, right? In that case, the problem could be that if the content doesn't fit in the panel (phone screen), user could not be able to scroll it


Thanks a lot for the time you spare on it!



[Erel]

Any non-scrollable view will work as the parent.
