B4A Library DJI Drones

DJI Drones are very popular and advanced drones. DJI provides an Android app that is used during flights to control the drone.
The Android device connects to the remote controller with a USB cable (USB debug mode should be enabled).

DJI are also providing a feature-rich SDK that allows us, developers, to create alternative applications to control the drone. It is quite amazing to be able to easily program a drone to do all kinds of sophisticated tasks.

The following video is an example created with B4A and the DJI library. On the left side you can see the drone camera feed and various parameters. On the right side there is a standard Google Map. Touching on a point in the map starts a hotspot mission. The drone will rotate automatically around the spot.


How to use

1. Register with DJI: https://developer.dji.com/ and create an app in the User Center page. You will see an App Key that you need to add to the manifest editor.
The bundle identifier must match your app package name.
2. Add this code to the manifest editor:

AddReplacement($DJI_KEY$, XXXXXXXXX)
CreateResourceFromFile(Macro, DJI.DJI)

Replace XXXXXXXXXX with your App key.
3. Add to the main activity code:

#BridgeLogger: true
#MultiDex: true
#AdditionalJar: dji-sdk-provided-4.16, ReferenceOnly
#AdditionalJar: kotlin-stdlib-1.5.10

4. You might need to install a few components with B4A Sdk Manager: https://www.b4x.com/android/forum/t...droid-attr-lstar-not-found.141799/post-898956
5 Initialize the SDK when the application starts. The RegisteredResult event will be raised. If successful then call sdk.StartConnectionToProduct to start a connection.
6. The ProductConnected event will be raised. If AircraftData is not Null then you are good to go and can initialize the DJIAircraft object and the other features (see how it is done in the example).
7 Most of the operations are asynchronous. They are built to work with the Wait For keyword.
8. Expect disconnections and other errors.
9. New: See the Activity_Resume code in the example. It is needed to handle reconnections.

See the attached example.

Tips & Notes

- Make sure that you are able to connect to the drone with the DJI app. Not all Android devices have proper support for USB connected devices.
- You will see a dialog that asks you whether you always want to start the DJI app when the USB is connected. Click on "This time only". Otherwise you will need to uninstall the DJI app as it will get an exclusive permission to use the USB device.
- Use B4A-Bridge to connect the IDE to the Android device.
- Supported drones: https://developer.dji.com/mobile-sd.../product_introduction.html#supported-products
- Use the simulator to test your app. It works well.
https://developer.dji.com/mobile-sd...on-development-workflow/workflow-testing.html

- Don't fly the drone indoors.
- Check the GPS status. All the nice automatic features will fail without the GPS. Should be 4 or 5.
- Make sure that the home location is set before flight.
- Always be prepared to manually control the drone.

Download the native libraries and copy them to the additional libraries folder:
www.b4x.com/android/files/dji_additional.zip
Note that only 64 bit binary is included inside dji-sdk-4.15.aar. You can download the full aar with both 32 bit and 64 bit binaries here:

https://repo1.maven.org/maven2/com/dji/dji-sdk/4.16/dji-sdk-4.16.aar

During development it will be faster to use the smaller aar file.

Download the attached library and copy it as well.

Updates

- 4.80: Based on SDK 4.16. Requires B4A v11.5+. Please add to Main module:

#MultiDex: true
#AdditionalJar: dji-sdk-provided-4.16, ReferenceOnly
#AdditionalJar: kotlin-stdlib-1.5.10

- 4.70: Based on SDK 4.15. Check the updated example and don't miss the Activity_Resume code.
- 4.60: It is based on DJI SDK v4.14-trial1.
It requires B4A v11.5+
The minimum Android version is 5.0.

Start with the attached example. Note that the hotspot mission calls ExitApplication. You must configure a reasonable coordinate before you test it (and remove the ExitApplication).
The example needs to be updated with the attributes mentioned in v4.80 update above.



[Erel]

V2.00 is released. It is based on the new SDK. There are some breaking changes as the SDK is very different. It supports waypoint missions.



[Erel]

Must say that it is quite amazing to see it flying a mission.

I've used this website to extract the coordinates: http://www.mapcoordinates.net/en



[PABLO2013]

many many tks

I will review the information and then upload the evidence, thank you



[PABLO2013]

Greetings I wanted to know if this link is the new sdk, tks +1000



Download the native libraries and copy them to the additional libraries folder:
www.b4x.com/android/files/dji.zip
Download the attached library and copy it as well.

Version 2.0 is released. It is based on DJI SDK v4.0. It supports waypoint missions.
It requires B4A v7+.



[DonManfred]

yes



[PABLO2013]

DonManfred
tks



[PABLO2013]

Greetings
I wanted to know, I see that the waypoints and their actions are created as a kind of list that is then executed ....
but for that this point is defined (<-----------)

builder.AddWaypoint(CreateWaypoint(32.8373372, 35.26967794, 40))  (<----------)
    Dim wp As DJIWaypoint = CreateWaypoint()
    wp.AddAction()
    wp.AddAction()
    wp.AddAction()
    builder.AddWaypoint(wp)
    wp = CreateWaypoint()
    wp.AddAction()
    wp.AddAction()
    builder.AddWaypoint(wp)

The query is in what is the difference or utility of these two lines of code .... what is the difference or its use .... you could be more clear, thanks

builder.AddWaypoint(CreateWaypoint(32.8373372, 35.26967794, 40))
    Dim wp As DJIWaypoint = CreateWaypoint(32.83850007, 35.26828855, 30)

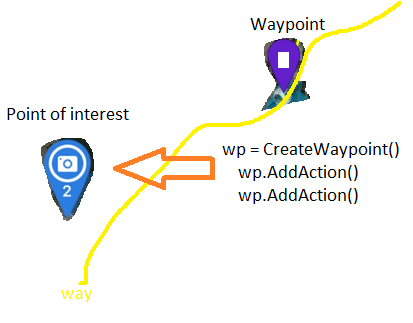

The main idea is that only waypoints are created and the points of interest are created with the actions of the drone .... or you can create both (see picture)





joke....Sleep(1000) '<--- required. Otherwise it will fail ¿Drone?



[Erel]

The CreateWaypoint sub is a simple utility sub that creates a DJIWaypoint object.
If you don't need to add actions then you can write it like this and add the waypoint directly to the list:

builder.AddWaypoint(CreateWaypoint(32.8373372, 35.26967794, 40))

You can also write it like this:

Dim wp As DJIWaypoint = CreateWaypoint(32.8373372, 35.26967794, 40)
builder.AddWaypoint(wp)

There is no difference between the two.



[PABLO2013]

tks



[gvoulg]

Thanks Erel for the new version
Start testing it next days.
Looking at the new lib , the Hotspotmission is not there anymore.
Can we accomplish this with the new tools?
Regards
George



[Erel]

Can we accomplish this with the new tools?

It will be added in the future.



[DonManfred]

V2.00 is released. It is based on the new SDK.

Thank you very much for the new version including source! I really appreciate

I took your source, took the newest V4.1 release, build the AAR with android studio. Changed the AAR to not include the native .so files. I took your native jar, replaced the so´s from 4.1 and implemented my old try to use the UI-Library too.

It ends up in a new AAR, a new native jar, a new sdk jar and for sure in a new Library as i´ve added a lot of things.

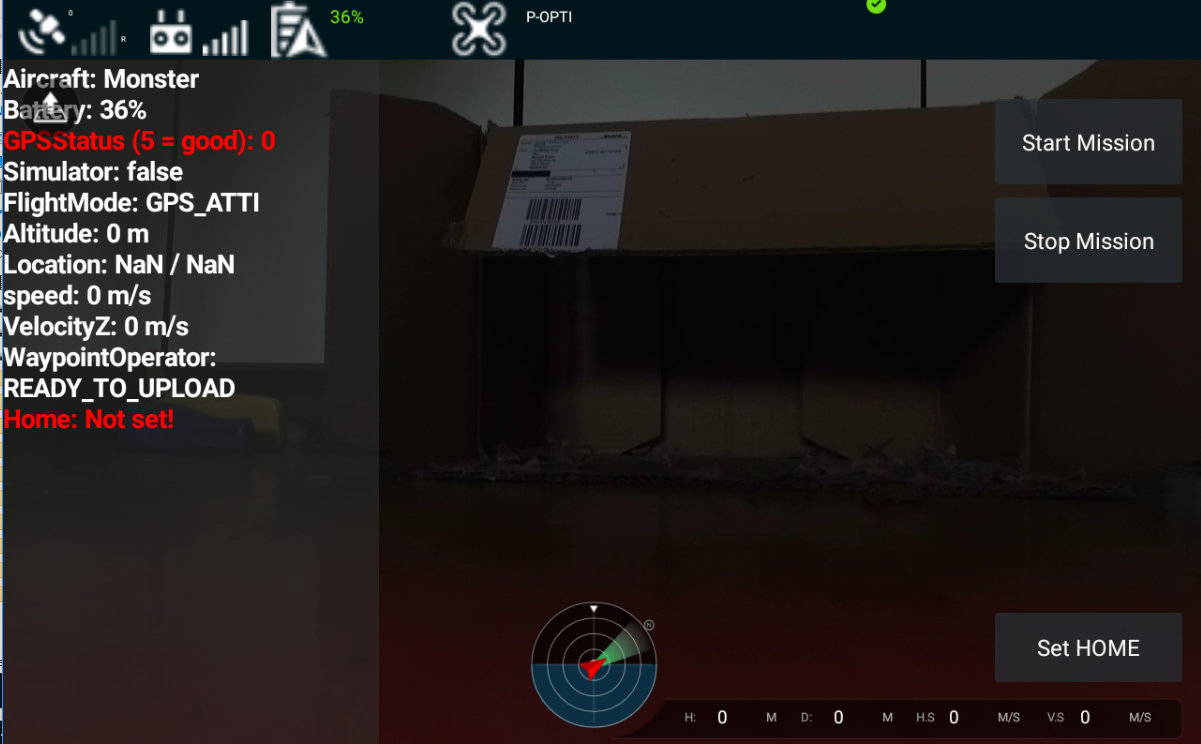

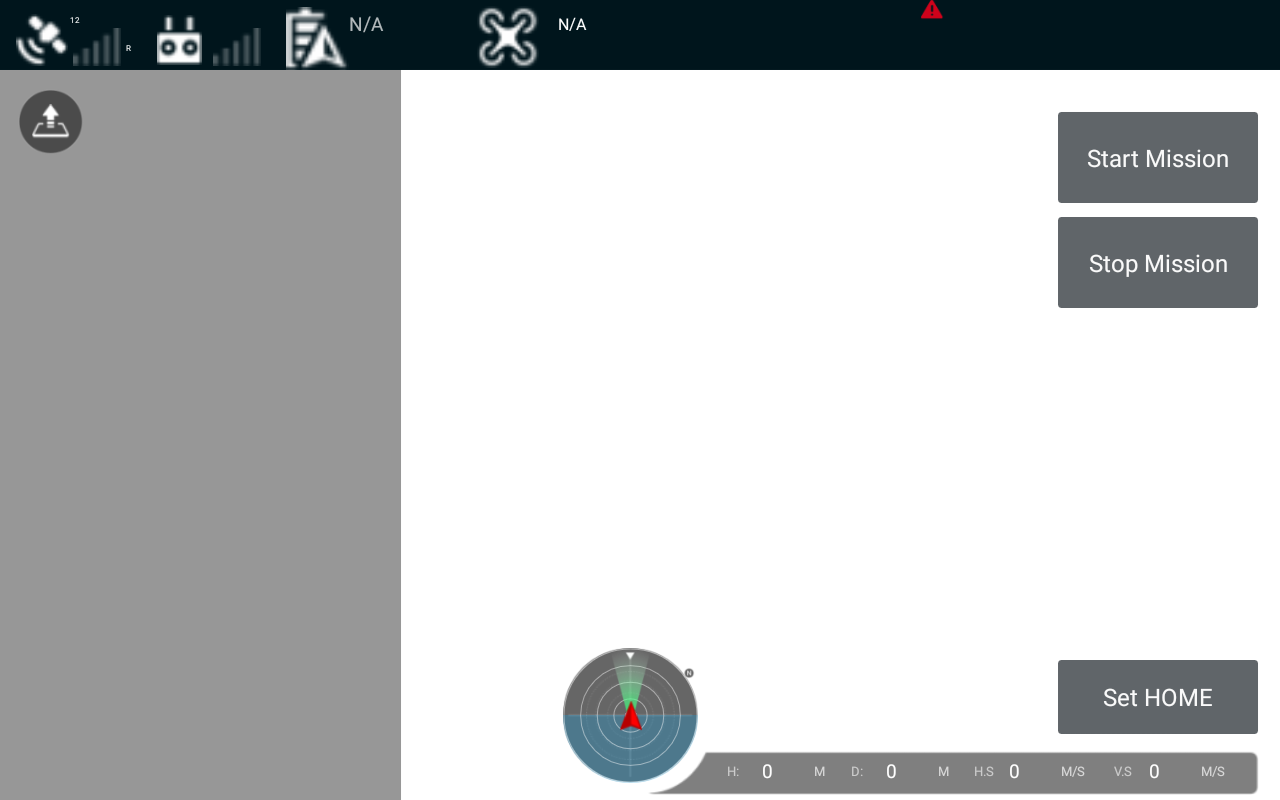

First try without Drone connected....

So far it looks like it is working

Did not try to run the app outside (with GPS available) but i´m very happy with the results so far.

PD: As Erel already delivered the WaypointMission (BIG THANX ) i´ve added the Hotpointmission in my Version. But as all i added; not tested as yet



[PABLO2013]

Greetings DonManfred ... is it only available for Android studio?, tks.

Your application looks fantastic, I hope you could have it for b4a, thanks.



[DonManfred]

I hope you could have it for b4a

The Screenshots ARE from a B4A Project. Honestly it is the Sample provided with the Drones Lib. But added more objects to it.



[PABLO2013]

Ok...looks cool...can you post it....tks



[DonManfred]

can you post it

i´m not finished....



[PABLO2013]

ok...sorry... apologize...tks



[PABLO2013]

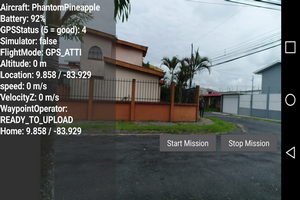

Greetings I wanted to know if the current wrapping is compatible with the new version 3.3 of dji-sdk These are the first impressions since my new p4pro of the moment the initial tests look good, this weekend I will do used it in a great field, thanks


Dear Developer,

We are pleased to announce the release of DJI Onboard SDK(OSDK) 3.3 — a full re-write of the DJI Onboard SDK that enhances ease of use, extensibility, robustness, along with some great new features.


The new release completely revamps the structure of the SDK, improving access to the APIs while abstracting away other parts of the SDK. An all new API layer with a Vehicle Class Encapsulation allows users to build DJI Onboard SDK applications with a single file, and the significantly improved Doxygen documentation makes it much easier to use OSDK APIs



[Erel]

The Onboard SDK is not relevant. The DJI library is based on the Mobile SDK.



[shb777]

how do you get a airmap credit card to register
