Android Question Draw squares with a rounded corner b4xcanvas

[Lucas Siqueira]

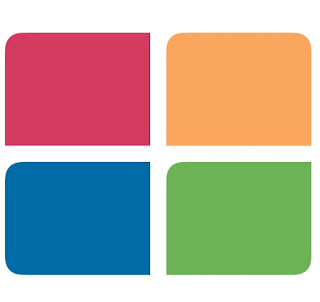

What is the simplest way using b4xcanvas
to draw each of these squares?
I wish it was b4x (b4a+b4j+b4i)



[mangojack]

You might want to view this thread... It's a simple method using ColorDrawable to achieve your desired result.

The solution from @Mahares was using a Button.. but it should work for a Panel.

How to round only one, or two corners on the button

Hello How to round only 1,2,3 corners on a button or a panel ? Thanks

www.b4x.com

Edit. Just noticed for B4X..... I don't believe this solution will work with B4i.



[TILogistic]

Samples:

How to create curved bottom border rectangle in android?

how to create android drawable with perfect curved bottom using code like this : here https://stackoverflow.com/a/44275750 is solution in java but it's using xml i want it by code(programmatically) maybe by using canvas

www.b4x.com

How to create curved bottom border rectangle in android?

how to create android drawable with perfect curved bottom using code like this : here https://stackoverflow.com/a/44275750 is solution in java but it's using xml i want it by code(programmatically) maybe by using canvas

www.b4x.com

do the following draw a rectangle with a custom rounded origin???

I have searched many places but still can't solve this problem. If you know please help me. thank you

www.b4x.com

etc..



[TILogistic]

BitmapCreator Shape

It's possible to draw something like this with BitmapCreator? (the blue part)

www.b4x.com

Draw shape with BitmapCreator

I tried to draw something like this shape (the blue part) with BitmapCreator without success. I based my code in this code from Erel: https://www.b4x.com/android/forum/threads/b4x-drawing-with-bitmapcreator.98887/#post-622799 Any help are welcome. Thanks.

www.b4x.com

etc.

search:

Search Results

www.b4x.com



[Lucas Siqueira]

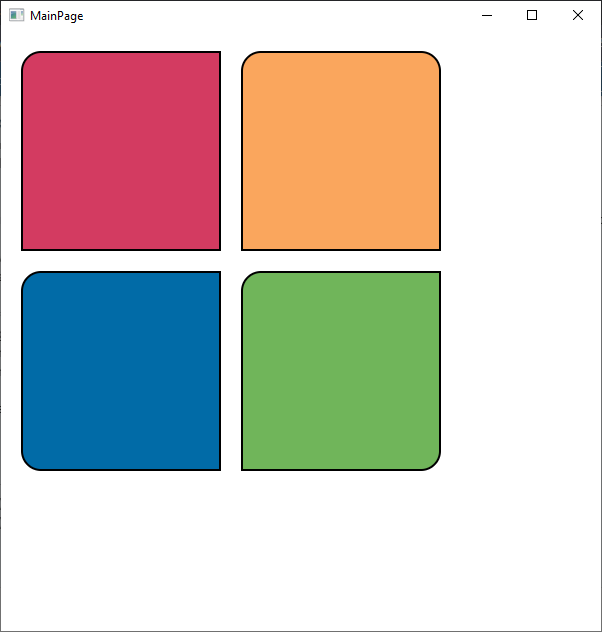

Result

I used that link too, thank you all

B4XCanvas Problems

This code. Sub Process_Globals Private fx As JFX Private MainForm As Form Dim CVS As B4XCanvas Dim RPane As B4XView Dim Xui As XUI End Sub Sub AppStart (Form1 As Form, Args() As String) MainForm = Form1 'MainForm.RootPane.LoadLayout("Layout1") 'Load the layout file...

www.b4x.com

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private Pane1 As B4XView
    Private Pane2 As B4XView
    Private Pane3 As B4XView
    Private Pane4 As B4XView
    Type Point (XCoord As Double, YCoord As Double)
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    SetColorAndBorder2(Pane1, 0xFFD33B61, 2dip, 0xFF000000, Array As Double(20dip, 0dip, 0dip, 0dip))
    SetColorAndBorder2(Pane2, 0xFFFAA65D, 2dip, 0xFF000000, Array As Double(20dip, 20dip, 0dip, 0dip))
    SetColorAndBorder2(Pane3, 0xFF016BA7, 2dip, 0xFF000000, Array As Double(20dip, 0dip, 0dip, 20dip))
    SetColorAndBorder2(Pane4, 0xFF70B55A, 2dip, 0xFF000000, Array As Double(20dip, 0dip, 20dip, 0dip))
End Sub

Private Sub SetColorAndBorder2(pnl As B4XView, BackgroundColor As Int, BorderWidth As Double, BorderColor As Int, BorderCornerRadius() As Double)

    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, pnl.Width, pnl.Height)

    Dim RadiusTopLeft As Double = BorderCornerRadius(0)
    Dim RadiusTopRight As Double = BorderCornerRadius(1)
    Dim RadiusBottomRight As Double = BorderCornerRadius(2)
    Dim RadiusBottomLeft As Double = BorderCornerRadius(3)

    Dim cvs As B4XCanvas
    cvs.Initialize(p)

    'TopLeft
    If RadiusTopLeft>0 Then
        cvs.DrawCircle(RadiusTopLeft, RadiusTopLeft, RadiusTopLeft, BorderColor, True, 0)
        cvs.DrawCircle(RadiusTopLeft, RadiusTopLeft, RadiusTopLeft-BorderWidth, BackgroundColor, True, 0)
    End If

    'TopRight
    If RadiusTopRight>0 Then
        cvs.DrawCircle(pnl.Width-RadiusTopRight, RadiusTopRight, RadiusTopRight, BorderColor, True, 0)
        cvs.DrawCircle(pnl.Width-RadiusTopRight, RadiusTopRight, RadiusTopRight-BorderWidth, BackgroundColor, True, 0)
    End If

    'BottomRight
    If RadiusBottomRight>0 Then
        cvs.DrawCircle(pnl.Width-RadiusBottomRight, pnl.Height-RadiusBottomRight, RadiusBottomRight, BorderColor, True, 0)
        cvs.DrawCircle(pnl.Width-RadiusBottomRight, pnl.Height-RadiusBottomRight, RadiusBottomRight-BorderWidth, BackgroundColor, True, 0)
    End If

    'BottomLeft
    If RadiusBottomLeft>0 Then
        cvs.DrawCircle(RadiusBottomLeft, pnl.Height-RadiusBottomLeft, RadiusBottomLeft, BorderColor, True, 0)
        cvs.DrawCircle(RadiusBottomLeft, pnl.Height-RadiusBottomLeft, RadiusBottomLeft-BorderWidth, BackgroundColor, True, 0)
    End If



    Dim Points,Points2 As List
    Points.Initialize
    Points2.Initialize

    'painel externo
    If RadiusTopLeft>0 Then
        Points.Add( CreatePoint(0, RadiusTopLeft) )
        Points.Add( CreatePoint(RadiusTopLeft, RadiusTopLeft) )
        Points.Add( CreatePoint(RadiusTopLeft, 0) )
    Else
        Points.Add( CreatePoint(0, 0) )
    End If

    If RadiusTopRight>0 Then
        Points.Add( CreatePoint(pnl.Width-RadiusTopRight, 0) )
        Points.Add( CreatePoint(pnl.Width-RadiusTopRight, RadiusTopRight) )
        Points.Add( CreatePoint(pnl.Width, RadiusTopRight) )
    Else
        Points.Add( CreatePoint(pnl.Width, 0) )
    End If

    If RadiusBottomRight>0 Then
        Points.Add( CreatePoint(pnl.Width, pnl.Height-RadiusBottomRight) )
        Points.Add( CreatePoint(pnl.Width-RadiusBottomRight, pnl.Height-RadiusBottomRight) )
        Points.Add( CreatePoint(pnl.Width-RadiusBottomRight, pnl.Height) )
    Else
        Points.Add( CreatePoint(pnl.Width, pnl.Height) )
    End If

    If RadiusBottomLeft>0 Then
        Points.Add( CreatePoint(RadiusBottomLeft, pnl.Height) )
        Points.Add( CreatePoint(RadiusBottomLeft, pnl.Height-RadiusBottomLeft) )
        Points.Add( CreatePoint(0, pnl.Height-RadiusBottomLeft) )
    Else
        Points.Add( CreatePoint(0, pnl.Height) )
    End If


    'painel interno
    If RadiusTopLeft>0 Then
        Points2.Add( CreatePoint(0+BorderWidth, RadiusTopLeft) )
        Points2.Add( CreatePoint(RadiusTopLeft, RadiusTopLeft) )
        Points2.Add( CreatePoint(RadiusTopLeft, 0+BorderWidth) )
    Else
        Points2.Add( CreatePoint(0+BorderWidth, 0+BorderWidth) )
    End If

    If RadiusTopRight>0 Then
        Points2.Add( CreatePoint(pnl.Width-RadiusTopRight, 0+BorderWidth) )
        Points2.Add( CreatePoint(pnl.Width-RadiusTopRight, RadiusTopRight) )
        Points2.Add( CreatePoint(pnl.Width-BorderWidth, RadiusTopRight) )
    Else
        Points2.Add( CreatePoint(pnl.Width-BorderWidth, 0+BorderWidth) )
    End If

    If RadiusBottomRight>0 Then
        Points2.Add( CreatePoint(pnl.Width-BorderWidth, pnl.Height-RadiusBottomRight) )
        Points2.Add( CreatePoint(pnl.Width-RadiusBottomRight, pnl.Height-RadiusBottomRight) )
        Points2.Add( CreatePoint(pnl.Width-RadiusBottomRight, pnl.Height-BorderWidth) )
    Else
        Points2.Add( CreatePoint(pnl.Width-BorderWidth, pnl.Height-BorderWidth) )
    End If

    If RadiusBottomLeft>0 Then
        Points2.Add( CreatePoint(RadiusBottomLeft, pnl.Height-BorderWidth) )
        Points2.Add( CreatePoint(RadiusBottomLeft, pnl.Height-RadiusBottomLeft) )
        Points2.Add( CreatePoint(0+BorderWidth, pnl.Height-RadiusBottomLeft) )
    Else
        Points2.Add( CreatePoint(0+BorderWidth, pnl.Height-BorderWidth) )
    End If

    DrawFilledPath(cvs, Points, BorderColor, 0)
    DrawFilledPath(cvs, Points2, BackgroundColor, 0)

    Dim iv As B4XImageView = XUIViewsUtils.CreateB4XImageView
    pnl.AddView(iv.mBase, 0, 0, pnl.Width, pnl.Height)
    iv.mBackgroundColor = xui.Color_Transparent
    iv.Bitmap = cvs.CreateBitmap
    iv.mbase.SendToBack
    pnl.Color = xui.Color_Transparent
    cvs.Release
End Sub

Sub CreatePoint(XCoord As Double, YCoord As Double) As Point
    Dim Point1 As Point
    Point1.Initialize
    Point1.XCoord = XCoord
    Point1.YCoord = YCoord
    Return Point1
End Sub

Sub DrawFilledPath(TargetCanvas As B4XCanvas,Pts As List,Color As Int,StrokeWidth As Float)
    Dim Path As B4XPath
    Dim P As Point = Pts.Get(0)
    Path.Initialize(P.XCoord,P.YCoord)
    For I = 1 To Pts.Size - 1
        Dim P As Point = Pts.Get(I)
        Path.LineTo(P.XCoord,P.YCoord)
    Next
    TargetCanvas.DrawPath(Path,Color,True,StrokeWidth)
End Sub
