Hello,

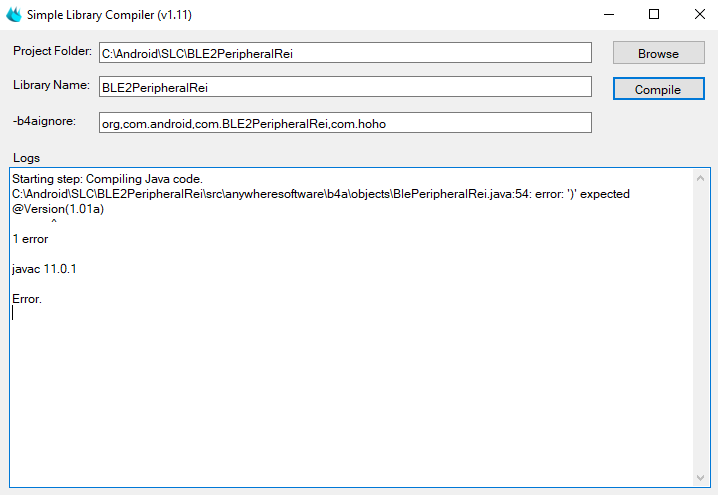

I have to change the service values to be able to use it with a Ble Laird Bl600 and for the first time I use the SLC program. I get the following error.

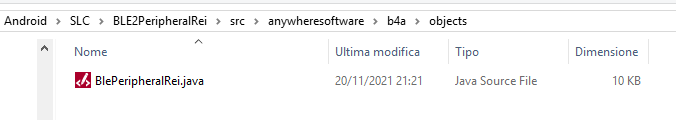

I am not even sure if I have entered the correct path
Thanks
I have to change the service values to be able to use it with a Ble Laird Bl600 and for the first time I use the SLC program. I get the following error.
I am not even sure if I have entered the correct path
Thanks
Java:
/*
* Copyright 2010 - 2020 Anywhere Software (www.b4x.com)
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package anywheresoftware.b4a.objects;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map.Entry;
import java.util.UUID;
import java.util.concurrent.ConcurrentHashMap;
import android.bluetooth.BluetoothAdapter;
import android.bluetooth.BluetoothDevice;
import android.bluetooth.BluetoothGatt;
import android.bluetooth.BluetoothGattCharacteristic;
import android.bluetooth.BluetoothGattDescriptor;
import android.bluetooth.BluetoothGattServer;
import android.bluetooth.BluetoothGattServerCallback;
import android.bluetooth.BluetoothGattService;
import android.bluetooth.BluetoothManager;
import android.bluetooth.BluetoothProfile;
import android.bluetooth.le.AdvertiseCallback;
import android.bluetooth.le.AdvertiseData;
import android.bluetooth.le.AdvertiseSettings;
import android.bluetooth.le.BluetoothLeAdvertiser;
import android.content.Context;
import android.os.ParcelUuid;
import anywheresoftware.b4a.BA;
import anywheresoftware.b4a.BA.Events;
import anywheresoftware.b4a.BA.Hide;
import anywheresoftware.b4a.BA.ShortName;
import anywheresoftware.b4a.BA.Version;
import anywheresoftware.b4a.objects.collections.List;
import anywheresoftware.b4a.objects.collections.Map;
/**
* Allows to configure the device as a BLE peripheral device. Other central devices can connect to this device.
*Only supported by some devices running Android 5+. Make sure to check IsPeripheralSupported property.
*/
@Version(1.01a)
@ShortName("BlePeripheralRei")
@Events(values={"Start (Success As Boolean)", "Subscribe (DeviceId As String)", "Unsubscribe (DeviceId As String)", "NewData (DeviceId As String, Data() As Byte)"})
public class BlePeripheralRei {
@Hide
public BluetoothAdapter blueAdapter;
@Hide
public BluetoothGattServer gattServer;
private BA ba;
private String eventName;
@Hide
public BluetoothLeAdvertiser advertiser;
@Hide
public final ConcurrentHashMap<String, BluetoothDevice> connectedDevices = new ConcurrentHashMap<String, BluetoothDevice>();
@Hide
public BluetoothGattCharacteristic charRead, charWrite;
private Map manufacturerData = new Map();
@Hide
public AdvertiseCallback advertiseCallback;
/**
* Initializes the object.
*/
public void Initialize(BA ba, String EventName, BleManager2 Ble) {
blueAdapter = Ble.blueAdapter;
this.ba = ba;
this.eventName = EventName.toLowerCase(BA.cul);
advertiser = blueAdapter.getBluetoothLeAdvertiser();
}
/**
* Checks whether peripheral mode is supported.
*/
public boolean getIsPeripheralSupported() {
return blueAdapter.isMultipleAdvertisementSupported() &&
blueAdapter.isOffloadedFilteringSupported() &&
blueAdapter.isOffloadedScanBatchingSupported() && advertiser != null;
}
/**
* Gets or sets the manufacturer specific data that will be advertised.
*Each item in the map should have a positive int number as the key and an array of bytes as the value.
*/
public void setManufacturerData(Map Map) {
manufacturerData.setObject(Map.getObject());
}
public Map getManufacturerData() {
return manufacturerData;
}
public void Close() {
if (advertiseCallback != null) {
advertiser.stopAdvertising(advertiseCallback);
advertiseCallback = null;
}
gattServer.clearServices();
gattServer.close();
}
/**
* Starts advertising. The name will be set as the device Bluetooth name. Pass an empty string to keep the current name.
*The Start event will be raised.
*/
public void Start(String Name) {
AdvertiseSettings settings = new AdvertiseSettings.Builder()
.setConnectable(true)
.build();
Start2(Name, settings);
}
/**
* Similar to Start. Allows overriding the default settings.
*/
public void Start2(String Name, AdvertiseSettings Settings) {
if (Name.length() > 0)
blueAdapter.setName(Name);
AdvertiseData.Builder builder = new AdvertiseData.Builder()
.setIncludeDeviceName(true)
.setIncludeTxPowerLevel(true)
.addServiceUuid(new ParcelUuid(longUUID("1101")));
if (manufacturerData.IsInitialized()) {
for (Entry<Object, Object> e : manufacturerData.getObject().entrySet()) {
builder.addManufacturerData(((Number)e.getKey()).intValue(), (byte[])e.getValue());
}
}
AdvertiseData advertiseData = builder.build();
AdvertiseData scanResponse = new AdvertiseData.Builder()
.addServiceUuid(new ParcelUuid(longUUID("1101")))
.build();
advertiseCallback = new AdvertiseCallback() {
@Override
public void onStartSuccess(AdvertiseSettings settingsInEffect) {
ba.raiseEventFromUI(BlePeripheralRei.this, eventName + "_start", true);
}
@Override
public void onStartFailure(int errorCode) {
ba.setLastException(new Exception("code: " + errorCode));
ba.raiseEventFromUI(BlePeripheralRei.this, eventName + "_start", true);
}
};
advertiser.startAdvertising(Settings, advertiseData, scanResponse, advertiseCallback);
BluetoothManager manager = (BluetoothManager) BA.applicationContext.getSystemService(Context.BLUETOOTH_SERVICE);
gattServer = manager.openGattServer(ba.context, new BluetoothGattServerCallback() {
@Override
public void onConnectionStateChange(BluetoothDevice device, int status,
int newState) {
if (newState == BluetoothProfile.STATE_DISCONNECTED) {
removeDevice(device);
}
}
@Override
public void onCharacteristicReadRequest(BluetoothDevice device, int requestId,
int offset, BluetoothGattCharacteristic characteristic) {
//BA.Log("onCharacteristicReadRequest: " + characteristic.getUuid());
gattServer.sendResponse(device, requestId, BluetoothGatt.GATT_SUCCESS, 0, characteristic.getValue() == null ? new byte[8] : characteristic.getValue());
}
@Override
public void onDescriptorReadRequest(BluetoothDevice device, int requestId,
int offset, BluetoothGattDescriptor descriptor) {
//BA.Log("onDescriptorReadRequest: " + descriptor.getUuid());
gattServer.sendResponse(device, requestId, BluetoothGatt.GATT_SUCCESS, 0, connectedDevices.contains(device.getAddress()) ? BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE : new byte[] {0, 0});
}
@Override
public void onDescriptorWriteRequest(BluetoothDevice device, int requestId,
BluetoothGattDescriptor descriptor,
boolean preparedWrite, boolean responseNeeded,
int offset, byte[] value) {
//BA.Log("onDescriptorWriteRequest: " + descriptor.getUuid());
if (Arrays.equals(value, BluetoothGattDescriptor.ENABLE_NOTIFICATION_VALUE))
addDevice(device);
else
removeDevice(device);
gattServer.sendResponse(device, requestId, BluetoothGatt.GATT_SUCCESS, 0, value);
}
@Override
public void onCharacteristicWriteRequest(BluetoothDevice device, int requestId,
BluetoothGattCharacteristic characteristic,
boolean preparedWrite, boolean responseNeeded,
int offset, byte[] value) {
if (characteristic.getUuid().equals(charWrite.getUuid())) {
ba.raiseEventFromDifferentThread(BlePeripheralRei.this, null, 0, eventName + "_newdata", false, new Object[]{device.getAddress(), value});
}
gattServer.sendResponse(device, requestId, BluetoothGatt.GATT_SUCCESS, 0, value);
}
});
BluetoothGattService service = new BluetoothGattService(longUUID("1101"), BluetoothGattService.SERVICE_TYPE_PRIMARY);
charRead = new BluetoothGattCharacteristic(longUUID("2001"), BluetoothGattCharacteristic.PROPERTY_READ | BluetoothGattCharacteristic.PROPERTY_NOTIFY, BluetoothGattCharacteristic.PERMISSION_READ);
charWrite = new BluetoothGattCharacteristic(longUUID("2000"), BluetoothGattCharacteristic.PROPERTY_WRITE, BluetoothGattCharacteristic.PERMISSION_WRITE);
charRead.addDescriptor(new BluetoothGattDescriptor(longUUID("2902"), BluetoothGattDescriptor.PERMISSION_READ | BluetoothGattDescriptor.PERMISSION_WRITE));
service.addCharacteristic(charRead);
service.addCharacteristic(charWrite);
gattServer.addService(service);
}
/**
* Writes data to subscribed devices.
*Centrals - Target devices. Pass Null to send to all subscribed devices.
*/
public void Write(List Centrals, byte[] Data) {
charRead.setValue(Data);
for (BluetoothDevice bd : connectedDevices.values()) {
if (Centrals.IsInitialized() == false || Centrals.IndexOf(bd.getAddress()) > -1)
gattServer.notifyCharacteristicChanged(bd, charRead, false);
}
}
private void addDevice(BluetoothDevice device) {
if (device == null)
return;
connectedDevices.put(device.getAddress(), device);
ba.raiseEventFromDifferentThread(BlePeripheralRei.this, null, 0, eventName + "_subscribe", false, new Object[] {device.getAddress()});
}
private void removeDevice(BluetoothDevice device) {
if (device == null)
return;
BluetoothDevice bd = connectedDevices.remove(device.getAddress());
if (bd != null) {
ba.raiseEventFromDifferentThread(BlePeripheralRei.this, null, 0, eventName + "_unsubscribe", false, new Object[] {bd.getAddress()});
}
}
private java.util.UUID longUUID(String shortName) {
return UUID.fromString("569a" + shortName + "-b87f-490c-92cb-11ba5ea5167c");
}
}
