Android Question felUsbSerial v1.12 Error at random intervals ArrayIndexOutOfBoundsException, and lost characters

weighment

Member
Licensed User
Using felUsbSerial - v1.12 on Android 8.1 with FTDI PID 0x6010

The serial communication works for a variable length of time before an exception in the library.

Connecting to a serial device, requesting data from it every half second or so, data out is 10 or so characters, data in is usually 10 or so characters, occasionally 100 characters in a burst.
Randomly, anywhere from within 10 seconds of connection, to as long as 5 minutes later I get a Array index out of bounds error shown below. For the input buffer size, I see the "Default value is 16 * 1024", and this app has no where near enough data to overflow the buffer. (I doubled it to 32*1024 and still had the error) Is the buffer argument sent to the event only 60 bytes? In observation I never see it have more than 20 characters at a time sent to the event in normal operation of the app.

What is the best way to trap this exception and prevent it from taking down the app? Ideally I'd like to detect the error and recover.

Also, regularly losing 2 or three characters from messages. Occurs on a similar random interval. May or may not be related.

Is source code for this library available to help solve it?

B4X:
    Public usbserial As felUsbSerial

Error message:
java.lang.ArrayIndexOutOfBoundsException: length=61; index=61
    at com.felhr.usbserial.FTDISerialDevice$FTDIUtilities.copyData(FTDISerialDevice.java:594)
    at com.felhr.usbserial.FTDISerialDevice$FTDIUtilities.adaptArray(FTDISerialDevice.java:502)
    at com.felhr.usbserial.UsbSerialDevice$WorkerThread.run(UsbSerialDevice.java:248)


Daestrum

Expert
Licensed User
Longtime User
I have written a new SLC from scratch (still has a few kinks) and this is what I get from felUsbSerial sources. (notice its using java 22)
Searching for java directories please wait....
Searching for Directories
C:\Users\green\AppData\Roaming\Anywhere Software\Basic4android\
Using Extra Libs Folder : C:\b4aExtraLibs\
Using Compiler Path : D:\graalvm-comm-openjdk-22\bin\
Compiling sources in : C:\SuperSLC\felUsbSerial\src
Class output to : C:\SuperSLC\felUsbSerial\bin\classes
(B4A) Library Name : felUsbSearial
Error: Note: C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSerialDevice.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\SerialInputStream.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

Compiled in : 1.6760588 Seconds
Created jar in : 0.7517523 Seconds
Loading source file .\com\felhr\deviceids\CH34xIds.java...
Loading source file .\com\felhr\deviceids\CP210xIds.java...
Loading source file .\com\felhr\deviceids\CP2130Ids.java...
Loading source file .\com\felhr\deviceids\FTDISioIds.java...
Loading source file .\com\felhr\deviceids\PL2303Ids.java...
Loading source file .\com\felhr\deviceids\XdcVcpIds.java...
Loading source file .\com\felhr\usbserial\BLED112SerialDevice.java...
Loading source file .\com\felhr\usbserial\CDCSerialDevice.java...
Loading source file .\com\felhr\usbserial\CH34xSerialDevice.java...
Loading source file .\com\felhr\usbserial\CP2102SerialDevice.java...
Loading source file .\com\felhr\usbserial\CP2130SpiDevice.java...
Loading source file .\com\felhr\usbserial\FTDISerialDevice.java...
Loading source file .\com\felhr\usbserial\PL2303SerialDevice.java...
Loading source file .\com\felhr\usbserial\SerialBuffer.java...
Loading source file .\com\felhr\usbserial\SerialInputStream.java...
Loading source file .\com\felhr\usbserial\SerialOutputStream.java...
Loading source file .\com\felhr\usbserial\UsbSerialDebugger.java...
Loading source file .\com\felhr\usbserial\UsbSerialDevice.java...
Loading source file .\com\felhr\usbserial\UsbSerialInterface.java...
Loading source file .\com\felhr\usbserial\UsbSpiDevice.java...
Loading source file .\com\felhr\usbserial\UsbSpiInterface.java...
Loading source file .\com\felhr\usbserial\XdcVcpSerialDevice.java...
Loading source file .\com\felhr\utils\HexData.java...
Loading source file .\anywheresoftware\b4a\objects\usb\felUsbSerial.java...
Constructing Javadoc information...

BADoclet2 version 2.00
starting...
Working with class: com.felhr.deviceids.CH34xIds
No ShortName annotation found for class: com.felhr.deviceids.CH34xIds
Working with class: com.felhr.deviceids.CP210xIds
No ShortName annotation found for class: com.felhr.deviceids.CP210xIds
Working with class: com.felhr.deviceids.CP2130Ids
No ShortName annotation found for class: com.felhr.deviceids.CP2130Ids
Working with class: com.felhr.deviceids.FTDISioIds
No ShortName annotation found for class: com.felhr.deviceids.FTDISioIds
Working with class: com.felhr.deviceids.PL2303Ids
No ShortName annotation found for class: com.felhr.deviceids.PL2303Ids
Working with class: com.felhr.deviceids.XdcVcpIds
No ShortName annotation found for class: com.felhr.deviceids.XdcVcpIds
Working with class: com.felhr.usbserial.BLED112SerialDevice
No ShortName annotation found for class: com.felhr.usbserial.BLED112SerialDevice
Working with class: com.felhr.usbserial.CDCSerialDevice
No ShortName annotation found for class: com.felhr.usbserial.CDCSerialDevice
Working with class: com.felhr.usbserial.CH34xSerialDevice
No ShortName annotation found for class: com.felhr.usbserial.CH34xSerialDevice
Working with class: com.felhr.usbserial.CP2102SerialDevice
No ShortName annotation found for class: com.felhr.usbserial.CP2102SerialDevice
Working with class: com.felhr.usbserial.CP2130SpiDevice
No ShortName annotation found for class: com.felhr.usbserial.CP2130SpiDevice
Working with class: com.felhr.usbserial.FTDISerialDevice
No ShortName annotation found for class: com.felhr.usbserial.FTDISerialDevice
Working with class: com.felhr.usbserial.FTDISerialDevice.FTDIUtilities
No ShortName annotation found for class: com.felhr.usbserial.FTDISerialDevice.FTDIUtilities
Working with class: com.felhr.usbserial.PL2303SerialDevice
No ShortName annotation found for class: com.felhr.usbserial.PL2303SerialDevice
Working with class: com.felhr.usbserial.SerialBuffer
No ShortName annotation found for class: com.felhr.usbserial.SerialBuffer
Working with class: com.felhr.usbserial.SerialInputStream
No ShortName annotation found for class: com.felhr.usbserial.SerialInputStream
Working with class: com.felhr.usbserial.SerialOutputStream
No ShortName annotation found for class: com.felhr.usbserial.SerialOutputStream
Working with class: com.felhr.usbserial.UsbSerialDebugger
No ShortName annotation found for class: com.felhr.usbserial.UsbSerialDebugger
Working with class: com.felhr.usbserial.UsbSerialDevice
No ShortName annotation found for class: com.felhr.usbserial.UsbSerialDevice
Working with class: com.felhr.usbserial.UsbSerialDevice.ReadThread
No ShortName annotation found for class: com.felhr.usbserial.UsbSerialDevice.ReadThread
Working with class: com.felhr.usbserial.UsbSerialDevice.WriteThread
No ShortName annotation found for class: com.felhr.usbserial.UsbSerialDevice.WriteThread
Working with class: com.felhr.usbserial.UsbSerialDevice.WorkerThread
No ShortName annotation found for class: com.felhr.usbserial.UsbSerialDevice.WorkerThread
Working with class: com.felhr.usbserial.UsbSpiDevice
No ShortName annotation found for class: com.felhr.usbserial.UsbSpiDevice
Working with class: com.felhr.usbserial.UsbSpiDevice.ReadThread
No ShortName annotation found for class: com.felhr.usbserial.UsbSpiDevice.ReadThread
Working with class: com.felhr.usbserial.UsbSpiDevice.WriteThread
No ShortName annotation found for class: com.felhr.usbserial.UsbSpiDevice.WriteThread
Working with class: com.felhr.usbserial.XdcVcpSerialDevice
No ShortName annotation found for class: com.felhr.usbserial.XdcVcpSerialDevice
Working with class: com.felhr.utils.HexData
No ShortName annotation found for class: com.felhr.utils.HexData
Working with class: anywheresoftware.b4a.objects.usb.felUsbSerial
finish: C:\b4aExtraLibs\felUsbSearial.xml

Created xml in : 1.4043976 Seconds

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
I applied your changes and produced this (not tested it though) - was compiled with java 11
Also never changed the version number.


Attachments

  • felUsbSerial.zip
    70.6 KB · Views: 61
Upvote 0

weighment

Member
Licensed User
Many thanks @Daestrum (and @agraham for pointing me to @Daestrum 's post)

Side observation, the original felUsbSerial xml only has the anywheresoftware.b4a.objects.usb.felUsbSerial class in it. (8k)
The XML from your SLC also includes all of the classes in com.felhr.usbserial and deviceids and utils and their classes (117k)
Not necessarily a problem. It didn't appear to affect the library import or build.

Was this built with your SLC version from here?
https://www.b4x.com/android/forum/t...ters-slc-xml-output-java11.161916/post-993141

Did you have to do your bat file step from here?
https://www.b4x.com/android/forum/t...ters-slc-xml-output-java11.161916/post-995009

Did you have to change anything else in the library to get it to compile with your new SLC?

My project builds with your compiled library. Now I test to see if the FTDI problem is solved with the mod ...

There is a chance it needs to pull in the entire file
https://github.com/felHR85/UsbSeria...ava/com/felhr/usbserial/FTDISerialDevice.java

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
Was this built with your SLC version from here?
No it's a brand new SLC that I wrote. (does B4J and B4A in one app)
Did you have to do your bat file step from here?
The new SLC doesn't need a bat file for the xml creation.

Did you have to change anything else in the library to get it to compile with your new SLC?

No just pointed it to the src files.


There is a chance it needs to pull in the entire file
let me know and I will try it.

the xml with -b4aignore com.felhr


Attachments

  • felUsbSerial.xml
    7.3 KB · Views: 57
Last edited:
Upvote 0

weighment

Member
Licensed User
Thanks @Daestrum .

With the new function it is better but not solved. It appears to have eliminated the dropped characters but not the strange mid-boundary value issue. Same error manifested in the arraycopy function in the new function instead of the array assignment in the old function.

ArrayIndexOutOfBoundsException:
java.lang.ArrayIndexOutOfBoundsException: src.length=65 srcPos=2 dst.length=61 dstPos=0 length=62
    at java.lang.System.arraycopy(System.java:521)
    at com.felhr.usbserial.FTDISerialDevice$FTDIUtilities.copyData(FTDISerialDevice.java:592)
    at com.felhr.usbserial.FTDISerialDevice$FTDIUtilities.adaptArray(FTDISerialDevice.java:508)
    at com.felhr.usbserial.UsbSerialDevice$WorkerThread.run(UsbSerialDevice.java:253)

Length was 65 (>64) so it lopped off two headers that were not really there.

I'm certain I can fix it, but to iterate I need to be able to build the library like you did. (so as not to trouble you)

It is worth trying replacing the entire file instead of just the function, as that file is the only change in the felhr project since @Erel built it.

https://github.com/felHR85/UsbSeria...ava/com/felhr/usbserial/FTDISerialDevice.java
replacing the file of the same name in <project>\felUsbSerial\src\com\felhr\usbserial\FTDISerialDevice.java"
then build. (I would build it if I had your cool new SLC, but I will wait patiently until you are ready to release it.)

If that does not work, I will make it pass the headers instead of filtering them to repeat it, then go fix it. (i.e. make ftdiUtilities.adaptArray just return the unchanged array temporarily)

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
Just compiling now for you.

But the new file is generating some errors.

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
Sorry couldn't get it to compile - loads of what look like silly errors - variables not defined etc.

I downloaded the whole of felusbserial and it wont compile - chasing too many missing packages.

Last edited:
Upvote 0

Daestrum

Expert
Licensed User
Longtime User
Got it to compile eventually (my fault was trying to be clever and screwed up a path variables)

You need the stream-1.2.2.jar in your extralibs as it uses parts of it.

Hope it works (fingers crossed)

(this is compiled from fthe latest felusbserial sources)


Attachments

  • felUsbSerial.zip
    378.3 KB · Views: 55
Last edited:
Upvote 0

weighment

Member
Licensed User
Thanks @Daestrum, Getting NoClassDefFoundError with that newest build. I did copy that stream-1.1.2.jar file into additional libraries too but didn't really include it in project given it did not have an XML file

java.lang.NoClassDefFoundError: Failed resolution of: Lokio/Buffer;:
*** Service (starter) Create ***
** Service (starter) Start **
** Activity (main) Create (first time) **
autoversion: 1.0
compilation time: 12/04/2020 19:45:50
2 devices
/dev/bus/usb/001/004
1004
3823 1
1
/dev/bus/usb/001/003
1003
1027 24592
2
Connecting to /dev/bus/usb/001/003
java.lang.NoClassDefFoundError: Failed resolution of: Lokio/Buffer;
    at com.felhr.usbserial.SerialBuffer$SynchronizedBuffer.<init>(SerialBuffer.java:97)
    at com.felhr.usbserial.SerialBuffer.<init>(SerialBuffer.java:21)
    at com.felhr.usbserial.UsbSerialDevice.<init>(UsbSerialDevice.java:58)
    at com.felhr.usbserial.FTDISerialDevice.<init>(FTDISerialDevice.java:110)
    at com.felhr.usbserial.UsbSerialDevice.createUsbSerialDevice(UsbSerialDevice.java:77)
    at anywheresoftware.b4a.objects.usb.felUsbSerial.Initialize2(felUsbSerial.java:91)
    at anywheresoftware.b4a.objects.usb.felUsbSerial.Initialize(felUsbSerial.java:79)
    at com.tswa.indicator.wiredscalemanager._findandconnect(wiredscalemanager.java:264)
    at com.tswa.indicator.main._reconnect(main.java:615)
    at com.tswa.indicator.main$ResumableSub_Activity_Create.resume(main.java:553)
    at com.tswa.indicator.main._activity_create(main.java:419)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at com.tswa.indicator.main.afterFirstLayout(main.java:108)
    at com.tswa.indicator.main.access$000(main.java:20)
    at com.tswa.indicator.main$WaitForLayout.run(main.java:86)
    at android.os.Handler.handleCallback(Handler.java:790)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:164)
    at android.app.ActivityThread.main(ActivityThread.java:6518)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:438)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:807)
Caused by: java.lang.ClassNotFoundException: Didn't find class "okio.Buffer" on path: DexPathList[[zip file "/data/app/com.tswa.indicator-13PjMIZ5bYEwyOyCnsRRQQ==/base.apk"],nativeLibraryDirectories=[/data/app/com.tswa.indicator-13PjMIZ5bYEwyOyCnsRRQQ==/lib/arm64, /system/lib64, /vendor/lib64]]
    at dalvik.system.BaseDexClassLoader.findClass(BaseDexClassLoader.java:125)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:379)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:312)
    ... 27 more
** Activity (main) Resume **

I think if we do the earlier build, but replace the ftdiUtilities.adaptArray function with this code, it will pass me the read buffer headers along with the data to help diagnose it.

adaptArray:
    static byte[] adaptArray(byte[] ftdiData)
    {
        return Arrays.copyOfRange(ftdiData, 0, ftdiData.length);
    }

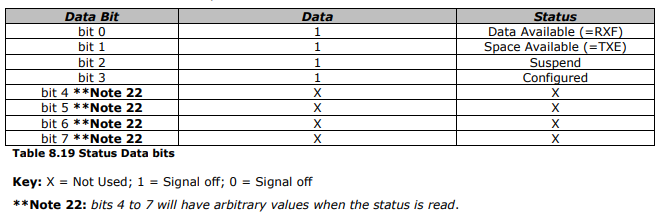

I'd like to find the FTDI docs that describe the buffer header, but I don't see them in the chip datasheet
https://ftdichip.com/wp-content/uploads/2020/08/DS_FT2232D.pdf

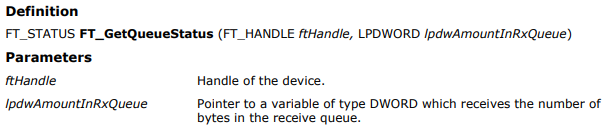

Or in the FTDI programmers guide
https://ftdichip.com/wp-content/uploads/2023/09/D2XX_Programmers_Guide.pdf

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
So do I change all of this
B4X:
        public byte[] adaptArray(byte[] ftdiData)
        {
            int length = ftdiData.length;
            if(length > 64)
            {
                int n = 1;
                int p = 64;
                // Precalculate length without FTDI headers
                while(p < length)
                {
                    n++;
                    p = n*64;
                }
                int realLength = length - n*2;
                byte[] data = new byte[realLength];
                copyData(ftdiData, data);
                return data;
            }else
            {
                return Arrays.copyOfRange(ftdiData, 2, length);
            }
        }

To what you posted

or just this part of it to the new code
B4X:
            {
                return Arrays.copyOfRange(ftdiData, 2, length);
            }

Upvote 0

weighment

Member
Licensed User
Yes please, the first option, replace that whole function with the single line function.

This may not be useful to others in this form, but it makes it leave the headers in the buffer so I can monitor them over a time and strip them in B4A until we discover the bad values. I'm certain it is when the length is 65, but knowing the header contents will reveal the right way to process a 65 character input buffer.

Upvote 0

Daestrum

Expert
Licensed User
Longtime User
Ok will do now and post the jar & xml
changed code ( i made it public like original not static)
B4X:
        // Special treatment needed to FTDI devices
   /*     public byte[] adaptArray(byte[] ftdiData)
        {
            int length = ftdiData.length;
            if(length > 64)
            {
                int n = 1;
                int p = 64;
                // Precalculate length without FTDI headers
                while(p < length)
                {
                    n++;
                    p = n*64;
                }
                int realLength = length - n*2;
                byte[] data = new byte[realLength];
                copyData(ftdiData, data);
                return data;
            }else
            {
                return Arrays.copyOfRange(ftdiData, 2, length);
            }
        }
*/
     public byte[] adaptArray(byte[] ftdiData)
        {
                return Arrays.copyOfRange(ftdiData, 0, ftdiData.length);
       }

Compile cleanly
Reading settings file
Searching for IDE directory settings (Default values if not changed)
Scanning C:\Users\green\AppData\Roaming\Anywhere Software\Basic4android\ for defaults
Using Extra Libs Folder : C:\b4aExtraLibs\
Using Compiler Path : c:/jdk-11/bin
Compiling sources in : C:\SuperSLC\felUsbSerial\src
Class output to : C:\SuperSLC\felUsbSerial\bin\classes
(B4A) Library Name : felUsbSerial
Using arguments : -b4aignore com.felhr
args : -cp C:\android\platforms\android-34\Android.jar;C:\b4aExtraLibs\*;"C:\Program Files\Anywhere software\B4A\Libraries\*";C:\SuperSLC\felUsbSerial\libs\* -d C:\SuperSLC\felUsbSerial\bin\classes C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\CH34xIds.java C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\CP210xIds.java C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\CP2130Ids.java C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\FTDISioIds.java C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\PL2303Ids.java C:\SuperSLC\felUsbSerial\src\com\felhr\deviceids\XdcVcpIds.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\BLED112SerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\CDCSerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\CH34xSerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\CP2102SerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\CP2130SpiDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\FTDISerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\PL2303SerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\SerialBuffer.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\SerialInputStream.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\SerialOutputStream.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSerialDebugger.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSerialInterface.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSpiDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\UsbSpiInterface.java C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\XdcVcpSerialDevice.java C:\SuperSLC\felUsbSerial\src\com\felhr\utils\HexData.java C:\SuperSLC\felUsbSerial\src\com\felhr\utils\SafeUsbRequest.java C:\SuperSLC\felUsbSerial\src\anywheresoftware\b4a\objects\usb\felUsbSerial.java
Error: Note: Some input files use or override a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
Note: C:\SuperSLC\felUsbSerial\src\com\felhr\usbserial\SerialInputStream.java uses unchecked or unsafe operations.
Note: Recompile with -Xlint:unchecked for details.

Compiled in : 1.962 Seconds
Created jar in : 0.945 Seconds
Ignoring: [com.felhr]
Loading source file .\com\felhr\deviceids\CH34xIds.java...
Loading source file .\com\felhr\deviceids\CP210xIds.java...
Loading source file .\com\felhr\deviceids\CP2130Ids.java...
Loading source file .\com\felhr\deviceids\FTDISioIds.java...
Loading source file .\com\felhr\deviceids\PL2303Ids.java...
Loading source file .\com\felhr\deviceids\XdcVcpIds.java...
Loading source file .\com\felhr\usbserial\BLED112SerialDevice.java...
Loading source file .\com\felhr\usbserial\CDCSerialDevice.java...
Loading source file .\com\felhr\usbserial\CH34xSerialDevice.java...
Loading source file .\com\felhr\usbserial\CP2102SerialDevice.java...
Loading source file .\com\felhr\usbserial\CP2130SpiDevice.java...
Loading source file .\com\felhr\usbserial\FTDISerialDevice.java...
Loading source file .\com\felhr\usbserial\PL2303SerialDevice.java...
Loading source file .\com\felhr\usbserial\SerialBuffer.java...
Loading source file .\com\felhr\usbserial\SerialInputStream.java...
Loading source file .\com\felhr\usbserial\SerialOutputStream.java...
Loading source file .\com\felhr\usbserial\UsbSerialDebugger.java...
Loading source file .\com\felhr\usbserial\UsbSerialDevice.java...
Loading source file .\com\felhr\usbserial\UsbSerialInterface.java...
Loading source file .\com\felhr\usbserial\UsbSpiDevice.java...
Loading source file .\com\felhr\usbserial\UsbSpiInterface.java...
Loading source file .\com\felhr\usbserial\XdcVcpSerialDevice.java...
Loading source file .\com\felhr\utils\HexData.java...
Loading source file .\com\felhr\utils\SafeUsbRequest.java...
Loading source file .\anywheresoftware\b4a\objects\usb\felUsbSerial.java...
Constructing Javadoc information...
BADoclet2 version 2.00
starting...
Working with class: anywheresoftware.b4a.objects.usb.felUsbSerial
finish: C:\b4aExtraLibs\felUsbSerial.xml

Created xml in : 1.618 Seconds


Attachments

  • felUsbSerial.jar
    72.8 KB · Views: 53
  • felUsbSerial.xml
    7.3 KB · Views: 47
Last edited:
Upvote 0

weighment

Member
Licensed User
@Daestrum that was exactly what we needed to verify the theory.

The original 1.12 library works fine when the read buffer is 64 or less. It loses exactly two characters when the read buffer is 66 or more, and generates an exception when the read buffer is 65. This is because it is attempting to remove a two byte header on each 64 byte boundary, when in my experience with FTDI FT2232 PID 0x6010, there is only the front two byte header and no more in the buffer, up to the longest read buffer in my test of 176, and many other values above 64. In short there is no later header to remove, at least for this 0x6010 FT2232 chip.

Furthermore, the two byte header always contained 2 (0x2), 96(0x60) in those first two bytes, regardless of the message length. I don't find anything in the FTDI docs describing this header, so it may be added in some USB driver.

For my purposes, we could just strip the first two bytes only. Changing adaptArray to this:

adaptArray:
public byte[] adaptArray(byte[] ftdiData)
        {
           if (ftdiData.length <2)
               {
                   return EMPTY_BYTE_ARRAY;
               }
               else {
                   return Arrays.copyOfRange(ftdiData, 2, ftdiData.length-2);
               }
       }

(or I can just use the library you sent me and strip the bytes myself.)

Not sure what chips if any had the second header at 65th and 66th bytes. If found, maybe it is worth adding a Mode to the header stripping in case someone thinks the other method works on some chip, or maybe those other chips put a different number in the header, perhaps related to the maximum buffer length possible.

Many thanks for the help on this. I will continue to test other FTDI chips as I get them, but this found the root cause.

Upvote 0

agraham

Expert
Licensed User
Longtime User
This is ringing a very faint bell. When I wrote the original UsbSerial library I found an extra two bytes at the start of each packet which apparently the chip adds and looking back at the source I see that I just ignored the first two bytes of any packet. At the time I thought this was a bug but I just found this.
It states
"The first 2 bytes of every packet are used as status bytes for the driver. This status is sent every 16 milliseconds, even when no data is present in the device."

Upvote 0

MicroDrie

Well-Known Member
Licensed User
Longtime User
This is the compiled version with Eclipse Version: 2024-06 (4.32.0) with Build id: 20240606-1231 using jdk-1.8.421 and Android API – 33.

M3felUsbSerial version 1.13 is based on version 1.12 of Erel and has the following fixes to made it free of error and warning message. I have fixed the following things:


  1. felUsbSerial class: no change;
  2. Full replacement of the FelHR85 software with the FelHR85/UsbSerial software version 6.0.6 from September 11, 2022 plus;
  3. Suppressed all "deprecated" warnings with @Deprecated in all classes of this library;
  4. Three bugfixes to fix the outdated API level 26 buffer usage errors there in plus which are firstly indicated as a warning;
  5. Vulnerabilities bugfix version updated to okio version 3.9.0.
What happend if the current felUsbSerial is replaced with M3felUsbSerial library (only different names to simple delete it if it doesn’t work).


Attachments

  • M3felUsbSerial.jar
    93.6 KB · Views: 46
  • M3felUsbSerial.xml
    7.3 KB · Views: 48
Upvote 0

weighment

Member
Licensed User
Many thanks @MicroDrie for building that.

Same error as @Daestrum 's rebuild at felUsbSerial.Initialize

error message on felUsbSerial.Initialize:
/dev/bus/usb/001/003
1003
1027 24592
2
Connecting to /dev/bus/usb/001/003
java.lang.NoClassDefFoundError: Failed resolution of: Lokio/Buffer;
    at com.felhr.usbserial.SerialBuffer$SynchronizedBuffer.<init>(SerialBuffer.java:97)
    at com.felhr.usbserial.SerialBuffer.<init>(SerialBuffer.java:21)
    at com.felhr.usbserial.UsbSerialDevice.<init>(UsbSerialDevice.java:55)
    at com.felhr.usbserial.FTDISerialDevice.<init>(FTDISerialDevice.java:111)
    at com.felhr.usbserial.UsbSerialDevice.createUsbSerialDevice(UsbSerialDevice.java:73)
    at anywheresoftware.b4a.objects.usb.felUsbSerial.Initialize2(felUsbSerial.java:112)
    at anywheresoftware.b4a.objects.usb.felUsbSerial.Initialize(felUsbSerial.java:98)
    at com.tswa.indicator.wiredscalemanager._findandconnect(wiredscalemanager.java:265)
    at com.tswa.indicator.main._reconnect(main.java:616)
    at com.tswa.indicator.main$ResumableSub_Activity_Create.resume(main.java:554)
    at com.tswa.indicator.main._activity_create(main.java:420)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.shell.Shell.runMethod(Shell.java:732)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:351)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    at com.tswa.indicator.main.afterFirstLayout(main.java:108)
    at com.tswa.indicator.main.access$000(main.java:20)
    at com.tswa.indicator.main$WaitForLayout.run(main.java:86)
    at android.os.Handler.handleCallback(Handler.java:790)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:164)
    at android.app.ActivityThread.main(ActivityThread.java:6518)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:438)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:807)
Caused by: java.lang.ClassNotFoundException: Didn't find class "okio.Buffer" on path: DexPathList[[zip file "/data/app/com.tswa.indicator-0NrUkJJ3Zj5ZYOZmCnF52g==/base.apk"],nativeLibraryDirectories=[/data/app/com.tswa.indicator-0NrUkJJ3Zj5ZYOZmCnF52g==/lib/arm64, /system/lib64, /vendor/lib64]]
    at dalvik.system.BaseDexClassLoader.findClass(BaseDexClassLoader.java:125)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:379)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:312)
    ... 27 more

** Activity (main) Resume **
--------- beginning of crash
java.lang.RuntimeException: java.net.SocketException: Connection reset
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:188)
    at anywheresoftware.b4a.objects.Timer$TickTack.run(Timer.java:105)
    at android.os.Handler.handleCallback(Handler.java:790)
    at android.os.Handler.dispatchMessage(Handler.java:99)
    at android.os.Looper.loop(Looper.java:164)
    at android.app.ActivityThread.main(ActivityThread.java:6518)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:438)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:807)
Caused by: java.net.SocketException: Connection reset
    at java.net.SocketInputStream.read(SocketInputStream.java:209)
    at java.net.SocketInputStream.read(SocketInputStream.java:139)
    at java.io.BufferedInputStream.fill(BufferedInputStream.java:248)
    at java.io.BufferedInputStream.read(BufferedInputStream.java:267)
    at java.io.DataInputStream.readByte(DataInputStream.java:268)
    at anywheresoftware.b4a.shell.Shell.raiseEventImpl(Shell.java:344)
    at anywheresoftware.b4a.shell.Shell.raiseEvent(Shell.java:255)
    at java.lang.reflect.Method.invoke(Native Method)
    at anywheresoftware.b4a.ShellBA.raiseEvent2(ShellBA.java:157)
    ... 8 more

I wonder where this "okio.Buffer" class is located

Last edited:
Upvote 0

weighment

Member
Licensed User
This is ringing a very faint bell. When I wrote the original UsbSerial library I found an extra two bytes at the start of each packet which apparently the chip adds and looking back at the source I see that I just ignored the first two bytes of any packet. At the time I thought this was a bug but I just found this.
It states
"The first 2 bytes of every packet are used as status bytes for the driver. This status is sent every 16 milliseconds, even when no data is present in the device."
Great find @agraham . FTDI is bad about not providing source code for drivers even in Linux and Android.

This chip FTDI FT2232 PID 0x6010 has a 128 byte tx buffer and 384 byte rx buffer. That doc may have originated on a device with a smaller buffer.

Though that may amount to the driver transfer size
https://ftdichip.com/Support/Knowledgebase/an232b_03transfersize.htm

Nagging question: What is in the status bytes? Is it modem status and line status?


Doesn't seem like it is the Queue status (bytes in the queue) because it always has the same value for my test


Maybe the status header from the part datasheet, which only accounts for one of the bytes, and would logically hold the 0x02


Event status is only one byte and it just tells what events are armed
Notification Events (see FT_SetEventNotification)
FT_EVENT_RXCHAR = 1
FT_EVENT_MODEM_STATUS = 2
FT_EVENT_LINE_STATUS = 4

At the core so far, it appears both of these errors (lost chars and array exceptions) are caused by trying to process status headers in the middle of the buffer, that I have yet to see exist in practice.

Upvote 0

agraham

Expert
Licensed User
Longtime User
FTDI is bad about not providing source code for drivers even in Linux and Android
Used to be worse! When I was writing UsbSerial the chip datasheets were treated as proprietary and you had to reverse engineer somebody's driver to get an inkling about how to interface to the chip.

Upvote 0

MicroDrie

Well-Known Member
Licensed User
Longtime User
I wonder where this "okio.Buffer" class is located
Good question, its a import Kotlin library class loaded in the public class SerialBuffer.

Upvote 0
Top
