Android Question Font Awesome with < Android 8

[madru]

Hi,

I am struggling to get Font Awesome working on devices with Android 7 and downwards
a customer of mine complained that his backup tablet with Android 7 does not show the 'correct' icons, just a crossed out rectangle, same APK does run on his main device (Android 10)

I was able to reproduce the behaviour on Android 7. Loading the font does also not help, the correct icon is not displayed

Private mTf As Typeface
mTf = Typeface.LoadFromAssets("fontawesome-webfont.ttf")
'mi = B4XPages.AddMenuItem(Me, cs.Initialize.Typeface(Typeface.FONTAWESOME).Size(20).Append(Constants.EditChar).PopAll)
mi = B4XPages.AddMenuItem(Me, cs.Initialize.Typeface(Typeface.FONTAWESOME).Typeface(mTf).Size(20).Append(Constants.EditChar).PopAll)

I must do something wrong but I can't figure it out .....



[Mahares]

I must do something wrong but I can't figure it out .

Take a look at this thread. It may reveal why you are not getting the Fontawesome to work for you. If not, export your project and someone with a similar OS in question can probably help:

CsBuilder / Activity.Title

Hi @Erel, all i have this code: Dim cs As CSBuilder cs.Initialize.Append("Text with FontAwesome: ").Typeface(Typeface.FONTAWESOME).Append(Chr(0xF209)).PopAll ' cs.Initialize.Append("Text with MaterialIcons...

www.b4x.com



[madru]

Hi Mahares,

I am aware of that tread.....

tiny example project attached



[Mahares]

tiny example project attached

The below code will work for you: I changed the word: MATERIALICONS to FONTAWESOME

mi = B4XPages.AddMenuItem(Me, cs.Initialize.Append("some text ").Typeface(Typeface.FONTAWESOME).Append(Chr(0xf044)).PopAll)



[Rubsanpe]

I also tried to run Erel's example on the B4xPages in a 5.1 device and the result is the one below with the icons.



[madru]

Take a look at this thread. It may reveal why you are not getting the Fontawesome to work for you. If not, export your project and someone with a similar OS in question can probably help:

CsBuilder / Activity.Title

Hi @Erel, all i have this code: Dim cs As CSBuilder cs.Initialize.Append("Text with FontAwesome: ").Typeface(Typeface.FONTAWESOME).Append(Chr(0xF209)).PopAll ' cs.Initialize.Append("Text with MaterialIcons...

www.b4x.com

oops, copied the wrong code into the test app.

correct code uses FONTAWESOME, but doesn't work.



[madru]

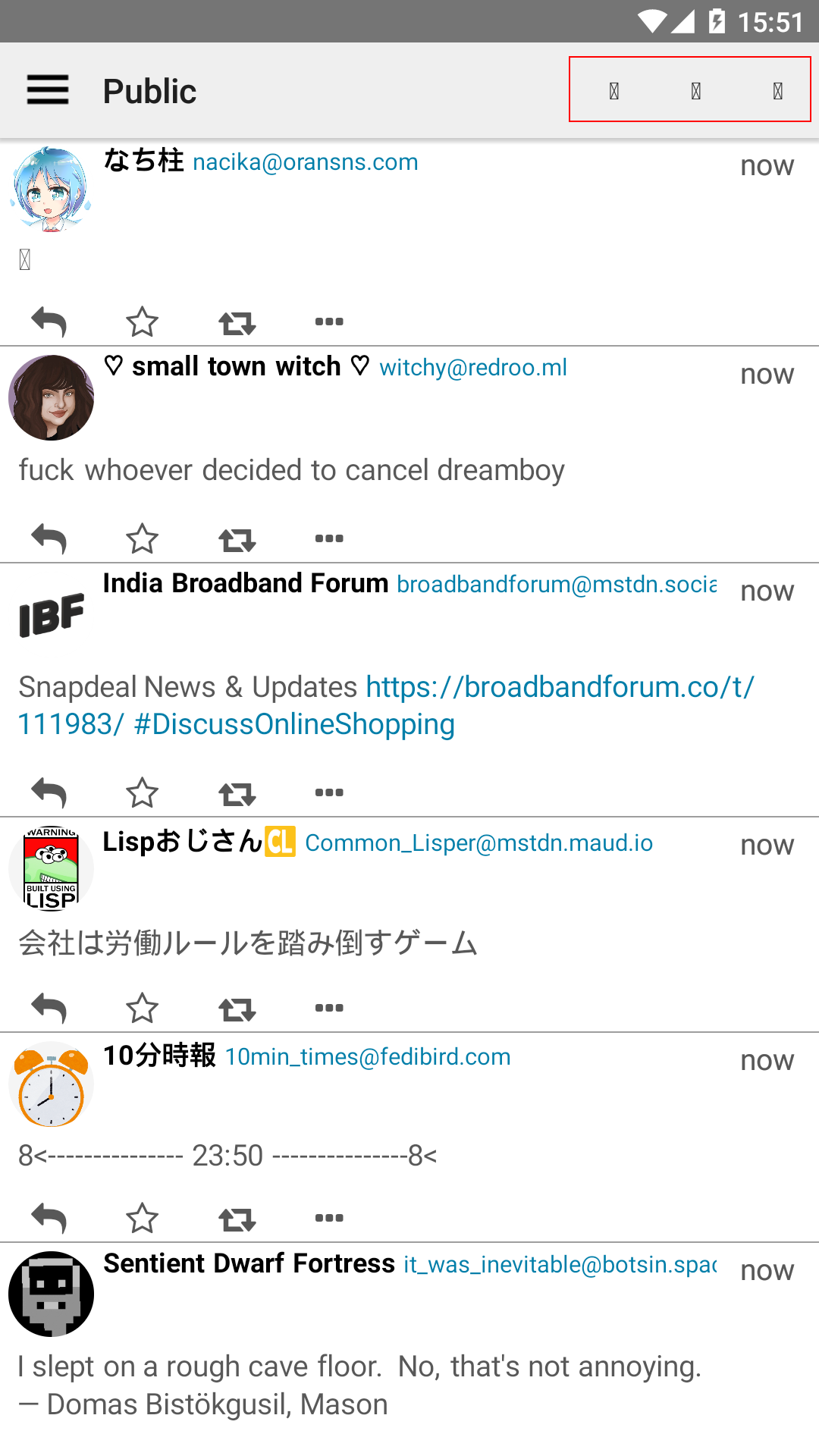

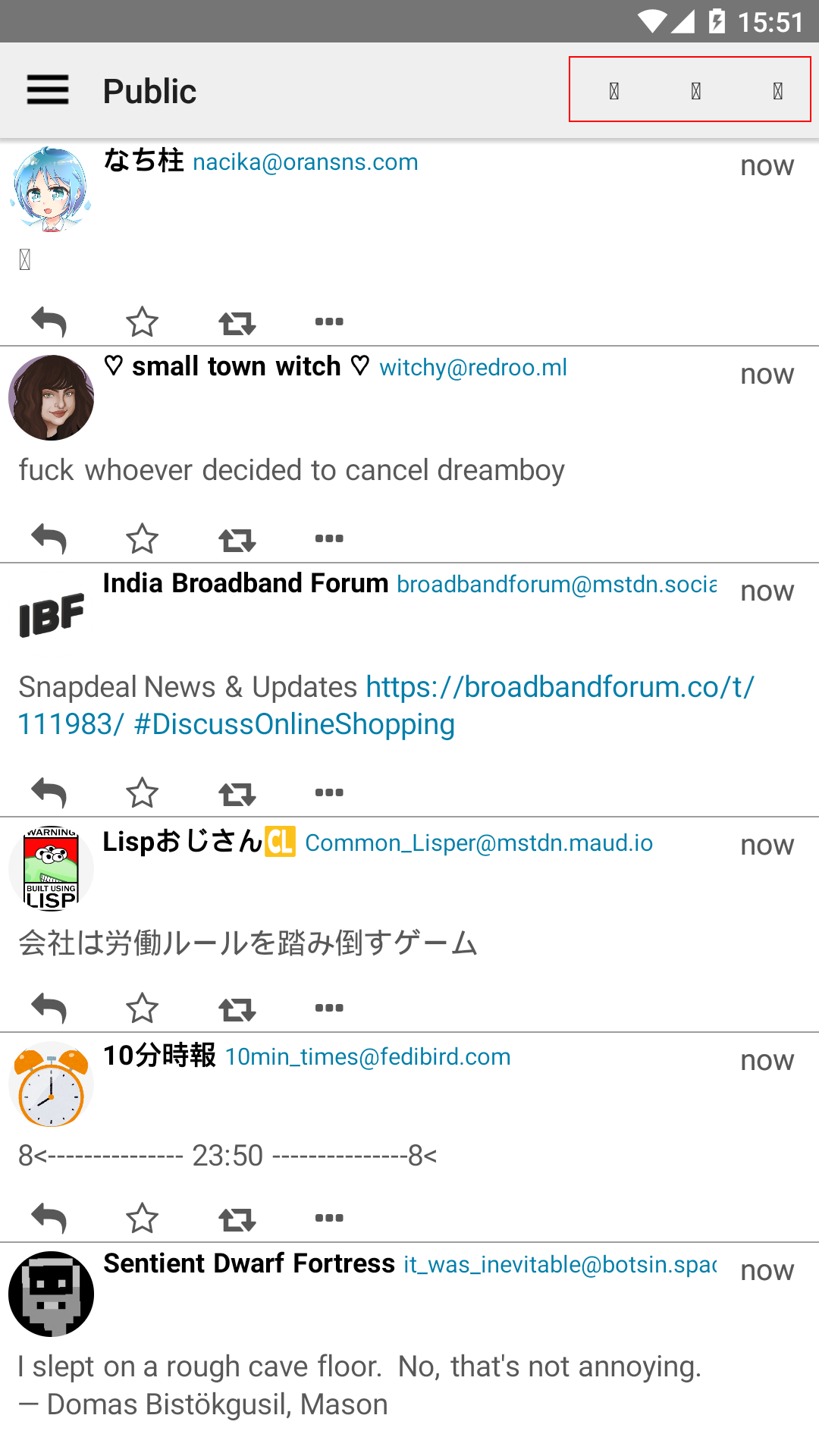

I also tried to run Erel's example on the B4xPages in a 5.1 device and the result is the one below with the icons.

View attachment 102940

yep, same on Android 7



[Biswajit]

Try to add the Designer Support Library to your project. If it does not work then try to add this to your project,

#AdditionalJar: com.android.support:support-v4



[madru]

Try to add the Designer Support Library to your project. If it does not work then try to add this to your project,

#AdditionalJar: com.android.support:support-v4

nope, doesn't help



[Rubsanpe]

I think support-v4 is previous and not compatible with AndroidX...

Rubén



[Mahares]

but doesn't work.

Since mi is a customtype, I think you need to write: mi.Title. See code below. It works for me now on a device with OS 5.1

Dim mi As B4AMenuItem
    mi.Title = B4XPages.AddMenuItem(Me, cs.Initialize.Append("some text ").Typeface(Typeface.FONTAWESOME).Append(Chr(0xf044)).PopAll)



[Rubsanpe]

Hi. I tried with "mi.Title" and indeed the strange symbol no longer appears instead of the icon, but neither does the icon appear in the bar. The icons are placed in the menu although the option "mi.AddToBar = true"

Rubén



[Erel]

Update themes.jar (don't forget to copy to internal libraries folder): https://www.b4x.com/android/forum/threads/updates-to-internal-libraries.59340/post-777728

Clean the project and it should appear properly.



[madru]

Update themes.jar (don't forget to copy to internal libraries folder): https://www.b4x.com/android/forum/threads/updates-to-internal-libraries.59340/post-777728

Clean the project and it should appear properly.

perfect

THX



[madru]

mmh, will not work if a theme is set. Using e.g the example from the Forum breaks it.

What has to be changed to make it work, .... empty CreateResource breaks it already

THX

'This code will be applied to the manifest file during compilation.
'You do not need to modify it in most cases.
'See this link for for more information: https://www.b4x.com/forum/showthread.php?p=78136
AddManifestText(
<uses-sdk android:minSdkVersion="5" android:targetSdkVersion="29"/>
<supports-screens android:largeScreens="true"
    android:normalScreens="true"
    android:smallScreens="true"
    android:anyDensity="true"/>)
SetApplicationAttribute(android:icon, "@drawable/icon")
SetApplicationAttribute(android:label, "$LABEL$")
CreateResourceFromFile(Macro, Themes.LightTheme)
'End of default text.




SetApplicationAttribute(android:theme, "@style/LightTheme")

CreateResource(values, colors.xml,
<resources>
    <color name="actionbar">#ff0000FF</color>
    <color name="statusbar">#ff0000FF</color>
    <color name="textColorPrimary">#ffffffff</color>
    <color name="navigationBar">#ff0000FF</color>
</resources>
)
CreateResource(values-v20, theme.xml,
<resources>
    <style name="LightTheme" parent="@android:style/Theme.Material.Light">
        <item name="android:colorPrimary">@color/actionbar</item>
        <item name="android:colorPrimaryDark">@color/statusbar</item>
        <item name="android:textColorPrimary">@color/textColorPrimary</item>
        <item name="android:navigationBarColor">@color/navigationBar</item>
        <item name="android:colorAccent">@color/navigationBar</item>
        <item name="android:alertDialogTheme">@style/AlertDialogCustom</item>
    </style>

    <style name="AlertDialogCustom" parent="@android:style/Theme.Material.Light.Dialog.Alert">
      <item name="android:colorPrimary">@color/actionbar</item>
      <item name="android:colorAccent">@color/navigationBar</item>
    </style>
</resources>
)
CreateResource(values-v14, theme.xml,
<resources>
    <style name="LightTheme" parent="@android:style/Theme.Holo.Light">
        <item name="android:actionBarStyle">@style/CustomActionBarStyle</item>
    </style>
    <style name="CustomActionBarStyle" parent="@android:style/Widget.Holo.Light.ActionBar.Solid.Inverse">
        <item name="android:background">@color/actionbar</item>
    </style>
</resources>
)



[Erel]

This is the updated LightTheme code:

CreateResource(values-v20, theme.xml,
<resources>
    <style
        name="LightTheme" parent="@android:style/Theme.Material.Light">
       <item name="android:actionMenuTextAppearance">@style/LowerCaseMenu</item>
    </style>
     <style name="LowerCaseMenu" parent="android:TextAppearance.Material.Widget.ActionBar.Menu">
        <item name="android:textAllCaps">false</item>
    </style>
</resources>
)



[madru]

Thank you !!!!
