Android Question How to realize XMODEM-1K with B4A

[MikeFree]

Has anyone done some codeing

for receiving files via bluetooth with "XMODEM-1K"-protocol?
see https://en.wikipedia.org/wiki/XMODEM#XMODEM-1K

Backkround:
I use a OBD hardware named FISCONTROL which collects data in logfiles.
This logs can be downloading using XModem.

I m at the moment not so experiencend in B4A but I think a little app can be realized with B4A?

Has anyone an idea?

Thanks for posts



[MikeFree]

As written in #15 of this thread one(you) need to write a wrapper library for the Github project i found (or any other). The wrapper must be written with java.
As of now there is no such library (wrap) available.

who is able to write a wrapper in this community?



[MikeFree]

Fair enough. Let's get this party started. ?

First thing is still to confirm which type of Bluetooth the OBD device is using. I thought I didn't have any Classic Bluetooth SPP devices, but then I remembered that the ELM327 OBD dongles are probably just serial ports, so after I found them and also the OBD port in the new (OBD-wise) car, I connected to it and then spoke with it using the Serial Bluetooth Terminal app. Unfortunately that app doesn't have XMODEM(-1K) so now I am searching for a terminal app that does both Bluetooth AND XModem.

In the meantime, if you want to try talking to your OBD device anyway, these are stages that I went through:

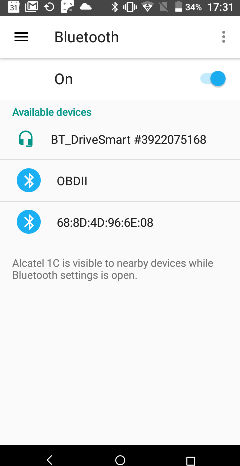

Settings, Bluetooth = list of available devices:

View attachment 97389

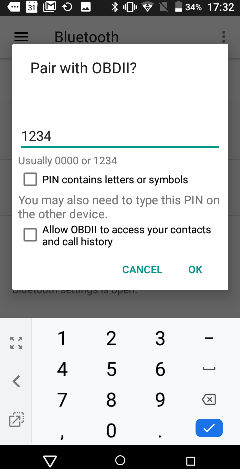

Pair with ELM327 OBDII dongle:

View attachment 97390

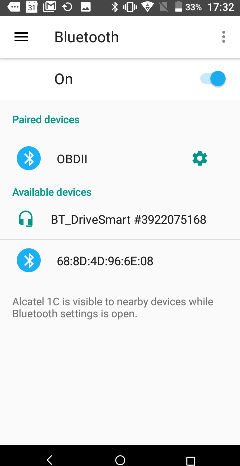

Paired, ready for use:

View attachment 97391

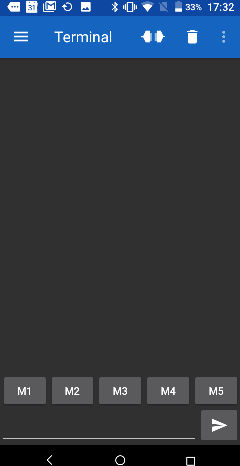

Start Serial Bluetooth Terminal app:

View attachment 97392

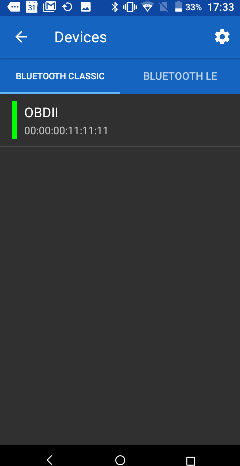

Choose serial port (here only one choice - the paired OBDII dongle):

View attachment 97393

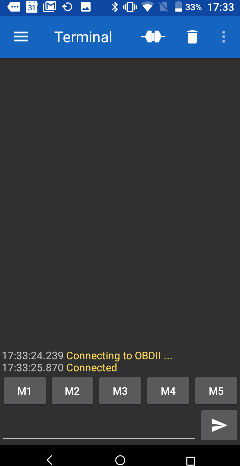

Connected and looking good:

View attachment 97394

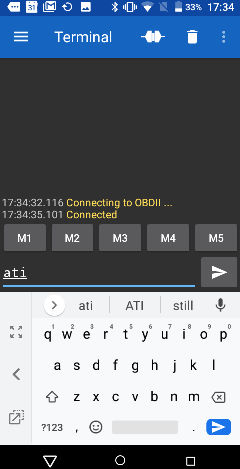

Type ATI (attention, identify) command:

View attachment 97395

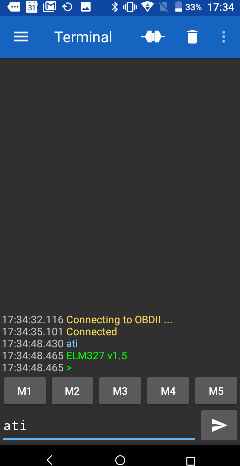

and OBDII dongle responds with ELM327 and version:

View attachment 97396

i downloaded the app and using a iCar OBD - dongle this works like you described ..
