B4R Question I can not choose AZ-Delivery NodeMCU V2 WiFi Amica ESP8266 ESP-12F I2C

[jvrh_1]

Hi,

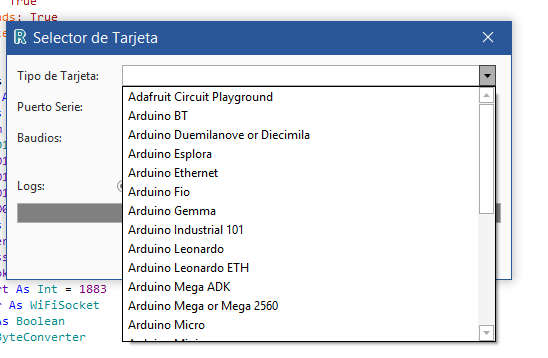

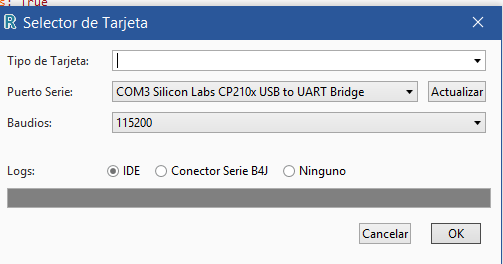

Yesterday, I recived my new board: "AZ-Delivery NodeMCU V2 WiFi Amica ESP8266 ESP-12F I2C", but in Tools--Selector Board of my B4R doesn't appears this model.

I tried this Erel Solution, but It doesn't work: (https://www.b4x.com/android/forum/threads/b4r-ide-board-selector-problem.74134/#content)

"As a workaround you can go to:
C:\Users\<user>\AppData\Roaming\Anywhere Software\B4R

Edit b4xV5.ini and set the following properties:

BoardName=Arduino/Genuino Mega or Mega 2560
BoardArgs=arduino:avr:mega:cpu=atmega2560
SerialPort=COM55 Arduino Mega 2560

Close the IDE before you edit the ini file."

And it too:

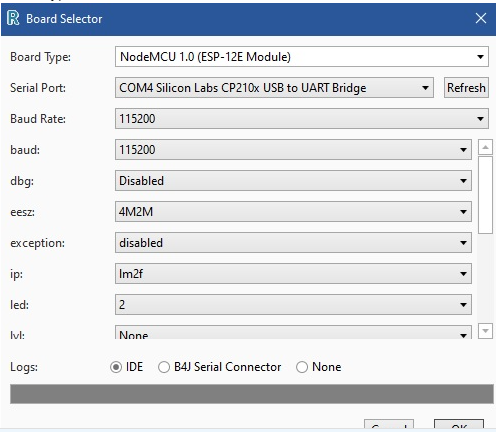

"BoardName=NodeMCU 1.0 (ESP-12E Module)
BoardArgs=esp8266:esp8266:nodemcuv2:CpuFrequency=80,FlashSize=4M3M,UploadSpeed=115200"



Any Idea?

I wanto to start with this project of XorAndOr. In his projects appears the last file attached called "correct".

Home Control 4

Hi guys I want to share my project on this great community (source code free no donation) I think it may be useful to someone in the source code I commented out the functions it should be simple enough to figure out. hardware: Module Elegoo 4 Relays 5V NodeMCU ESP8266 wifi (chip 2102 drive)...

www.b4x.com



[hatzisn]

Does it have any special drivers to install in Arduino through some .json file as you would add for any board in Arduno IDE. I think it is in File > Preferences the place to add the URL to the .json but search also in Google if you are not familiar how to add new boards. B4R displays only what is installed in Arduino IDE.



[XorAndOr]

IDE Arduino:
1) Preferences

2) Boards Manager install the ESP8266 package



[jvrh_1]

IDE Arduino:
1) Preferences
View attachment 144699

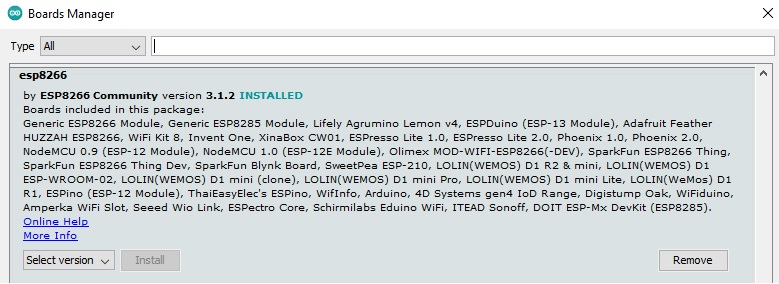

2) Boards Manager install the ESP8266 package
View attachment 144698

Thanks a lot. Solved!!!
