B4J Question Interact with HTML elements from B4j app?

ilan · Dec 19, 2021

hi

I would like to know if I can load a site into a webview and then fill an HTML input element with text by calling his id property?
or maybe simulate a button click in that site? (button element id is known)

thanx, ilan

DonManfred · Dec 19, 2021

Maybe with Selenium?

Selenium Browser Automation - Create any Robot with Browser

Selenium WebDriver - Mastering Test Automation with Selenium What is Selenium? Selenium is an open source automated testing suite for web applications across different browsers and platforms. It is quite similar to HP Quick Test Professional (QTP) only that Selenium focuses on automating...

www.b4x.com

LucaMs · Dec 19, 2021

Granted that I know ZERO... I know that some Erel's examples interact with web pages, using JQueryElement.
You can learn from those examples.
[WebApp] Chatroom...
[WebApp] Web Apps Overview

roumei · Dec 19, 2021

You can try to inject JavaScript. I'm not sure whether it will work for all websites.

B4X:

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private WebView1 As WebView
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    WebView1.LoadURL("https://www.b4x.com:51041/guessmynumber/index.html")
End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.

Private Sub JS(s As String)
    Dim joWV As JavaObject = WebView1
    joWV.RunMethodJO("getEngine", Null).RunMethod("executeScript", Array As String(s))
End Sub

Private Sub Button1_Click
    JS($"document.getElementById("txtNumber").value="123";"$)
End Sub

Private Sub Button2_Click
    JS($"document.getElementById("btnGuess").click();"$)
End Sub

ilan · Dec 19, 2021

LucaMs said:
Granted that I know ZERO... I know that some Erel's examples interact with web pages, using JQueryElement.
You can learn from those examples.
[WebApp] Chatroom...
[WebApp] Web Apps Overview

yes, but this will work if you are creating your own webapp and implement a WebSocket. what i want is to go to google.com and instead of writing inside the input field of the webpage i want to do it from a b4j app.

roumei said:

You can try to inject JavaScript. I'm not sure whether it will work for all websites.

B4X:

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private WebView1 As WebView
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    WebView1.LoadURL("https://www.b4x.com:51041/guessmynumber/index.html")
End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.

Private Sub JS(s As String)
    Dim joWV As JavaObject = WebView1
    joWV.RunMethodJO("getEngine", Null).RunMethod("executeScript", Array As String(s))
End Sub

Private Sub Button1_Click
    JS($"document.getElementById("txtNumber").value="123";"$)
End Sub

Private Sub Button2_Click
    JS($"document.getElementById("btnGuess").click();"$)
End Sub

thanx, will try that out

ilan · Dec 19, 2021

DonManfred said:
Maybe with Selenium?

Selenium Browser Automation - Create any Robot with Browser

Selenium WebDriver - Mastering Test Automation with Selenium What is Selenium? Selenium is an open source automated testing suite for web applications across different browsers and platforms. It is quite similar to HP Quick Test Professional (QTP) only that Selenium focuses on automating...

www.b4x.com

thanx but none of the links are working so i cannot test it.

LucaMs · Dec 19, 2021

ilan said:
yes, but this will work if you are creating your own webapp and implement a WebSocket. what i want is to go to google.com and instead of writing inside the input field of the webpage i want to do it from a b4j app.

But if you know the identifiers of the elements (buttons, input boxes, ...) as you wrote, maybe that's enough (I've never fiddled with this; I was just trying to give you a hint, but they will certainly give you better ones, as has just done @roumei

).

ilan · Dec 19, 2021

roumei said:

You can try to inject JavaScript. I'm not sure whether it will work for all websites.

B4X:

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private WebView1 As WebView
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    WebView1.LoadURL("https://www.b4x.com:51041/guessmynumber/index.html")
End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.

Private Sub JS(s As String)
    Dim joWV As JavaObject = WebView1
    joWV.RunMethodJO("getEngine", Null).RunMethod("executeScript", Array As String(s))
End Sub

Private Sub Button1_Click
    JS($"document.getElementById("txtNumber").value="123";"$)
End Sub

Private Sub Button2_Click
    JS($"document.getElementById("btnGuess").click();"$)
End Sub

you are a Guinness. thank you very much. your solution works perfectly. this is what i was looking for

???

ilan · Dec 19, 2021

LucaMs said:
But if you know the identifiers of the elements (buttons, input boxes, ...) as you wrote, maybe that's enough (I've never fiddled with this; I was just trying to give you a hint, but they will certainly give you better ones, as has just done @roumei ).

@roumei solution works as expected. now I would like to see if I can retrieve information from an HTML element. will make some checks.

TILogistic · Dec 19, 2021

seeing can be of help

Wait for Javascript to complete

Dear All; if I run the script I get the last value for para3, is there a way to show each value in turn, like to wait for each script before starting the next one. Dim Javascript As String Javascript = $"B4A.CallSub('ProcessHTML', true, document.getElementById('para1').value,'para1')"$...

www.b4x.com

B4X

B4X:

Private Sub RunJavaScript (js As String) As ResumableSub
    #if B4A
    WebViewExtras1.executeJavascript(WebView1, $"B4A.CallSub('Process_HTML', true, ${js})"$)
    Wait For Process_Html(html As String)
    Return html
    #Else If B4J
    Return WebView1.As(JavaObject).RunMethodJO("getEngine", Null).RunMethod("executeScript", Array(js))
    #Else If B4i
    Dim sf As Object = WebView1.EvaluateJavaScript(js)
    Wait For (sf) WebView1_JSComplete (Success As Boolean, Result As String)
    Return Result
    #end if
End Sub

ilan · Dec 19, 2021

oparra said:
seeing can be of help

Wait for Javascript to complete

Dear All; if I run the script I get the last value for para3, is there a way to show each value in turn, like to wait for each script before starting the next one. Dim Javascript As String Javascript = $"B4A.CallSub('ProcessHTML', true, document.getElementById('para1').value,'para1')"$...

www.b4x.com

B4X

B4X:

Private Sub RunJavaScript (js As String) As ResumableSub #if B4A WebViewExtras1.executeJavascript(WebView1, $"B4A.CallSub('Process_HTML', true, ${js})"$) Wait For Process_Html(html As String) Return html #Else If B4J Return WebView1.As(JavaObject).RunMethodJO("getEngine", Null).RunMethod("executeScript", Array(js)) #Else If B4i Dim sf As Object = WebView1.EvaluateJavaScript(js) Wait For (sf) WebView1_JSComplete (Success As Boolean, Result As String) Return Result #end if End Sub

thank you very much, i could not ask for a better solution

TILogistic · Dec 19, 2021

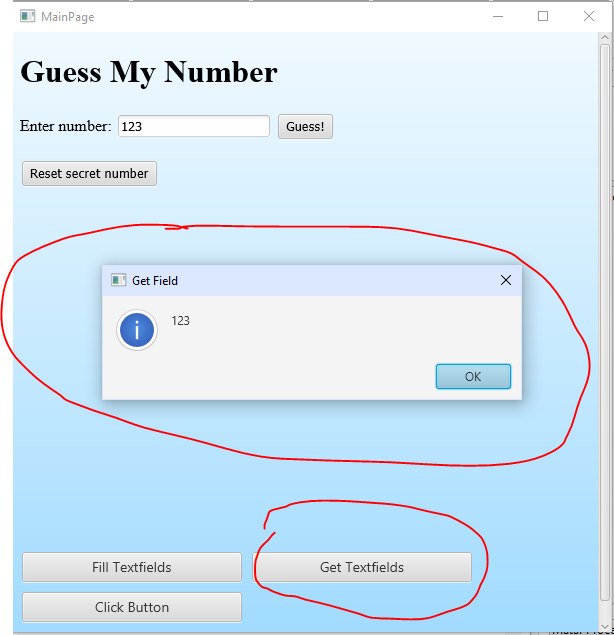

update sample @roumei

B4X:

#Region Shared Files
#CustomBuildAction: folders ready, %WINDIR%\System32\Robocopy.exe,"..\..\Shared Files" "..\Files"
'Ctrl + click to sync files: ide://run?file=%WINDIR%\System32\Robocopy.exe&args=..\..\Shared+Files&args=..\Files&FilesSync=True
#End Region

'Ctrl + click to export as zip: ide://run?File=%B4X%\Zipper.jar&Args=Project.zip

Sub Class_Globals
    Private Root As B4XView
    Private xui As XUI
    Private WebView1 As WebView
End Sub

Public Sub Initialize
'    B4XPages.GetManager.LogEvents = True
End Sub

'This event will be called once, before the page becomes visible.
Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    WebView1.LoadURL("https://www.b4x.com:51041/guessmynumber/index.html")
End Sub

'You can see the list of page related events in the B4XPagesManager object. The event name is B4XPage.


Private Sub Button1_Click
    RunJavaScript($"document.getElementById("txtNumber").value="123";"$)
End Sub

Private Sub Button2_Click
    RunJavaScript($"document.getElementById("btnGuess").click();"$)
End Sub

Private Sub Button3_Click
    Wait For (RunJavaScript($"document.getElementById("txtNumber").value;"$)) Complete(Html As String)
    xui.MsgboxAsync(Html, "Get Field")
End Sub

Public Sub RunJavaScript (JS As String) As ResumableSub
    #if B4A
    WebViewExtras1.executeJavascript(WebView1, $"B4A.CallSub('Process_HTML', true, ${js})"$)
    Wait For Process_Html(html As String)
    Return html
    #Else If B4J
    Return WebView1.As(JavaObject).RunMethodJO("getEngine", Null).RunMethod("executeScript", Array(JS))
    #Else If B4i
    Dim sf As Object = WebView1.EvaluateJavaScript(js)
    Wait For (sf) WebView1_JSComplete (Success As Boolean, Result As String)
    Return Result
    #end if
End Sub
