B4J Library jCharts

Here's my first library for B4J. It's a wrapper of javafx.scene.chart with additional functions and classes.



To take a snapshot of a chart, set its animated property to False before adding the data or wait until all animations are over.

Changelog:
v1.21:
- I added a workaround for a bug in OpenJDK 11 (thanks to Chris2)

v1.2:
- XAxis and YAxis created by the designer can now raise events with the default event prefix "XAxis" / "YAxis";
- I added the LegendChanged event to all charts;
- I fixed a bug (NullPointerException) in GetChildStyleMap and StyleMap.

v1.11:
- I added the SetChildStyleMap2 function;
- I modified the fourth demo to show a simple way to add the colored bands.

v1.1:
- I added the Plot event to all charts except PieChart;
- I added a demo to show how to use the Plot event (this project requires jGraphicLib);
- I modified the third demo to use a layout made with the designer.

v1.0:
- All charts can be added as custom views in the visual designer;
- I added the Width and Height properties to all charts and axis;
- I added the Series property to XYCoord;
- I added the MouseToData function to all charts and removed the EventPrefixForPlot parameter from Initialize (MouseToData is more convenient than events);
- I modified the second demo to show MouseToData in use;
- I modified the third demo so that the slider value sets the upper bound of the displayed series.

v0.9:
- I added ForceZeroInRange and TickUnit to NumberAxis;
- I added RemoveAllData to PieChart;
- I added FindNearestX to XYSeries;
- I added FindSeries and RemoveAllSeries to all charts using series;
- I added Padding to all charts;
- I added a new example and some documentation.


Attachments

  • jCharts_1_21.zip
    74.1 KB · Views: 933
Last edited:
Click to expand...
FabioRome

FabioRome

Member
Licensed User
Longtime User
Informatix said:
The line chart example provided with the library shows the values on the axis and when you pass the mouse over, so I don't understand the question. Can you give more details?
Click to expand...

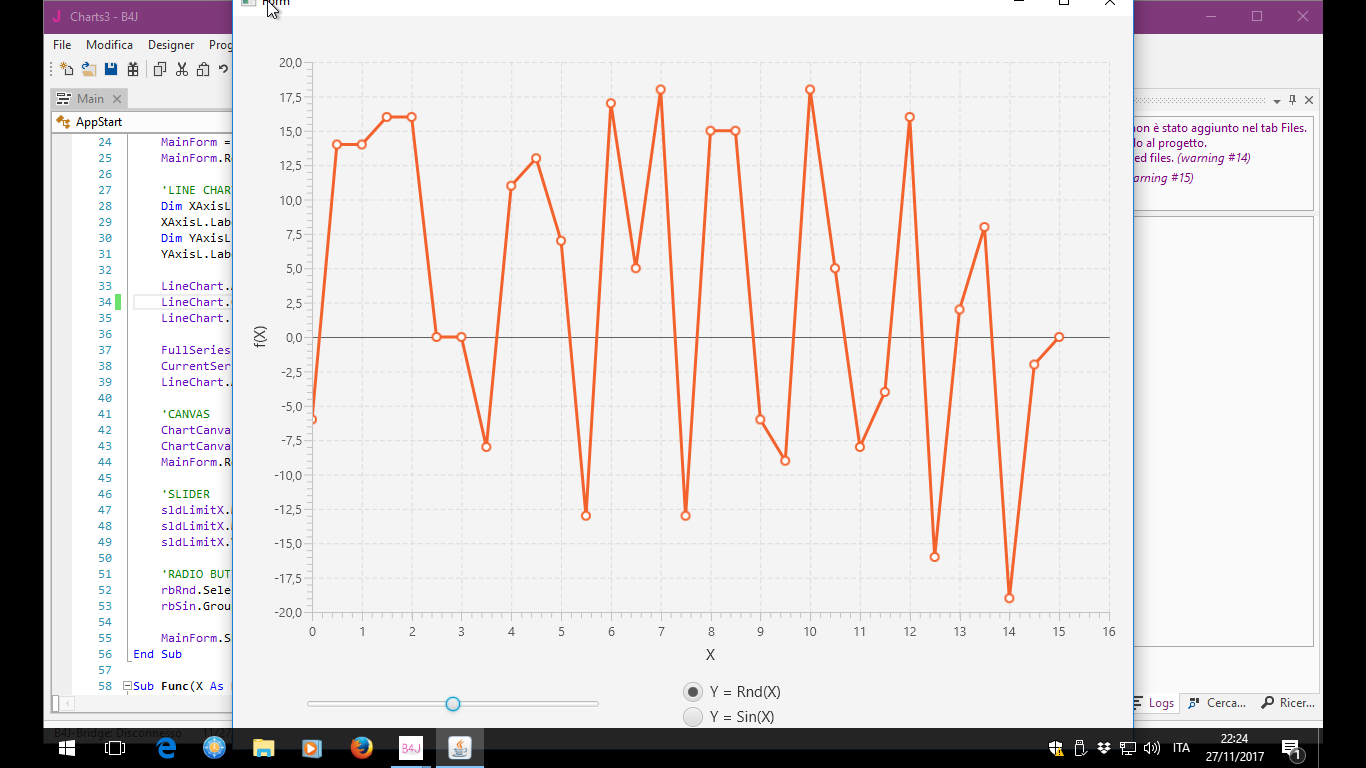

I would like to show the values not only when passing the mouse


Attachments

  • chart3.png
    159.2 KB · Views: 566
FabioRome

FabioRome

Member
Licensed User
Longtime User
sorry I can not explain.
Along with the symbols (LineChart.Create Symbols = True) I would like to show the value immediately upon loading the LineChart

Informatix

Informatix

Expert
Licensed User
Longtime User
FabioRome said:
sorry I can not explain.
Along with the symbols (LineChart.Create Symbols = True) I would like to show the value immediately upon loading the LineChart
Click to expand...
Take a look at Charts3. Once the chart is drawn, compute the position on screen of all values with XAxis.GetDisplayPosition and YAxis.GetDisplayPosition, then draw the value at the computed position with ChartCanvas.DrawText.

tufanv

tufanv

Expert
Licensed User
Longtime User
is there any way to change the textsize of piechart title and pie labels text color ?

Johan Hormaza

Johan Hormaza

Well-Known Member
Licensed User
Longtime User
B4X:
Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private AreaChart1 As AreaChart
    Private YAxis As NumberAxis
    Private XAxis As CategoryAxis
    Dim series As XYSeries
    Private sql As SQL
End Sub
#AdditionalJar: sqlite-jdbc-3.7.2
Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("main") 'Load the layout file.
    XAxis = AreaChart1.XAxis
    YAxis = AreaChart1.YAxis
    YAxis.LowerBound = 1
    YAxis.UpperBound = 400
    XAxis.TickLabelRotation = 360
    AreaChart1.Animated = False
    AreaChart1.CreateSymbols = False
    AreaChart1.LegendVisible = False
    AreaChart1.Title = "Rendimiento"
    series.Initialize("Rendimiento")
    Button1_Click
    AreaChart1.AddSeries(series)
    MainForm.Show
End Sub

'Return true to allow the default exceptions handler to handle the uncaught exception.
Sub Application_Error (Error As Exception, StackTrace As String) As Boolean
    Return True
End Sub

Sub Button1_Click
    Dim query As String
'    Dim listX,listY As List
'    listX.Initialize
'    listY.Initialize
    sql.InitializeSQLite(File.DirData("LuzHor"), "LNOGUERA.db", True)
    query= "SELECT Fecha, COUNT(Latitud) As 'Luminarias',SUM(Potencia) AS 'Potencias W',SUM(Encendida) AS 'Encendidas', SUM(Particular) AS 'Particulares', (SUM(Potencia)*0.36) AS 'Energía kWh', (COUNT(Latitud)/160) AS 'Rendimiento' FROM LNOGUERA GROUP BY Fecha"
Dim cursor As ResultSet
cursor = sql.ExecQuery(query)
Do While cursor.NextRow
        series.Add(cursor.GetString("Fecha"),cursor.GetInt("Luminarias"))
Loop
cursor.Close

End Sub
This is my code



S

StarinschiAndrei

Active Member
Licensed User
Longtime User
Hi, i modified line chart example ( add line chart from designer) and now it doesn't show anything (attached the test app). The error :
Waiting for debugger to connect...
Program started.
java.lang.ClassCastException: java.lang.String cannot be cast to java.lang.Number
at javafx.scene.chart.ValueAxis.invalidateRange(ValueAxis.java:439)
at javafx.scene.chart.LineChart.updateAxisRange(LineChart.java:210)
at javafx.scene.chart.XYChart.layoutChartChildren(XYChart.java:660)
at javafx.scene.chart.Chart$1.layoutChildren(Chart.java:94)
at javafx.scene.Parent.layout(Parent.java:1087)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Scene.doLayoutPass(Scene.java:552)
at javafx.scene.Scene$ScenePulseListener.pulse(Scene.java:2397)
at com.sun.javafx.tk.Toolkit.lambda$runPulse$29(Toolkit.java:398)
at java.security.AccessController.doPrivileged(Native Method)
at com.sun.javafx.tk.Toolkit.runPulse(Toolkit.java:397)
at com.sun.javafx.tk.Toolkit.firePulse(Toolkit.java:424)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:518)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:498)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulseFromQueue(QuantumToolkit.java:491)
at com.sun.javafx.tk.quantum.QuantumToolkit.lambda$runToolkit$403(QuantumToolkit.java:319)
at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
at com.sun.glass.ui.win.WinApplication.lambda$null$147(WinApplication.java:177)
at java.lang.Thread.run(Thread.java:748)

How can i create dynamic series ? for data like this :


Attachments

  • lineChart.zip
    3.1 KB · Views: 528
  • upload_2018-5-6_13-52-28.png
    3.6 KB · Views: 479
Last edited:
Informatix

Informatix

Expert
Licensed User
Longtime User
StarinschiAndrei said:
Hi, i modified line chart example ( add line chart from designer) and now it doesn't show anything (attached the test app). The error :
Waiting for debugger to connect...
Program started.
java.lang.ClassCastException: java.lang.String cannot be cast to java.lang.Number
at javafx.scene.chart.ValueAxis.invalidateRange(ValueAxis.java:439)
at javafx.scene.chart.LineChart.updateAxisRange(LineChart.java:210)
at javafx.scene.chart.XYChart.layoutChartChildren(XYChart.java:660)
at javafx.scene.chart.Chart$1.layoutChildren(Chart.java:94)
at javafx.scene.Parent.layout(Parent.java:1087)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Parent.layout(Parent.java:1093)
at javafx.scene.Scene.doLayoutPass(Scene.java:552)
at javafx.scene.Scene$ScenePulseListener.pulse(Scene.java:2397)
at com.sun.javafx.tk.Toolkit.lambda$runPulse$29(Toolkit.java:398)
at java.security.AccessController.doPrivileged(Native Method)
at com.sun.javafx.tk.Toolkit.runPulse(Toolkit.java:397)
at com.sun.javafx.tk.Toolkit.firePulse(Toolkit.java:424)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:518)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulse(QuantumToolkit.java:498)
at com.sun.javafx.tk.quantum.QuantumToolkit.pulseFromQueue(QuantumToolkit.java:491)
at com.sun.javafx.tk.quantum.QuantumToolkit.lambda$runToolkit$403(QuantumToolkit.java:319)
at com.sun.glass.ui.InvokeLaterDispatcher$Future.run(InvokeLaterDispatcher.java:95)
at com.sun.glass.ui.win.WinApplication._runLoop(Native Method)
at com.sun.glass.ui.win.WinApplication.lambda$null$147(WinApplication.java:177)
at java.lang.Thread.run(Thread.java:748)

How can i create dynamic series ? for data like this :
View attachment 67610
Click to expand...
LineCharts created by the designer have two numerical axis, incompatible with string values.
I don't understand your question about dynamic series with 3 values.

S

StarinschiAndrei

Active Member
Licensed User
Longtime User
Informatix said:
LineCharts created by the designer have two numerical axis, incompatible with string values.
I don't understand your question about dynamic series with 3 values.
Click to expand...
Hi i would like to create below code part dynamically, how can i declare Series as an array Dim Series() as XYSeries :
B4X:
Dim Series1 As XYSeries
    Series1.Initialize("Pepito")
    Series1.Add("Feb",44)
    Series1.Add("Mar",42)
    Series1.Add("Apr",33)
    Series1.Add("May",31)
    Series1.Add("Jun",26)
    Series1.Add("Jul",22)
    Series1.Add("Aug",25)
    Series1.Add("Sept",43)
    Series1.Add("Oct",44)
    Series1.Add("Nov",45)
    Series1.Add("Dec",44)

    Dim Series2 As XYSeries
    Series2.Initialize("Oreo")
    Series2.Add("Feb",40)
    Series2.Add("Mar",38)
    Series2.Add("Apr",39)
    Series2.Add("May",36)
    Series2.Add("Jun",33)
    Series2.Add("Jul",32)
    Series2.Add("Aug",28)
    Series2.Add("Sept",29)
    Series2.Add("Oct",27)
    Series2.Add("Nov",25)
    Series2.Add("Dec",20)
    LC.AddAllSeries(Array As XYSeries(Series1, Series2))

something like :
B4X:
for i=0 to 10
Series(i).add("Department A","Value")
Series(i).add("Department B","Value")
Series(i).add("Department C","Value")
Next

Informatix

Informatix

Expert
Licensed User
Longtime User
StarinschiAndrei said:
Hi i would like to create below code part dynamically, how can i declare Series as an array Dim Series() as XYSeries :
B4X:
Dim Series1 As XYSeries
    Series1.Initialize("Pepito")
    Series1.Add("Feb",44)
    Series1.Add("Mar",42)
    Series1.Add("Apr",33)
    Series1.Add("May",31)
    Series1.Add("Jun",26)
    Series1.Add("Jul",22)
    Series1.Add("Aug",25)
    Series1.Add("Sept",43)
    Series1.Add("Oct",44)
    Series1.Add("Nov",45)
    Series1.Add("Dec",44)

    Dim Series2 As XYSeries
    Series2.Initialize("Oreo")
    Series2.Add("Feb",40)
    Series2.Add("Mar",38)
    Series2.Add("Apr",39)
    Series2.Add("May",36)
    Series2.Add("Jun",33)
    Series2.Add("Jul",32)
    Series2.Add("Aug",28)
    Series2.Add("Sept",29)
    Series2.Add("Oct",27)
    Series2.Add("Nov",25)
    Series2.Add("Dec",20)
    LC.AddAllSeries(Array As XYSeries(Series1, Series2))

something like :
B4X:
for i=0 to 10
Series(i).add("Department A","Value")
Series(i).add("Department B","Value")
Series(i).add("Department C","Value")
Next
Click to expand...
B4X:
Dim Series(11) As XYSeries
for i=0 to 10
Series(i).Initialize("name")
Series(i).add("Department A","Value")
Series(i).add("Department B","Value")
Series(i).add("Department C","Value")
Next

S

StarinschiAndrei

Active Member
Licensed User
Longtime User
Informatix said:
B4X:
Dim Series(11) As XYSeries
for i=0 to 10
Series(i).Initialize("name")
Series(i).add("Department A","Value")
Series(i).add("Department B","Value")
Series(i).add("Department C","Value")
Next
Click to expand...
Thank you. Now it's working.
There is no way to use the linechart from designer ?

D

Don Cameron

New Member
Licensed User
Harris

Would you be willing to share some code snippets of how you implemented your -

Zoom and Zoomed in feature... Drag to zoom (left to right - creates visual canvas rect), let go and magic. How nice!
To un-zoom (restore the original view) - drag from right to left...

Thanks

Don

You must log in or register to reply here.

Similar Threads

Johan Schoeman
  • Article
B4J Tutorial Newton Fractals - all in B4J
2 3
Replies
41
Views
4K
Johan Schoeman
Johan Schoeman
Jhonn
  • Article
Share My Creation B4X Template Code Generator 1.00
Replies
1
Views
1K
Jhonn
Jhonn
Mashiane
  • Article
B4J Tutorial [BANanoWebix] Lesson 9: DataView
Replies
0
Views
2K
Mashiane
Mashiane
Mashiane
  • Article
B4J Library [ABMaterial] Creating ABMModalSheets at runtime: Part 3
Replies
0
Views
2K
Mashiane
Mashiane
Blueforcer
  • Question
B4J Question Update each View
Replies
2
Views
826
Blueforcer
Blueforcer
Top
