Android Question JPCT-AE Load3DS on transparent background

[peacemaker]

Is it possible to show .3DS model transparently ?
Over my panel with picture.



[DonManfred]

Is it possible to load .3ds at all? I don´t know a way. Even don´t know this Extension....



[peacemaker]

Yes, this JPCT-AE lib has a sample "load3ds" that load .3ds file (of 3D-Max editor software) with .jpg texture file and rotating on the screen. But over the blue color.



[wonder]

It should be, as the 3D model is totally independent from its background.
You'll have to fiddle with the code to get it find the right option.



[peacemaker]

For the background color is used

Dim SkyColor As JpctRGBColor
SkyColor.Initialize3(153, 217, 234, 0)

It can be initialized with only exact R, G, B components.
But how to make it transparent ?



[DonManfred]

SkyColor.Initialize3(153, 217, 234, 0)

what is the 4rd parameter?

Note i do not know/have the Lib....



[peacemaker]

Alfa



[DonManfred]

a = Alpha? Set here 128 and check if it is 50% transparent
0 = Fully Opaque
255 = Fully transparent



[peacemaker]

Sure, checked - no changes.



[wonder]

I have an old project stored somewhere, I'll have a look at it once I get home (10 hours later).



[wonder]

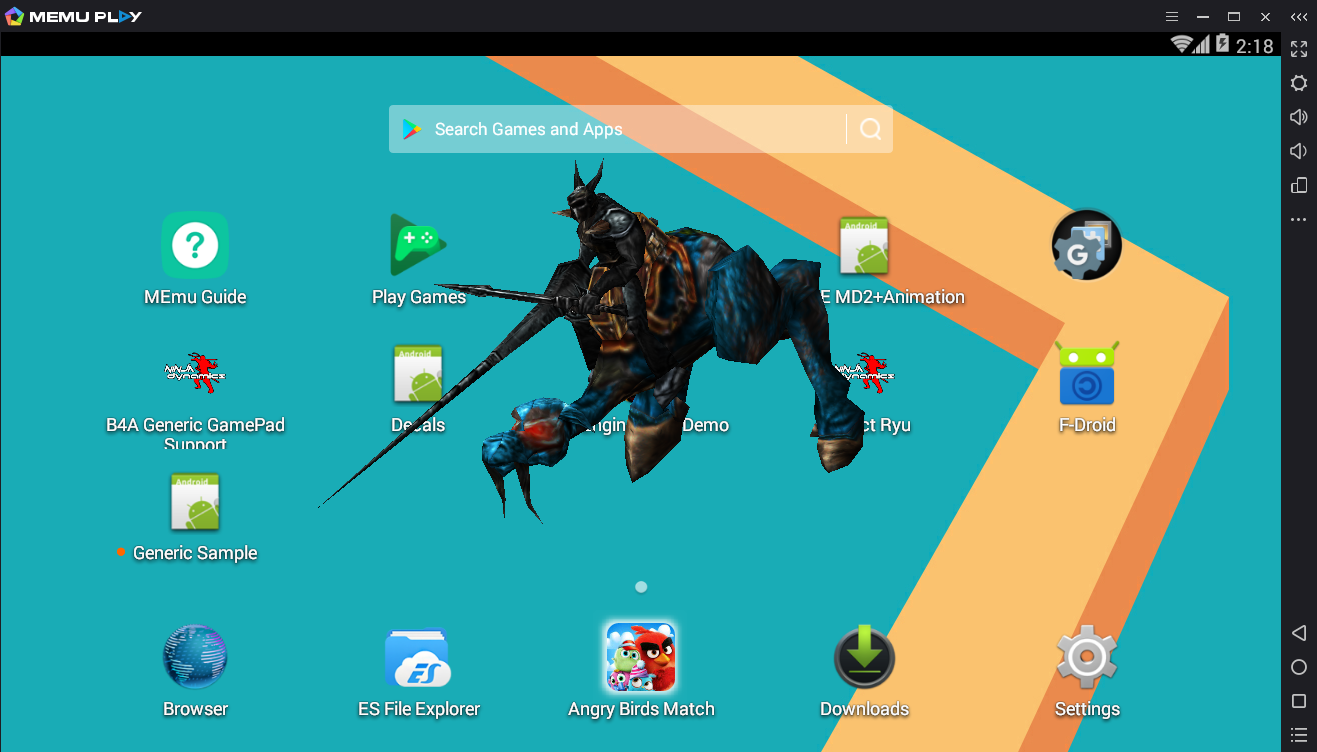

End result:

Manifest:

SetActivityAttribute(main, android:theme, @android:style/Theme.Translucent.NoTitleBar)

Activity_Create:

'Makes Activity transparent
Activity.Color = Colors.Transparent

jPCT Initialization:

'Makes the view transparent
JpctView.Initialize1("Jpct", 1, True, Jpct.RENDER_CONTINUOUSLY, False, Jpct.TRANSLUCENT)

'Makes the sky transparent
SkyColor.Initialize3(0, 0, 0, 0)

'Solves the problem of black being displayed as transparent (see below)
MyTexture.Initialize2(File.OpenInput(File.DirAssets, "my_texture.png"), True)

Black as transparent problem:
http://www.jpct.net/forum2/index.php?topic=4766.01
http://www.jpct.net/forum2/index.php?topic=4710.0

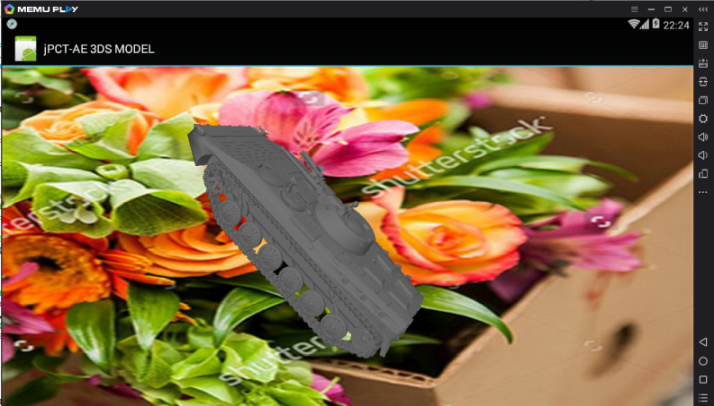

[peacemaker]

Super ! Thank you !
