B4J Question jRDC2 config.properties

[Alexander Stolte]

Hello community, i have a problem, because i dont understand what i insert into 2 columns.

I have looked every tutorial, about it here, in the forum. The most user are using MySql, but i have a MS Sql Database. So, now to my Question.

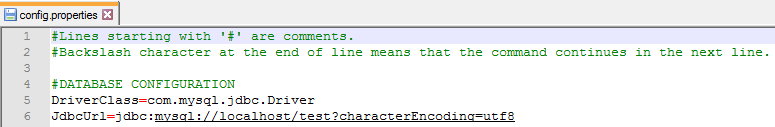

In the file "config.properties" exist the column "DriverClass" and JdbcUrl"

DriverClass: I should specify the location where the driver is located? So it would look like this? : "C:\Program Files\Microsoft JDBC Driver 6.0 for SQL Server\sqljdbc_6.0\deu\jre8\sqljdbc42.jar"

JdbcUrl: and here the path where the jRDC.jar file located? Looks like: C:\Users\Administrator\Desktop\jRDC.jar

thanks for help.

My first post without translator jay



[EnriqueGonzalez]

Ey Alexander

Please see this post.
https://www.b4x.com/android/forum/threads/mssql-server-with-b4j.77711/#post-492287

Whether my answer or imbault are the most precise answers.



[EnriqueGonzalez]

The driver class is not the location of your jar.

Actually the location should be inside your b4j installation folder there is a folder called libraries, there you must copy your jar and add it your project like this:

#AdditionalJar: sqljdbc42.jar

Then the jdbc URL is the address and instance of your SQL server itself. As you may see in the post I shared.



[Erel]

Actually the location should be inside your b4j installation folder there is a folder called libraries, there you must copy your jar and add it your project like this:

It is better to configure the additional libraries folder (Tools - Configure Paths) and put it there.



[Alexander Stolte]

It is better to configure the additional libraries folder (Tools - Configure Paths) and put it there.

I had already the "sqljdbc42.ja" in the additional folder packed.

#AdditionalJar: sqljdbc42.jar

I had that already

If I understood correctly, it would look like this:
DriverClass: com.microsoft.sqlserver.jdbc.SQLServerDriver
And
JdbcUrl: sqlserver://TOSHIBA-PMSMC\SQLEXPRESS:1433

But what ist that for parameters?: "TOSHIBA-PMSMC" is that the ip from my root server? or the name of the root server?

that confuses me:

jdbc:sqlserver://xxxyyy.database.windows.net:1433



[EnriqueGonzalez]

Hi!

TOSHIBA-PMSMC this and this
xxxyyy.database.windows.net:1433

Are the same, the physical location of your database, one is represented as the name of the computer and the other one as the DNS address of an azure site.

Your address could also be:
192.168.1.100
Localhost
Yoursite.com

For these to work you must have your SQL server TCP protocol enabled and always be sure that you are calling the right port. Default port is 1433

The name of the database is the next one with the question mark



[EnriqueGonzalez]

Take this example

POS2GOSRV\POS2GOSQL:1433\defDB?

Pos2gosvr is the physical address, this time is a named computer within your LAN, this is the default protocol for SQL server, if you want to access it via IP you have to enable it

Pos2gosql is the instance name within the computer. Most of the time you have 1 instance only. Some people have 2 one for full fledged SQL server and other one for sqlexpress

DefDb? Is the name of the database if you omit this part the SQL server connection will open like SQL studio where you can see all your databases.



[Alexander Stolte]

i think i have it. I hope so..

JdbcUrl=jdbc:sqlserver://localhost\H2628730\administrator:1433\Test

"localhost" because the jdbc runs on my root server.(the same server as the database)

"H2628730\administrator" is the servername + current user

"1433" the default port, this works

"Test" is the database



[EnriqueGonzalez]

Almost!

User is not declared here.

Use only one of this 2:
H2628730 or localhost ( I always use local host)

What is the name of the instance?? If you have SQL studio is the one that its on the corner below your connect button and above the databases. It may be SQL2014 or SQLexpress



[Alexander Stolte]

"administrator" is the current user by windows not on the database.

so? or delete administrator?

JdbcUrl=jdbc:sqlserver://localhost\administrator:1433\Test



[EnriqueGonzalez]

It's the first one not the second.

JdbcUrl=jdbc:sqlserver://localhost\SQLEXPRESS:1433\Test

you may encounter a whole different issue regarding the user. The driver you downloaded will not accept windows users. You should create a user of SQL server



[EnriqueGonzalez]

SQL server based login:

https://serverfault.com/questions/338/adding-an-administrator-user-to-sql-server-2008



[Alexander Stolte]

thats now my config file:

#DATABASE CONFIGURATION
DriverClass=com.microsoft.sqlserver.jdbc.SQLServerDriver
#JdbcUrl=jdbc:mysql://localhost/test?characterEncoding=utf8
JdbcUrl=jdbc:sqlserver://localhost\SQLEXPRESS:1433\Test

User=sa

Is there a command to test the whole?



[EnriqueGonzalez]

Well if it connects you are on the other side.

Have you ran your jrdc server with this configuration?

Seems that everything is okey.



[Alexander Stolte]

i think i have a issue in my b4a code or so, because he said me that:

reqManager.Initialize(Me, "http://serverip/rdc")

he cant found "/rdc"

but it comes from b4a, wrong threat here.

** Service (httputils2service) Start **
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head>

<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1"/>

<title>404 - File or directory not found.</title>

<style type="text/css">

<!--

body{margin:0;font-size:.7em;font-family:Verdana, Arial, Helvetica, sans-serif;background:#EEEEEE;}

fieldset{padding:0 15px 10px 15px;}

h1{font-size:2.4em;margin:0;color:#FFF;}

h2{font-size:1.7em;margin:0;color:#CC0000;}

h3{font-size:1.2em;margin:10px 0 0 0;color:#000000;}

#header{width:96%;margin:0 0 0 0;padding:6px 2% 6px 2%;font-family:"trebuchet MS", Verdana, sans-serif;color:#FFF;

background-color:#555555;}

#content{margin:0 0 0 2%;position:relative;}

.content-container{background:#FFF;width:96%;margin-top:8px;padding:10px;position:relative;}

-->

</style>

</head>

<body>

<div id="header"><h1>Server Error</h1></div>


<div id="content">

 <div class="content-container"><fieldset>

  <h2>404 - File or directory not found.</h2>

  <h3>The resource you are looking for might have been removed, had its name changed, or is temporarily unavailable.</h3>

 </fieldset></div>

</div>

</body>

</html>

Error: Not Found

But perhaps it is familiar to you.



[EnriqueGonzalez]

reqManager.Initialize(Me, "http://serverip/rdc")

This one must have the IP of the server hosting the jrdc server in this case localhost is not an option, look in your windows network settings or you may also want to try your computer name.



[Alexander Stolte]

yes, but I just did not post the ip address i take the ip from the root server this was right, but the same error.

ps. and hopefully the coffee tastes



[EnriqueGonzalez]

Thank you! It will be quite a lot of coffees with cream!

When you run your JRDC B4J project, does it give you any error? on connection and on a request?



[EnriqueGonzalez]

If you want to know if your server is up and running with the connection to your database working.

i believe that you are lacking the port that is configured in your config too.

open a browser and put this url

'in your config files
#Java server port
ServerPort=17178

'in your browser
http://myIpServer:17178/test

It should give you confirmation.



[Alexander Stolte]

not in germany

so i install b4j now on the server and the logs said:

Waiting for debugger to connect...
Program started.
2017-05-05 18:34:24.367:INFO::main: Logging initialized @695ms
Mai 05, 2017 6:34:24 PM com.mchange.v2.log.MLog
INFORMATION: MLog clients using java 1.4+ standard logging.
Mai 05, 2017 6:34:24 PM com.mchange.v2.c3p0.C3P0Registry
INFORMATION: Initializing c3p0-0.9.5.2 [built 08-December-2015 22:06:04 -0800; debug? true; trace: 10]
2017-05-05 18:34:25.138:INFO:oejs.Server:main: jetty-9.3.z-SNAPSHOT
2017-05-05 18:34:25.200:INFO:oejsh.ContextHandler:main: Started o.e.j.s.ServletContextHandler@335eadca{/,file:///C:/Users/Administrator/Desktop/jRDC/Objects/www,AVAILABLE}
2017-05-05 18:34:25.203:INFO:oejs.AbstractNCSARequestLog:main: Opened C:\Users\Administrator\Desktop\jRDC\Objects\logs\b4j-2017_05_05.request.log
2017-05-05 18:34:25.856:INFO:oejs.ServerConnector:main: Started ServerConnector@6ee52dcd{HTTP/1.1,[http/1.1]}{0.0.0.0:17178}
2017-05-05 18:34:25.856:INFO:oejs.Server:main: Started @2189ms
Emulated network latency: 100ms
jRDC is running (version = 2.1)
