B4J Code Snippet Just playing around with "Laser Text"

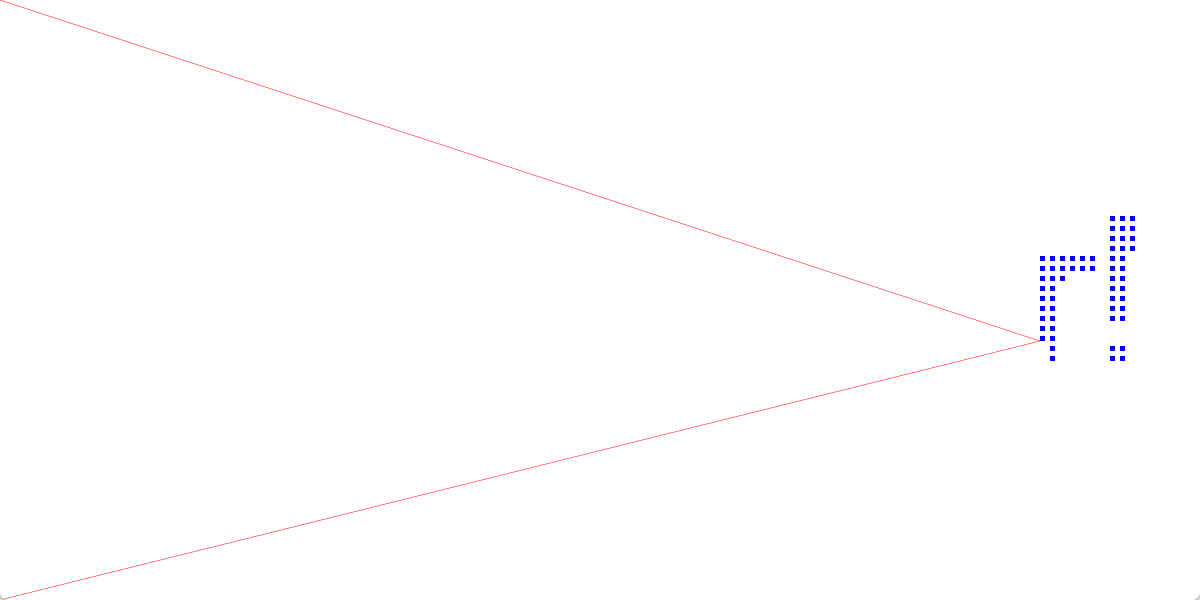

Here is a short piece of code to "burn" a text onto a canvas. I saw something similar many years ago on a sinclair spektrum (yes I am that old!) and wanted to try it. Nothing very complicated about it. If you like it then good, if not then also good. Some games programmer will probably do better. ?

Needs libraries: ByteConverter, JavaObject, jBitmapCreator, jCore, jFX and jXUI.

#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
#End Region

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI

    Private cvs As B4XCanvas
    Dim RPane As B4XView
    Dim  cvsRect, bbRect As B4XRect
    Private rct As B4XRect
    Private BC As BitmapCreator
    Private MyFont As Font
    Private refX, refY As Double            'Position of hidden text
    Private MyText As String="B4X forever!"
    Dim Debug As Boolean=False
    Dim scale As Int=10                        'Scale up factor
    Dim Offset As Int=scale/2                '
    Dim LaserTextColor As Int = xui.Color_Blue
    Dim LaserColor As Int=xui.Color_Red
End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MaximizeStage(MainForm)        'maximise window
    MainForm.Show
    RPane = MainForm.RootPane
    cvs.Initialize(RPane)

    'Remeber 0,0 is top left on canvas

    MyFont=fx.CreateFont("Arial",20,False,False)    'Arial Bold
    refX=100    'here we hide the text
    refY=20

    'Text color #FFFFFFFE= -2
    'Log(HexToColor("#FFFFFFFE"))
    cvs.DrawText(MyText,refX,refY,MyFont,-2,"CENTER")


    MeasureText(MyText,MyFont)
    DrawBoundingBox                'Get coordinates of boundary box of text

    BC.Initialize(RPane.Width, RPane.Height)
    BC.CopyPixelsFromBitmap(RPane.Snapshot)

    Dim c,x,y As Int

    For i=bbRect.Right To bbRect.Left Step -1        'work backwards so we do not get in the laser path
        For j=bbRect.Top To bbRect.Bottom
            c=BC.GetColor(i,j)

            If c<>0 Then        'If its not white, then its text

                'Calculate new position based on scale
                x=((RPane.Width-(bbRect.Width*scale))/2) + ((i-bbRect.Left)*scale)
                y=((RPane.Height-(bbRect.Height*scale))/2) + ((j-bbRect.Top)*scale)

                cvsRect.Left=x
                cvsRect.Top=y-Offset
                cvsRect.Right=x+Offset
                cvsRect.Bottom=y
                'Draw laser
                cvs.DrawLine(0,RPane.Height,x,y,LaserColor,0.5)
                cvs.DrawLine(0,0,x,y,LaserColor,0.5)
                'burn text
                cvs.DrawRect(cvsRect, LaserTextColor,True,0.5)            'rectangle
                'cvs.DrawCircle(x,y,scale/2,LaserTextColor,True,1)        'circle
                Sleep(25)
                'Remove laser
                cvs.DrawLine(0,RPane.Height,x,y,xui.Color_White,2)
                cvs.DrawLine(0,0,x,y,xui.Color_White,2)
            End If

        Next
    Next

End Sub

Sub MeasureText(Text As String, Font1 As B4XFont)

    rct=cvs.MeasureText(Text,Font1)    'Values returned are relative to the middle point of the text

'    Log("Text properties")
'    Log("Height: " & rct.Height)
'    Log("Width: " & rct.Width)
'    Log("Top: " & rct.Top)
'    Log("Bottom: " & rct.Bottom)
'    Log("Left: " & rct.Left)
'    Log("Right: " & rct.Right)
'    Log("refX: " & refX)
'    Log("refY: " & refY)
End Sub

Sub DrawBoundingBox
    'Draw a bounding box
    bbRect.Left=refX-(rct.Width/2)
    bbRect.Top=rct.Top+refY
    bbRect.Right=refX+(rct.Width/2)
    bbRect.Bottom=rct.Bottom+refY
'    cvs.DrawRect(bbRect, xui.Color_Red,False,0.5)

If Debug Then
    Log(" ")
    Log("Bounding box:")
    Log("Left: " & bbRect.Left)
    Log("Top: " & bbRect.Top)
    Log("Right: " & bbRect.Right)
    Log("Bottom: " & bbRect.Bottom)
    Log("Height: " & bbRect.Height)
    Log("Width: " & bbRect.Width)
    Log(" ")
End If
End Sub


'set your screen to maximize mode
Sub MaximizeStage(frm As Form)
    Dim jmf As JavaObject = frm
    Dim stage As JavaObject = jmf.GetField("stage")
    stage.RunMethod("setMaximized", Array As Object(True))
End Sub

Private Sub HexToColor(Hex As String) As Int
    Dim BCon As ByteConverter
    If Hex.StartsWith("#") Then
        Hex = Hex.SubString(1)
    Else If Hex.StartsWith("0x") Then
        Hex = Hex.SubString(2)
    End If
    Dim ints() As Int = BCon.IntsFromBytes(BCon.HexToBytes(Hex))
    Return ints(0)
End Sub
