B4R Code Snippet LED lighting PWM control

Power can be controlled by the PWM (pulse width modulation).

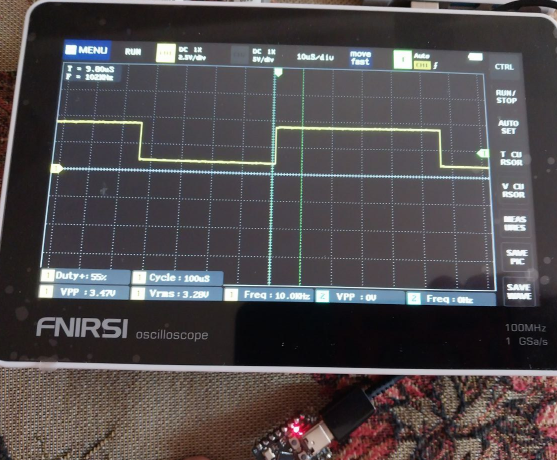

The positive pulse width (duty) on this photo is 55% of 100% full frequency (10 kHz) period. So, 55% of power now is going to the controlled equipment. 0% means the power is off.
We can try to control the microcontroller's LED: slowly increase the power by PWM and reduce it back to zero.

For ESP32-C3 MCU performance i have chosen 8 KHz frequency and 12-bit resolution of the PWM-signal: the control accuracy depends on MCU's speed, high bit-resolution and high frequency need a speedy MCU.
The other side a low frequency can be heard by ear from the controlled equipment, so better higher than lower.

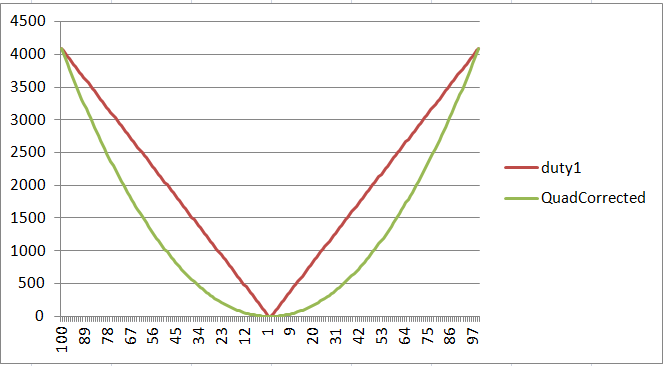

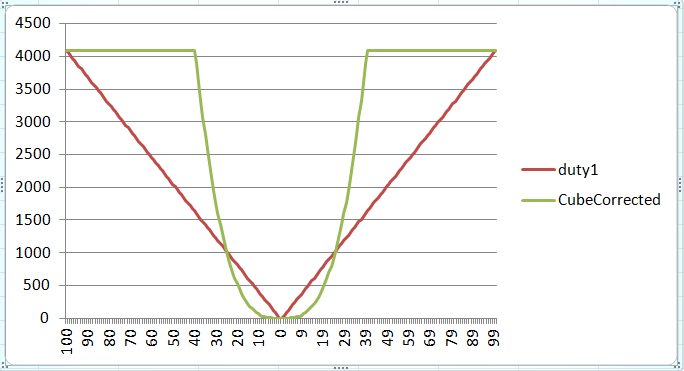

LED lighting looks for human eye non-linear, so for better smoothing view the gamma correction of the control values is required (3 versions are tried, logarithmic (classic for CRT monitor), quadratic and cubic).

'module name: esp_pwm

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.
    Private const PWM_channel As Byte = 0
    Private const PWM_frequency As ULong = 8000        'chosen for ESP32-C3 MCU performance
    Private const PWM_resolution_bits As Byte = 12    'chosen for ESP32-C3 MCU performance
End Sub

Sub InitPWM(pulledHIGH As Boolean)
    others.ESP.PWM_AttachPin(Main.PinPWMGPIO, PWM_channel, PWM_frequency, PWM_resolution_bits)    'init PWM
    SweepPWM(Main.PinPWMGPIO, pulledHIGH)
End Sub

'Slow PWM power control from zero to the full power, and back
Sub SweepPWM(pin_gpio As Byte, pulledHIGH As Boolean)
    If pulledHIGH Then
        Sweep_DOWN(pin_gpio, PWM_resolution_bits)
        Sweep_UP(pin_gpio, PWM_resolution_bits)
    Else
        Sweep_UP(pin_gpio, PWM_resolution_bits)
        Sweep_DOWN(pin_gpio, PWM_resolution_bits)
    End If
End Sub

'changing the power to one direction: 0% ... 100%
Sub Sweep_UP(pin_gpio As Byte, resolution_bits As Byte)
    Log("SweepUP is started")
    For percent = 0 To 100
        Dim duty1 As ULong = others.ESP.PWM_CalculateDuty(percent, resolution_bits)
        'Dim duty2 As ULong = PWM_GammaCorrected(duty1, resolution_bits, 3.0)
        Dim duty2 As ULong = PWM_QuadraticGammaCorrected(duty1, resolution_bits)
        'Dim duty2 As ULong = PWM_CubeGammaCorrected(duty1, resolution_bits)
        Log(percent, "_", duty1, "_", duty2)
        others.ESP.PWM_StartPin(pin_gpio, duty2)
        Delay(30)
    Next
    Log("SweepUP is finished")
End Sub

'changing the power to back direction: 100% ... 0%
Sub Sweep_DOWN(pin_gpio As Byte, resolution_bits As Byte)
    Log("SweepDOWN is started")
    For percent = 100 To 0 Step -1
        Dim duty1 As ULong = others.ESP.PWM_CalculateDuty(percent, resolution_bits)
        'Dim duty2 As ULong = PWM_GammaCorrected(duty1, resolution_bits, 3.0)
        Dim duty2 As ULong = PWM_QuadraticGammaCorrected(duty1, resolution_bits)
        'Dim duty2 As ULong = PWM_CubeGammaCorrected(duty1, resolution_bits)
        Log(percent, "_", duty1, "_", duty2)
        others.ESP.PWM_StartPin(pin_gpio, duty2)
        Delay(30)
    Next
    Log("SweepDOWN is finished")
End Sub


'Universal linear gamma correction function for 8-20 bits PWM
'Parameters:
' gamma - gamma correction factor (usually 2.2-2.8)
'linear_duty - initial target PWM duty percent (linear) to be corrected for human eye; resolution_bits - bit resolution of the PWM
Sub PWM_GammaCorrected(linear_duty As Float, resolution_bits As Byte, gamma As Float) As ULong
    If (resolution_bits < 8 Or resolution_bits > 20) Then Return 0  'Checking the acceptable range

    Dim maxValue As ULong = Bit.ShiftLeft(1, resolution_bits) - 1  'The maximum value for a given bit rate
    Dim normalized As Double = linear_duty / maxValue  'Normalizing to 0...1 range

    'Gamma correction with a threshold for very low values (simulated CRT)
    Dim corrected As Double
    If (normalized < 0.01) Then  'Setup the threshold
        corrected = 0.0
    Else
        corrected = Power(normalized, gamma)
    End If

    Return (corrected * maxValue + 0.5)  'Return to the original range with rounding
End Sub

'Quadratic
'linear_duty - initial target PWM duty (linear) to be corrected for human eye; resolution_bits - bit resolution of the PWM
Sub PWM_QuadraticGammaCorrected(linear_duty As ULong, resolution_bits As Byte) As ULong
    If (resolution_bits < 8 Or resolution_bits > 20) Then Return 0    ''Checking the acceptable range
    Dim maxValue As ULong = Bit.ShiftLeft(1, resolution_bits) - 1  'The maximum value for a given bit rate
    If (linear_duty >= maxValue) Then Return maxValue

    Dim result As ULong = (linear_duty + 1) * linear_duty
    result = BitShiftRight_ULong(result, resolution_bits)

    Return result
End Sub

'linear_duty - initial target PWM duty (linear) to be corrected for human eye; resolution_bits - bit resolution of the PWM
Sub PWM_CubeGammaCorrected(linear_duty As Float, resolution_bits As Byte) As ULong
    If (resolution_bits < 8 Or resolution_bits > 20) Then Return 0
    Dim shift_amount As Byte = 2 * resolution_bits - 4    'normalized bit range
    Dim cube As ULong = (linear_duty + 1) * (linear_duty + 1) * linear_duty    'integer-valued cube curve instead of linear
    'Log("cube = ", cube)
    Dim result As ULong = BitShiftRight_ULong(cube, shift_amount)    'integer-valued normalizing
    Return result
End Sub

'Bitwise shift right the Value to Shift bits
Sub BitShiftRight_ULong(Value As ULong, Shift As Byte) As ULong
    If Shift >= 32 Then Return 0
    If Shift = 0 Then Return Value

    ' Split into two 16-bit parts
    Dim lowWord As UInt = Bit.And(Value, 0xFFFF)
    Dim highWord As UInt = (Value - lowWord) / 65536

    If Shift < 16 Then
        ' Calculate carry bits from high to low
        Dim carryMask As UInt = Bit.ShiftLeft(1, Shift) - 1
        Dim carryBits As UInt = Bit.And(highWord, carryMask)
        carryBits = Bit.ShiftLeft(carryBits, 16 - Shift)

        ' Shift both parts
        Dim newHigh As UInt = Bit.ShiftRight(highWord, Shift)
        Dim newLow As UInt = Bit.Or(Bit.ShiftRight(lowWord, Shift), carryBits)

        ' Combine back
        Return (newHigh * 65536) + newLow
    Else
        ' Only shift high word
        Return Bit.ShiftRight(highWord, Shift - 16)
    End If
End Sub

It's used by just call:

esp_pwm.InitPWM(True)  'boolean parameter depends on how your LED is connected, controlling by the HIGH or LOW digital level.

pin_gpio of the MCU must be chosen only if it's able to make PWM, check the MCU datasheet.
PWM control functions are released in the lib: https://www.b4x.com/android/forum/threads/esp32extras-library.106766/post-1027832
