B4A Library [Lib] ScrollView2D

Hello,

Does it need a long explanation ? You can scroll in the two directions.

This lib does not work with Android versions < 2.

v1.01:
I fixed a big bug in the original code.
I added the function SmoothScrollTo.

v1.02:
I restarted from a fresh basis because of the many bugs in the original code. I fixed most of them (now, multitouch events and hardware keys are correctly handled) but a few are left and need more work (sometimes the wrong object get the focus and resizing is not perfectly handled). I noticed by the way that the stock scrollview is bugged and does not set the focus correctly if you move your finger very slowly.
Thanks to Erel, I solved the problem with the B4A documentation.
I added a new function: FullScroll.

v1.03:
I fixed all known bugs (including bugs found in ScrollView & HorizontalScrollView);
I added the scrollbars;
I added three new functions:
- ScrollbarsVisibility
- FadingEdges
- GiveFocusToFirstVisible.

v1.1:
I fixed a problem with events that were not fired if declared in a class;
I added two functions: ScrollingIsFinished and DisableTouchEventInterception.

v1.2:
SV2D appears now as a custom view in the designer with all its properties.

v1.3:
I fixed a bug (SV_2 = SV_1 did not work because the inner panel was declared in the wrong class).

Enjoy,
Fred



[fabioferreiracs]

is possible map touch event in scrollview2d ? i use a bitmap in scrollview2d background and I need to know what position was touched (x and y)



[pigman]

Will Scrollview2d ever be available in Visual Designer?



[Informatix]

Will Scrollview2d ever be available in Visual Designer?

Good idea. It should be quick to do.



[keirS]

I cat get this library to work in Marshmallow 6.01 using your example code when I scroll I get.

java.lang.NullPointerException: Attempt to invoke virtual method 'void android.graphics.drawable.Drawable.setAlpha(int)' on a null object reference
    at flm.b4a.scrollview2d.EdgeEffect.draw(EdgeEffect.java:320)
    at flm.b4a.scrollview2d.TwoDScrollView.draw(TwoDScrollView.java:1997)
    at android.view.View.draw(View.java:16096)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16187)
    at com.android.internal.policy.PhoneWindow$DecorView.draw(PhoneWindow.java:2690)
    at android.view.ViewRootImpl.drawSoftware(ViewRootImpl.java:2728)
    at android.view.ViewRootImpl.draw(ViewRootImpl.java:2642)
    at android.view.ViewRootImpl.performDraw(ViewRootImpl.java:2434)
    at android.view.ViewRootImpl.performTraversals(ViewRootImpl.java:2067)
    at android.view.ViewRootImpl.doTraversal(ViewRootImpl.java:1107)
    at android.view.ViewRootImpl$TraversalRunnable.run(ViewRootImpl.java:6013)
    at android.view.Choreographer$CallbackRecord.run(Choreographer.java:858)
    at android.view.Choreographer.doCallbacks(Choreographer.java:670)
    at android.view.Choreographer.doFrame(Choreographer.java:606)
    at android.view.Choreographer$FrameDisplayEventReceiver.run(Choreographer.java:844)
    at android.os.Handler.handleCallback(Handler.java:739)
    at android.os.Handler.dispatchMessage(Handler.java:95)
    at android.os.Looper.loop(Looper.java:148)
    at android.app.ActivityThread.main(ActivityThread.java:5417)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:726)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:616)

I tried disabling edge effects but it still crashes.



[Informatix]

I cat get this library to work in Marshmallow 6.01 using your example code when I scroll I get.

java.lang.NullPointerException: Attempt to invoke virtual method 'void android.graphics.drawable.Drawable.setAlpha(int)' on a null object reference
    at flm.b4a.scrollview2d.EdgeEffect.draw(EdgeEffect.java:320)
    at flm.b4a.scrollview2d.TwoDScrollView.draw(TwoDScrollView.java:1997)
    at android.view.View.draw(View.java:16096)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16094)
    at android.view.ViewGroup.drawChild(ViewGroup.java:3609)
    at android.view.ViewGroup.dispatchDraw(ViewGroup.java:3399)
    at android.view.View.draw(View.java:16187)
    at com.android.internal.policy.PhoneWindow$DecorView.draw(PhoneWindow.java:2690)
    at android.view.ViewRootImpl.drawSoftware(ViewRootImpl.java:2728)
    at android.view.ViewRootImpl.draw(ViewRootImpl.java:2642)
    at android.view.ViewRootImpl.performDraw(ViewRootImpl.java:2434)
    at android.view.ViewRootImpl.performTraversals(ViewRootImpl.java:2067)
    at android.view.ViewRootImpl.doTraversal(ViewRootImpl.java:1107)
    at android.view.ViewRootImpl$TraversalRunnable.run(ViewRootImpl.java:6013)
    at android.view.Choreographer$CallbackRecord.run(Choreographer.java:858)
    at android.view.Choreographer.doCallbacks(Choreographer.java:670)
    at android.view.Choreographer.doFrame(Choreographer.java:606)
    at android.view.Choreographer$FrameDisplayEventReceiver.run(Choreographer.java:844)
    at android.os.Handler.handleCallback(Handler.java:739)
    at android.os.Handler.dispatchMessage(Handler.java:95)
    at android.os.Looper.loop(Looper.java:148)
    at android.app.ActivityThread.main(ActivityThread.java:5417)
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:726)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:616)

I tried disabling edge effects but it still crashes.

Please download the latest version from this forum and try again.



[keirS]

Thanks that worked.



[jimmykuss]

Hello,

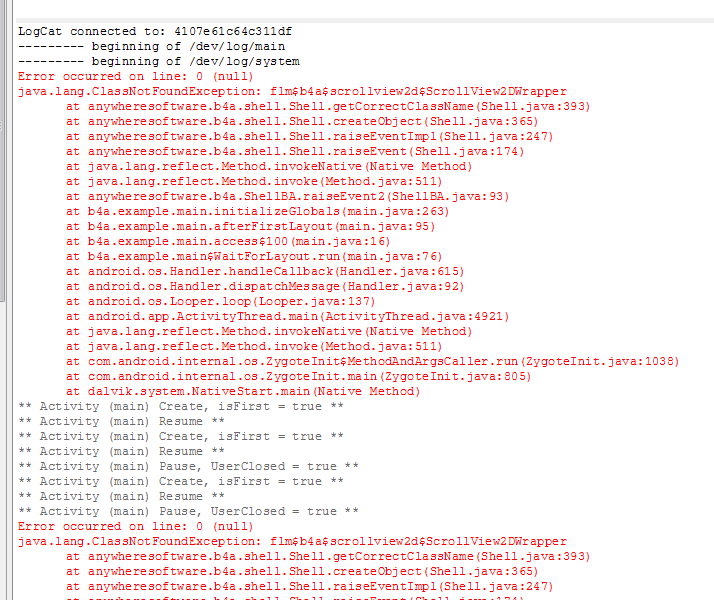

i use b4a V3.20 and can not run the demo (see picture). I got some errors(log) and have no idee.
Can you help me?
Thanks
JK



[Informatix]

Hello,

i use b4a V3.20 and can not run the demo (see picture). I got some errors(log) and have no idee.
Can you help me?
Thanks
JK

Absolutely no idea. Please see that with Erel.



[jimmykuss]

OK...

Erel: HELP !!!



[Erel]

I highly recommend you to update to a newer version. V3.20 is very old now.

If this library was compiled with Java 7 then it will not work with that version.



[vbmundo]

Hi,

I quit the old Table.Bas from my Proyect and add this new Table2.0

But when compile I have error at this line

Private cTextSize As Float
Type RowCol (Row As Int, Col As Int)
Private cAlignment As Int

"An item with the same key is added."

What's wrong ?

Regards



[klaus]

Please post this problem in the Flexible Table thread, this has nothing to do with the ScrollView2D library.



[klaus]

I have a problem with the GetType function for ScrollView2D.Panel in version 1.2 of the library.
I get this error
Error occurred on line: 44 (Main)
java.lang.NullPointerException: Attempt to invoke virtual method 'java.lang.Object anywheresoftware.b4a.objects.PanelWrapper.getObject()' on a null object reference
at b4a.example.main._activity_create(main.java:431 ...
in this line: Log(GetType(sc2.Panel)) ' error in this line

The code:

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("Main")

    Log(GetType(scvTest))
    Log(GetType(scvTest.Panel))
    InitScrollView2D
    Log(GetType(sc2Test))
    Log(GetType(sc2Test.Panel)) 'this works

    For i = 0 To Activity.NumberOfViews - 1
        Private v1 As View
        v1 = Activity.GetView(i)
        Log(GetType(v1))
        If GetType(v1) = "anywheresoftware.b4a.objects.ScrollViewWrapper$MyScrollView" Then
            Private scv As ScrollView
            scv = v1
            Log(GetType(scv.Panel))
        Else If GetType(v1) = "flm.b4a.scrollview2d.ScrollView2DWrapper$MyScrollView" Then
            Private sc2 As ScrollView2D
            sc2 = v1
            Log(GetType(sc2.Panel)) ' error in this line
        End If
    Next
End Sub

Attached a small test program.

The code above works with version 1.1 of the library.



[Informatix]

I have a problem with the GetType function for ScrollView2D.Panel in version 1.2 of the library.
I get this error
Error occurred on line: 44 (Main)
java.lang.NullPointerException: Attempt to invoke virtual method 'java.lang.Object anywheresoftware.b4a.objects.PanelWrapper.getObject()' on a null object reference
at b4a.example.main._activity_create(main.java:431 ...
in this line: Log(GetType(sc2.Panel)) ' error in this line

The code:

Sub Activity_Create(FirstTime As Boolean)
    Activity.LoadLayout("Main")

    Log(GetType(scvTest))
    Log(GetType(scvTest.Panel))
    InitScrollView2D
    Log(GetType(sc2Test))
    Log(GetType(sc2Test.Panel)) 'this works

    For i = 0 To Activity.NumberOfViews - 1
        Private v1 As View
        v1 = Activity.GetView(i)
        Log(GetType(v1))
        If GetType(v1) = "anywheresoftware.b4a.objects.ScrollViewWrapper$MyScrollView" Then
            Private scv As ScrollView
            scv = v1
            Log(GetType(scv.Panel))
        Else If GetType(v1) = "flm.b4a.scrollview2d.ScrollView2DWrapper$MyScrollView" Then
            Private sc2 As ScrollView2D
            sc2 = v1
            Log(GetType(sc2.Panel)) ' error in this line
        End If
    Next
End Sub

Attached a small test program.

The code above works with version 1.1 of the library.

Yes, this is normal. The Panel is not created until the SV2D is initialized.



[klaus]

In the code, SV2D is initialized in InitScrollView2D.
Why does Log(GetType(sc2Test.Panel)) work ?



[Informatix]

In the code, SV2D is initialized in InitScrollView2D.
Why does Log(GetType(sc2Test.Panel)) work ?

Ok I see the issue. I will try to fix it this week-end. Thanks for the report.



[klaus]

Don't worry no hurry.



[Informatix]

In the code, SV2D is initialized in InitScrollView2D.
Why does Log(GetType(sc2Test.Panel)) work ?

Fixed. See post #1.



[klaus]

Salut Fred,
Merci pour le mise à jour rapide !

Hi Fred,
Thank's for the quick fix !



[peacemaker]

Informatix, pls, see https://www.b4x.com/android/forum/t...-class-tree-and-node.19082/page-4#post-448121
Maybe this trouble is in ScrollView2D lib ?
