B4R Question memory occupation of the Bluetooth library

Gerardo Tenreiro · Nov 1, 2021

Hello
I am testing the rESP32Bluettoh version 1.0 library that I downloaded from the forum and I observe that just initializing it consumes 71% of the memory of the ESP32 "uPesy ESP32 Wroom DevKit" that I have for testing
It is normal?
Can someone verify if the occupancy of this code is 71%
Thank you

Utilizando archivo previamente compilado: D:\rr\MULTIMETRO_BT\MULTIMETRO_BT\Objects\bin\core\WString.cpp.o
Utilizando archivo previamente compilado: D:\rr\MULTIMETRO_BT\MULTIMETRO_BT\Objects\bin\core\core.a
Linking everything together...
"C:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\tools\\xtensa-esp32-elf-gcc\\gcc8_4_0-esp-2021r1/bin/xtensa-esp32-elf-g++" "-Wl,--Map=D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.map" "-LC:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.0/tools/sdk/esp32/lib" "-LC:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.0/tools/sdk/esp32/ld" -T esp32.rom.redefined.ld -T memory.ld -T sections.ld -T esp32.rom.ld -T esp32.rom.api.ld -T esp32.rom.libgcc.ld -T esp32.rom.newlib-data.ld -T esp32.rom.syscalls.ld -T esp32.peripherals.ld -mlongcalls -Wno-frame-address -Wl,--cref -Wl,--gc-sections -fno-rtti -fno-lto -u _Z5setupv -u _Z4loopv -Wl,--wrap=mbedtls_mpi_exp_mod -u esp_app_desc -u pthread_include_pthread_impl -u pthread_include_pthread_cond_impl -u pthread_include_pthread_local_storage_impl -u ld_include_panic_highint_hdl -u start_app -u start_app_other_cores -u __ubsan_include -Wl,--wrap=longjmp -u __assert_func -u vfs_include_syscalls_impl -Wl,--undefined=uxTopUsedPriority -u app_main -u newlib_include_heap_impl -u newlib_include_syscalls_impl -u newlib_include_pthread_impl -u __cxa_guard_dummy -DESP32 -DCORE_DEBUG_LEVEL=0 -DARDUINO_USB_CDC_ON_BOOT=0 -Wl,--start-group "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\AsyncStreams.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\B4RArduino.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\B4RCore.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\B4RSerializator.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\B4RStream.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\ByteConverter.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\RandomAccessFile.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\Scheduler.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\b4r_bluetooth_m.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\b4r_main.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\rESP32Bluetooth.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\rESP8266FileSystem.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\sketch\\src.ino.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\BluetoothSerial\\BTAddress.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\BluetoothSerial\\BTAdvertisedDeviceSet.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\BluetoothSerial\\BTScanResultsSet.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\BluetoothSerial\\BluetoothSerial.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\FS\\FS.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\FS\\vfs_api.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\libraries\\SPIFFS\\SPIFFS.cpp.o" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin\\core\\core.a" -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lasio -lbt -lcbor -lunity -lcmock -lcoap -lconsole -lnghttp -lesp-tls -lesp_adc_cal -lesp_hid -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lesp_lcd -lprotobuf-c -lprotocomm -lmdns -lesp_local_ctrl -lsdmmc -lesp_serial_slave_link -lesp_websocket_client -lexpat -lwear_levelling -lfatfs -lfreemodbus -ljsmn -ljson -llibsodium -lmqtt -lopenssl -lperfmon -lspiffs -lulp -lwifi_provisioning -lbutton -ljson_parser -ljson_generator -lesp_schedule -lesp_rainmaker -lqrcode -lws2812_led -lesp-dsp -lesp-face -lesp32-camera -lesp_littlefs -lfb_gfx -lasio -lcbor -lcmock -lunity -lcoap -lesp_hid -lesp_lcd -lesp_local_ctrl -lesp_websocket_client -lexpat -lfreemodbus -ljsmn -llibsodium -lperfmon -lesp_adc_cal -lfatfs -lwear_levelling -lopenssl -lspiffs -lesp_rainmaker -lmqtt -lwifi_provisioning -lprotocomm -lbt -lbtdm_app -lprotobuf-c -lmdns -lconsole -ljson -ljson_parser -ljson_generator -lesp_schedule -lqrcode -lpe -lfd -lfr -ldetection_cat_face -ldetection -ldl -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lnghttp -lesp-tls -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lsdmmc -lesp_serial_slave_link -lulp -lmbedtls -lmbedcrypto -lmbedx509 -lcoexist -lcore -lespnow -lmesh -lnet80211 -lpp -lsmartconfig -lwapi -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lnghttp -lesp-tls -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lsdmmc -lesp_serial_slave_link -lulp -lmbedtls -lmbedcrypto -lmbedx509 -lcoexist -lcore -lespnow -lmesh -lnet80211 -lpp -lsmartconfig -lwapi -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lnghttp -lesp-tls -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lsdmmc -lesp_serial_slave_link -lulp -lmbedtls -lmbedcrypto -lmbedx509 -lcoexist -lcore -lespnow -lmesh -lnet80211 -lpp -lsmartconfig -lwapi -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lnghttp -lesp-tls -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lsdmmc -lesp_serial_slave_link -lulp -lmbedtls -lmbedcrypto -lmbedx509 -lcoexist -lcore -lespnow -lmesh -lnet80211 -lpp -lsmartconfig -lwapi -lesp_ringbuf -lefuse -lesp_ipc -ldriver -lesp_pm -lmbedtls -lapp_update -lbootloader_support -lspi_flash -lnvs_flash -lpthread -lesp_gdbstub -lespcoredump -lesp_phy -lesp_system -lesp_rom -lhal -lvfs -lesp_eth -ltcpip_adapter -lesp_netif -lesp_event -lwpa_supplicant -lesp_wifi -llwip -llog -lheap -lsoc -lesp_hw_support -lxtensa -lesp_common -lesp_timer -lfreertos -lnewlib -lcxx -lapp_trace -lnghttp -lesp-tls -ltcp_transport -lesp_http_client -lesp_http_server -lesp_https_ota -lsdmmc -lesp_serial_slave_link -lulp -lmbedtls -lmbedcrypto -lmbedx509 -lcoexist -lcore -lespnow -lmesh -lnet80211 -lpp -lsmartconfig -lwapi -lphy -lesp_phy -lphy -lesp_phy -lphy -lrtc -lxt_hal -lm -lnewlib -lstdc++ -lpthread -lgcc -lcxx -lapp_trace -lgcov -lapp_trace -lgcov -lc -Wl,--end-group -Wl,-EL -o "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.elf"
"C:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\tools\\esptool_py\\3.1.0/esptool.exe" --chip esp32 elf2image --flash_mode dio --flash_freq 80m --flash_size 4MB -o "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.bin" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.elf"
esptool.py v3.1
Merged 25 ELF sections
"C:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.0/tools/gen_esp32part.exe" -q "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/partitions.csv" "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.partitions.bin"
Usando librerÃa BluetoothSerial con versiÃ³n 2.0.0 en la carpeta: C:\Users\Gerardo\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.0\libraries\BluetoothSerial
Usando librerÃa FS con versiÃ³n 2.0.0 en la carpeta: C:\Users\Gerardo\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.0\libraries\FS
Usando librerÃa SPIFFS con versiÃ³n 2.0.0 en la carpeta: C:\Users\Gerardo\AppData\Local\Arduino15\packages\esp32\hardware\esp32\2.0.0\libraries\SPIFFS
"C:\\Users\\Gerardo\\AppData\\Local\\Arduino15\\packages\\esp32\\tools\\xtensa-esp32-elf-gcc\\gcc8_4_0-esp-2021r1/bin/xtensa-esp32-elf-size" -A "D:\\rr\\MULTIMETRO_BT\\MULTIMETRO_BT\\Objects\\bin/src.ino.elf"
El Sketch usa 933921 bytes (71%) del espacio de almacenamiento de programa. El mÃ¡ximo es 1310720 bytes.
Las variables Globales usan 23024 bytes (7%) de la memoria dinÃ¡mica, dejando 304656 bytes para las variables locales. El mÃ¡ximo es 327680 bytes.
Subiendo...
esptool.py v3.1
Serial port COM4
Connecting....
Chip is ESP32-D0WDQ6 (revision 1)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
Crystal is 40MHz
MAC: ec:94:cb:4a:4e:f4
Uploading stub...
Running stub...
Stub running...
Changing baud rate to 921600
Changed.

El Sketch usa 933921 bytes (71%) del espacio de almacenamiento de programa. El mÃ¡ximo es 1310720 bytes.

Erel · Nov 2, 2021

It is normal. This is the size of the native Bluetooth SDK.

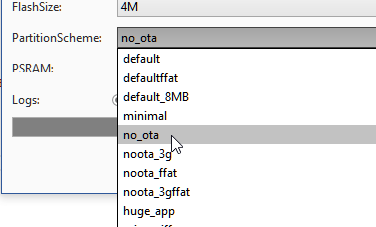

Don't worry about it. If needed you can increase the program storage by choosing a different partition such as this one:

B4X:

Sketch uses 927144 bytes (44%) of program storage space. Maximum is 2097152 bytes.

Gerardo Tenreiro · Nov 2, 2021

Thank you so much. I'll try.
Currently the program without the BLUETOOTH is at 90% occupancy to see with this option if I manage to implement everything necessary
By the way where can I find documentation of memory partitions?
Thank you

Erel · Nov 2, 2021

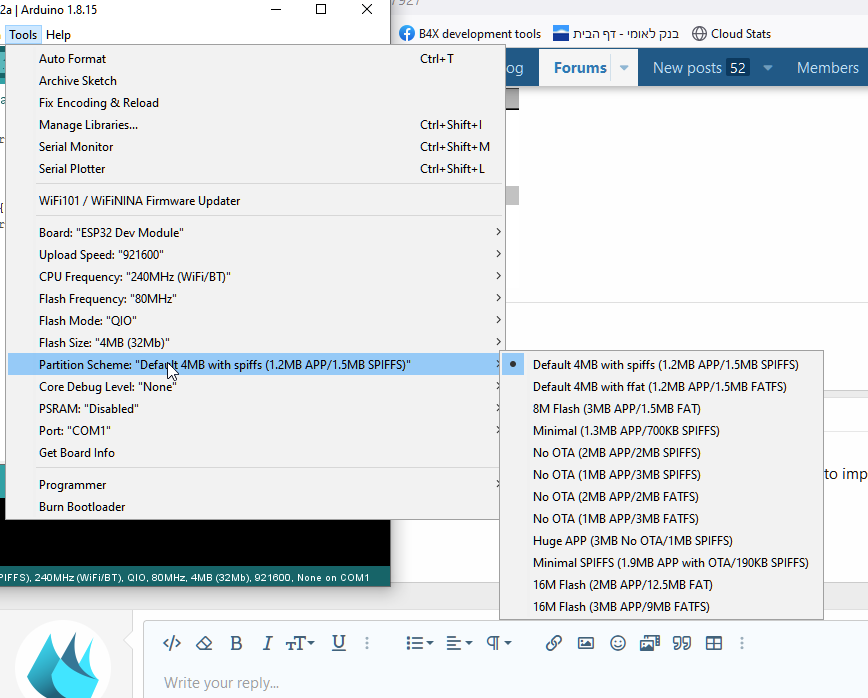

A more informative description is available in Arduino IDE:

The items are listed in the same order.

Gerardo Tenreiro · Nov 2, 2021

Thanks
I have already read the subject and I think I have it under control, for the moment I continue with the BLUETOOTH at times that it did not finish working as it should.
Thank you
