B4A Library MPAndroidCharts - Various type of graphs / charts (Latest library V1.22 in post #1)

Edit 6 Sep 2015: Post #3 adds Single Vertical Bar Charts and update for Pie Charts
Edit 8 Sep 2015 Post #6 update for Single Vertical Bar Charts
Edit 11 Sep 2015 Post #7 adds Single Line Charts
Edit 12 Sep 2015 Post #8 update for Single Line Charts
Edit 12 Sep 2015 Post #9 adds Single Horizontal Bar Charts
Edit 12 Sep 2015 Post #11 adds Radar Charts
Edit 13 Sep 2015 Post #12 update for Single Line and Single Bar Charts
Edit 14 Sep 2015 Post #16 update for Radar Charts
Edit 16 Sep 2015 Post #19 adds Multiple Line Charts
Edit 17 Sep2016 Post #21 adds Multi Vertical Bar Charts
Edit 19 Sep 2015 Post #23 adds Multi Bubble Charts
Edit 19 Sep 2015 Post #24 adds Multi Horizontal Bar Charts
Edit 19 Sep 2015 Post #25 adds Multi Scatter Charts
Edit 19 Sep 2015 Post #26 adds Stacked Bar Charts
Edit 20 Sep 2015 Post #27 adds Candlestick Charts

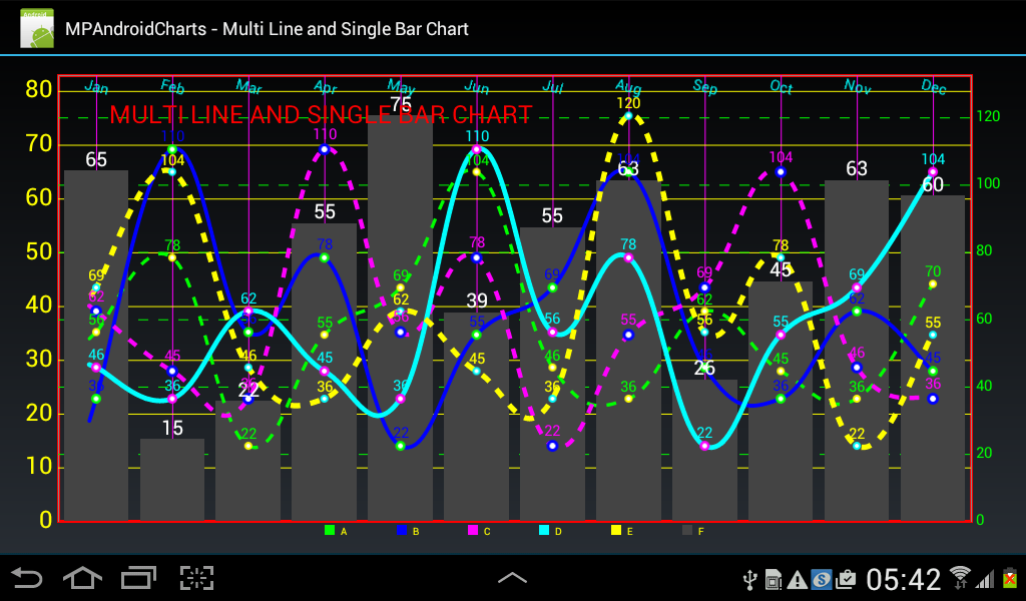

Edit 20 Sep 2015 Post #28 adds Combined Line & Bar Charts
Edit 23 Sep 2015 Post #31 fixed no-show of Chart Title for Combined Charts and added ability to rotate X-axis labels between -30 and + 30 degrees

I am busy wrapping this Github project. Attached is the Pie Chart functionality of the project/library. Posting the B4A project and Library files. Copy the library files to your additional library folder.

Some remarks about the Pie Chart:
1. It will display the values passed as a percentage of the total of the values that you pass
2. There are 3 x arrays that are passed to the library. Ensure that you pass the same number of elements in each of the arrays.
3. When you click on a pie slice the slice will increase in radial size (see pics below)
4. If you click on the radial increased slice it will return to normal size.
5. You can spin the pie chart around its centre point (CW and ACW) with your finger.

Untouched ...





Green slice touched ...



Pie Chart rotated with finger...




Some sample code:

B4X:
#Region  Project Attributes
    #ApplicationLabel: MPChart
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: landscape
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private mpc1 As PieChart
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")

mpc1.DrawHoleEnabled = True
mpc1.HoleColorTransparent = True

mpc1.TransparentCircleColor = Colors.White
mpc1.TransparentCircleAlpha = 110

mpc1.HoleRadius = 58.0
mpc1.TransparentCircleRadius = 61.0

mpc1.DrawCenterText = True

mpc1.CenterText = "Wrapped by Johan"
mpc1.CenterTextColor = Colors.White
mpc1.CenterTextRadiusPercent = 100.0
mpc1.CenterTextSize = 15.0

mpc1.DrawSliceText = True
mpc1.HoleColor = Colors.Black
mpc1.TransparentCircleColor = Colors.Transparent

mpc1.setTheLegendPosition
mpc1.TheLegendColor = Colors.yellow
mpc1.TheLegendTextSize = 12.0
mpc1.LegendTitle = "MONTHS"

mpc1.ChartDescription = "TITLE : Some Arbitrary Data"
mpc1.ChartDescriptionColor = Colors.ARGB(200,0,255,255)
mpc1.ChartDescriptionTextSize = 17

mpc1.ValueTextColor = Colors.Black
mpc1.ValueTextSize = 15.0

mpc1.PieColors = Array As Int(Colors.Blue, Colors.Yellow, Colors.Green, Colors.Red, Colors.Magenta, Colors.Cyan)
mpc1.LegendText = Array As String("Jan", "Feb", "Mar", "Apr", "May", "Jun")
mpc1.ChartData = Array As Float(128.0, 16.0, 46.0, 40.0, 30.0, 40.0)    'values - it will be converted to %

mpc1.PieData = 6

End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub


Attachments

  • b4aMPChart.zip
    7.9 KB · Views: 1,570
  • mpChartLibraryFiles.zip
    221.5 KB · Views: 1,680
  • mpChartLibV1.15.zip
    355.2 KB · Views: 756
  • mpChartLibV1.16.zip
    355.7 KB · Views: 753
  • mpChartLibV1.17.zip
    355.8 KB · Views: 920
  • mpChartLibV1.18.zip
    356.4 KB · Views: 822
  • mpChartLibV1.20.zip
    358.1 KB · Views: 628
  • mpChartLibV1.21.zip
    358 KB · Views: 187
  • mpChartLibV1.22.zip
    359.2 KB · Views: 250
Last edited:

Johan Schoeman

Expert
Licensed User
Longtime User
This library is awesome!!
I was wondering is there any way we can find the points where the line "cuts" the x axis? (the y is relatively easy by calculating the point with x=0)
No, you will have to determine that from the data that you are passing to the library to draw the graph. Perhaps a bit of linear interpolation might do it....:)


Johan Schoeman

Expert
Licensed User
Longtime User
Hi Johan,

another Problem:
I have a multiline chart with two series,
the second series (temperature) has fewer points,
there is not always a temperature was entered.
This now generates an error when:
multiLineChart1.setLineData (2, dat_list.Size)
Is there a solution?
No, the library expects the same number of points for all series to be passed. The combined line chart and bar chart might perhaps be a "cleaner" solution as you won't see the bars with a value of 0.


Paulsche

Well-Known Member
Licensed User
Longtime User
Not at present. I will have to add that to the library. It will at present only draw a combination Bar/Line chart that consists of one of each (i.e a single bar chart with a single line chart). I will amend the code to make provision for 5 of each. But will need a couple of days to do so. Will try and post it before the end of this coming weekend.

a combinated (multi bar charts and line charts) would be nice !


Paulsche

Well-Known Member
Licensed User
Longtime User
I want to embed the chart graphic in a PDF, how do I get a bitmap graphics?


Johan Schoeman

Expert
Licensed User
Longtime User
a combinated (multi bar charts and line charts) would be nice !
The original Github project does not support Multi Line and Multi Bar in the same project. But I think I have found a workaround to do at least 1 x Bar with multiple Lines charts. Still need to do it and will then post it if it works.


Johan Schoeman

Expert
Licensed User
Longtime User
I want to embed the chart graphic in a PDF, how do I get a bitmap graphics?
There are 2 x methods in the original Github project that will save the graphs to bitmaps. I will add them to the wrappers and then post the new library


Johan Schoeman

Expert
Licensed User
Longtime User
I want to embed the chart graphic in a PDF, how do I get a bitmap graphics?
OK - here we go. Posting new library files and B4A project demonstrating the "save"" and bitmap options.

Take note of the following permission that was added to the B4A manifest in the attached B4A project:
AddPermission(android.permission.WRITE_EXTERNAL_STORAGE)

The following options are added:
1. Files will be stored in the Gallery which seems to have the DCIM folder as it's parent folder
mlc1.saveToGallery("mygraph", 50)
2. Files will be stored in the folder that you specify starting from the root folder of your device - see the pop-up help when using this method
mlc1.saveToPath("mygraph","")

3. Return a Bitmap to the B4A project - do with it whatever you require to do with the bitmap in your B4A project

Also note the timer that I have added. It gives the library time to complete drawing the graph(s) before we attempt a "save". Else an error will occur (error = bitmap height and bitmap width needs to be > 0).

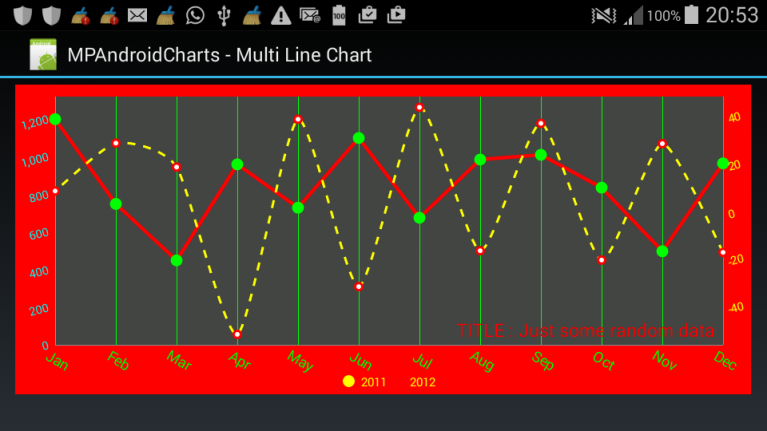

The attached pic is of the bitmap that I have returned from the library to the B4A project. Have added an option to set the background color (i.e color around the outer edge of the graph) when the graph is saved or for the bitmap being returned.




B4X:
#Region  Project Attributes
    #ApplicationLabel: MPMultiLineChartV3
    #VersionCode: 3
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: landscape
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.

    Dim t As Timer

End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private mlc1  As MultiLineChart
    Private Button1 As Button
    Dim flag As Int = 0

    Private ImageView1 As ImageView
End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")


    t.Initialize("t",10000)
    ImageView1.Visible = False


    mlc1.ChartDescription = "TITLE : Just some random data"   'SORTED OUT DISPLAY OF DESCRIPTION IF NO TITLE IS SET - 22 OCT 2015
    mlc1.ChartDescriptionColor = Colors.Red
    mlc1.ChartDescriptionTextSize = 15
    mlc1.GridBackgroundColor = Colors.DarkGray

'    RIGHT_OF_CHART, RIGHT_OF_CHART_CENTER, RIGHT_OF_CHART_INSIDE,
'    LEFT_OF_CHART, LEFT_OF_CHART_CENTER, LEFT_OF_CHART_INSIDE,
'    BELOW_CHART_LEFT, BELOW_CHART_RIGHT, BELOW_CHART_CENTER,

'   CIRCLE, SQUARE, LINE

    mlc1.LegendShapeSize = 10.0
    mlc1.setTheLegendPositionAndForm("BELOW_CHART_CENTER","CIRCLE")
    mlc1.TheLegendColor = Colors.yellow
    mlc1.TheLegendTextSize = 10.0
    mlc1.LegendText = Array As String("2011", "2012", "2013", "2014", "2015")


    mlc1.ValueTextColor = Array As Int(Colors.White, Colors.Red, Colors.White, Colors.Red, Colors.White)
    mlc1.ValueTextSize = Array As Float(12.0, 10.0, 14.0, 8.0, 16.0)

    mlc1.YaxisTextSize = 10.0

'   We are going to draw 5 charts/graphs
    mlc1.Chart_1_Data = Array As Float(10.0, 30.0, 20.0, -50.0, 40.0, -30.0, 45.0, -15.0, 38.3, -18.9, 29.8, -15.7)
    mlc1.Chart_2_Data = Array As Float(1200.0, 750.0, 450.0, 960.0, 730.0, 1100.0, 676.5, 985.6, 1010.8, 836.4, 498.5, 965.3)
    mlc1.Chart_3_Data = Array As Float(-10.0, -30.0, -20.0, 50.0, -40.0, 30.0, -45.0, 15.0, -38.3, 18.9, -29.8, 15.7)
    mlc1.Chart_4_Data = Array As Float(345.0, -380.2, -250.4, 849.7, 445.0, 600.5, -300.0, 50.0, 550.0, 1100.0, 894.2, 993.8)
    mlc1.Chart_5_Data = Array As Float(40.0, 60.0, 50.0, -80.0, 70.0, -60, 75.0, -45.0, 68.3, -48.9, 59.8, -45.7)

    Dim ad() As String = Array As String("RIGHT", "LEFT", "RIGHT", "LEFT", "RIGHT")     'NEW - ADDED Y AXIS DEPENDANCY - 22 OCT 2015
    mlc1.YaxisDependancy = ad                                                           'NEW - ADDED Y AXIS DEPENDANCY - 22 OCT 2015

    mlc1.DrawGraphValues = Array As Boolean(True, True, True, True, True)
    mlc1.MaxVisibleValueCount = 20


'   Maximum 5 colors to be passed ==> must be at least equal to the number of data sets that are passed i.e maximum 5
'   If you pass only for eg 2 data sets then at least 2 colors need to be passed
'   If more that 2 colors are passed with for eg only 2 data sets then only the first 2 colors will be used in the color array
    mlc1.LineColors = Array As Int(Colors.Yellow, Colors.Red, Colors.Blue, Colors.Green, Colors.Cyan)
    mlc1.GraphLineWidth = Array As Float(2.0, 3.0, 4.0, 5.0, 6.0)
    mlc1.DrawFilled = Array As Boolean(False, False, False, False, False)

    mlc1.XaxisTextColor = Colors.Green
    mlc1.XaxisTextSize = 12.0
    mlc1.XaxisLables = Array As String("Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec")
'  TOP, BOTTOM, BOTH_SIDED, TOP_INSIDE, BOTTOM_INSIDE
    mlc1.XaxisLabelPosition = "BOTTOM"
    mlc1.XaxisTextAngle = 30                          'NEW - 'AMENDED CODE TO SET THE ANGLE OF THE X AXIS LABELS BETWEEN -90 and 90 - 22 OCT 2015
    mlc1.VerticalGridColor = Colors.Green             'NEW  - ADDED ABILITY TO SET THIS COLOR - 22 OCT 2015

    mlc1.DrawXaxisGridLines = True

    mlc1.DrawYaxisLeftGridLines = False                'NEW - ADDED 23 OCT 2015
    mlc1.DrawYaxisRightGridLines = False               'NEW - ADDED 23 OCT 2015

'   mlc1.YaxisLeftMinVal = -600                       'AMENDED 22 OCT 2015 TO SET LEFT Y AXIS MIN VAL INDEPENDANTLY - comment it out so that the scale will be set automatically
'    mlc1.YaxisLeftMaxVal = 1600                       'AMENDED 22 OCT 2015 TO SET LEFT Y AXIS MAX VAL INDEPENDANTLY - comment it out so that the scale will be set automatically

'   mlc1.YaxisRightMinVal = -175                      'AMENDED 22 OCT 2015 TO SET RIGHT Y AXIS MIN VAL INDEPENDANTLY - comment it out so that the scale will be set automatically
'    mlc1.YaxisRightMaxVal = 175                       'AMENDED 22 OCT 2015 TO SET RIGHT Y AXIS MAX VAL INDEPENDANTLY - comment it out so that the scale will be set automatically

    mlc1.YaxisTextSize = 10.0

    mlc1.YaxisLeftTextColor = Colors.Cyan              'NEW - ADDED 23 OCT 2015
    mlc1.YaxisRightTextColor = Colors.Yellow          'NEW - ADDED 23 OCT 2015

    mlc1.ShowYaxisRightLabels = True
    mlc1.ShowYaxisLeftLabels = True

    mlc1.DrawLeftGridDashed = False                   'NEW - ADDED 23 OCT 2015
    mlc1.DrawRightGridDashed = True                   'NEW - ADDED 23 OCT 2015

    mlc1.YaxisTextAngle = -15                         'NEW - 'ADDED ABILITY TO SET THE ANGLE OF THE Y AXIS LABELS BETWEEN -90 and 90 - 22 OCT 2015
    mlc1.HorizontalGridColorLeft = Colors.Cyan        'NEW - 'ADDED ABILITY TO SET THIS COLOR - 22 OCT 2015
    mlc1.HorizontalGridColorRight = Colors.Yellow     'NEW - 'ADDED ABILITY TO SET THIS COLOR - 22 OCT 2015

    mlc1.CubicIntensity = Array As Float(0.1, 0.2, 0.3, 0.4, 0.5)
    mlc1.DrawCubicGraph = Array As Boolean(True, False, True, False, True)
    mlc1.DrawDashedLine = Array As Boolean(True, False, True, False, True)
    mlc1.GraphCircleSize = Array As Float(4.0, 5.0, 6.0, 7.0, 8.0)
    mlc1.GraphCircleColor = Array As Int(Colors.Red, Colors.Green, Colors.Magenta, Colors.Black, Colors.Blue)
    mlc1.DrawGraphHollowCircles = Array As Boolean(True, False, True, False, True)
    mlc1.MarkerToUse = 4

    mlc1.XAnimate = False
    mlc1.YAnimate = True
    mlc1.ChartAnimationTime = 2000                     'milliseconds

'   the number of charts to be drawn (maximum 5, in this case 5)
'   the number of x-axis values per chart (in this case 12 = number of elements in the array passed to mlc1.XaxisLables)
    mlc1.setLineData(2,12)
    flag = flag + 1


'    mlc1.saveToGallery("mygraph", 50, mlc1.Width, mlc1.Height)
'     mlc1.saveToPath("mygraph","", mlc1.Width, mlc1.Height)





End Sub

Sub Activity_Resume

    t.Enabled = True

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub t_tick

    mlc1.SavedImageBackgroundColor = Colors.red
    mlc1.saveToGallery("mygraph", 50)
    DoEvents
    mlc1.saveToPath("mygraph","")
    DoEvents

    t.Enabled = False

    DoEvents
    mlc1.Visible = False
    DoEvents

    ImageView1.Left = mlc1.Left
    ImageView1.Top = mlc1.Top
    ImageView1.Height = mlc1.Height
    ImageView1.width = mlc1.width
    ImageView1.Bitmap = mlc1.ChartBitmap
    ImageView1.Visible = True

End Sub


Attachments

  • b4aMPMultiLineChartV3.zip
    30.4 KB · Views: 322
  • mpChartLib.zip
    323 KB · Views: 335

Mahares

Expert
Licensed User
Longtime User
@Johan Schoeman: Please check the below:
This creates a file on the Sd card which works: mlc1.saveToPath("mygraph","")
But this one does not create the file in a folder on the SD card called BLOB mlc1.saveToPath("mygraph","BLOB")
It might also be better if you do not limit the file creation to the SD card, perhaps change the syntax to something more in line with B4A:
mlc1.saveToPath("mygraph",Dir) where Dir can be File.DirRootExternal, File.DirDefaulttExternal, File.DirInternal, File.DirRootExternal & "/BLOB", etc.


Johan Schoeman

Expert
Licensed User
Longtime User
@Johan Schoeman: Please check the below:
This creates a file on the Sd card which works: mlc1.saveToPath("mygraph","")
But this one does not create the file in a folder on the SD card called BLOB mlc1.saveToPath("mygraph","BLOB")
It might also be better if you do not limit the file creation to the SD card, perhaps change the syntax to something more in line with B4A:
mlc1.saveToPath("mygraph",Dir) where Dir can be File.DirRootExternal, File.DirDefaulttExternal, File.DirInternal, File.DirRootExternal & "/BLOB", etc.
Try /BLOB and not just BLOB...


Paulsche

Well-Known Member
Licensed User
Longtime User
ok, works Save as file, but me it would be enough if I would get the graphics as a bitmap. If that does not work, then I'll save the image as a file (preferably in the APP folder) and load them again, would not be so bad.


Johan Schoeman

Expert
Licensed User
Longtime User
ok, works Save as file, but me it would be enough if I would get the graphics as a bitmap. If that does not work, then I'll save the image as a file (preferably in the APP folder) and load them again, would not be so bad.
It already returns a bitmap. That is what I am displaying in ImageView1 of the project in the above post.....? It is not loaded from a file. ImageView1 is displaying the returned bitmap. Follow the code....


Paulsche

Well-Known Member
Licensed User
Longtime User
It already returns a bitmap. That is what I am displaying in ImageView1 of the project in the above post.....? It is not loaded from a file. ImageView1 is displaying the returned bitmap. Follow the code....

super, thank you, I will test it equal.

Edit: Works fine, thank you

Last edited:

Johan Schoeman

Expert
Licensed User
Longtime User
a combinated (multi bar charts and line charts) would be nice !
Here it is. It will draw multiple line charts (I have allowed for 5 line charts) and a single bar chart on the same graph. Posting the new B4A library files and the B4A project demonstrating this. Position of labels, angles of labels, etc, etc are as per previous posted graphs - most notably:
mlc1.setTheLegendPositionAndForm("BELOW_CHART_CENTER","SQUARE") - and its various variants (see previous posts)
mlc1.LineAxisDependency = "RIGHT" - and its various variants (see previous posts)
mlc1.XaxisLabelPosition = "TOP_INSIDE" - and its various variants (see previous posts)
mlc1.BarAxisDependency = "LEFT" - and its various variants (see previous posts)

The "save" and "bitmap return" options have been added to this wrapper too.



Sample Code:

B4X:
#Region  Project Attributes
    #ApplicationLabel: MPMultiLineBarChart
    #VersionCode: 1
    #VersionName:
    'SupportedOrientations possible values: unspecified, landscape or portrait.
    #SupportedOrientations: landscape
    #CanInstallToExternalStorage: False
#End Region

#Region  Activity Attributes
    #FullScreen: False
    #IncludeTitle: True
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'These variables can be accessed from all modules.



End Sub

Sub Globals
    'These global variables will be redeclared each time the activity is created.
    'These variables can only be accessed from this module.

    Private mlc1 As MultiLineBarChart

End Sub

Sub Activity_Create(FirstTime As Boolean)
    'Do not forget to load the layout file created with the visual designer. For example:
    Activity.LoadLayout("main")

'*********************************** GENERAL CHART SETUP STARTS HERE

    mlc1.GridBackgroundColor = Colors.Transparent

    mlc1.DrawBorders = True
    mlc1.BorderColor = Colors.Red
    mlc1.BorderWidth = 3

    mlc1.LegendShapeSize = 10.0
    mlc1.setTheLegendPositionAndForm("BELOW_CHART_CENTER","SQUARE")
    mlc1.TheLegendTextColor = Colors.Yellow
    mlc1.TheLegendTextSize = 10.0
    mlc1.LegendEntrySpace = 50.0

    mlc1.ChartDescription = "MULTI LINE AND SINGLE BAR CHART"
    mlc1.ChartDescriptionTextSize = 30.0
    mlc1.ChartDescriptionColor = Colors.red
    mlc1.setDescriptionPosition(mlc1.Left + (mlc1.Width/2), mlc1.Top + 10%y)

    mlc1.MarkerToUse = 4
    mlc1.DrawMarkerViews = True

    mlc1.PinchZoom = True

'******************************************* LINE CHART SET UP STARTS HERE

    mlc1.NumberOfLineCharts = 5        'change this value from 1 to 5 to draw the 1st, 1st and 2nd, 1st and 2nd and 3rd, etc line charts

    mlc1.LineLegendText = Array As String("A", "B", "C", "D", "E")

    mlc1.LineColor = Array As Int(Colors.Green, Colors.Blue, Colors.Magenta, Colors.Cyan, Colors.Yellow)
    mlc1.LineAxisDependency = "RIGHT"

    mlc1.Line_1_Data = Array As Float(56.2, 78.3, 22.4, 55.4, 69.4, 103.8, 45.7, 36.4, 62.4, 44.6, 36.4, 70.5)
    mlc1.Line_2_Data = Array As Float(36.4, 110.5, 56.2, 78.3, 22.4, 55.4, 69.4, 103.8, 45.7, 36.4, 62.4, 44.6)
    mlc1.Line_3_Data = Array As Float(62.4, 44.6, 36.4, 110.5, 56.2, 78.3, 22.4, 55.4, 69.4, 103.8, 45.7, 36.4)
    mlc1.Line_4_Data = Array As Float(45.7, 36.4, 62.4, 44.6, 36.4, 110.5, 56.2, 78.3, 22.4, 55.4, 69.4, 103.8)
    mlc1.Line_5_Data = Array As Float(69.4, 103.8, 45.7, 36.4, 62.4, 44.6, 36.4, 120.5, 56.2, 78.3, 22.4, 55.4)

    mlc1.DrawLineValues = Array As Boolean(True, True, True, True, True)
    mlc1.LineValueTextColor = Array As Int(Colors.Green, Colors.Blue, Colors.Magenta, Colors.Cyan, Colors.Yellow)
    mlc1.LineValueTextSize = 15.0
    mlc1.CubicIntensity = Array As Float(0.2, 0.2, 0.2, 0.2, 0.2)
    mlc1.DrawCubicGraph = Array As Boolean(True, True, True, True, True)
    mlc1.DrawGraphHollowCircles = Array As Boolean(True, True, True, True, True)
    mlc1.GraphCircleColor = Array As Int(Colors.Yellow, Colors.Green, Colors.Blue, Colors.Magenta, Colors.Cyan)
    mlc1.GraphCircleSize = Array As Float(4.0, 5.0, 6.0, 5.0, 4.0)
    mlc1.GraphLineWidth = Array As Float(3.5, 4.0, 4.5, 5.0, 5.5)
    mlc1.DrawDashedLine = Array As Boolean(True, False, True, False, True)

'******************************************** X, Y LEFT, Y RIGHT AXIS SETUP STARTS HERE
    mlc1.RightYaxisTextColor = Colors.Green
    mlc1.RightYaxisTextSize = 15.0
    mlc1.ShowYaxisRightLabels = True
    mlc1.DrawYaxisRightGridLines = True
    mlc1.DrawRightGridDashed = True

    mlc1.LeftYaxisTextColor = Colors.Yellow
    mlc1.LeftYaxisTextSize = 25.0
    mlc1.ShowYaxisLeftLabels = True
    mlc1.DrawYaxisLeftGridLines = True
    mlc1.DrawLeftGridDashed = False

    mlc1.HorizontalGridColorLeft = Colors.Yellow
    mlc1.HorizontalGridColorRight = Colors.Green

    mlc1.XaxisLables = Array As String("Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep", "Oct", "Nov", "Dec")
    mlc1.XaxisTextColor = Colors.Cyan
    mlc1.XaxisTextSize = 15.0
    mlc1.XaxisTextAngle = 15
    mlc1.XaxisLabelPosition = "TOP_INSIDE"
    mlc1.DrawXaxisGridLines = True
    mlc1.VerticalGridColor = Colors.Magenta

'********************************************** BAR CHART SETUP STARTS HERE

    mlc1.DrawBarChart = True
    mlc1.BarAxisDependency = "LEFT"
    mlc1.Bar_Data = Array As Float(65.2, 15.3, 22.4, 55.4, 75.4, 38.8, 54.7, 63.4, 26.4, 44.6, 63.4, 60.5)
    mlc1.BarColor = Colors.DarkGray
    mlc1.BarLegendText = "F"
    mlc1.BarValueTextSize = 20.0
    mlc1.BarValueTextColor = Colors.White
    mlc1.DrawBarValues = True

'******************************************** SET CHART ANIMATION

    mlc1.XAnimate = False
    mlc1.YAnimate = False
    mlc1.XYAnimate = True
    mlc1.ChartAnimationTime = 1500

'******************************************** DRAW THE CHARTS ONCE ALL SETUP HAVE BEEN COMPLETED

    mlc1.DrawCharts

'******************************************* ADD YOUR CODE FROM HERE ONWARDS TO SAVE THE GRAPH OR TO RETURN THE BITMAP.
'                                            REMEMBER TO ADD A TIME DELAY BEFORE ATTEMPTING TO SAVE OR BEFORE RETURNING
'                                            THE BITMAP IF ANY OF THE 3 POSSIBLE CHART ANIMATIONS HAS BEEN SET TO TRUE (SEE CODE ABOVE)

End Sub

Sub Activity_Resume



End Sub

Sub Activity_Pause (UserClosed As Boolean)



End Sub


Attachments

  • b4aMPMultiLineBarChart.zip
    29.4 KB · Views: 319
  • mpChartLib.zip
    332.8 KB · Views: 321
Last edited:

Paulsche

Well-Known Member
Licensed User
Longtime User
Here it is. It will draw multiple line charts (I have allowed for 5 line charts) and a single bar chart on the same graph. Posting the new B4A library files and the B4A project demonstrating this. Position of labels, angles of labels, etc, etc are as per previous posted graphs - most notably:
mlc1.setTheLegendPositionAndForm("BELOW_CHART_CENTER","SQUARE") - and its various variants (see previous posts)
mlc1.LineAxisDependency = "RIGHT" - and its various variants (see previous posts)
mlc1.XaxisLabelPosition = "TOP_INSIDE" - and its various variants (see previous posts)
mlc1.BarAxisDependency = "LEFT" - and its various variants (see previous posts)

The "save" and "bitmap return" options have been added to this wrapper too.

EDIT: to be updated. Sorry for the inconvenience.
Hi Johan, thank you for the effort


Paulsche

Well-Known Member
Licensed User
Longtime User
it is also possible Multibarchart + single LineChart ?


Johan Schoeman

Expert
Licensed User
Longtime User
it is also possible Multibarchart + single LineChart ?
The original Github project does not support this at present and the work-around for the multi line chart with a single bar chart does not work in the reverse order. Will add it to the library once the Github project supports this option.


Paulsche

Well-Known Member
Licensed User
Longtime User
The original Github project does not support this at present and the work-around for the multi line chart with a single bar chart does not work in the reverse order. Will add it to the library once the Github project supports this option.

Thanks


Mikonios

Active Member
Licensed User
Longtime User
Thank you very much for sharing this library. It's really good & simple Johan. I fail to fully understand how it works so I ask your help with the following: I need to represent 40 values with 3 decimal float ::: 20151101-1.064;20151102-1.064;20151103-1.064;20151104-1.069;20151105-1.069;20151106-1.069;20151107-1.069;20151108-1.069;20151109-1.069;20151110-1.069;20151111-1.069;20151112-1.076;20151113-1.076;20151114-1.076;20151115-1.076;20151116-1.076;20151117-1.076;20151118-1.069;20151119-1.069;20151120-1.059;20151121-1.049;20151122-1.049;20151123-1.049;20151124-1.049;20151125-1.039;20151126-1.039;20151127-1.029;20151128-1.029;20151129-1.029;20151130-1.029;20151201-1.029;20151202-1.029;20151204-1.029;20151205-1.029;20151206-1.029;20151207-1.029;20151208-1.029;20151209-1.029;20151210-1.029;20151211-1.009;20151212-1.009;20151213-1.009;20151214-1.009;20151215-1.009;

mlc1.YaxisLeftMinVal = 1.0 'No runs. Always start from 0
mlc1.YaxisLeftMaxVal = 1.5

mlc1.MarkerToUse = 2 'Does not display 3 decimal

Both left and right shows a dedimal of more.
Thanks in advance Johan






Johan Schoeman

Expert
Licensed User
Longtime User
I fear that the library does not maintain the changes:

mlc1.setTheLegendPositionAndForm ("BELOW_CHART_CENTER", "CIRCLE")
mlc1.XaxisLabelPosition = "BOTTOM"

in the example draw_graph_7, if any value is changed, as the color, does not maintain the parameters.
Thanks in advance
Please zip your project and upload it so that I can take a look at it. There are various options to draw line charts with and I don't know which one you are using.


Mikonios

Active Member
Licensed User
Longtime User
I fear that the library does not respect the changes:

mlc1.setTheLegendPositionAndForm ("BELOW_CHART_CENTER", "circle")
mlc1.XaxisLabelPosition = "BOTTOM"

in the example draw_graph_7 if any value is changed as the color does not maintain the parameters.
Sorry the problem occurs in rapid debug mode. In mode Release work fine!!

Top
