Share My Creation My ESP Robot

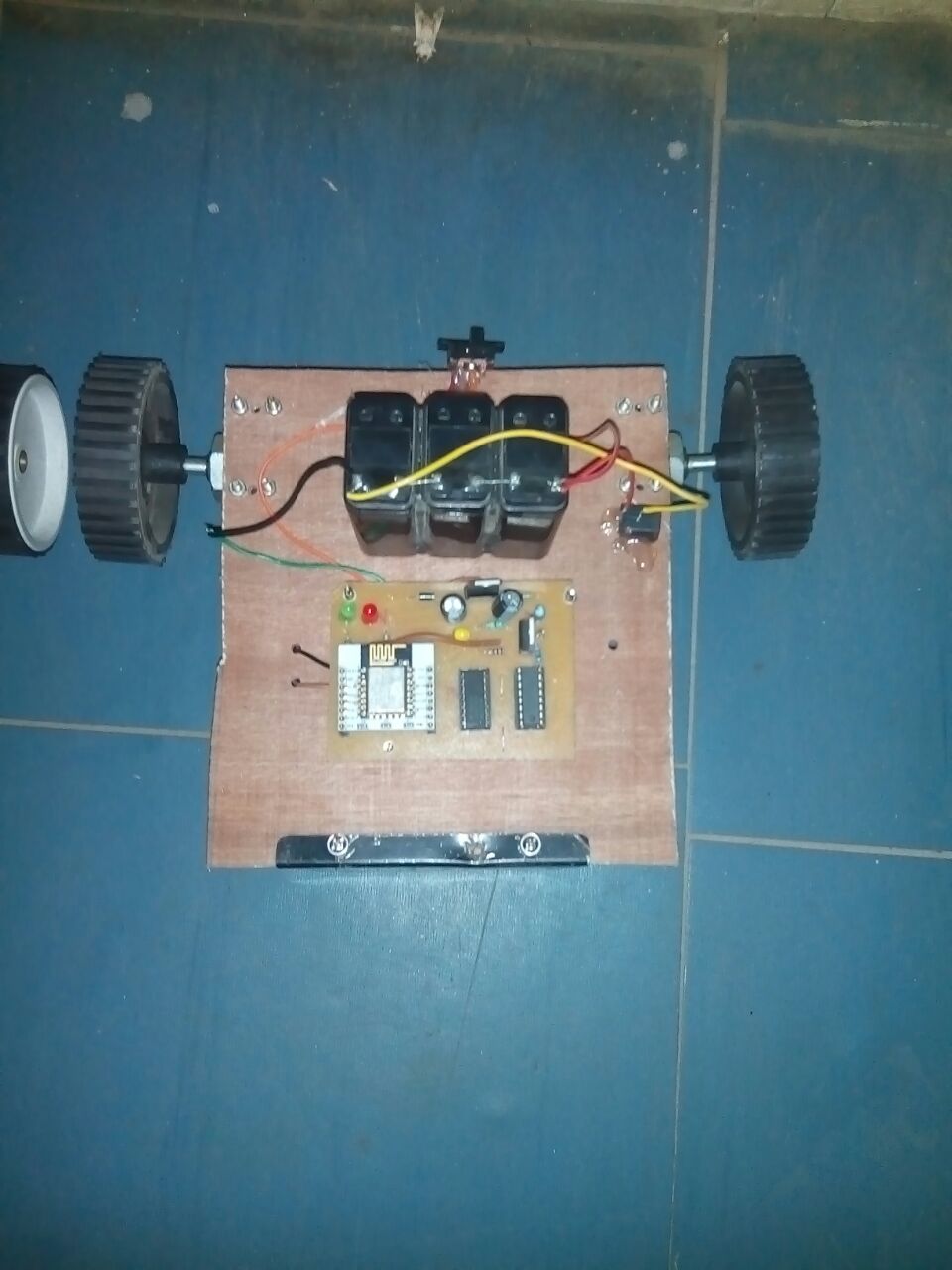

This is my first post here. Happy to join this forum. This is my ESP RoboCar. Esp is interface with CD4050 for logic level conversion then its output connected to L293D which drive the motor. It is controlled by a smart phone by two ways. First by pressing button and second is orientation of cell phone. The communication between robo and smart phone is one way UDP communication.
