B4R Question need some help to connect esp8266 and rc522

[omarruben]

using this code

Sub Process_Globals
    Public Serial1 As Serial
    Private wifi As ESP8266WiFi

    Private rfid As MFRC522
    Private bc As ByteConverter
    Dim d1 As D1Pins

End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")
    'example of connecting to a local network
    'If wifi.Connect2("SSID", "PASSWORD") Then
    '    Log("Connected to network")
    'Else
'        Log("Failed to connect to network")
'    End If

    rfid.Initialize(d1.D3, d1.D4, "rfid_CardPresent")
    rfid.LogVersion

End Sub

Sub rfid_CardPresent (UID() As Byte, CardType As Byte)
    Log("UID: ", bc.HexFromBytes(UID))
End Sub

I have an error :
Firmware Version: 0xFF = (unknown)
WARNING: Communication failure, is the MFRC522 properly connected?

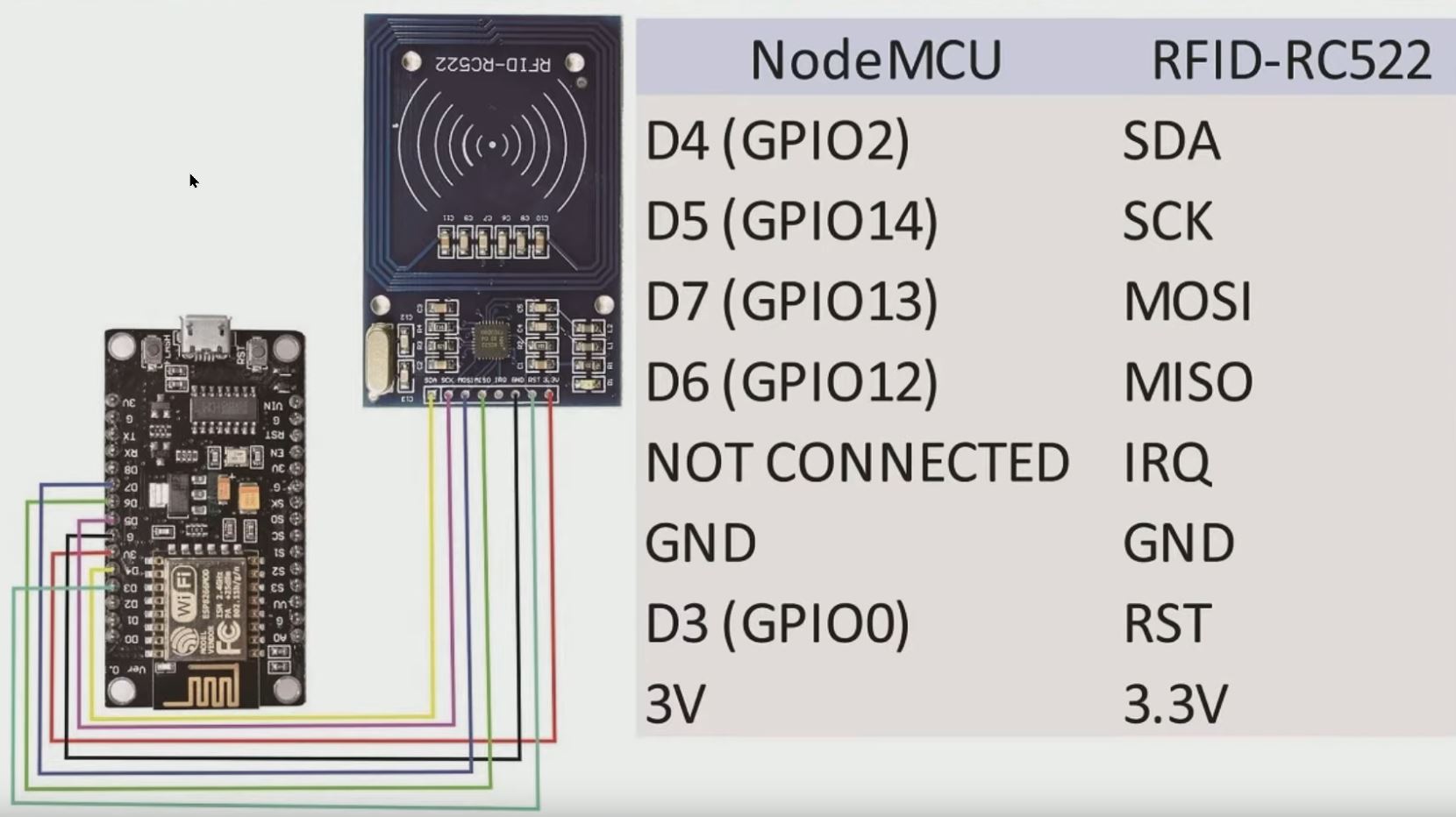

I am using the connections based on the picture



[omarruben]

got it : the pins are kind of backward, should be :

    rfid.Initialize(d1.D4, d1.D3, "rfid_CardPresent")
