Android Question Not sure what I'm doing wrong with Visual Designer

[edm68]

Hi,
I wanted to add a couple of panels to a scrollview. The first panel would have all the buttons, spinners, edittexts, etc. The second panel would only be visible when an edittext has focus. It would be like a custom keypad. For testing though I just have it as visible.

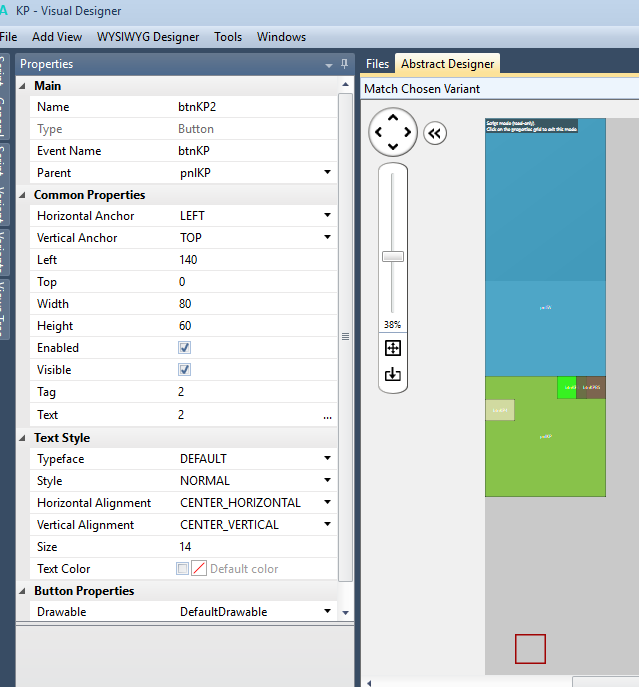

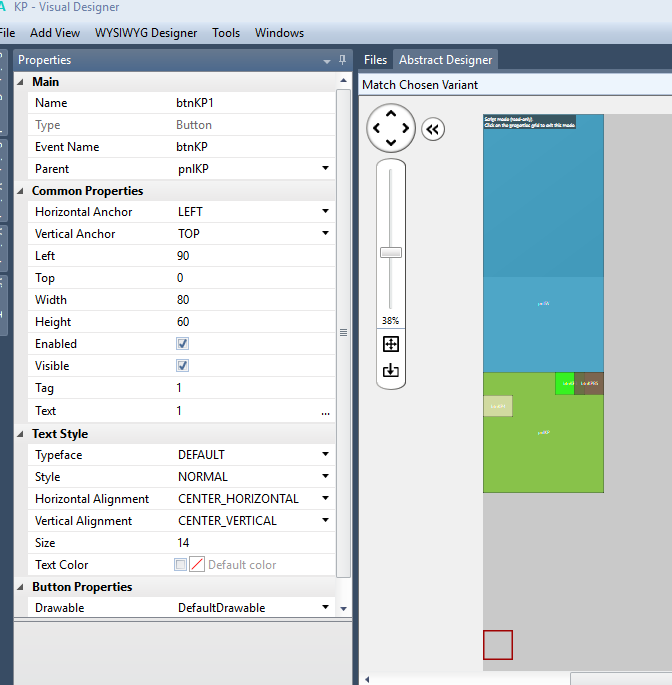

I'm also trying to learn about the all variants script in the designer. I'm not very good at explaining, so I've attached a couple of screenshots from designer and attached a sample project. When I add one line to the all variants script it makes the button go way off the screen. I don't understand why?
Thanks in advance for any advice.



[Cableguy]

You can't add views directly into the scrollview in the designer.
You need to create your inner panel layout separately and add it at runtime to the scrollview's inner panel using sv.innerPanel.loadlayout(....)



[edm68]

Thanks for the answer. Now I'm more confused, I thought that's what I was already doing with:

    Activity.LoadLayout("Main")
    svMain.Panel.LoadLayout("KP")
    svMain.Panel.Height=pnlSV.Height

"Main" contains the scrollview. "KP" contains 2 panels, pnlSV & pnlKP.

Thanks for any help.



[Erel]

You must use dip units in the designer script.
