Android Question Pages create and gradient color for the background of the pages

[Picon]

Has anyone made a color gradient for the background of the page / pages?
How to do it?

I also have a problem with understanding how to build new pages in the application:
The first "Start" page is created like this (in the class module: B4XMainPage):

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("StartPage")
    B4XPages.SetTitle(Me, "Start")
End Sub

The second page is already being created (in the code module):

Public Sub Show
    If pg.IsInitialized = False Then
        pg.Initialize("pg")
        pg.RootPanel.LoadLayout("Setings")
        pg.HideBackButton = True '<-- don't want to allow the user to return to the login screen
    End If

    Main.NavControl.ShowPage(pg)

End Sub

Which way is better? When to use class modules to add more pages in the application, and when to use regular code modules?
And the question about the background gradient. In B4i Visual Designer there are no such settings as in B4A:

GradientDrawable -> Orientation, First Color and Second Color

I found an example on the forum, but it works only on objects already on the page, but the background of the page itself does not apply.
And it only works in the "Main" regular and basic code module (in Private Sub Application_Start)



[Andrew (Digitwell)]

Have you looked at :

[B4X] B4XPages - Cross platform and simple framework for managing multiple pages

B4XPages is a library that serves two purposes: 1. Make it simple to develop B4A apps by solving almost all of the challenges involved with Android complex activities life cycle. B4XPages makes B4A behave more similar to B4J and B4i where the new "B4XPage" element is a regular object that is...

www.b4x.com

The attached example shows how to create 3 pages.

The way you describe is for iOS WITHOUT b4xpages.



[Erel]

Moved to the questions forum.

The second page is already being created (in the code module):

Don't use the old pre-B4XPages approach. All pages should be B4XPages.

About the gradient, you can use this solution and pass Root: https://www.b4x.com/android/forum/threads/set-gradient-color-to-a-view.65242/#content



[TILogistic]

Has anyone made a color gradient for the background of the page / pages?

and this can be an alternative B4X?
not tested b4i

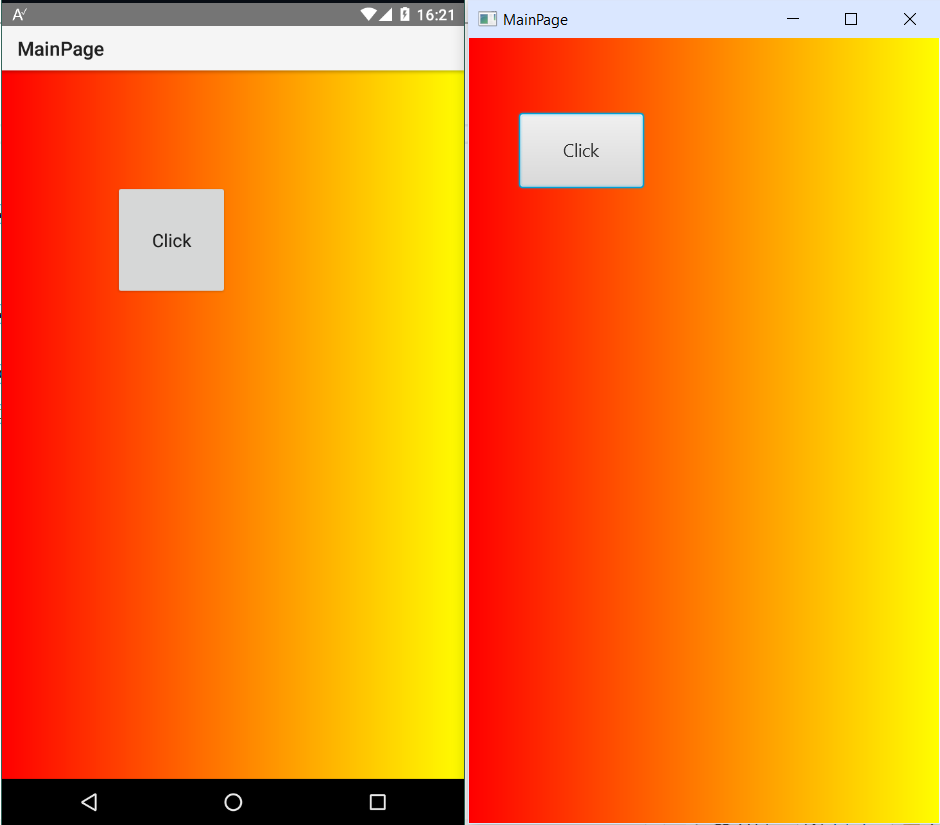

Library BitmapCreator

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("MainPage")
    'You can use more color combinations to generate the gradient.
    SetGradientBackground(Root, Array As Int(xui.Color_Red, xui.Color_Yellow), "LEFT_RIGHT")
End Sub

Private Sub B4XPage_Resize (Width As Int, Height As Int)
    'Only when a resize of the page occurs (ex.B4J)
    SetGradientBackground(Root, Array As Int(xui.Color_Red, xui.Color_Yellow), "LEFT_RIGHT")
End Sub

Public Sub SetGradientBackground(vPanel As B4XView, Clrs() As Int, Orientation As String)
    Dim bc As BitmapCreator
    bc.Initialize(vPanel.Width / xui.Scale, vPanel.Height / xui.Scale)
    bc.FillGradient(Clrs, bc.TargetRect, Orientation)
    'Remove view if exists for resize
    For Each v As B4XView In vPanel.GetAllViewsRecursive
        If v.Tag = vPanel Then v.RemoveViewFromParent
    Next
    Dim iv As ImageView
    iv.Initialize("")
    Dim xiv As B4XView = iv
    vPanel.AddView(xiv, 0, 0, vPanel.Width, vPanel.Height)
    xiv.Tag = vPanel
    xiv.SendToBack
    bc.SetBitmapToImageView(bc.Bitmap, xiv)
End Sub



[Picon]

Thanks a lot for all the answers!
greetings
