B4J Question Printing Multiple Pages to Pdf using JavaFX8

[MarcTG]

Is there a way to print to pdf multiple pages in a single action using JavaFX8 (generate 1 file with multiple pages)?
I've seen the discussion here (https://www.b4x.com/android/forum/threads/b4j-print-javafx8.49836/page-6) and it seems that printing of multiple pages can be done as long as it is being printed to a physical printer and not to a file...



[Erel]

A PDF printer driver should act exactly like a real printer driver.



[MarcTG]

@Erel Here's the post I was talking about:

If it can be useful to someone else:

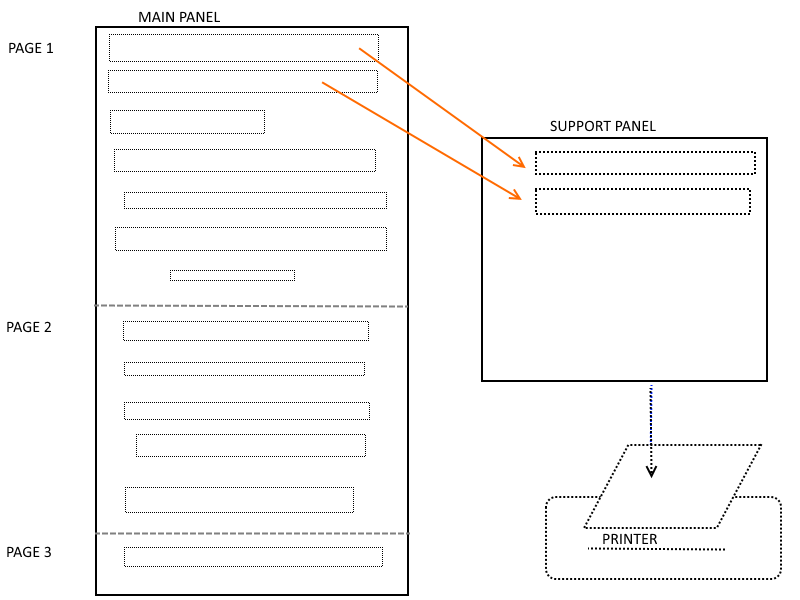

I have created a procedure that by selecting the printer (Better if physical, does not work well with the PDF virtual printer) extracts all the nodes (or views) corresponding to a page (in this case A4) from the panel and attach them to another panel, print them and put them back in the original panel, then do the same with the views that did not enter the first page perform a second print and so on until all the views are printed

Sub PrintMultiplePage(Printer As Printer,PL As PageLayout,Panel As Pane, HeightPrinterPage As Double)
    Dim Left,Top,Height,Width As Int
    Dim TopPage=0,IndexNode  As Int

    Do While TopPage<Panel.Height
        Dim PanePrint As Pane
        Dim PJ As PrinterJob= PrinterJob_Static.CreatePrinterJob2(Printer)
        PanePrint.Initialize("")
        IndexNode=0
        Do While IndexNode<Panel.NumberOfNodes
            Dim V As Node = Panel.GetNode(IndexNode)
            If V.Top>=TopPage And V.Top<(TopPage+HeightPrinterPage) Then
                Left=V.Left
                Top=V.Top-TopPage
                Height=V.PrefHeight
                Width=V.PrefWidth
                V.RemoveNodeFromParent
                PanePrint.AddNode(V,Left,Top,Width,Height)
            Else
                IndexNode=IndexNode+1
            End If
        Loop
        PJ.PrintPage2(PL,PanePrint)
        PJ.EndJob

        For IndexNode=0 To PanePrint.NumberOfNodes-1
            Dim V As Node = PanePrint.GetNode(0)
            Left=V.Left
            Top=V.Top+TopPage
            Height=V.PrefHeight
            Width=V.PrefWidth
            V.RemoveNodeFromParent
            Panel.AddNode(V,Left,Top,Width,Height)
        Next
        TopPage=TopPage+HeightPrinterPage
    Loop

End Sub

Sub PrintMultiplePage(Printer As Printer,PL As PageLayout,Panel As Pane, HeightPrinterPage As Double)
    Dim Page As Int = Round(Panel.Height/HeightPrinterPage)
    Dim Left,Top,Height,Width, IndexNode As Int

    For i=0 To Page-1
        Dim PanePrint As Pane
        Dim TopPage As Int = I * HeightPrinterPage
        Dim PJ As PrinterJob= PrinterJob_Static.CreatePrinterJob2(Printer)
        PanePrint.Initialize("")
        Log(":::" & TopPage & "--" & Panel.NumberOfNodes)
        IndexNode=0
        Do While IndexNode<Panel.NumberOfNodes
            Dim V As Node = Panel.GetNode(IndexNode)
            Log("_" & V.Top)
            If V.Top>=TopPage And V.Top<(TopPage+HeightPrinterPage) Then
                Left=V.Left
                Top=V.Top-TopPage
                Height=V.PrefHeight
                Width=V.PrefWidth
                V.RemoveNodeFromParent
                PanePrint.AddNode(V,Left,Top,Width,Height)
            Else
                IndexNode=IndexNode+1
            End If
        Loop
        PJ.PrintPage2(PL,PanePrint)
        PJ.EndJob

        For IndexNode=0 To PanePrint.NumberOfNodes-1
            Dim V As Node = PanePrint.GetNode(0)
            Left=V.Left
            Top=V.Top+TopPage
            Height=V.PrefHeight
            Width=V.PrefWidth
            V.RemoveNodeFromParent
            Panel.AddNode(V,Left,Top,Width,Height)
        Next
    Next

End Sub

View attachment 75468

Is there any other simpler way of doing this?



[Star-Dust]

@Erel Here's the post I was talking about:



Is there any other simpler way of doing this?

Probably there, but I don't know him



[MarcTG]

@Star-Dust , Can you please share a working example of that? Thanks!



[Star-Dust]

here



[MarcTG]

Thanks!

When I try to print to pdf it prints each page in a separate file... Not sure if it could be made to print multiple pages to one file.



[Star-Dust]

Thanks!

When I try to print to pdf it prints each page in a separate file... Not sure if it could be made to print multiple pages to one file.

As I explained in the thread it is suitable for physical printers.

For PDF use a suitable PDF library.



[MarcTG]

Thanks @Star-Dust, your posts are always very helpful.
Can you help answer this question: https://www.b4x.com/android/forum/threads/canceling-javafx8-print-job.106496/
