Android Question Responsive Background and Image Buttons

[Ydm]

I've gone through all the questions about Responsive. However, I was unable to do this.

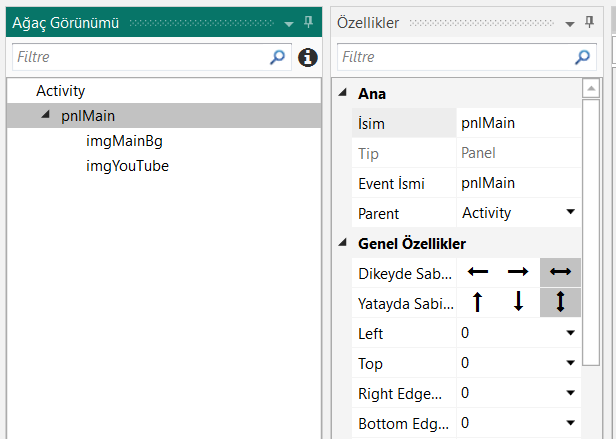

I have one panel. (pnlMain) This panel is set to fill the whole screen.

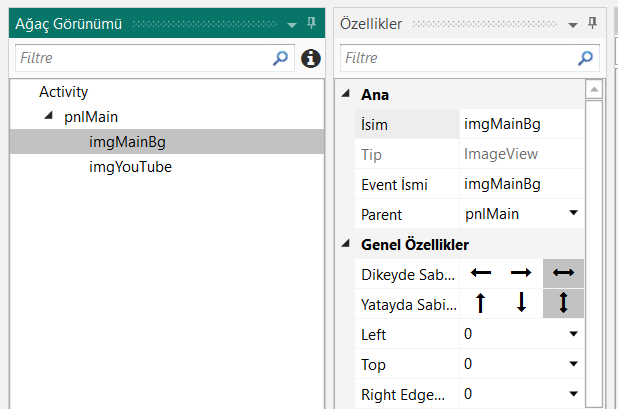

Inside this panel there is a background image. 1920x1080 in size. Button places are left blank in this background image. (imgMainBg)

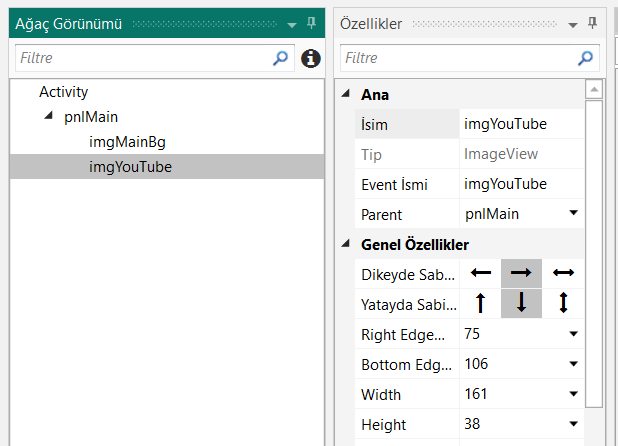

For example, I have a Youtube icon. (imgYouTube)
I want to do this. When I set this icon to the corresponding place, how can it scale depending on the background image even if the screen resolution changes? So how can I get the background image to stay in the same place for all sizes?
I will have a lot of button images like this one.



[LucaMs]

Write a script!

Note that the background image, on devices with a base/height ratio different from that, would be distorted; for that, use B4XImageView.ResizeMode



[Ydm]

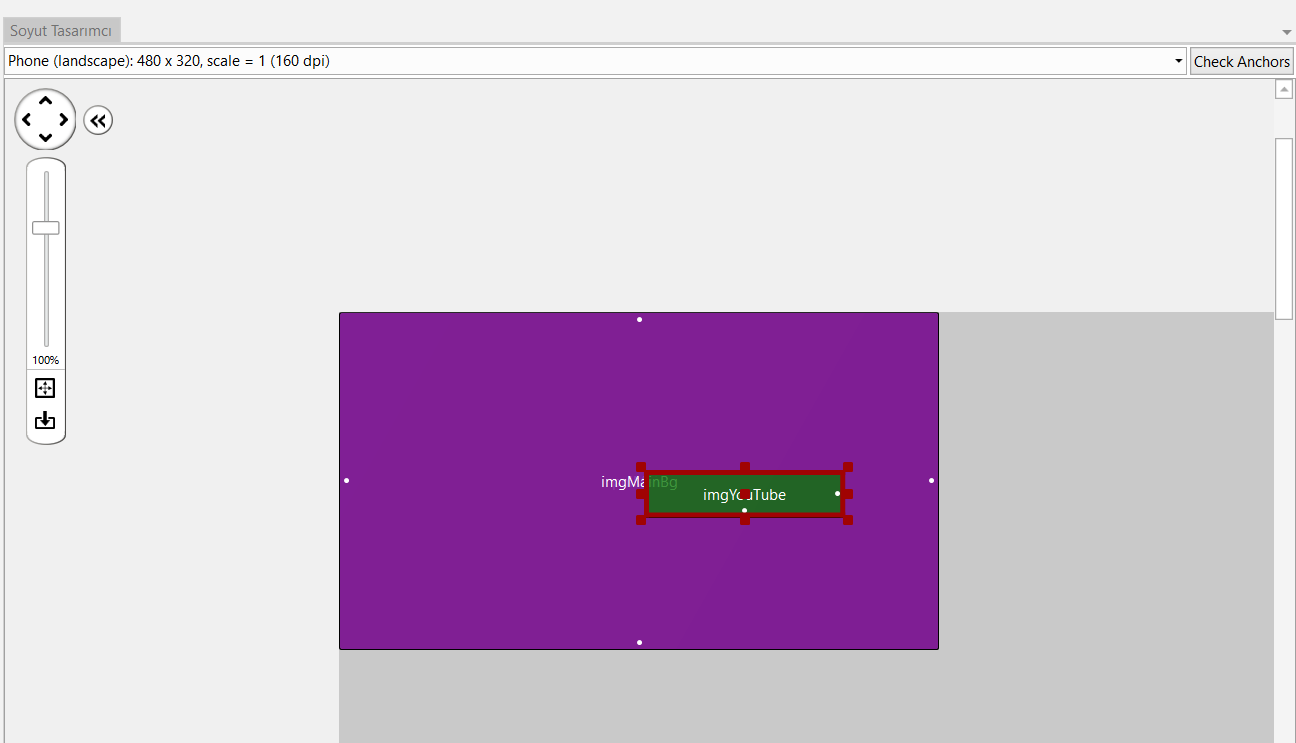

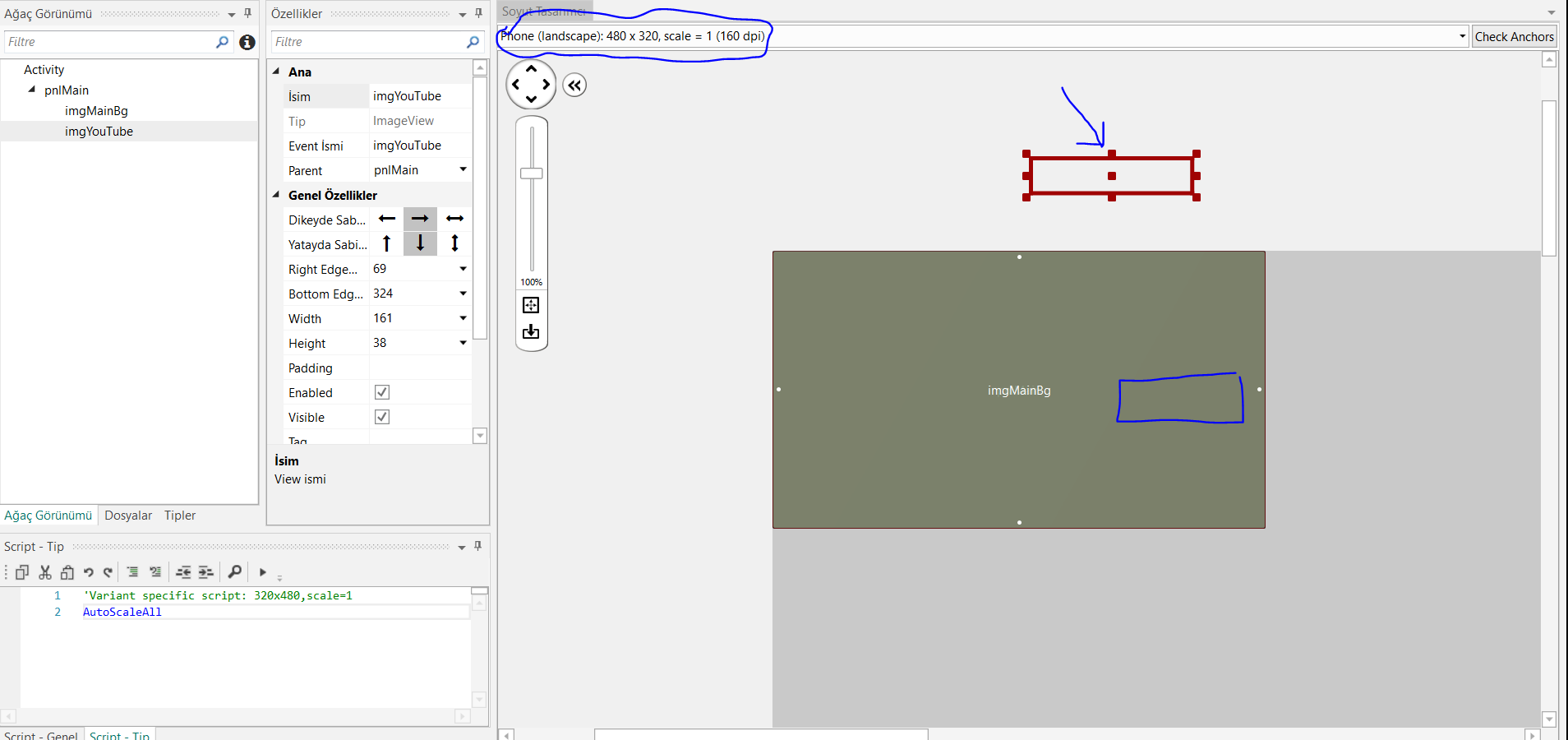

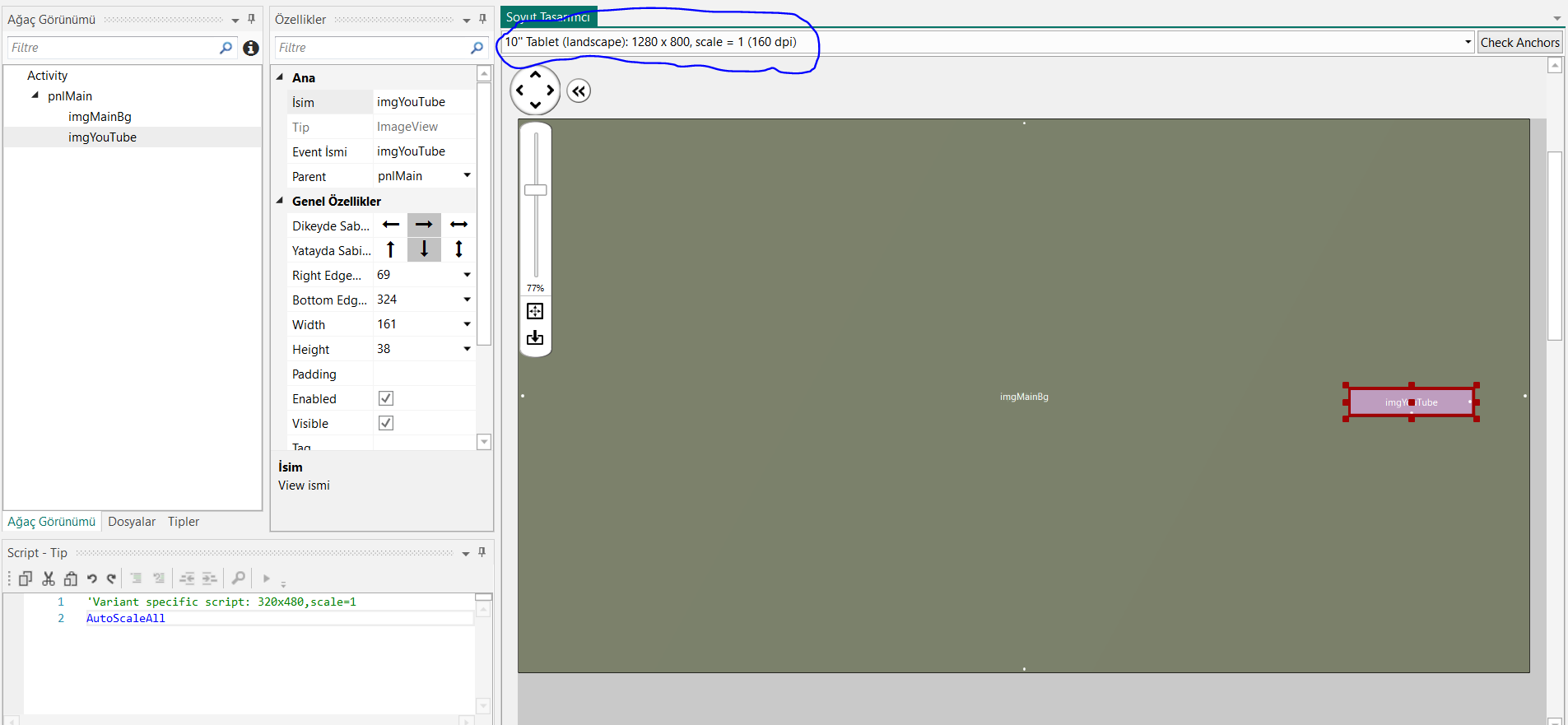

Unfortunately I couldn't. For example, I want the button in the middle right to be in the middle right on every screen. I seem to be missing something simple. Because there are much more complicated examples on the forum and it works.



[LucaMs]

Unfortunately I couldn't. For example, I want the button in the middle right to be in the middle right on every screen. I seem to be missing something simple. Because there are much more complicated examples on the forum and it works.

I didn't write about using (only) anchors but about writing a script.
Now I'm not in a good mood to answer better, sorry.



[Jeffrey Cameron]

I think what @LucaMs is saying is that you add a couple of lines to the script area of the designer such as:

imgYouTube.VerticalCenter = 50%y
imgYouTube.Right = 100%x - 50dip

Repeat this methodology for each button you need placed.

If you're saying you can't add script code, then perhaps you can explain why you cannot.



[Ydm]

Thanks...
