Android Question Route between points google maps

[fernando.oliboni]

I have a list of points (latitudes and longitudes) not addresses and I need to find the best route between these points. Can anyone help?
Thanks



[emexes]

This is my second idea (I'm still checking the first and third ? ) :

https://www.google.com/maps/dir/'-37.8627,145.2857'/'-37.7072,144.9669'



[aeric]

Sub btnNavPickup_Click
    Dim mapIntent As Intent
    Dim geouri As String

    If lblPointPickup.Text = "" Then
        Msgbox("Coordinate not set!", "E R R O R")
        Return
    End If
    geouri = "geo:?q=" & lblPointPickup.Text 'Lat & ", " & Lon
    mapIntent.Initialize(mapIntent.ACTION_VIEW, geouri)
    mapIntent.WrapAsIntentChooser("Choose app")
    StartActivity(mapIntent)
End Sub



[fernando.oliboni]

This is my second idea (I'm still checking the first and third ? ) :

https://www.google.com/maps/dir/'-37.8627,145.2857'/'-37.7072,144.9669'

rsrsrsrs, ok, It's valid but that's not what I'm looking for. Obviously I need this to be automatic and in B4A



[aeric]

[B4X] Google Geocoding REST API

This code is compatible with B4A, B4i and B4J. 1. Get an API key: https://developers.google.com/maps/documentation/geocoding/get-api-key 2. Sub PlaceToLatLon(Place As String) As ResumableSub Dim res() As Double = Array As Double(9999, 9999) Dim j As HttpJob j.Initialize("", Me)...

www.b4x.com



[emexes]

Third idea:

http://router.project-osrm.org/route/v1/driving/145.2857,-37.8627;144.9669,-37.7072

{"code":"Ok","routes":[{
"geometry":"z`bfFsbwuZmLjsBanA|pFmIdjAg}AaF{jBlImk@pg@}d@d{AiAbXzRrx@jBts@kb@`_EeEfyB_Nr}@yKt[m^|d@on@j_@}@zwAjDdXymA_Eeb@{UkMhLiIp`CgIxVmRlRuXrkAmp@`qLoSjGsDxS}m@xRwrCbRvBqe@",
"legs":[{"steps":[],
"summary":"","weight":2610.3,"duration":2610.3,"distance":41075.4}],"weight_name":"routability","weight":2610.3,"duration":2610.3,"distance":41075.4}],
"waypoints":[{
"hint":"5lxehP___38LAAAADgAAAAAAAAAAAAAAS_p1QeKQckAAAAAAAAAAAAsAAAAOAAAAAAAAAAAAAACTLAAAQuKoCNRCvv1E4qgI1EK-_QAA_wrnJDxl","distance":0.175967,"name":"Dorset Road",
"location":[145.285698,-37.8627]},{"hint":"PACTgf___38BAAAAAgAAAAQAAAAFAAAAUSUFQBLKsD4cMXtABSexQAEAAAACAAAABAAAAAUAAACTLAAA6gSkCEmiwP30BKQIQKLA_QEA7wLnJDxl","distance":1.332309,"name":"",
"location":[144.96689,-37.707191]
}]}



[emexes]

rsrsrsrs, ok, It's valid but that's not what I'm looking for. Obviously I need this to be automatic and in B4A

Automatic? Tick.
Can be done using B4A? Tick.

Especially useful if all you need is (approximate) time and distance of route, and then the actual routing is done by a normal GPS app or device.

{"code":"Ok","routes":[{
"geometry":"z`bfFsbwuZmLjsBanA|pFmIdjAg}AaF{jBlImk@pg@}d@d{AiAbXzRrx@jBts@kb@`_EeEfyB_Nr}@yKt[m^|d@on@j_@}@zwAjDdXymA_Eeb@{UkMhLiIp`CgIxVmRlRuXrkAmp@`qLoSjGsDxS}m@xRwrCbRvBqe@",
"legs":[{"steps":[],
"summary":"","weight":2610.3,"duration":2610.3,"distance":41075.4}],"weight_name":"routability","weight":2610.3,"duration":2610.3,"distance":41075.4}],
"waypoints":[{
"hint":"5lxehP___38LAAAADgAAAAAAAAAAAAAAS_p1QeKQckAAAAAAAAAAAAsAAAAOAAAAAAAAAAAAAACTLAAAQuKoCNRCvv1E4qgI1EK-_QAA_wrnJDxl","distance":0.175967,"name":"Dorset Road",
"location":[145.285698,-37.8627]},{"hint":"PACTgf___38BAAAAAgAAAAQAAAAFAAAAUSUFQBLKsD4cMXtABSexQAEAAAACAAAABAAAAAUAAACTLAAA6gSkCEmiwP30BKQIQKLA_QEA7wLnJDxl","distance":1.332309,"name":"",
"location":[144.96689,-37.707191]
}]}



[emexes]

First idea was to use Google Sheets: I thought they had built-in access to Google Map functions like they do to Google Translate, but... apparently not.

Although I have a strong recollection of doing reverse geocoding perhaps 5 years ago, so... maybe it used to be possible, but got lost in a reorganisation. ?



[emexes]

I need to find the best route between these points.

How many points?

And are you looking for point-to-point routes, or for the sequence in which all points should be visited to minimize time, distance or some other metric?

Which is easy to do for 10 points, gets a bit hairy at 20 points, and then beyond that you're in the land of serious programming or using an online API service.



[emexes]

I wrote a TSP solver in maybe 2018 last year that, when presented with thousands of random points, would generate a path that was also a maze. Pretty sure I posted it in this forum, but do you reckon I can find it now? This post: Kids vs Travelling Salespeople (thank you @Xandoca for helping me find it)

Anyway, the algorithm was to start with an "empty" route from the starting point to the ending point (eg, from your depot departure door to your depot return arrival door), and then repeatedly choose the unvisited point furthest from points already on your route, and add them into the route at whichever position increased the route distance by the least amount.

I think it still occasionally crossed some lines, but they could be rectified with some local optimisation, or possibly a final pass that checked each combination of path segments (ie n-squared) to see if swapping the points shortened the path.



[fernando.oliboni]

Hi, it's not a lot of points, it's 10 or 15 points, no more.



[fernando.oliboni]

Does google maps itself not find the best path between these points? Does google maps not have this function of finding the best path and the shortest distance sequence?



[emexes]

Hi, it's not a lot of points, it's 10 or 15 points, no more.

Today might be your lucky day (if your app has an internet connection) :

https://project-osrm.org/docs/v5.24.0/api/#trip-service

I am pretty sure this has been added since 2018; sure would have saved me some programming.



[emexes]

Does google maps itself not find the best path between these points? Does google maps not have this function of finding the best path and the shortest distance sequence?

Sign yourself up for the Google Maps API and let us know. I can see that it has a matrix/table function, but it's a bit hazy about reordering waypoints.



[fernando.oliboni]

to get the key have to pay even for few points? rsrsrsrs



[emexes]

to get the key have to pay even for few points? rsrsrsrs

Apparently $200 of monthly usage for free (although I'm not sure if that covers features like Live Traffic).

Now you can see why I'm thinking, for low-volume private use, OpenStreetmapRoutingMachine is probably a better starting point. ?



[fernando.oliboni]

Thank you very much emexes, I will look carefully.



[TILogistic]

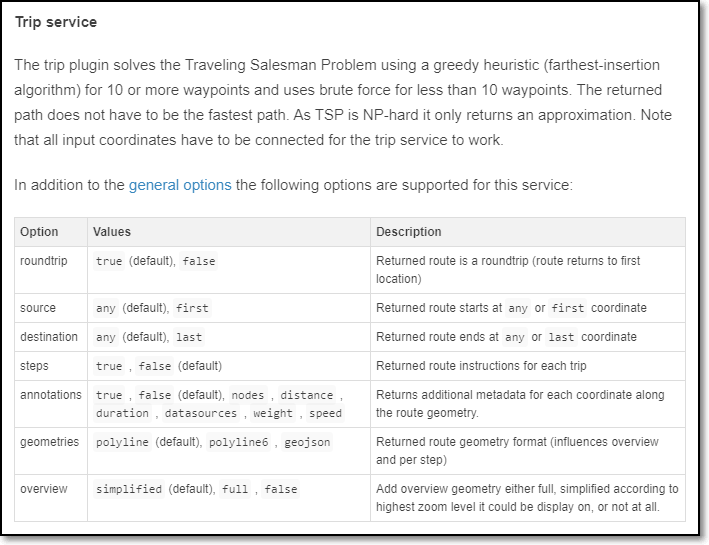

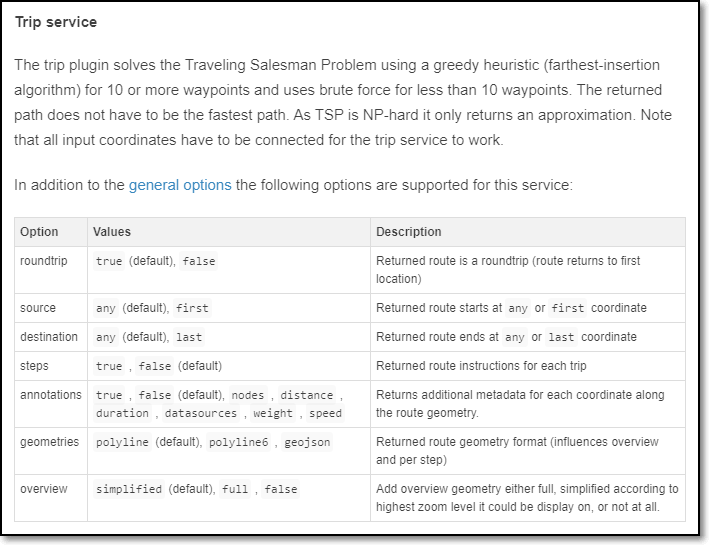

Today might be your lucky day (if your app has an internet connection) :

https://project-osrm.org/docs/v5.24.0/api/#trip-service

View attachment 135764

I am pretty sure this has been added since 2018; sure would have saved me some programming.

other:

openrouteservice

openrouteservice.org

Dashboard | ORS

openrouteservice.org
