As the title suggests, here's a script to check 16kb compatibility (for those who don't use Android Studio's APK Analyzer).
The script analyzes apk, aar, aab or zip files.
You need to download and unzip android-ndk-r28c-windows.zip, which you can find at this link: ( https://developer.android.com/ndk/downloads?hl=en )
After unzipping it, you can modify the script with your own path.
The script runs in Windows PowerShell. So, after running the command cmd ... and typing PowerShell or
Shift+right-clicking in the folder → "Open PowerShell window here".
Type:
if your script is blocked you can execute this comand:
The resul will be:
Negative (KO) if inside the arm64-v8a directory it will find libraries not aligned to 16kb

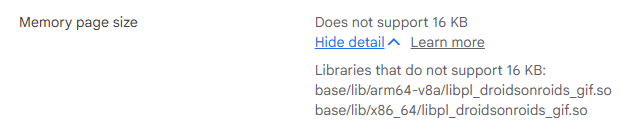

if the files arent aligned it will give their name ( look above )
or Positive (OK) if inside the arm64-v8a directory it will find libraries aligned to 16kb

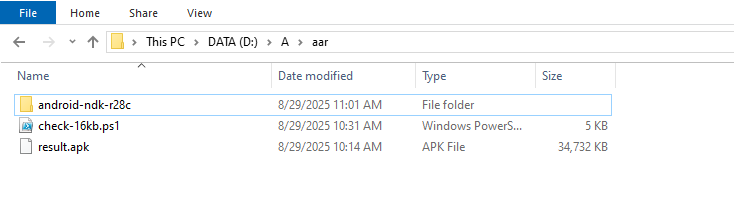

(Of course, the path is yours, i.e., where the check-16kb.ps1 file was placed.)
Also inside the script insert your path (line 11)
This is the script:
Save the same in a text file named check-16kb.ps1 ( in attachment if you want )
P.S.: Written with the help of chatgpt and after a few things to fix it works
Bye
The script analyzes apk, aar, aab or zip files.
You need to download and unzip android-ndk-r28c-windows.zip, which you can find at this link: ( https://developer.android.com/ndk/downloads?hl=en )
After unzipping it, you can modify the script with your own path.
The script runs in Windows PowerShell. So, after running the command cmd ... and typing PowerShell or
Shift+right-clicking in the folder → "Open PowerShell window here".
Type:
if your script is blocked you can execute this comand:
and repeat

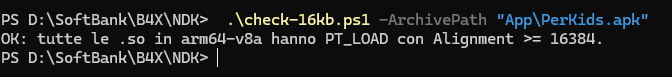

The resul will be:
Negative (KO) if inside the arm64-v8a directory it will find libraries not aligned to 16kb
if the files arent aligned it will give their name ( look above )
or Positive (OK) if inside the arm64-v8a directory it will find libraries aligned to 16kb
(Of course, the path is yours, i.e., where the check-16kb.ps1 file was placed.)
Also inside the script insert your path (line 11)
This is the script:
B4X:
<# check-16kb-arm64.ps1
Controlla SOLO le .so nella cartella arm64-v8a
Verifica che TUTTI i segmenti PT_LOAD abbiano Alignment >= 16384 (16 KB).
#>
param(
[Parameter(Mandatory = $true)]
[Alias('ArchivePath')]
[string]$Path,
[string]$Readobj = "F:\android-ndk-r28c\toolchains\llvm\prebuilt\windows-x86_64\bin\llvm-readobj.exe",
[string]$ReportPath,
[int]$MinAlign = 16384
)
function Get-PtLoadAlignments {
param([string]$SoPath, [string]$ReadobjExe)
$result = New-Object PSObject -Property @{ Alignments = @(); Error = $null }
$out = & $ReadobjExe --program-headers $SoPath 2>&1
if ($LASTEXITCODE -ne 0) {
$result.Error = ("llvm-readobj exit code {0}: {1}" -f $LASTEXITCODE, $SoPath)
return $result
}
$reTypeLoad = '^\s*Type:\s*(?:PT_)?LOAD\b'
$reAnyType = '^\s*Type:\s*\S+'
$reAlignment = '^\s*Align(?:ment)?:\s*(0x[0-9A-Fa-f]+|\d+)'
$inLoad = $false
foreach ($line in ($out -split "`n")) {
$l = $line.TrimEnd()
if ($l -match $reTypeLoad) { $inLoad = $true; continue }
if ($l -match $reAnyType) { $inLoad = $false; continue }
if ($inLoad -and ($l -match $reAlignment)) {
$val = $Matches[1]
if ($val -like '0x*') { $n = [Convert]::ToInt32($val,16) } else { $n = [int]$val }
$result.Alignments += $n
}
}
return $result
}
function Get-SoResult {
param([string]$SoPath, [string]$ReadobjExe, [int]$MinAlign)
$r = Get-PtLoadAlignments -SoPath $SoPath -ReadobjExe $ReadobjExe
$aligns = $r.Alignments
$ok = $true
$reason = $null
if ($r.Error) {
$ok = $false; $reason = $r.Error
} elseif ($aligns.Count -eq 0) {
$ok = $false; $reason = "nessun segmento PT_LOAD trovato"
} else {
foreach ($a in $aligns) {
if ($a -lt $MinAlign) { $ok = $false; $reason = ("PT_LOAD < {0}" -f $MinAlign); break }
}
}
return New-Object PSObject -Property @{
File = $SoPath
Alignments = $aligns
OK = $ok
Reason = $reason
}
}
# --- Controlli preliminari ---
if (!(Test-Path -LiteralPath $Readobj)) { throw ("llvm-readobj.exe non trovato: {0}" -f $Readobj) }
if (!(Test-Path -LiteralPath $Path)) { throw ("Percorso non trovato: {0}" -f $Path) }
$AllLines = New-Object System.Collections.ArrayList
$FailList = New-Object System.Collections.ArrayList
# --- Determina i file da analizzare (SOLO arm64-v8a) ---
$TempRoot = $null
$soFiles = @()
if ((Get-Item -LiteralPath $Path).PSIsContainer) {
$soFiles = Get-ChildItem -Recurse -Path $Path -Filter *.so | Where-Object { $_.FullName -match "arm64-v8a" } | Select-Object -Expand FullName
} else {
$ext = [IO.Path]::GetExtension($Path).ToLower()
if ($ext -eq ".so") {
if ($Path -match "arm64-v8a") { $soFiles = ,(Resolve-Path -LiteralPath $Path).Path }
} elseif ($ext -in @(".aar",".apk",".aab",".zip")) {
$TempRoot = Join-Path $env:TEMP ("check16kb_" + (Get-Random))
New-Item -ItemType Directory -Path $TempRoot | Out-Null
$ZipCopy = Join-Path $TempRoot "archive.zip"
Copy-Item -LiteralPath $Path -Destination $ZipCopy -Force
Expand-Archive -LiteralPath $ZipCopy -DestinationPath $TempRoot -Force
$soFiles = Get-ChildItem -Recurse -Path $TempRoot -Filter *.so | Where-Object { $_.FullName -match "arm64-v8a" } | Select-Object -Expand FullName
} else {
throw ("Estensione non supportata: {0}" -f $ext)
}
}
if (!$soFiles -or $soFiles.Count -eq 0) {
if ($TempRoot) { Remove-Item -Recurse -Force $TempRoot -ErrorAction SilentlyContinue }
throw "Nessuna .so trovata nella cartella arm64-v8a."
}
# --- Analisi ---
foreach ($so in $soFiles) {
$res = Get-SoResult -SoPath $so -ReadobjExe $Readobj -MinAlign $MinAlign
[void]$AllLines.Add($res.File)
[void]$AllLines.Add((" PT_LOAD Alignments: {0}" -f $(if($res.Alignments){ ($res.Alignments -join ', ') }else{'<none>' })))
if ($res.OK) {
[void]$AllLines.Add((" Risultato: OK (>= {0})" -f $MinAlign))
} else {
$msg = " Risultato: NON allineato"
if ($res.Reason) { $msg += " - " + $res.Reason }
[void]$AllLines.Add($msg)
[void]$FailList.Add($res.File)
}
[void]$AllLines.Add("")
}
# --- Pulizia e report ---
if ($TempRoot) { Remove-Item -Recurse -Force $TempRoot -ErrorAction SilentlyContinue }
if ($ReportPath) { $AllLines | Out-File -FilePath $ReportPath -Encoding UTF8 }
# --- Output finale ---
if ($FailList.Count -eq 0) {
Write-Host ("OK: tutte le .so in arm64-v8a hanno PT_LOAD con Alignment >= {0}." -f $MinAlign)
if ($ReportPath) { Write-Host ("Report salvato in: {0}" -f $ReportPath) }
exit 0
} else {
Write-Host ("KO: file arm64-v8a non conformi (almeno un PT_LOAD < {0}):" -f $MinAlign)
$FailList | ForEach-Object { Write-Host (" - {0}" -f $_) }
if ($ReportPath) { Write-Host ("Report completo in: {0}" -f $ReportPath) }
exit 2
}Save the same in a text file named check-16kb.ps1 ( in attachment if you want )
P.S.: Written with the help of chatgpt and after a few things to fix it works
Bye
