Scrolling Text on LCD screens

[Marc DANIEL]

This is simply a B4R sketch intended for scrolling text on LCD screens

ub Process_Globals
    Public Serial1 As Serial
    Private LCD As LiquidCrystal_I2C 'good for the two LCD screens connected
    Public bc As ByteConverter
    Public SPEED = 300 As Int '(in milliseconds - Decrease this number to speed up scrolling or increase it to slow down)
    End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    LCD.Initialize(0x27, 20, 4) 'Initializing the LCD screen with 4 lines of 20 characters

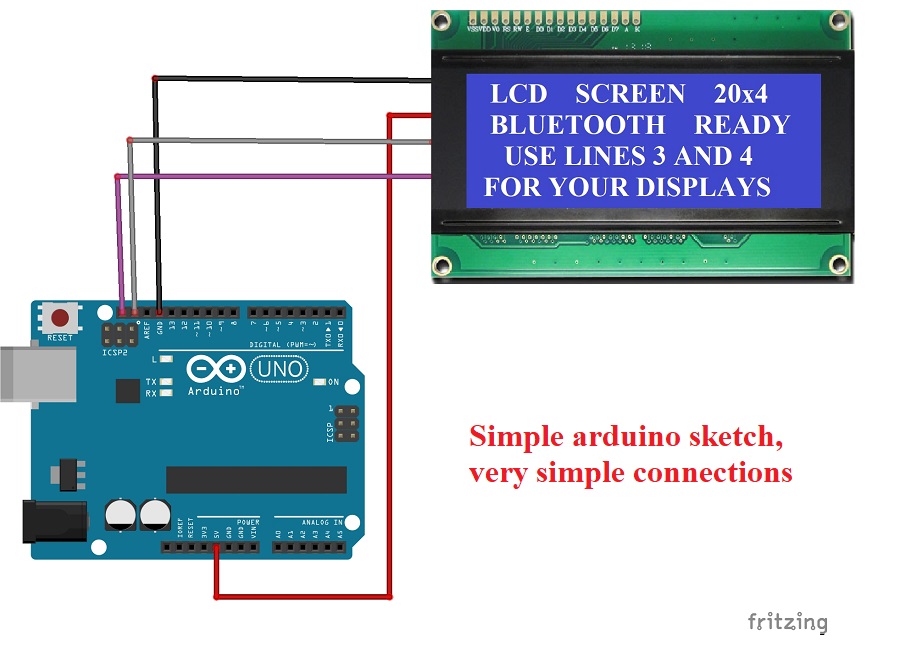

    'First LCD screen: SDA pin connected to A4 pin or SDA pin - SCL pin connected to A5 pin or SCL pin
    'Second LCD Screen: SDA pin connected to SDA pin of the Arduino board, SCL pin connected to SCL pin of the Arduino board
    LCD.Backlight = True 'Activates the backlight on the two LCD screens
    Scrolling
    End Sub

Sub Scrolling
    Dim b() As Byte = "HELLO, WELCOME TO LCD SCREENS                    "
    Dim L = b.Length As Int
    Dim NC = 1 As Int
    LCD.CLEAR


    For i = 19 To 0 Step -1
        LCD.SetCursor(i,0)
        LCD.Write(bc.SubString2(b, 0, NC))
        Delay(SPEED)
        NC = NC + 1
    Next

For i = 1 To L
        If i + 20 > L Then Exit
        LCD.SetCursor(0,0)
        LCD.Write(bc.SubString2(b, i, i + 20))
        Delay(SPEED)
    Next

Thanks to Klaus !!!

Just a video​
