iOS Question Scrollview flicker when jobdone syncs with main thread

[jb0502]

I have a scrollview and dynamicly created panels inside, panels filled with data comes from RDC.
Scrollview scrolls perfect in all conditions.
Except when jobdone finishes its job and syncs with MAIN.
The scrollview becomes nonresponsive for a while. After it syncs, it becomes normal again.
Anybody has any solution for this issue.
Thanks in advance.



[jb0502]

This happens even when 1 panel added.



[Erel]

Test it in release mode to see whether there is a real issue or not.



[jb0502]

I did. Result is same.



[narek adonts]

Could you post the syncing sub ?



[jb0502]

Sub JobDone(Job As HttpJob)
    If Job.Success = False Then
        Log("Error: " & Job.ErrorMessage)
    Else

        If Job.JobName = "DBRequest" Then
            'ScrollView1.Panel.RemoveAllViews
            ActivityIndicator1.Visible = True
            Dim result As DBResult = reqManager.HandleJob(Job)
            'reqManager.PrintTable(result)
            If Job.Tag = "select_animal" Then

                For i = 0 To result.Rows.Size-1

                Dim items() As Object = result.Rows.Get(i)


    Dim panel1 As Panel
    Dim label1 As Label
    Dim baslik As Label
    Dim pic1 As ImageView


    panel1.Initialize("panel1")

panel1.Color = Colors.White
panel1.SetBorder(0,0,5)






    pic1.Initialize("pic1")
    label1.Initialize("label1")

    label1.AdjustFontSizeToFit = False
    baslik.Initialize("baslik")

    baslik.Font = Lbl.Font
    label1.Font = lbl2.Font
    pic1.Bitmap = reqManager.BytesToImage(items(0))



    baslik.Text = yk & "-" &items(1)
    label1.Text = items(2)  & "-" &yk

    If sol < sag Then


    ScrollView1.Panel.AddView(panel1,(5),(sol),(ScrollView1.Width/2-10),((pic1.bitmap.Height/pic1.bitmap.Width*ScrollView1.Width/2)+200))

    panel1.AddView(pic1,0,0,panel1.Width,(pic1.bitmap.Height/pic1.bitmap.Width*panel1.Width))
    sol = panel1.Top+panel1.Height + 10
    Else



    ScrollView1.Panel.AddView(panel1,(ScrollView1.Width/2 +5),(sag),(ScrollView1.Width/2-10),((pic1.bitmap.Height/pic1.bitmap.Width*ScrollView1.Width/2)+200))

    panel1.AddView(pic1,0,0,panel1.Width,(pic1.bitmap.Height/pic1.bitmap.Width*panel1.Width))
    sag = panel1.Top+panel1.Height +10
    End If
    baslik.Text = yk & "-" &items(1) & "-" & ScrollView1.Panel.NumberOfViews

    label1.Multiline = True


    pic1.ContentMode = pic1.MODE_FILL
    panel1.AddView(baslik,2,pic1.Height,panel1.Width,20)

    panel1.AddView(label1,2,pic1.Height+20,panel1.Width,(panel1.Height-pic1.Height-40))

    label1.TextAlignment = label1.ALIGNMENT_LEFT


    Dim cnv As Canvas
    cnv.Initialize(panel1)
    cnv.DrawLine(0,baslik.Top+20,panel1.Width,baslik.Top+20,Colors.red,1)
    cnv.DrawLine(0,panel1.Height - 25,panel1.Width,panel1.Height - 25,Colors.LightGray,1)
    cnv.Refresh

    yk = yk + 1

    Next



            End If
        End If
    End If


    ActivityIndicator1.Visible = False
    ykb = False
        If sol > sag Then
    ScrollView1.ContentHeight = sol + 10
    Else
    ScrollView1.ContentHeight = sag + 10
    End If
    Job.Release
End Sub



[Erel]

Why are you you creating a new canvas each iteration? You should create a single canvas and call refresh only once.



[jb0502]

Because the canvas is drawing lines for each panel1(which are created at runtime too).
Also I removed all canvases now to see if it is the reason and syncing with main thread still hangs the scroll.



[Erel]

It is probably the HandleJob call that slows it down. You will need to split the request into smaller pieces.



[Erel]

The problem happens in the call to reqManager.HandleJob (inside JobDone). It takes the downloaded data and "parses" it.



[jb0502]

I decreased my network speed to very low to see in which step it slows down. Now each request takes 20 seconds.
I can scroll very fast when the job is handling. I check out RDC server also.
The problem occurs in the exact second of job.release.
I also tried to request 1 item only, same issue.



[Erel]

It is not related to Job.Release.

Note that you should use CustomListView instead of the ScrollView. It will make your code simpler.

Add some log messages to see where exactly it happens.



[jb0502]

Afaik customlistview is also scrollview.

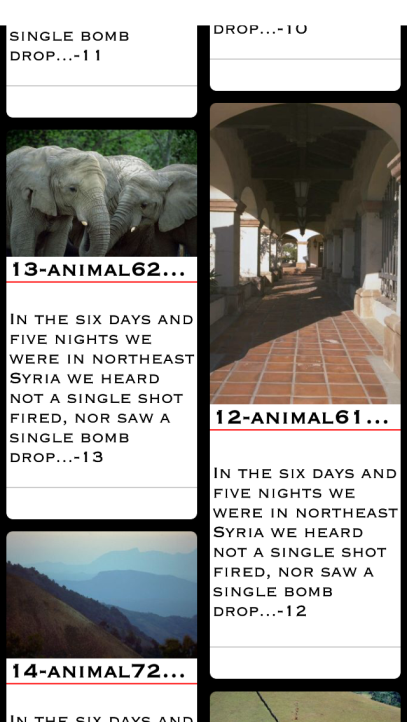

And I dont know if I can make dynamic design(depending on item size)with it as in attached screenshot.



[narek adonts]

I think you should split the job with several callsubdelayed.



[Erel]

And I dont know if I can make dynamic design(depending on item size)with it as in attached screenshot.

For this layout it might be simpler to use ScrollView.
