Android Question Setting Typeface to PDFDocument and MemoFiles

[Gianni Sassanelli]

hi,
i'm use PDF library to create PDF from Erel post
https://www.b4x.com/android/forum/threads/printing-and-pdf-creation.76712/#content

I need to use a my TypeFace for TXTMultiLine Memo String in PDF
Is this possible?

Thank's

My code is:

Sub MakePDF
    Dim PDF1                     As PDFDocument
    Dim PDF_PAGEINFO      As PageInfo
    Dim PDF_RECT            As Rect
    Dim ptLeft, ptwidth     As Int
    Dim ptTop, ptHeight    As Int
    Dim Fsize                 As Int
    ptLeft     = 5
    ptTop     = 5
    ptwidth  = 200
    ptHeight  = 50
    Fsize     = 10 / GetDeviceLayoutValues.Scale

    PDF_RECT.Initialize(10,10,595-20,842-20) 'bordo di 10
    PDF_PAGEINFO.Initialize(595,842,1,PDF_RECT)
    Dim PDF_Page As Page = PDF1.startPage(PDF_PAGEINFO)
    Dim Txtmemo As String
    Txtmemo = $"
        Questo è un esempio di stringa multi riga
            ${DateTime.Date(DateTime.Now)} ${DateTime.Time(DateTime.Now)}
        ----------------------------------------------
        Riga 1
        Riga 2
        Riga 3
        ==============================================
        Fine"$
    Dim PDF_TextRec     As TextRec
    PDF_TextRec.Initialize(Txtmemo,ptwidth,822,ptHeight,Colors.DarkGray)
    'I NEED HERE to USE a MY Typeface for TextRec Object
    ' IS this possible??

    PDF_TextRec.draw(PDF_Page,0,0)
    PDF1.finishPage(PDF_Page)
    PDF1.writeTo(File.DirRootExternal,"TestPdfDocument.pdf")
End Sub



[Erel]

What is TextRec?



[Gianni Sassanelli]

i followed a DonManfred example at link
https://www.b4x.com/android/forum/t...droid-jar-built-in-methods.74830/#post-584375
Can you see me if exist another way to draw a multi-line string?
Thank's



[Erel]

A DrawView method is available here: https://www.b4x.com/android/forum/threads/wordwrap-to-a-canvas.71712/#post-456049

You can add the text to a multiline label and then draw the label.
Make sure to set the label size with Label.SetLayout.



[Gianni Sassanelli]

Sorry Erel,
I have added this code but unsuccessfull
can you help me?

   'PDF_TextRec.draw(PDF_Page,0,0)
Dim v As EditText
    v.Initialize("")
    v.SingleLine = False
    v.Wrap = True
    v.Text = $"
    linea 1
    Linea 2
    Linea 3
    "$
    Dim cjo As JavaObject
    cjo = newPDF_Page.Canvas
    Dim jv As JavaObject = v
    jv.RunMethod("draw", Array(cjo.GetFieldJO("canvas")))[

PDF1.finishPage(PDF_Page)
    PDF1.writeTo(File.DirRootExternal,"TestPdfDocument.pdf")

/CODE]



[Erel]

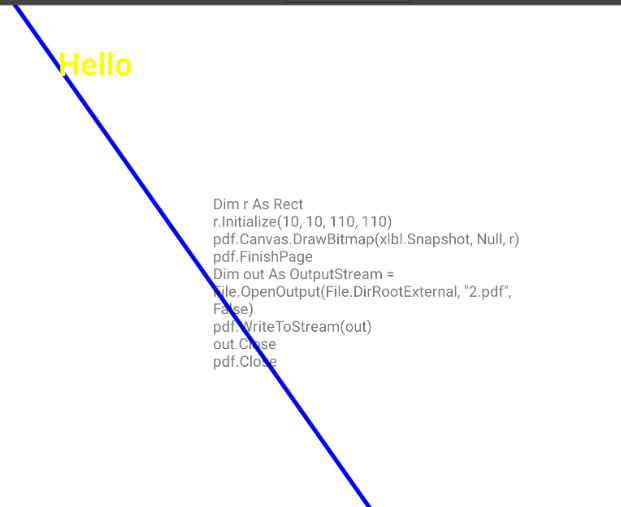

Different approach with XUI:

Complete code:

Sub Activity_Create(FirstTime As Boolean)
   Activity.LoadLayout("1")
   Dim rp As RuntimePermissions
   rp.CheckAndRequest(rp.PERMISSION_WRITE_EXTERNAL_STORAGE)
   Wait For Activity_PermissionResult (Permission As String, Result As Boolean)
   If Result Then
       Dim pdf As PdfDocument
       pdf.Initialize
       pdf.StartPage(595, 842) 'A4 size
       pdf.Canvas.DrawLine(2, 2, 593 , 840, Colors.Blue, 4)
       pdf.Canvas.DrawText("Hello", 100, 100, Typeface.DEFAULT_BOLD, 30 / GetDeviceLayoutValues.Scale , Colors.Yellow, "CENTER")
       Dim lbl As Label
       lbl.Initialize("")
       lbl.SetLayout(10dip, 10dip, 300dip, 300dip)
       lbl.SingleLine = False
       Dim xlbl As B4XView = lbl
       xlbl.Text = $"Dim r As Rect
r.Initialize(10, 10, 110, 110)
pdf.Canvas.DrawBitmap(xlbl.Snapshot, Null, r)
pdf.FinishPage
Dim out As OutputStream = File.OpenOutput(File.DirRootExternal, "2.pdf", False)
pdf.WriteToStream(out)
out.Close
pdf.Close"$
       Dim r As Rect
       r.Initialize(210, 210, 510, 510)
       pdf.Canvas.DrawBitmap(xlbl.Snapshot, Null, r)
       pdf.FinishPage
       Dim out As OutputStream = File.OpenOutput(File.DirRootExternal, "2.pdf", False)
       pdf.WriteToStream(out)
       out.Close
       pdf.Close
   End If

End Sub



[Gianni Sassanelli]

Thank's Erel, it works fine.
I wish I had your skills,
but only for study and personal culture, could you explain me how to use the canvas?
For example how to place them in my preferred position.

In Italy today we celebrate "Ferragosto", for us it is a public holiday, although I am at work.



[Erel]

but only for study and personal culture, could you explain me how to use the canvas?

This question is too broad to answer... If you have any specific question then start a new thread and we will help you.



[Gianni Sassanelli]

ok. Thank's for all
