B4J Tutorial SignalTower

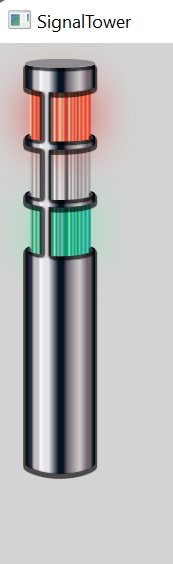

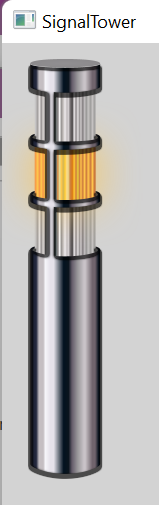

It comes from here. Have compiled it to a Jar (no XML) and using it with JavaObject. The Tower lights are switched via a B4J Timer. Switch them on whatever condition(s) you want them to be switched and whenever you want - just set the booleans:

Method called to turn on/off lights:
st.RunMethod("setColors", Array(False, False, False))

Attached sample project and the JAR. Copy the Jar to your additional library folder. The CSS file was added to the compiled JAR with 7-zip.

Sample code:
B4J Sample Code:
#Region Project Attributes
    #MainFormWidth: 600
    #MainFormHeight: 600
#End Region

#AdditionalJar: signalTower
'#AdditionalJar: javafx.base
'#AdditionalJar: javafx.controls
'#AdditionalJar: javafx.graphics

Sub Process_Globals
    Private fx As JFX
    Private MainForm As Form
    Private xui As XUI

    Dim st As JavaObject
    Dim stb As JavaObject

    Dim t As Timer

End Sub

Sub AppStart (Form1 As Form, Args() As String)
    MainForm = Form1
    MainForm.RootPane.LoadLayout("Layout1")
    MainForm.Show

    st.InitializeNewInstance("eu.hansolo.enzo.signaltower.SignalTower" , Null)
    stb.InitializeStatic("eu.hansolo.enzo.signaltower.SignalTowerBuilder")

    st = stb.RunMethodJO("create", Null).RunMethod("build", Null)

    MainForm.RootPane.AddNode(st, 2dip, 2dip, 150dip, 300dip)

    st.RunMethod("setColors", Array(False, False, False))

    t.Initialize("t", 1000)

    t.Enabled = True

End Sub


Sub t_tick

    Dim a, b, c As Int
    a= Rnd(0,2)
    b= Rnd(0,2)
    c=Rnd(0,2)

    Dim onoffA As Boolean
    Dim onoffB As Boolean
    Dim onoffC As Boolean

'    If a = 0 Then onoffA = False Else onoffA = True

    onoffA = IIf(a=0, False, True)
    onoffB = IIf(b=0, False, True)
    onoffC = IIf(c=0, False, True)

    st.RunMethod("setColors", Array(onoffA, onoffB, onoffC))


End Sub



Attachments

  • signalTower.jar
    46.6 KB · Views: 7
  • b4jSignalTower.zip
    4.4 KB · Views: 3
