B4A Library SimCard ( also Dual Sim )

This library reads the sim (both, also dual sim), example Serial Number SIM-1 and SIM-2, Number Phone SIM-1 and SIM-2, etc.

SimCard
Author: Devil-App
Version: 2

• SimCard
  Methods:
  • GetDataActivity As String
    Returns a constant indicating the type of activity on a data connection (cellular).
    Return DATA_ACTIVITY_NONE
    Return DATA_ACTIVITY_IN
    Return DATA_ACTIVITY_OUT
    Return DATA_ACTIVITY_INOUT
    Return DATA_ACTIVITY_DORMANT
    Example:<code>
    Dim sim As SimCard
    Dim torna As String
    torna = sim.GetDataActivity </code>
  • GetDataState As String
    Returns a constant indicating the current data connection state (cellular).
    Return DATA_DISCONNECTED
    Return DATA_CONNECTING
    Return DATA_CONNECTED
    Return DATA_SUSPENDED
    Example:<code>
    Dim sim As SimCard
    Dim torna As String
    torna = sim.GetDataState </code>
  • GetLine1Number As String
    Reads NumberPhone-1 and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetLine1Number</code>
  • GetLine2Number As String
    Reads NumberPhone-2 and returns its content as a string.
    Example:<code>
    Note: Utilize sim.IsDualSIM
    Dim sim As SimCard
    Dim text As String
    text = sim.GetLine2Number</code>
  • GetMmsAgent As String
    Reads MMS user Agent and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetMmsAgent</code>
  • GetMmsURL As String
    Reads MMS user Agent profile URL and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetMmsURL</code>
  • GetNetworkCountryIso As String
    Returns the ISO country code equivalent of the current registered operator's MCC (Mobile Country Code) and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetNetworkCountryIso</code>
  • GetNetworkOperator As String
    Returns the numeric name (MCC+MNC) of current registered operator and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetNetworkOperator</code>
  • GetNetworkOperatorName As String
    Returns the operator name (MCC+MNC) of current registered operator and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetNetworkOperator</code>
  • GetPhoneType As String
    Returns a constant indicating the device phone type. This indicates the type of radio used to transmit voice calls.
    Return PHONE_TYPE_NONE
    Return PHONE_TYPE_GSM
    Return PHONE_TYPE_CDMA
    Return PHONE_TYPE_SIP
    Example:<code>
    Dim sim As SimCard
    Dim torna As String
    torna = sim.GetPhoneType </code>
  • GetSimCountryIso As String
    Returns the ISO country code equivalent for the SIM provider's country code and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSimCountryIso</code>
  • GetSimOperator As String
    Returns the MCC+MNC (mobile country code + mobile network code) of the provider of the SIM. and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSimOperator</code>
  • GetSimOperatorName As String
    Returns the Service Provider Name (SPN) and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSimOperatorName</code>
  • GetSimSerialNumber1 As String
    Returns the serial number of the SIM, if applicable and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSimSerialNumber</code>
  • GetSimSerialNumber2 As String
    Returns the serial number of the SIM-2, if applicable and returns its content as a string.
    Example:<code>
    Note: Utilize sim.IsDualSIM
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSimSerialNumber</code>
  • GetSimState As String
    Returns a constant indicating the state of the device SIM card.
    Return SIM_STATE_UNKNOWN
    Return SIM_STATE_ABSENT - SIM card state: no SIM card is available in the device
    Return SIM_STATE_PIN_REQUIRED - SIM card state: Locked: requires the user's SIM PIN to unlock
    Return SIM_STATE_PUK_REQUIRED - SIM card state: Locked: requires the user's SIM PUK to unlock
    Return SIM_STATE_NETWORK_LOCKED - SIM card state: Locked: requries a network PIN to unlock
    Return SIM_STATE_READY
    Example:<code>
    Dim sim As SimCard
    Dim torna As String
    torna = sim.GetSimState </code>
  • GetSubscriberId As String
    Returns the unique subscriber ID, for example, the IMSI for a GSM phone and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetSubscriberId</code>
  • GetVoiceMailAlphaTag As String
    Retrieves the alphabetic identifier associated with the voice mail number and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetVoiceMailAlphaTag</code>
  • GetVoiceMailNumber As String
    Returns the voice mail number and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.GetVoiceMailNumber </code>
  • HasIccCard As Boolean
    Returns true if a ICC card is present.
    Example:<code>
    Dim sim As SimCard
    Dim vero As boolean
    vero = sim.HasIccCard </code>
  • Imei As String
    Reads IMEI for GSM and the MEDI or ESN for CDMA phones and returns its content as a string.
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.Imei</code>
  • Imei2 As String
    Reads IMEI2 for GSM and the MEDI or ESN for CDMA phones and returns its content as a string.
    Note: Utilize sim.IsDualSIM and IsSIM2Ready
    Example:<code>
    Dim sim As SimCard
    Dim text As String
    text = sim.Imei2</code>
  • Initialize
    Initialize - <link>Documentation:|http://developer.android.com/refere...TelephonyManager.html#SIM_STATE_ABSENT</link>.
    Example:<code>
    Dim sim As SimCard
    sim.Initialize()</code>
  • IsDualSIM As Boolean
    Check if is DUAL SIM.
    Example:<code>
    Dim sim As SimCard
    Dim vero As boolean
    vero = sim.IsDualSIM</code>
  • IsNetworkRoaming As Boolean
    Returns true if the device is considered roaming on the current network, for GSM purposes.
    Example:<code>
    Dim sim As SimCard
    Dim vero As boolean
    vero = sim.IsNetworkRoaming </code>
  Permissions:
  • android.permission.READ_PHONE_STATE

Very simple to use:

sim.Initialize()
    Log("1: - " & sim.GetDataActivity)
    Log("2: - " & sim.GetDataState)
    Log("3: - " & sim.GetLine1Number)
    Log("4: - " & sim.GetLine2Number)
    Log("5: - " & sim.GetMmsAgent)
    Log("6: - " & sim.GetMmsURL)
    Log("7: - " & sim.GetNetworkCountryIso)
    Log("8: - " & sim.GetNetworkOperator)
    Log("9: - " & sim.GetPhoneType)
    Log("10: - " & sim.GetSimCountryIso)
    Log("11: - " & sim.GetSimOperator)
    Log("12: - " & sim.GetSimOperatorName)
    Log("13: - " & sim.GetSimState)
    Log("14: - " & sim.GetSubscriberId)
    Log("15: - " & sim.GetVoiceMailAlphaTag)
    Log("16: - " & sim.GetVoiceMailNumber)
    Log("17: - " & sim.HasIccCard)
    Log("18: - " & sim.Imei)
    Log("19: - " & sim.Imei2)
    Log("20: - " & sim.IsNetworkRoaming)
    Log("21: - " & sim.IsDualSIM)
    Log("22: - " & sim.GetSimSerialNumber1)
    Log("23: - " & sim.GetSimSerialNumber2)
    Log("24: - " & sim.GetLine2Number)
    Log("25: - " & sim.GetNetworkOperatorName)

Rel 2 -- > ADD THIS



[G-ShadoW]

GetLine1Number: java.lang.StringIndexOutOfBoundsException: length=0; index=0



[MarcoRome]

I try one minute ago with samsung and without Try / Catch, this is result:



[MarcoRome]

You can try also this ( Library Phone B4A )

    Dim pId As PhoneId
    Log( pId.GetLine1Number )



[yuhong]

GetSubscriberId,
Take the second card does not support for the IMSI.

regards.



[MarcoRome]

GetSubscriberId,
Take the second card does not support for the IMSI.

regards.

Reading THIS



[yuhong]

Reading THIS

Thank you very much for help,Now ,i invoke sim.GetSimSerialNumber2, fetch null value.
In fact, i inserted two sim cards.
Device:Xiaomi
Model No：HM NOTE 1S
android :4.4.4
CPU:Qualcomm MSM8916



[fabricio]

I try test lib:

B4A version: 5.80
Parsing code. (0.00s)
Compiling code. (0.02s)
Compiling layouts code. (0.00s)
Generating R file. (0.42s)
Compiling generated Java code. Error
Cannot find: C:\Program Files (x86)\Anywhere Software\Basic4android\libraries\telephonyinfo.jar



[MarcoRome]

I try test lib:

B4A version: 5.80
Parsing code. (0.00s)
Compiling code. (0.02s)
Compiling layouts code. (0.00s)
Generating R file. (0.42s)
Compiling generated Java code. Error
Cannot find: C:\Program Files (x86)\Anywhere Software\Basic4android\libraries\telephonyinfo.jar

You found this file telephonyinfo.jar in library Rel.1. Now i have add also in 2



[fabricio]

You found this file telephonyinfo.jar in library Rel.1. Now i have add also in 2

Thank you



[MarcoRome]

Thank you

The next time dont write "thank you" is sufficient that you Click "Like" ( see down any post )



[stratus]

I have a problem with getline1number.The result is the serialsimnumber and not the line number.Is there any way to get the simline number?
Thanks



[MarcoRome]

I have a problem with getline1number.The result is the serialsimnumber and not the line number.Is there any way to get the simline number?
Thanks

Look Answer #23



[tuhatinhvn]

can i get GetSimOperatorName for sim 2??



[MarcoRome]

can i get GetSimOperatorName for sim 2??

There was no native support for multiple SIMs in Android before API 22 ( Andordi 5.1 or > ). Solutions will vary depending on the manufacturer/vendor.

Now you have JavaObejct Library that is very very power. So you can call method or another thing in very simple mode.
As suggestion to @Erel in this POST you can use this code:

    Dim manager As JavaObject
    Dim context As JavaObject
    context.InitializeContext
    manager = manager.InitializeStatic("android.telephony.SubscriptionManager").RunMethod("from", Array(context))
    Dim infos As List = manager.RunMethod("getActiveSubscriptionInfoList", Null)
    For Each info As JavaObject In infos
        Log(info)
        'work with info
        'http://developer.android.com/reference/android/telephony/SubscriptionInfo.html
        Log(info.RunMethod("getCarrierName", Null)) 'Operator Name
    Next

//*** carrierName = getNetworkOperatorName
// Get System TELEPHONY service reference
TelephonyManager tManager = (TelephonyManager) getBaseContext()
.getSystemService(Context.TELEPHONY_SERVICE);

// Get carrier name (Network Operator Name)
String carrierName = tManager.getNetworkOperatorName();

// Get Phone model and manufacturer name
String manufacturer = Build.MANUFACTURER;
String model = Build.MODEL;



[Indonesian Cloud Helpdesk]

Thank you



[Mikonios]

Everything seems correct. It compiles and executes without errors but the telephone number that it gives does not match anywhere near the telephone number of the device !!!
Why ???



[MarcoRome]

Everything seems correct. It compiles and executes without errors but the telephone number that it gives does not match anywhere near the telephone number of the device !!!
Why ???

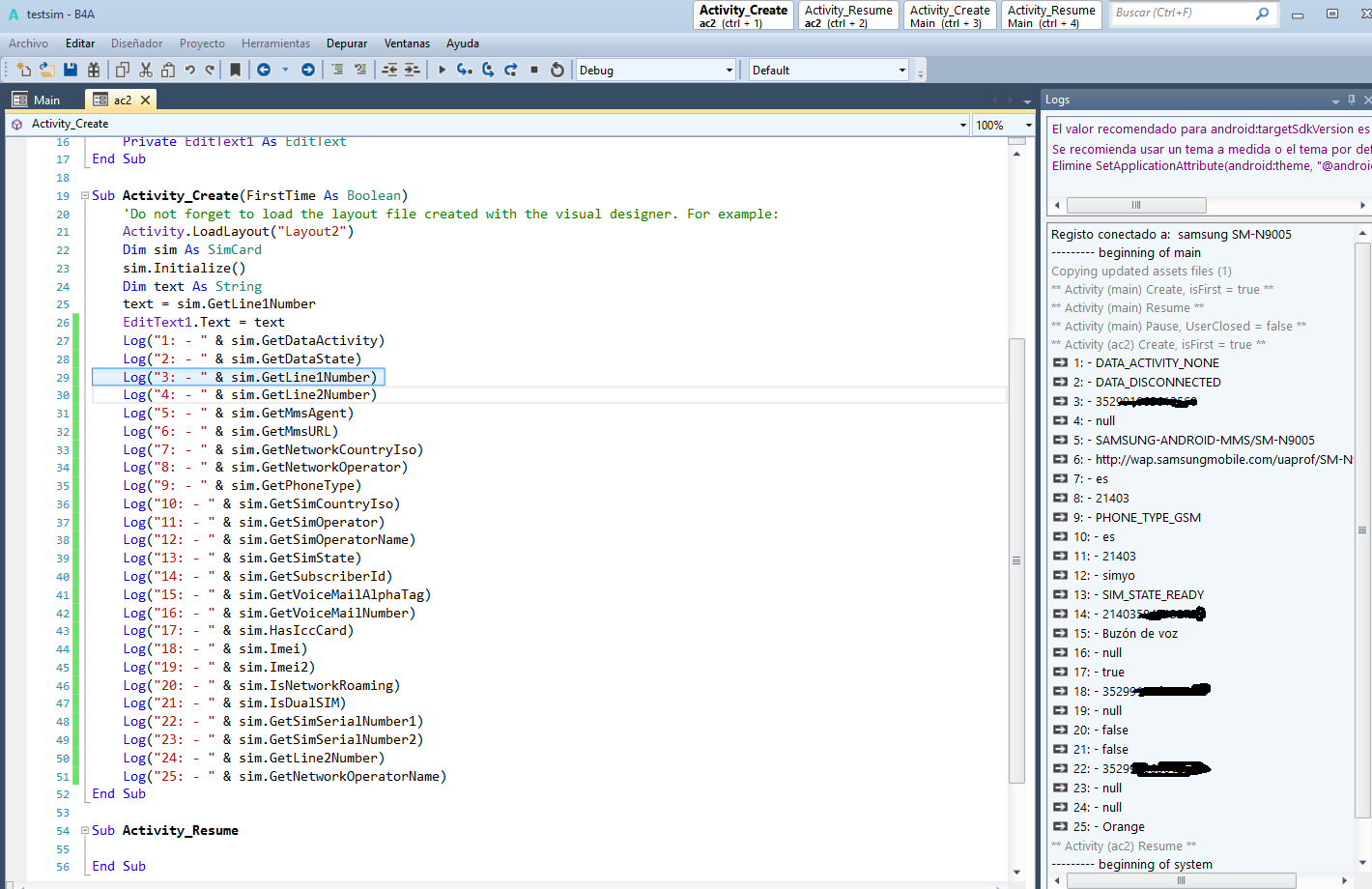

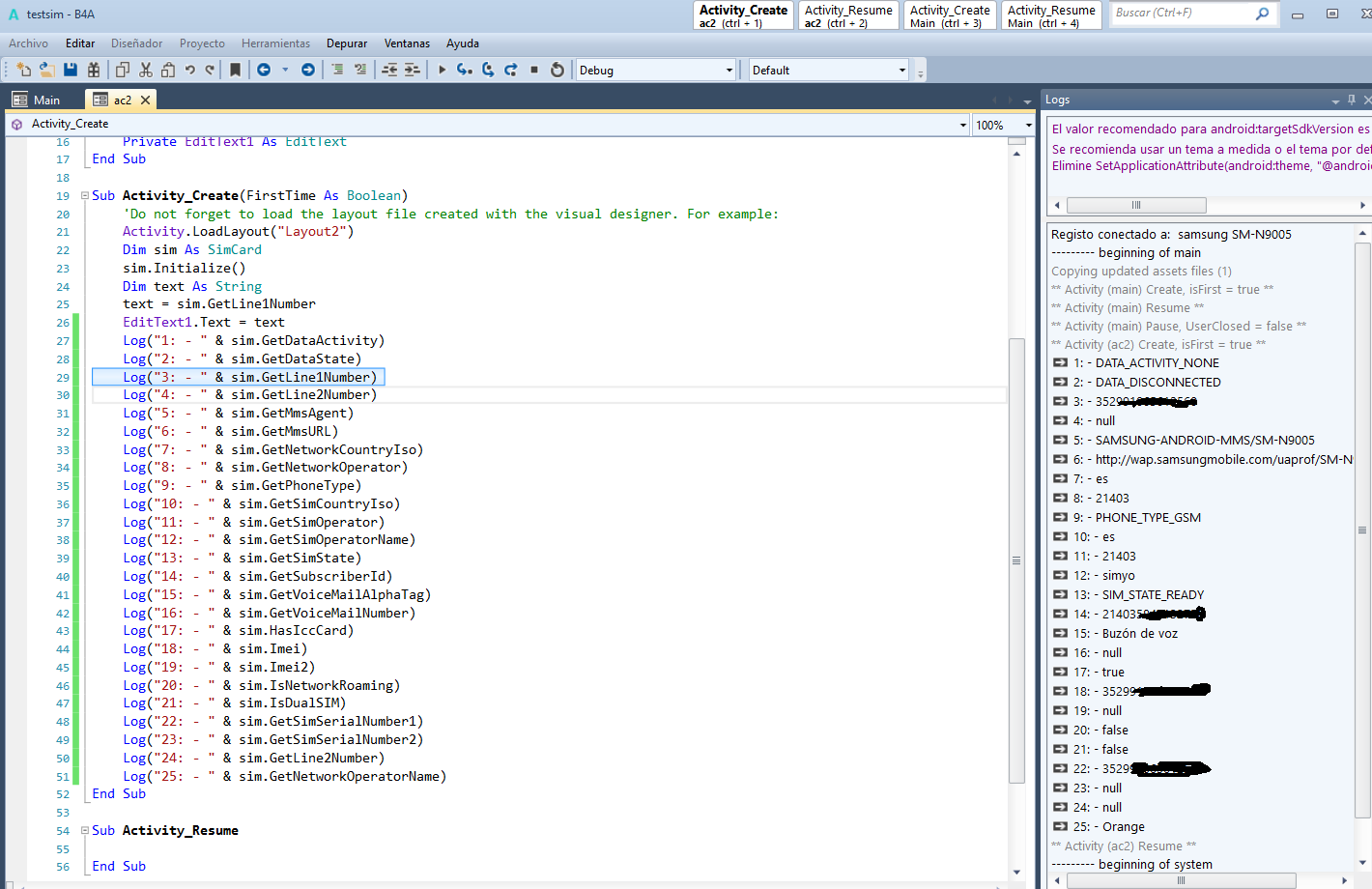

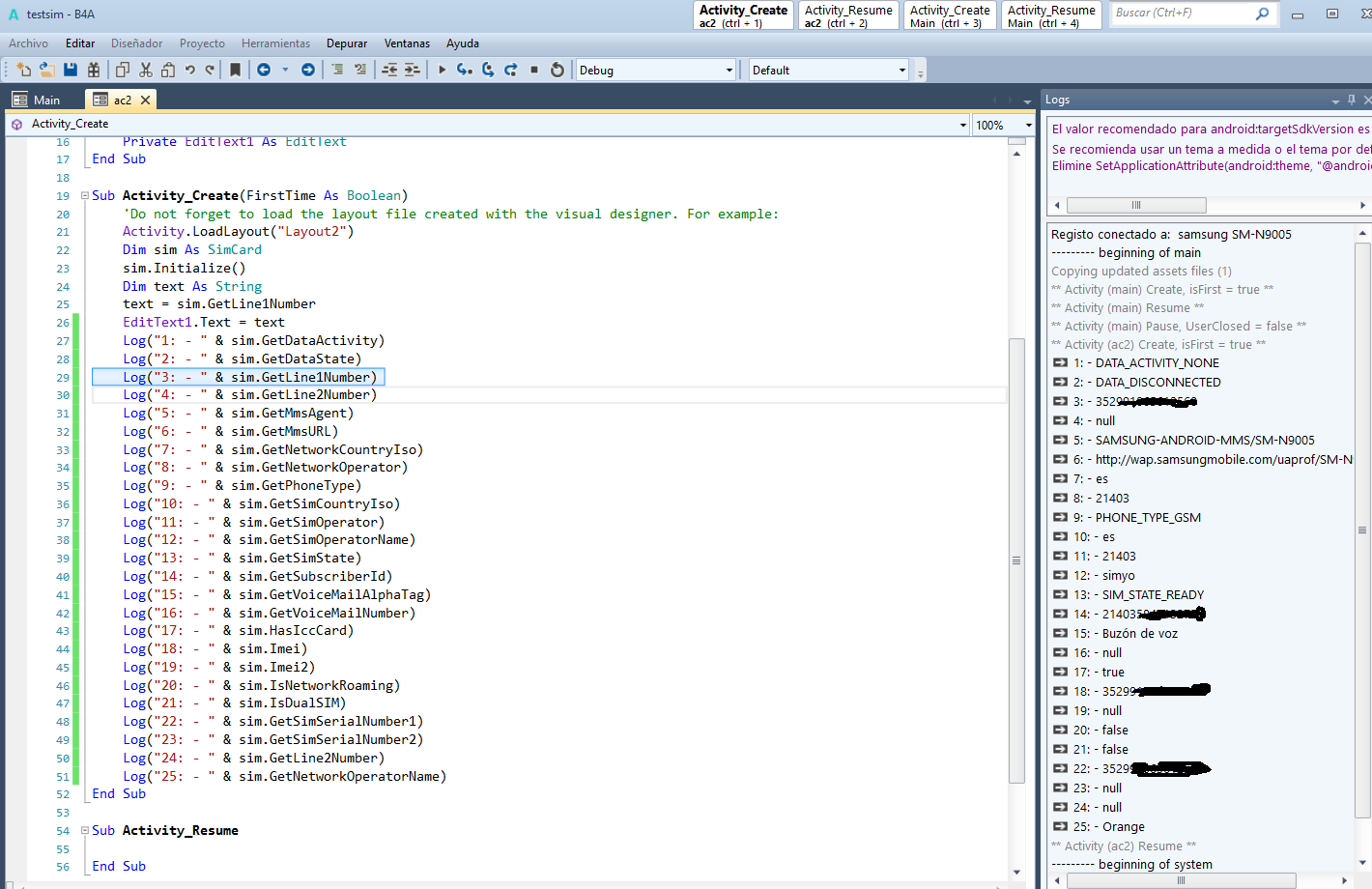

View attachment 93546

Try PhoneId.GetLine1Number (Phone library).
If you have same result read this:

But remember, this code does not always work, since Cell phone number is dependent on the SIM Card and the Network operator / Cell phone carrier.

Also, try checking in Phone--> Settings --> About --> Phone Identity, If you are able to view the Number there, the probability of getting the phone number from above code is higher. If you are not able to view the phone number in the settings, then you won't be able to get via this code!

Suggested Workaround:

1. Get the user's phone number as manual input from the user.
2. Send a code to the user's mobile number via SMS.
3. Ask user to enter the code to confirm the phone number.
4. Save the number in sharedpreference.

Do the above 4 steps as one time activity during the app's first launch. Later on, whenever phone number is required, use the value available in shared preference.
( https://www.semicolonworld.com/question/48355/get-my-phone-number-in-android )



[NamR]

Try PhoneId.GetLine1Number (Phone library).
If you have same result read this:

Hi MarcoRome,

I think the value of GetLine1Number and GetLine2Number are the IMEI's, not the phone numbers



[MarcoRome]

Hi MarcoRome,

I think the value of GetLine1Number and GetLine2Number are the IMEI's, not the phone numbers

No.

/**
* Reads NumberPhone-1 and returns its content as a string.
*Example:<code>
*Dim sim As SimCard
*Dim text As String
*text = sim.GetLine1Number</code>
*/
  public String GetLine1Number() {
     String telephoneNumber = telephonyInfo.getNumberline1();
        if (telephoneNumber != null && telephoneNumber.charAt(0) == '+') {
            telephoneNumber=telephoneNumber.substring(1);
        }
        if (telephoneNumber != null && telephoneNumber.length() > 10 && telephoneNumber.charAt(0) == '1') {
            telephoneNumber=telephoneNumber.substring(1);
        }
     return telephonyInfo.getNumberline1();
    }



/**
* Reads NumberPhone-2 and returns its content as a string.
*Example:<code>
* Note: Utilize sim.IsDualSIM
*Dim sim As SimCard
*Dim text As String
*text = sim.GetLine2Number</code>
*/
  public String GetLine2Number() {
     String telephoneNumber = telephonyInfo.getNumberline2();
        if (telephoneNumber != null && telephoneNumber.charAt(0) == '+') {
            telephoneNumber=telephoneNumber.substring(1);
        }
        if (telephoneNumber != null && telephoneNumber.length() > 10 && telephoneNumber.charAt(0) == '1') {
            telephoneNumber=telephoneNumber.substring(1);
        }
     return telephonyInfo.getNumberline2();
    }
